6-43 — SIDE TRIM (#95511) — 34 parça

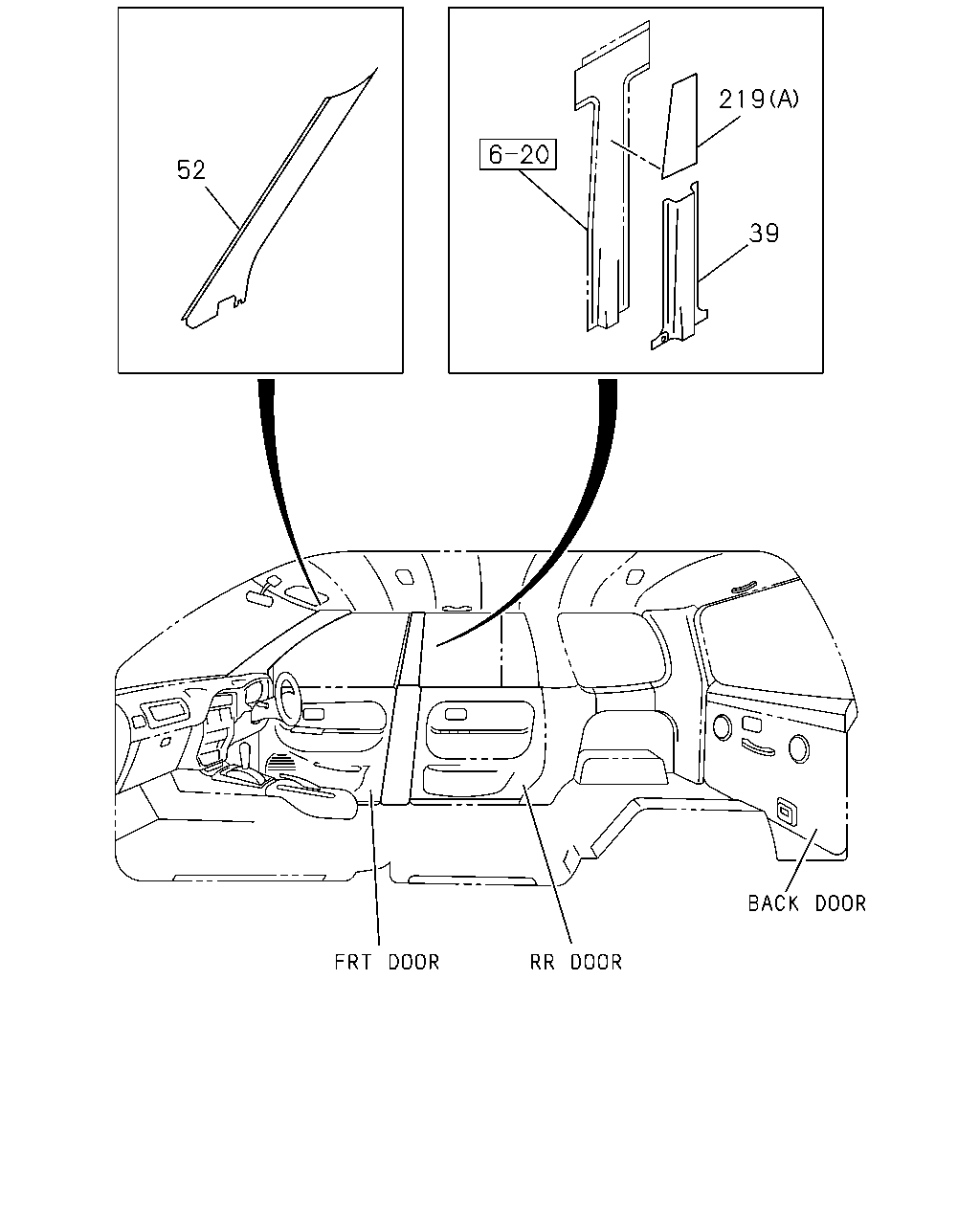

çizim 289147
52 219 39
BalonParca AdiParca NoAdetTipApplied Date
39 COVER; TRIM,CENTER PILLAR
GRAY IDN 		8-97560-641-5 01 1 0201-
39 COVER; TRIM,CENTER PILLAR
GRAY IDN 		8-97560-640-5 01 1 0201-
52 COVER; TRIM,FRT PILLAR
LIGHT GRAY IDN 		8-97957-220-2 01 1 0201-
52 COVER; TRIM,FRT PILLAR
LIGHT GRAY IDN 		8-97957-219-2 01 1 0201-
219 PAD; PILLAR,SOFT
(A) IDN 		8-97957-616-1 02 1 0201-
219 PAD; PILLAR,SOFT
(B) IDN 		8-97958-116-1 01 1 0201-
219 PAD; PILLAR,SOFT
(B) IDN 		8-97957-617-1 01 1 0201-

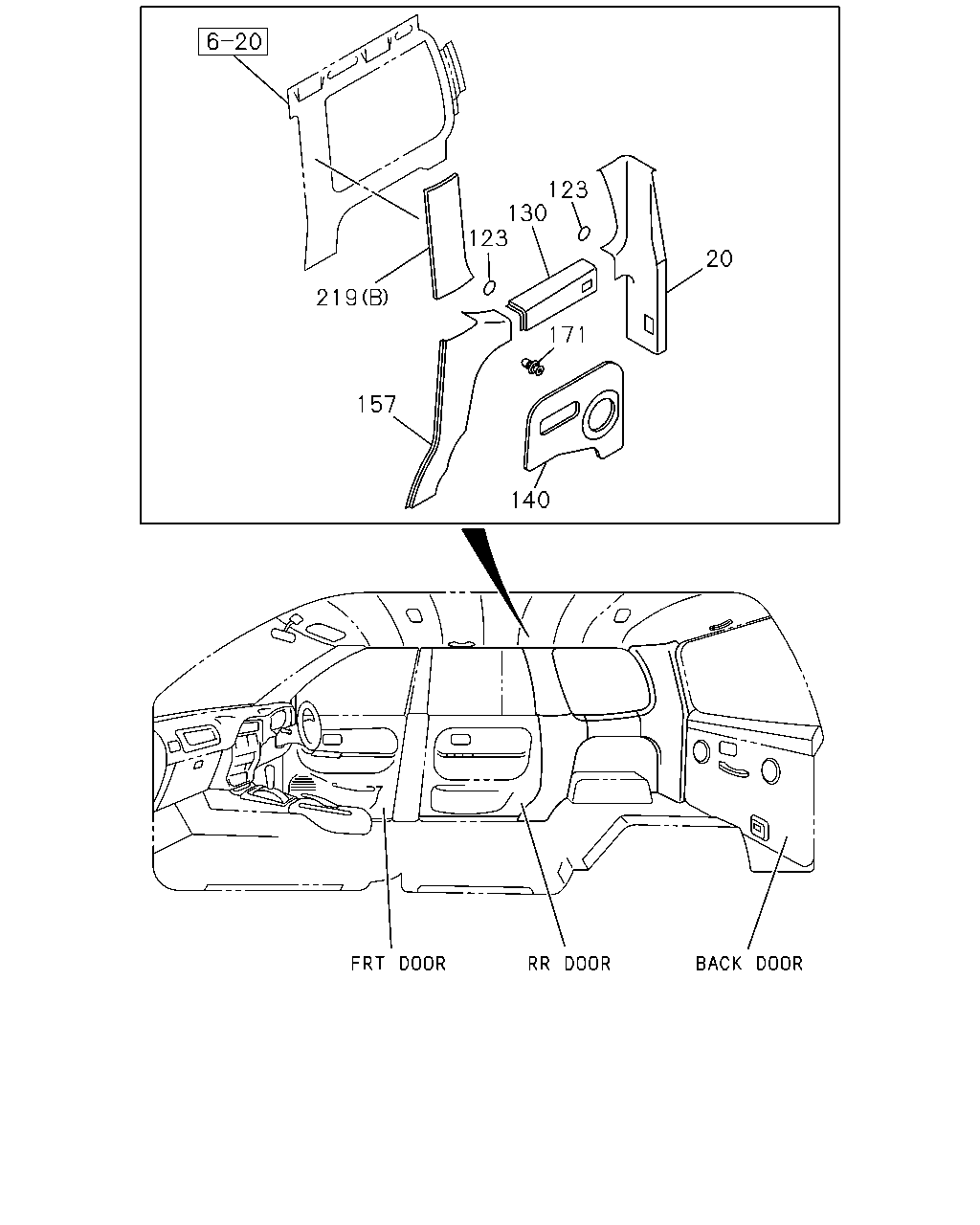

çizim 289179
219 157 123 130 123 20 171 140
BalonParca AdiParca NoAdetTipApplied Date
20 COVER; TRIM,RR PILLAR
3RD SEAT 7 PASSENGERS<AS3> GRAY IDN 		8-97560-647-1 01 1 0201-
20 COVER; TRIM,RR PILLAR
3RD SEAT 7 PASSENGERS<AS3> GRAY IDN 		8-97560-646-1 01 1 0201-
20 COVER; TRIM,RR PILLAR
EXC. 3RD SEAT 7 PASSENGERS<AS3> GRAY IDN 		8-97560-645-4 01 1 0201-
20 COVER; TRIM,RR PILLAR
EXC. 3RD SEAT 7 PASSENGERS<AS3> GRAY IDN 		8-97560-644-4 01 1 0201-
123 SEAL; RR QUARTER
OD=20 T=0.05 WHITE IDN 		8-97856-832-2 04 1 0201-
130 COVER; TRIM,QUARTER PILLAR
3RD SEAT 7 PASSENGERS<AS3> GRAY IDN 		8-97560-655-1 01 1 0201-
130 COVER; TRIM,QUARTER PILLAR
3RD SEAT 7 PASSENGERS<AS3> GRAY IDN 		8-97560-654-1 01 1 0201-
130 COVER; TRIM,QUARTER PILLAR
EXC. 3RD SEAT 7 PASSENGERS<AS3> GRAY IDN 		8-97560-653-6 01 1 0201-
130 COVER; TRIM,QUARTER PILLAR
EXC. 3RD SEAT 7 PASSENGERS<AS3> GRAY IDN 		8-97560-652-6 01 1 0201-
140 PAD; TRIM,QTR
3RD SEAT 7 PASSENGERS<AS3> GRAY IDN 		8-97959-463-1 01 1 0201-
140 PAD; TRIM,QTR
3RD SEAT 7 PASSENGERS<AS3> GRAY IDN 		8-97959-461-1 01 1 0201-
140 PAD; TRIM,QTR
EXC. 3RD SEAT 7 PASSENGERS<AS3> GRAY IDN 		8-97959-658-1 01 1 0201-
140 PAD; TRIM,QTR
EXC. 3RD SEAT 7 PASSENGERS<AS3> GRAY IDN 		8-97957-253-3 01 1 0201-
157 COVER; TRIM,RR QUARTER
3RD SEAT 7 PASSENGERS<AS3> GRAY IDN 		8-97560-649-1 01 1 0201-
157 COVER; TRIM,RR QUARTER
3RD SEAT 7 PASSENGERS<AS3> GRAY IDN 		8-97560-648-1 01 1 0201-
157 COVER; TRIM,RR QUARTER
EXC. 3RD SEAT 7 PASSENGERS<AS3> GRAY IDN 		8-97560-651-6 01 1 0201-
157 COVER; TRIM,RR QUARTER
EXC. 3RD SEAT 7 PASSENGERS<AS3> GRAY IDN 		8-97560-650-6 01 1 0201-
171 CLIP; TRIM PAD
3RD SEAT 7 PASSENGERS<AS3> H=19.1 		8-94385-553-0 02 1 0305-
171 CLIP; TRIM PAD
H=19.1 		8-94385-553-0 02 1 0305-
171 CLIP; TRIM PAD
EXC. 3RD SEAT 7 PASSENGERS<AS3> H=29.8 		8-97262-708-0 12 1 0305-
171 CLIP; TRIM PAD
H=29.8 		8-97262-708-0 12 1 0201-0304
171 CLIP; TRIM PAD
H=29.8 		8-97262-708-0 11 1 0305-
171 CLIP; TRIM PAD
H=29.8 		8-97262-708-0 13 1 0201-0304
171 CLIP; TRIM PAD
3RD SEAT 7 PASSENGERS<AS3> H=29.8 		8-97262-708-0 10 1 0305-
219 PAD; PILLAR,SOFT
(A) IDN 		8-97957-616-1 02 1 0201-
219 PAD; PILLAR,SOFT
(B) IDN 		8-97958-116-1 01 1 0201-
219 PAD; PILLAR,SOFT
(B) IDN 		8-97957-617-1 01 1 0201-
