50919 - TBR (GM-INDONESIA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-35 - FRONT DOOR TRIM
▶
6-35 — FRONT DOOR TRIM
(#95509) — 15 parça
◀
[635A] DOOR TRIM (10 parça)

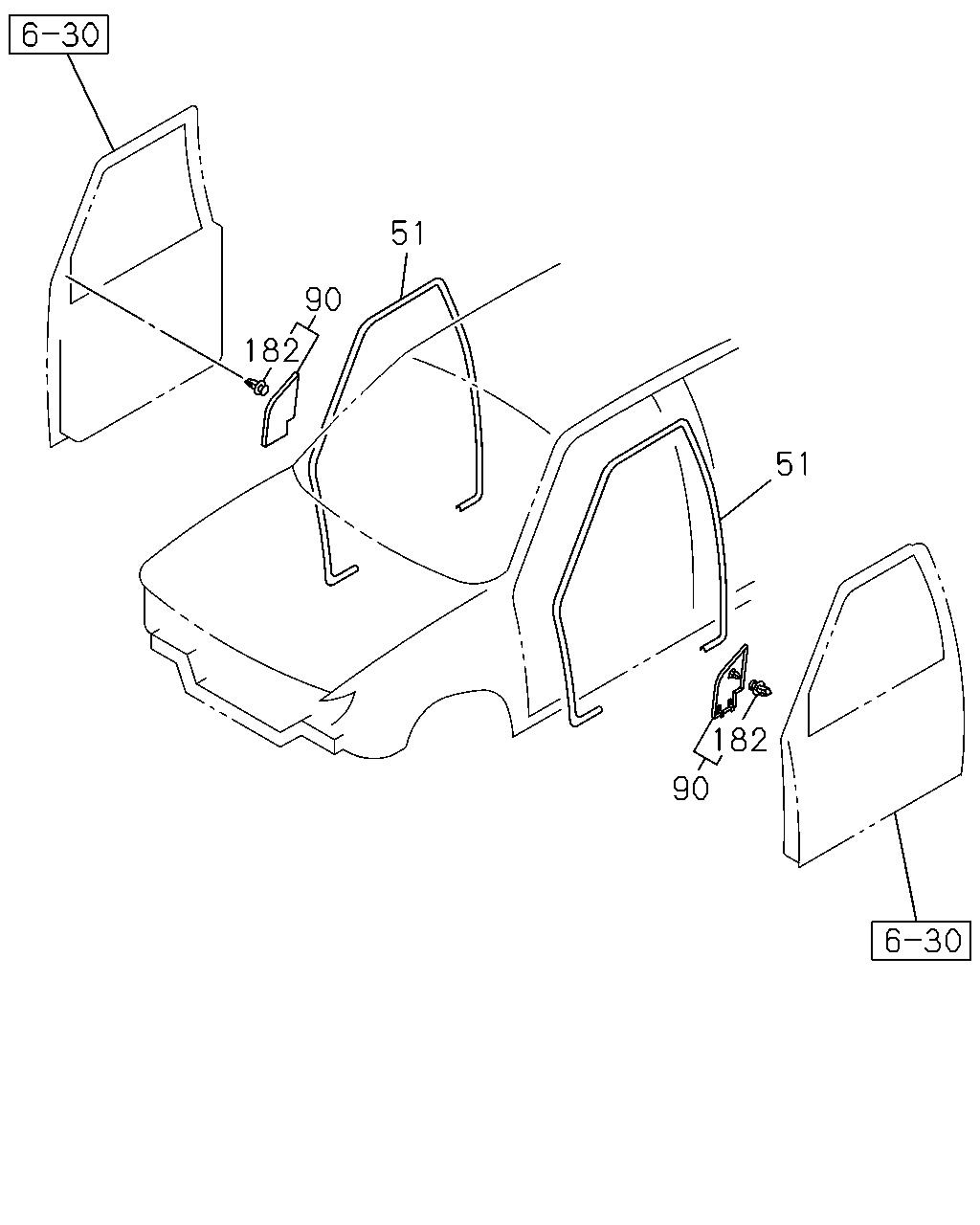

[635A] DOOR CORNER COVER,WEATHERSTRIP (5 parça)
▶
87
23
84
18
18
1
128
54
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAD; TRIM,FRT DOOR
GRAY IDN
8-97560-510-2
01
1
0201-
1
PAD; TRIM,FRT DOOR
GRAY IDN
8-97560-509-2
01
1
0201-
18
CLIP; DOOR PAD
(B) B=8.4 H=16 CR-PLATED IDN
8-94116-002-3
06
1
0201-
18
CLIP; DOOR PAD
(A) H=16.3 IDN
8-97126-393-0
12
1
0201-
18
CLIP; DOOR PAD
(A) H=20.6 D8X13.8 IDN
8-97260-948-0
06
1
0201-
23
BRACKET; DOOR TRIM
IDN
8-97955-688-0
02
1
0201-
54
BOX; FRT DOOR
GRAY
8-97196-884-0
02
1
0201-
84
SCREW; BOX BRKT
M6X25 TAPPING
9-07077-625-0
06
1
0201-
87
GROMMET; SCREW,BRKT
IDN
8-94481-286-2
06
1
0201-
128
SCREW; TAP
M5X16 IDN
8-94380-268-0
02
1
0201-
51
90
182
51
182
90
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
51
WEATHERSTRIP; FRONT DOOR
8-97248-141-1
02
1
0201-0402
51
WEATHERSTRIP; FRONT DOOR
IDN
8-97562-376-0
02
1
0403-
90
COVER; DOOR CORNER
IDN
8-97959-122-0
01
1
0201-
90
COVER; DOOR CORNER
IDN
8-97959-121-0
01
1
0201-
182
CLIP; COVER
H=16.3 IDN
8-97126-393-0
02
1
0201-
