◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50919 - TBR (GM-INDONESIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-32 - FRONT DOOR LOCK AND HANDLE ▶
6-32 — FRONT DOOR LOCK AND HANDLE (#95508) — 36 parça

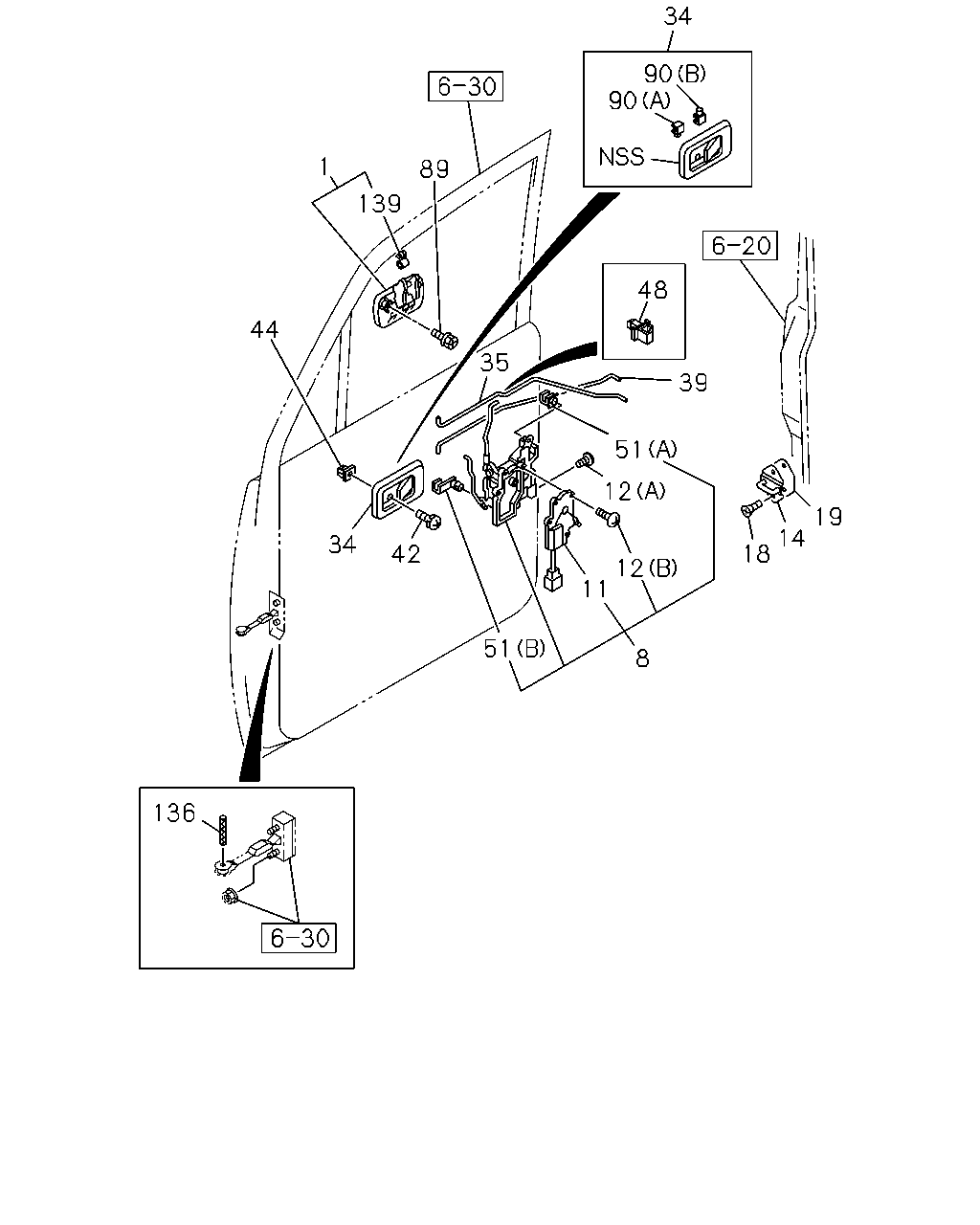

çizim 289037
34 90 90 89 139 1 44 34 42 51 8 11 12 18 14 19 35 48 39 51 12 136
BalonParca AdiParca NoAdetTipApplied Date
1 HANDLE; OUTSIDE,FRT DOOR
IDN 		8-97072-485-1 01 1 0201-
1 HANDLE; OUTSIDE,FRT DOOR
IDN 		8-97072-484-1 01 1 0201-
8 LOCK; DOOR,FRT DOOR 8-97250-482-2 01 1 0201-
8 LOCK; DOOR,FRT DOOR 8-97250-481-2 01 1 0201-
11 ACTUATOR; DOOR LK,FRT 8-97251-147-2 01 1 0201-
11 ACTUATOR; DOOR LK,FRT 8-97251-146-2 01 1 0201-
12 SCREW; DOOR LK
(A) M6X16 OVAL-HD IDN 		8-94172-523-0 06 1 0201-
12 SCREW; DOOR LK
(B) 		8-97264-641-0 02 1 0201-
12 SCREW; DOOR LK
(B) 		8-97264-615-0 02 1 0201-
14 STRIKER; FRT DOOR 8-94115-959-0 02 1 0201-
18 SCREW; DOOR STRIKER
M8X20 		9-03097-820-0 04 1 0201-0604
18 SCREW; DOOR STRIKER
M8X20 		0-30218-820-0 04 1 0605-
19 SHEET; ADJ,DOOR STRIKER
IDN 		8-94239-378-0 AR 1 0201-
34 HANDLE; INSIDE,FRT DOOR
GRAY IDN 		8-97196-874-0 01 1 0201-0305
34 HANDLE; INSIDE,FRT DOOR
GRAY 		8-97398-370-0 01 1 0306-
34 HANDLE; INSIDE,FRT DOOR
GRAY IDN 		8-97196-873-0 01 1 0201-0305
34 HANDLE; INSIDE,FRT DOOR
GRAY 		8-97398-369-0 01 1 0306-
35 LINK; DOOR LOCK,INSIDE 8-97250-468-0 01 1 0201-
35 LINK; DOOR LOCK,INSIDE 8-97250-467-0 01 1 0201-
39 LINK; INSIDE HANDLE,FRT DOOR 8-97250-471-0 01 1 0201-
39 LINK; INSIDE HANDLE,FRT DOOR 8-97250-470-0 01 1 0201-
42 SCREW; TAPPING,INSIDE LEVER
M5X14 IDN 		8-94152-495-0 02 1 0201-
44 GROMMET; SCREW,INSIDE HANDLE
IDN 		8-94152-494-0 02 1 0201-
48 ANTIRATTLER; DOOR LINK 8-97126-660-0 04 1 0201-
51 SNAP; FRT DOOR LOCK CONT ROD
(A) 		8-97264-614-0 01 1 0201-
51 SNAP; FRT DOOR LOCK CONT ROD
(B) 		8-97264-640-0 01 1 0201-
51 SNAP; FRT DOOR LOCK CONT ROD
(A) 		8-97264-613-0 01 1 0201-
51 SNAP; FRT DOOR LOCK CONT ROD
(B) 		8-97264-639-0 01 1 0201-
89 BOLT; DOOR OUTSIDE HANDLE
M6X8 IDN 		8-94155-893-0 04 1 0201-
90 CLIP; DOOR LK LINK
(A) IDN 		8-97079-979-0 01 1 0201-
90 CLIP; DOOR LK LINK
(B) IDN 		8-97080-106-0 01 1 0201-
90 CLIP; DOOR LK LINK
(A) IDN 		8-97079-978-0 01 1 0201-
90 CLIP; DOOR LK LINK
(B) IDN 		8-97080-105-0 01 1 0201-
136 PIN; DOOR HINGE 8-97020-859-0 02 1 0201-
139 HOLDER; ROD,DOOR HANDLE
BROWN IDN 		8-97037-509-0 01 1 0201-
139 HOLDER; ROD,DOOR HANDLE
WHITE IDN 		8-97037-508-0 01 1 0201-
