50919 - TBR (GM-INDONESIA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-30 - FRONT DOOR AND HINGE
▶
6-30 — FRONT DOOR AND HINGE
(#95506) — 20 parça
◀
[630A] HINGE (12 parça)

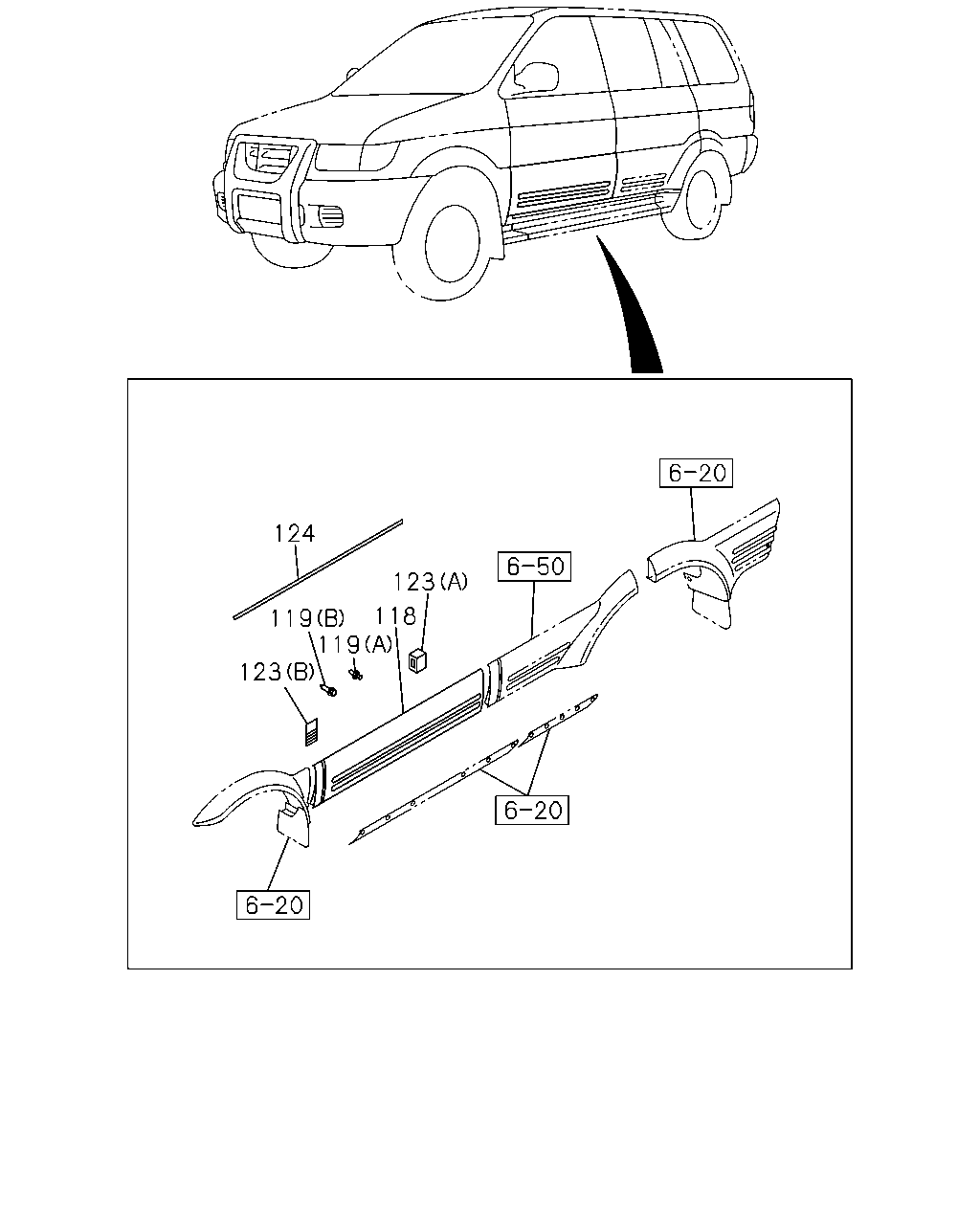

[630A] EXTENSION (8 parça)
▶
9
6
1
2
3
5
5
5
3
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DOOR ASM; FRT,WO/TRIM
IDN
8-97959-826-0
01
1
0201-
1
DOOR ASM; FRT,WO/TRIM
IDN
8-97959-825-0
01
1
0201-
2
PANEL; FRT DOOR OUTER
IDN
8-97958-043-1
01
1
0201-
2
PANEL; FRT DOOR OUTER
IDN
8-97958-042-1
01
1
0201-
3
HINGE; DOOR FRT
(B) LOWER
8-94155-315-2
01
1
0201-
3
HINGE; DOOR FRT
(A) UPPER
8-94230-393-4
01
1
0201-
3
HINGE; DOOR FRT
(B) LOWER
8-94155-314-2
01
1
0201-
3
HINGE; DOOR FRT
(A) UPPER
8-94230-392-4
01
1
0201-
5
BOLT; HINGE
M8X23 FLANGE IDN
8-94174-559-2
08
1
0201-
5
BOLT; HINGE
M8X23 FLANGE IDN
8-94174-559-2
08
1
0201-
6
ARM; CHECK,FRT DOOR
8-94358-619-1
02
1
0201-
9
NUT; CHECK ARM
M6 FLANGE IDN
5-09440-004-0
04
1
0201-
124
123
118
119
123
119
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
118
EXTENSION; FRT DOOR
IDN
8-97959-998-0
01
1
0201-
118
EXTENSION; FRT DOOR
IDN
8-97959-997-0
01
1
0201-
119
CLIP; EXTENSION
(A) IDN
8-97105-922-0
02
1
0201-
119
CLIP; EXTENSION
(B) IDN
8-97117-942-0
22
1
0201-
123
SPACER ASM; EXT DOOR
(A) IDN
8-97959-963-1
10
1
0201-
123
SPACER ASM; EXT DOOR
(B) IDN
8-97959-967-1
01
1
0201-
123
SPACER ASM; EXT DOOR
(B) IDN
8-97959-966-1
01
1
0201-
124
FINISHER; EXT,FRT DOOR
IDN
8-97307-379-1
02
1
0201-
