6-20 — SIDE PANEL AND STEP (#95505) — 126 parça

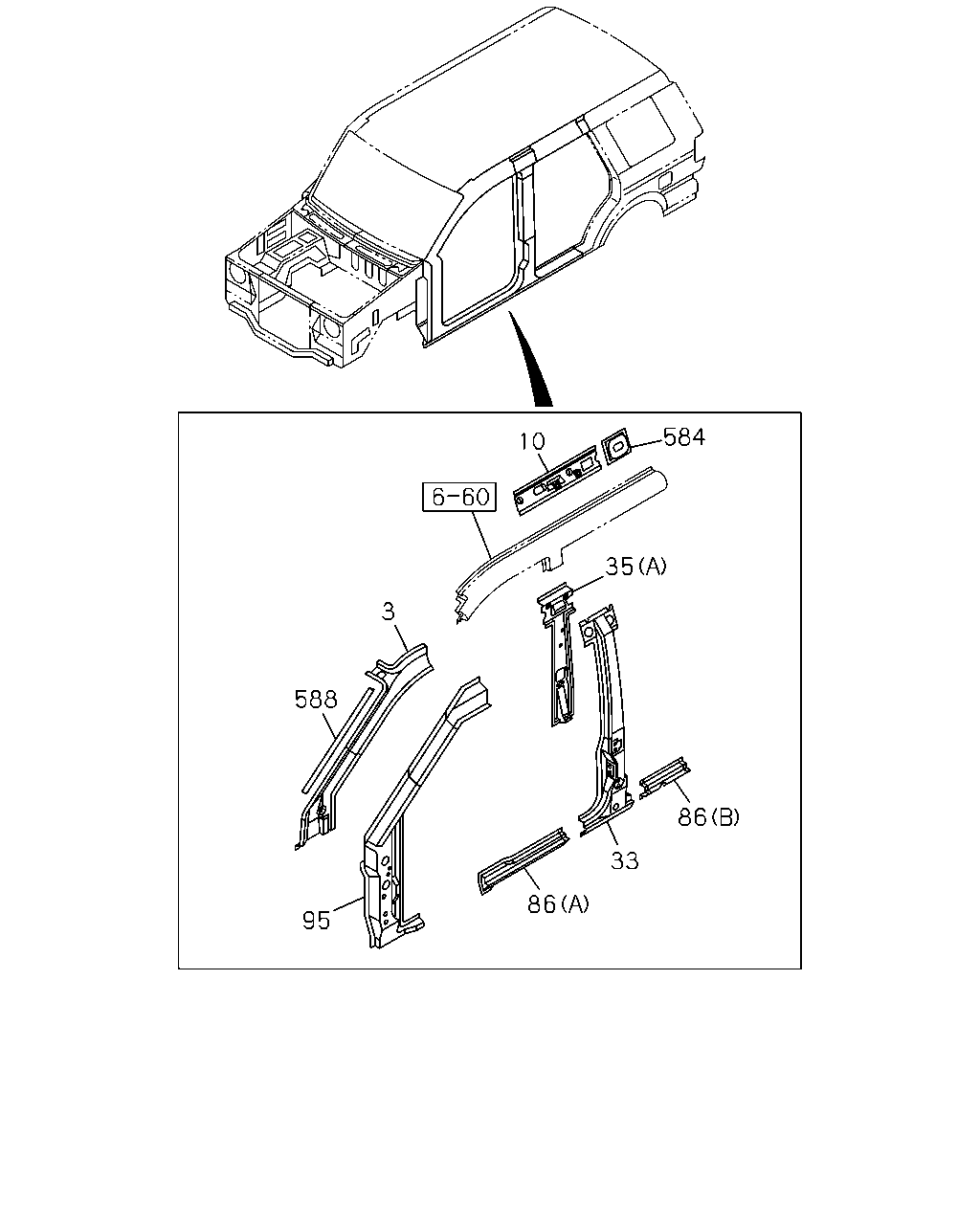

10 584 35 3 588 86 33 86 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	PANEL; CLOSING,FRT PILLAR IDN	8-97955-733-0	01	1	0201-
3	PANEL; CLOSING,FRT PILLAR IDN	8-97955-732-0	01	1	0201-
10	CLOSING; ROOF SIDE IDN	8-97955-771-1	01	1	0201-
10	CLOSING; ROOF SIDE IDN	8-97955-770-1	01	1	0201-
33	PANEL; CENTER PILLAR,OUTER IDN	8-97958-866-0	01	1	0201-
33	PANEL; CENTER PILLAR,OUTER IDN	8-97958-865-0	01	1	0201-
35	PANEL; CENTER PILLAR,INNER (A) IDN	8-97955-753-0	01	1	0201-
35	PANEL; CENTER PILLAR,INNER (B) IDN	8-97956-739-0	01	1	0201-
35	PANEL; CENTER PILLAR,INNER (A) IDN	8-97955-752-0	01	1	0201-
35	PANEL; CENTER PILLAR,INNER (B) IDN	8-97955-837-3	01	1	0201-
35	PANEL; CENTER PILLAR,INNER 3RD SEAT 7 PASSENGERS<AS3> (C) IDN	8-97957-163-0	01	1	0201-
35	PANEL; CENTER PILLAR,INNER 3RD SEAT 7 PASSENGERS<AS3> (C) IDN	8-97955-833-0	01	1	0201-
35	PANEL; CENTER PILLAR,INNER EXC. 3RD SEAT 7 PASSENGERS<AS3> (C) IDN	8-97956-116-0	01	1	0201-
35	PANEL; CENTER PILLAR,INNER EXC. 3RD SEAT 7 PASSENGERS<AS3> (C) IDN	8-97956-115-0	01	1	0201-
86	PANEL; ROCKER OUTER (A) FRONT IDN	8-97958-029-2	01	1	0201-
86	PANEL; ROCKER OUTER (B) REAR IDN	8-97958-033-1	01	1	0201-
86	PANEL; ROCKER OUTER (A) FRONT IDN	8-97958-028-2	01	1	0201-
86	PANEL; ROCKER OUTER (B) REAR IDN	8-97958-032-1	01	1	0201-
95	PILLAR; FRT IDN	8-97955-379-0	01	1	0201-
95	PILLAR; FRT IDN	8-97955-377-0	01	1	0201-
584	PALTE; ROOF SIDE IDN	8-97957-590-0	02	1	0201-
588	RETAINER; MOLDING,SIDE IDN	8-97955-892-0	01	1	0201-
588	RETAINER; MOLDING,SIDE IDN	8-97955-891-0	01	1	0201-

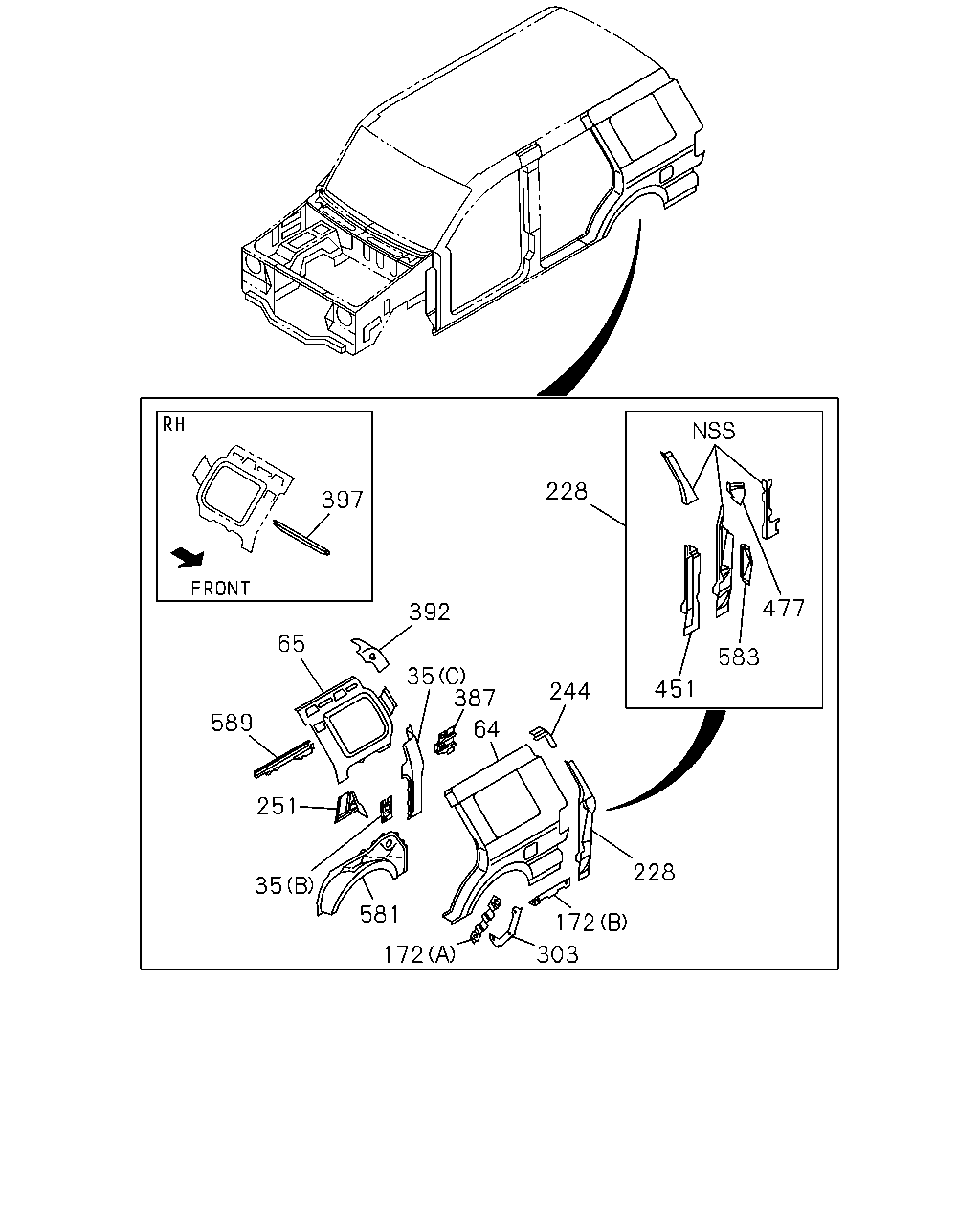

397 392 65 228 589 251 35 387 64 244 451 477 228 172 303 172 581 35 583

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
35	PANEL; CENTER PILLAR,INNER (A) IDN	8-97955-753-0	01	1	0201-
35	PANEL; CENTER PILLAR,INNER (B) IDN	8-97956-739-0	01	1	0201-
35	PANEL; CENTER PILLAR,INNER (A) IDN	8-97955-752-0	01	1	0201-
35	PANEL; CENTER PILLAR,INNER (B) IDN	8-97955-837-3	01	1	0201-
35	PANEL; CENTER PILLAR,INNER 3RD SEAT 7 PASSENGERS<AS3> (C) IDN	8-97957-163-0	01	1	0201-
35	PANEL; CENTER PILLAR,INNER 3RD SEAT 7 PASSENGERS<AS3> (C) IDN	8-97955-833-0	01	1	0201-
35	PANEL; CENTER PILLAR,INNER EXC. 3RD SEAT 7 PASSENGERS<AS3> (C) IDN	8-97956-116-0	01	1	0201-
35	PANEL; CENTER PILLAR,INNER EXC. 3RD SEAT 7 PASSENGERS<AS3> (C) IDN	8-97956-115-0	01	1	0201-
64	PANEL; QUARTER OUTER IDN	8-97958-705-0	01	1	0201-
64	PANEL; QUARTER OUTER IDN	8-97958-704-0	01	1	0201-
65	PANEL; QUARTER,INNER 3RD SEAT 7 PASSENGERS<AS3> IDN	8-97957-161-0	01	1	0201-
65	PANEL; QUARTER,INNER 3RD SEAT 7 PASSENGERS<AS3> IDN	8-97957-159-0	01	1	0201-
65	PANEL; QUARTER,INNER EXC. 3RD SEAT 7 PASSENGERS<AS3> IDN	8-97956-064-0	01	1	0201-
65	PANEL; QUARTER,INNER EXC. 3RD SEAT 7 PASSENGERS<AS3> IDN	8-97955-809-0	01	1	0201-
172	EXTENSION; QUARTER PANEL (A) IDN	8-97958-107-0	01	1	0201-
172	EXTENSION; QUARTER PANEL (B) IDN	8-97958-109-1	01	1	0201-
172	EXTENSION; QUARTER PANEL (A) IDN	8-97958-106-0	01	1	0201-
172	EXTENSION; QUARTER PANEL (B) IDN	8-97958-108-1	01	1	0201-
228	PANEL; RR PILLAR OUTER IDN	8-97955-814-0	01	1	0201-
228	PANEL; RR PILLAR OUTER IDN	8-97955-813-0	01	1	0201-
244	PANEL; RR PILLAR UPR,OUTER IDN	8-97955-836-0	01	1	0201-
244	PANEL; RR PILLAR UPR,OUTER IDN	8-97955-835-0	01	1	0201-
251	EXTENSION; QUARTER PILLAR LWR IDN	8-97955-800-0	01	1	0201-
251	EXTENSION; QUARTER PILLAR LWR IDN	8-97955-799-0	01	1	0201-
303	RETAINER; SIDE SKIRT,ROCKER IDN	8-97955-915-1	01	1	0201-
303	RETAINER; SIDE SKIRT,ROCKER IDN	8-97955-914-1	01	1	0201-
387	BRACKET; 3RD SEAT IDN	8-97956-457-0	02	1	0201-
392	GUSSET; RR PILLAR IDN	8-97955-832-0	01	1	0201-
392	GUSSET; RR PILLAR IDN	8-97955-831-0	01	1	0201-
397	REINFORCEMENT; QUARTER PILLAR INNER IDN	8-97956-608-1	01	1	0201-
451	REINFORCEMENT; GUIDE RAIL IDN	8-97955-827-0	01	1	0201-
451	REINFORCEMENT; GUIDE RAIL IDN	8-97955-826-0	01	1	0201-
477	EXTENSION; RR PILLAR,OUTER IDN	8-97955-818-1	01	1	0201-
477	EXTENSION; RR PILLAR,OUTER IDN	8-97955-817-1	01	1	0201-
581	PANEL; WHEEL HOUSE,OUTER IDN	8-97955-796-0	01	1	0201-
581	PANEL; WHEEL HOUSE,OUTER IDN	8-97955-795-0	01	1	0201-
583	BRACKET; STRIKER,BACK DOOR IDN	8-97955-893-0	01	1	0201-
589	REINFORCEMENT; COOLER UNIT IDN	8-97956-610-1	01	1	0201-

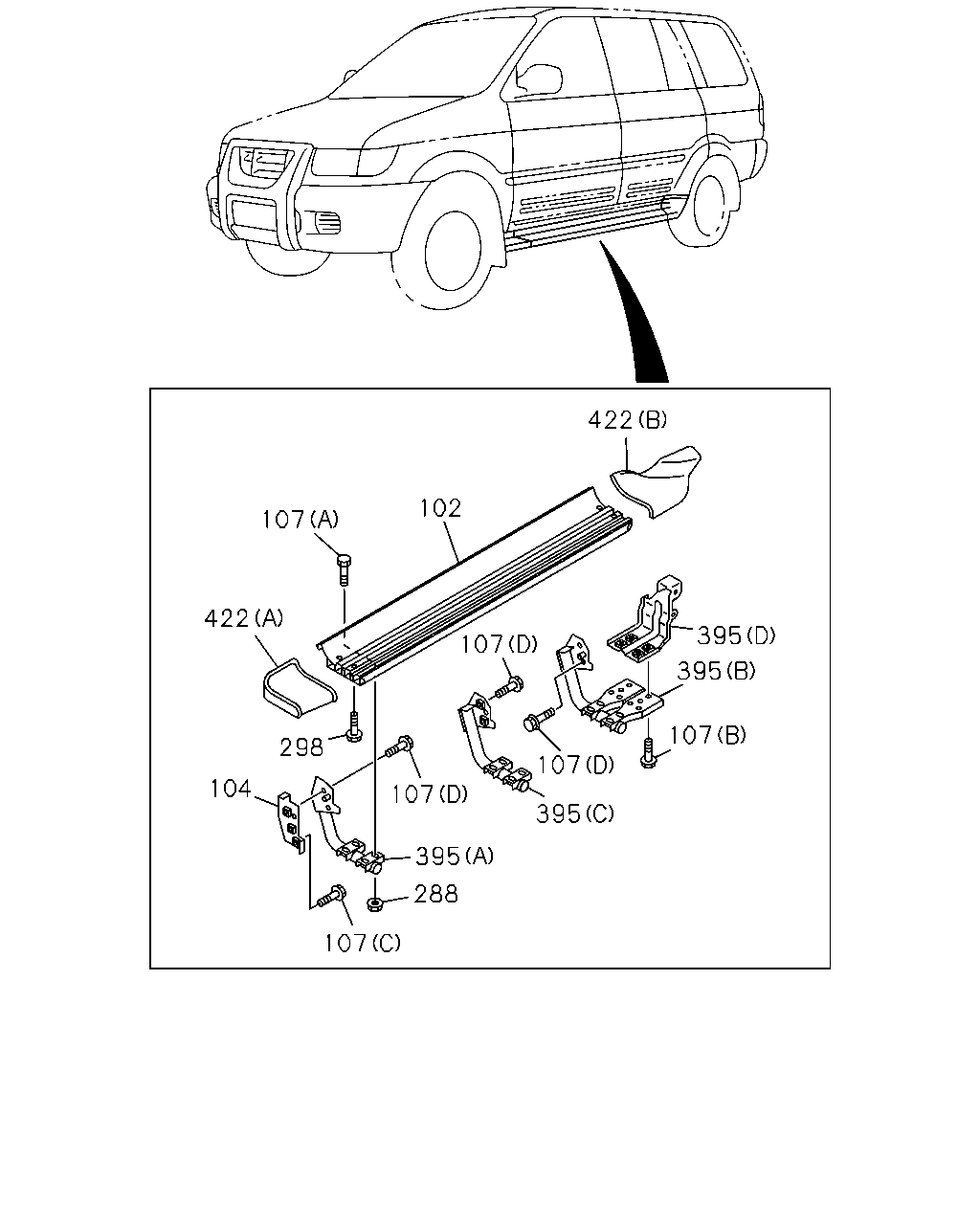

422 395 395 107 107 395 107 102 107 422 298 104 107 395 288 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
102	STEP; BODY SIDE IDN	8-97956-534-1	01	1	0201-
102	STEP; BODY SIDE IDN	8-97959-922-0	01	1	0201-
104	PLATE; SIDE STEP IDN	8-97956-507-2	01	1	0201-
104	PLATE; SIDE STEP IDN	8-97956-506-2	01	1	0201-
107	BOLT; SIDE STEP (A) M6X16	0-20800-616-0	24	1	0201-
107	BOLT; SIDE STEP (C) M6X12 FLANGE	0-28080-612-0	02	1	0201-0512
107	BOLT; SIDE STEP (C) M6X12 FLANGE	0-28050-612-0	02	1	0601-
107	BOLT; SIDE STEP (B) M6X12 FLANGE	0-28080-612-0	08	1	0201-0512
107	BOLT; SIDE STEP (B) M6X12 FLANGE	0-28050-612-0	08	1	0601-
107	BOLT; SIDE STEP (D) M8X22 FLANGE	8-97131-511-0	12	1	0201-
288	NUT; STEP M6 FLANGE	0-91150-106-0	24	1	0201-0602
288	NUT; STEP M6 FLANGE	0-91180-106-0	24	1	0603-
298	SCREW; SIDE STEP M5X12 TAPPING W/PL WASHER	0-74100-512-0	12	1	0201-0604
298	SCREW; SIDE STEP M5X12 TAPPING W/PL WASHER IDN	0-74160-512-0	12	1	0605-
395	BRACKET; SIDE STEP (A) IDN	8-97956-509-4	01	1	0201-
395	BRACKET; SIDE STEP (B) IDN	8-97956-511-4	01	1	0201-
395	BRACKET; SIDE STEP (C) IDN	8-97958-059-0	01	1	0201-
395	BRACKET; SIDE STEP (D) IDN	8-97958-125-3	01	1	0201-
395	BRACKET; SIDE STEP (A) IDN	8-97956-508-4	01	1	0201-
395	BRACKET; SIDE STEP (B) IDN	8-97956-510-4	01	1	0201-
395	BRACKET; SIDE STEP (C) IDN	8-97958-058-0	01	1	0201-
395	BRACKET; SIDE STEP (D) IDN	8-97958-124-3	01	1	0201-
422	COVER; SIDE STEP (A) IDN	8-97958-055-1	01	1	0201-
422	COVER; SIDE STEP (B) DARK GRAY IDN	8-97959-465-2	01	1	0201-
422	COVER; SIDE STEP (A) IDN	8-97958-054-1	01	1	0201-
422	COVER; SIDE STEP (B) DARK GRAY IDN	8-97959-464-2	01	1	0201-

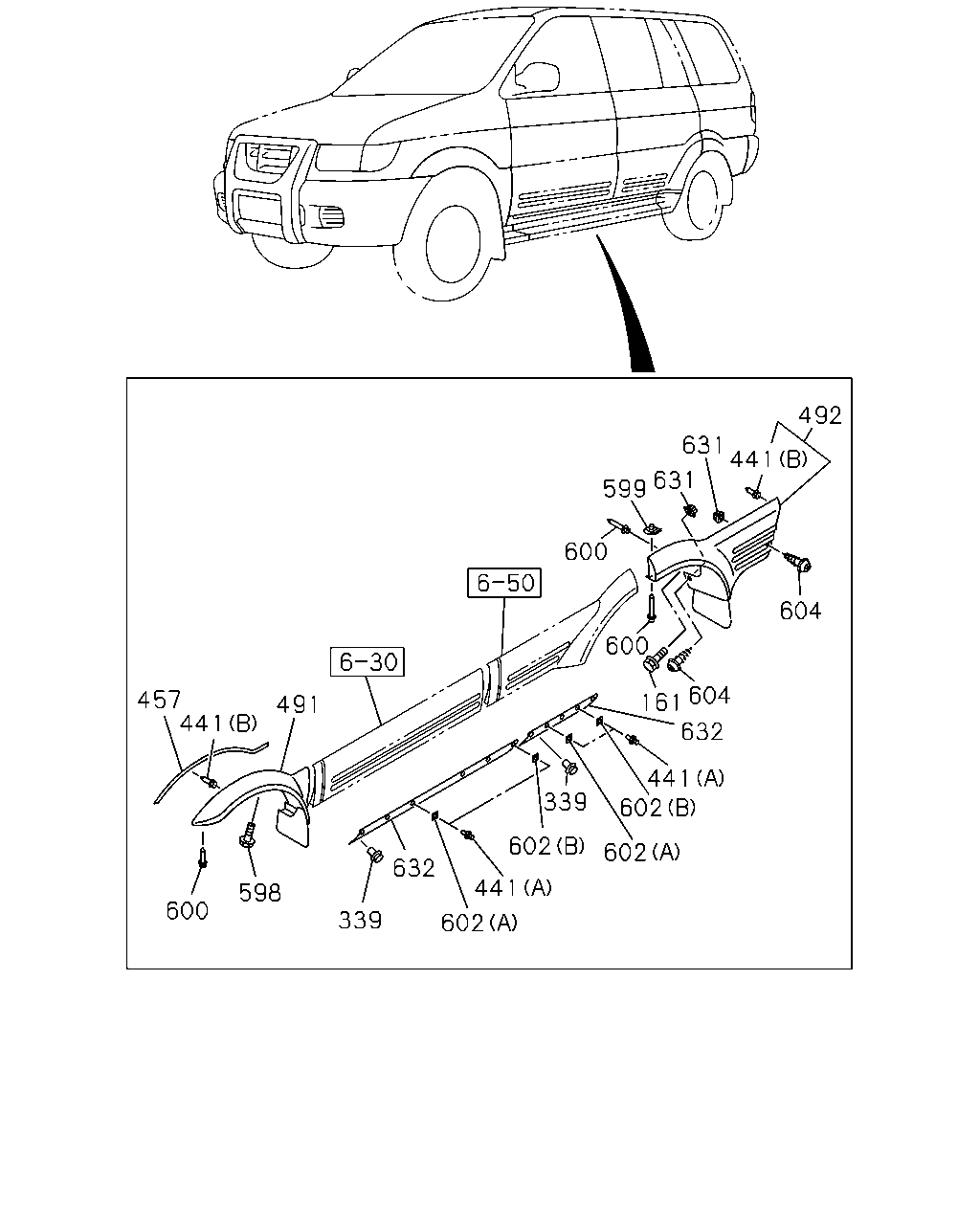

492 441 631 631 599 600 604 604 632 161 600 441 602 602 602 441 602 339 632 339 598 600 441 457 491

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
161	BOLT; FIX M6X16 W/PL WASHER	8-97803-781-0	08	1	0201-
339	FASTENER; SIDE D=5.8 SCREW & GROMMET NYLON IDN	8-94242-150-0	08	1	0201-
339	FASTENER; SIDE D=5.8 SCREW & GROMMET NYLON IDN	8-94242-150-0	12	1	0201-
441	CLIP (A) OD=14.2 L=19.0 IDN	8-94340-505-0	10	1	0201-
441	CLIP (A) OD=14.2 L=19.0 IDN	8-94340-505-0	12	1	0201-
441	CLIP (B) IDN	8-97117-942-0	26	1	0201-
457	FINISHER IDN	8-97307-301-1	01	1	0201-
457	FINISHER IDN	8-97307-300-1	01	1	0201-
491	EXTENSION; WHL,FRT IDN	8-97959-994-1	01	1	0201-
491	EXTENSION; WHL,FRT IDN	8-97959-993-1	01	1	0201-
492	EXTENSION; WHL,RR LIGHT SILVER IDN	8-97959-374-1	01	1	0201-
492	EXTENSION; WHL,RR LIGHT SILVER IDN	8-97959-373-1	01	1	0201-
598	BOLT; EXTENSION M6X16 W/PL WASHER	8-97803-781-0	08	1	0201-
599	NUT; EXTENSION	8-94334-769-0	16	1	0201-
600	RIVET; EXTENSION	8-97122-143-0	04	1	0201-
600	RIVET; EXTENSION	8-97122-143-0	06	1	0201-
602	PLATE (B) IDN	8-97958-012-1	02	1	0201-
602	PLATE (B) IDN	8-97958-012-1	02	1	0201-
602	PLATE (A) IDN	8-97958-010-1	04	1	0201-
602	PLATE (A) IDN	8-97958-010-1	05	1	0201-
602	PLATE (A) IDN	8-97958-011-1	04	1	0201-
602	PLATE (A) IDN	8-97958-011-1	05	1	0201-
604	SCREW; EXTENSION M6X20 W/PL WASHER TAPPING IDN	8-94321-767-1	02	1	0201-0805
604	SCREW; EXTENSION M6X20 W/PL WASHER	8-98059-504-0	02	1	0806-
631	GROMMET; SCREW D=9.7X9.7 L=8	8-94222-314-0	02	1	0201-
632	EXTENSION; ROCKR FRT FRONT IDN	8-97560-020-0	01	1	0201-
632	EXTENSION; ROCKR FRT REAR IDN	8-97560-024-0	01	1	0201-
632	EXTENSION; ROCKR FRT FRONT IDN	8-97560-019-0	01	1	0201-
632	EXTENSION; ROCKR FRT REAR IDN	8-97560-023-0	01	1	0201-

374 199 199 199 199

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
199	PANEL; RR SIDE (A) IDN	8-97955-265-0	01	1	0201-
199	PANEL; RR SIDE (B) IDN	8-97956-092-1	01	1	0201-
199	PANEL; RR SIDE (A) IDN	8-97955-264-0	01	1	0201-
199	PANEL; RR SIDE (B) IDN	8-97956-091-1	01	1	0201-
374	BOLT; BRKT M6X16 FLANGE	0-28080-616-0	02	1	0201-0512
374	BOLT; BRKT M6X16 FLANGE IDN	0-28050-616-0	02	1	0601-

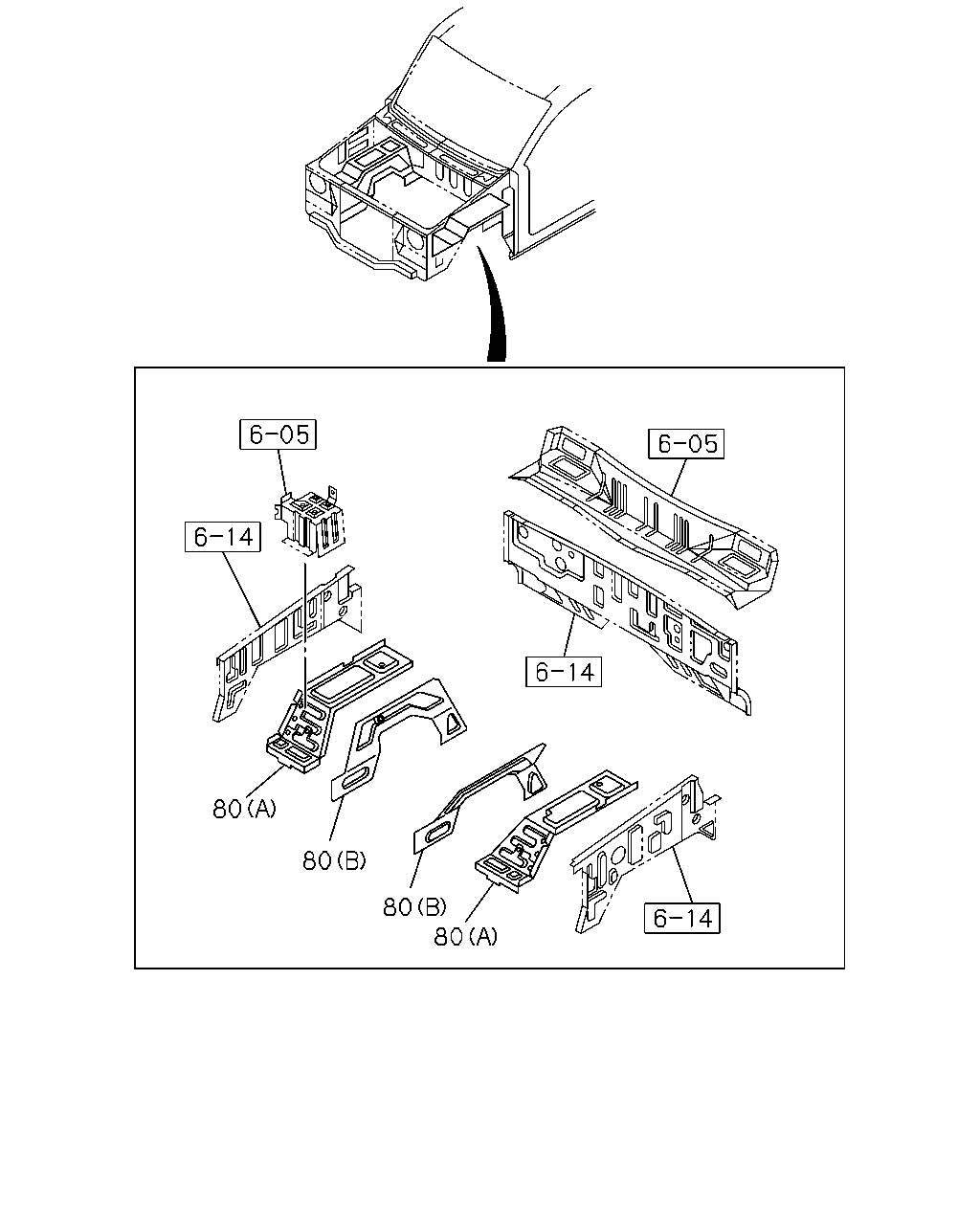

80 80 80 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
80	PANEL; WHEEL HOUSE,INNER (A) IDN	8-97955-317-1	01	1	0201-
80	PANEL; WHEEL HOUSE,INNER (B) IDN	8-97955-321-1	01	1	0201-
80	PANEL; WHEEL HOUSE,INNER (A) IDN	8-97955-316-1	01	1	0201-
80	PANEL; WHEEL HOUSE,INNER (B) IDN	8-97955-320-1	01	1	0201-
