50919 - TBR (GM-INDONESIA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-10 - ENGINE HOOD AND LOCK
▶
6-10 — ENGINE HOOD AND LOCK
(#95503) — 22 parça
◀

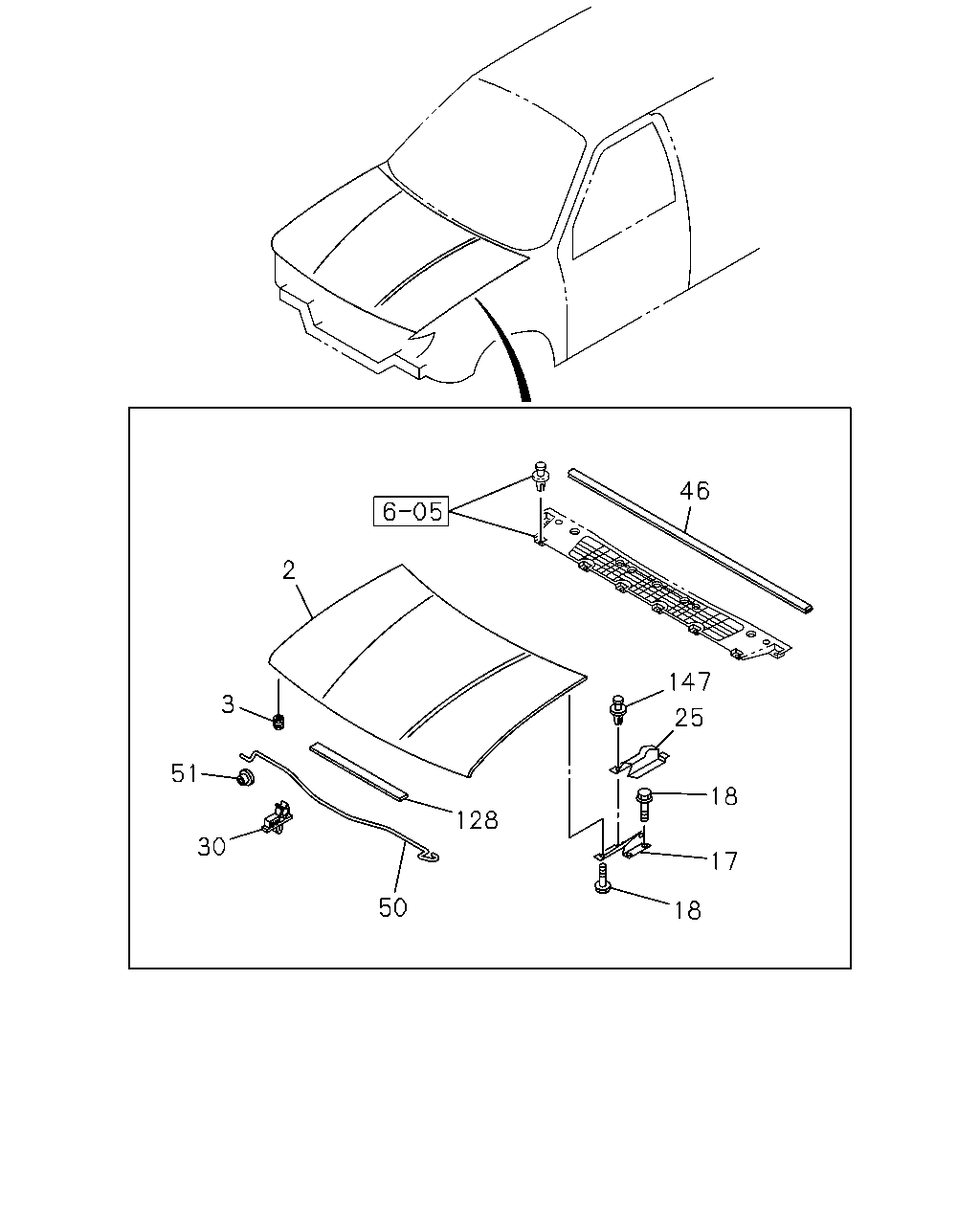

[610A] NO.1 (15 parça)
[610A] NO.2 (7 parça)
▶
46
147
25
18
17
18
128
2
3
51
30
50
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
PANEL; ENG HOOD
IDN
8-97560-160-0
01
1
0201-
3
BUFFER; ENG HOOD,FRT
IDN
8-97957-224-0
02
1
0201-
17
HINGE; ENG HOOD
IDN
8-97955-869-1
01
1
0201-
17
HINGE; ENG HOOD
IDN
8-97955-868-1
01
1
0201-
18
BOLT; HINGE
M8X16 FLANGE
0-28080-816-0
08
1
0201-0512
18
BOLT; HINGE
M8X16 FLANGE
0-28050-816-0
08
1
0601-
25
COVER; ENG HOOD HINGE
IDN
8-97955-907-0
01
1
0201-
25
COVER; ENG HOOD HINGE
IDN
8-97955-906-0
01
1
0201-
30
CLIP; SUPPORT ROD,HOOD
8-97104-427-0
02
1
0201-
46
SEAL; ENG HOOD
IDN
8-97955-899-1
01
1
0201-
50
ROD; SUPPORT,ENG HOOD
IDN
8-97955-897-1
01
1
0201-
51
GROMMET; SUPPORT ROD
IDN
8-94220-508-2
01
1
0201-0210
51
GROMMET; SUPPORT ROD
IDN
8-97362-324-0
01
1
0211-
128
SEAL; PLATFORM
IDN
8-97957-062-1
01
1
0201-
147
CLIP; COVER
8-97013-997-0
02
1
0201-
49
48
24
24
26
24
31
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
CLIP; CONT CABLE
(A) L=140 IDN
5-09707-031-1
01
1
0201-
24
CLIP; CONT CABLE
(B)
8-94225-098-0
03
1
0201-
26
CABLE; ENG HOOD CONT
IDN
8-97955-898-0
01
1
0201-
31
LOCK; ENG HOOD
8-97174-025-1
01
1
0201-
32
BOLT; HOOD LK
M6X18
8-94408-386-1
02
1
0201-
48
LEVER; ENG HOOD
BLACK
8-97150-583-0
01
1
0201-
49
SCREW; LEVER,ENG HOOD OPENER
M5X10
9-09829-185-0
02
1
0201-
