5-10 — CAB MOUNTING; FRAME SIDE (#95495) — 44 parça

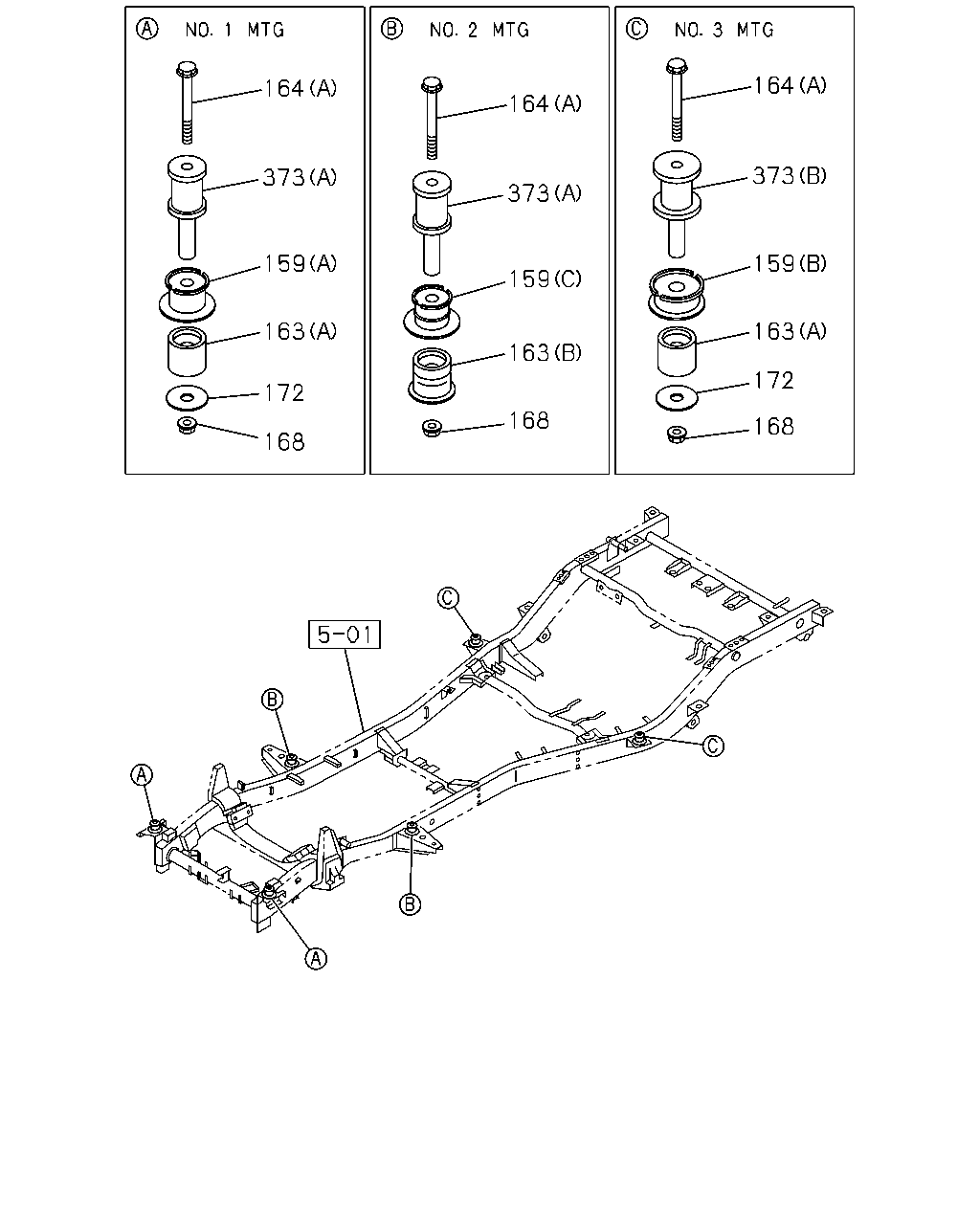

164 373 159 163 172 168 164 373 159 163 168 164 373 159 163 172 168

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
159	RUBBER; CUSHION,CAB MTG (A) NO.1,NO.6 MTG IDN	8-94368-398-0	02	1	0201-
159	RUBBER; CUSHION,CAB MTG (A) NO.1,NO.6 MTG IDN	8-94368-398-0	02	1	0201-
159	RUBBER; CUSHION,CAB MTG (B) NO.3,NO.5 MTG IDN	8-94368-400-0	02	1	0201-
159	RUBBER; CUSHION,CAB MTG (B) NO.3,NO.5 MTG IDN	8-94368-400-0	02	1	0201-
159	RUBBER; CUSHION,CAB MTG (C) NO.2 MTG IDN	8-97957-471-0	02	1	0201-
159	RUBBER; CUSHION,CAB MTG (D) NO.4 MTG IDN	8-97957-473-0	02	1	0201-
163	RUBBER; CUSHION,BODY MTG,REBOUND (A) NO.1,NO.3,NO.5,NO.6 MTG IDN	8-94368-399-0	04	1	0201-
163	RUBBER; CUSHION,BODY MTG,REBOUND (A) NO.1,NO.3,NO.5,NO.6 MTG IDN	8-94368-399-0	04	1	0201-
163	RUBBER; CUSHION,BODY MTG,REBOUND (B) NO.2 MTG IDN	8-97957-472-0	02	1	0201-
163	RUBBER; CUSHION,BODY MTG,REBOUND (C) NO.4 MTG IDN	8-97957-474-0	02	1	0201-
164	BOLT; CUSHION RUBBER,CAB MTG (A) NO.1,NO.2,NO.3,NO.4 MTG M10X180 FLANGE	8-97287-269-1	08	1	0201-
164	BOLT; CUSHION RUBBER,CAB MTG (B) NO.5,NO.6 MTG M10X158 W/LK WASHER	8-97287-270-0	04	1	0201-
168	NUT; CUSHION RUBBER,BODY MTG M10 FLANGE	0-91150-210-0	02	1	0201-0602
168	NUT; CUSHION RUBBER,BODY MTG M10 FLANGE	0-91180-210-0	02	1	0603-
168	NUT; CUSHION RUBBER,BODY MTG M10 FLANGE	0-91150-210-0	06	1	0201-0602
168	NUT; CUSHION RUBBER,BODY MTG M10 FLANGE	0-91180-210-0	06	1	0603-
172	WASHER; BODY MTG RUBBER ID=11 OD=48 T=2.9 IDN	8-94223-170-0	02	1	0201-
172	WASHER; BODY MTG RUBBER ID=11 OD=48 T=2.9 IDN	8-94223-170-0	04	1	0201-
172	WASHER; BODY MTG RUBBER ID=11 OD=48 T=2.9 IDN	8-94223-170-0	04	1	0201-
373	SPACER; CAB STAY (A) NO.1,NO.2,NO.6 MTG	8-97264-514-3	06	1	0201-
373	SPACER; CAB STAY (B) NO.3,NO.4,NO.5 MTG	8-97264-515-3	06	1	0201-

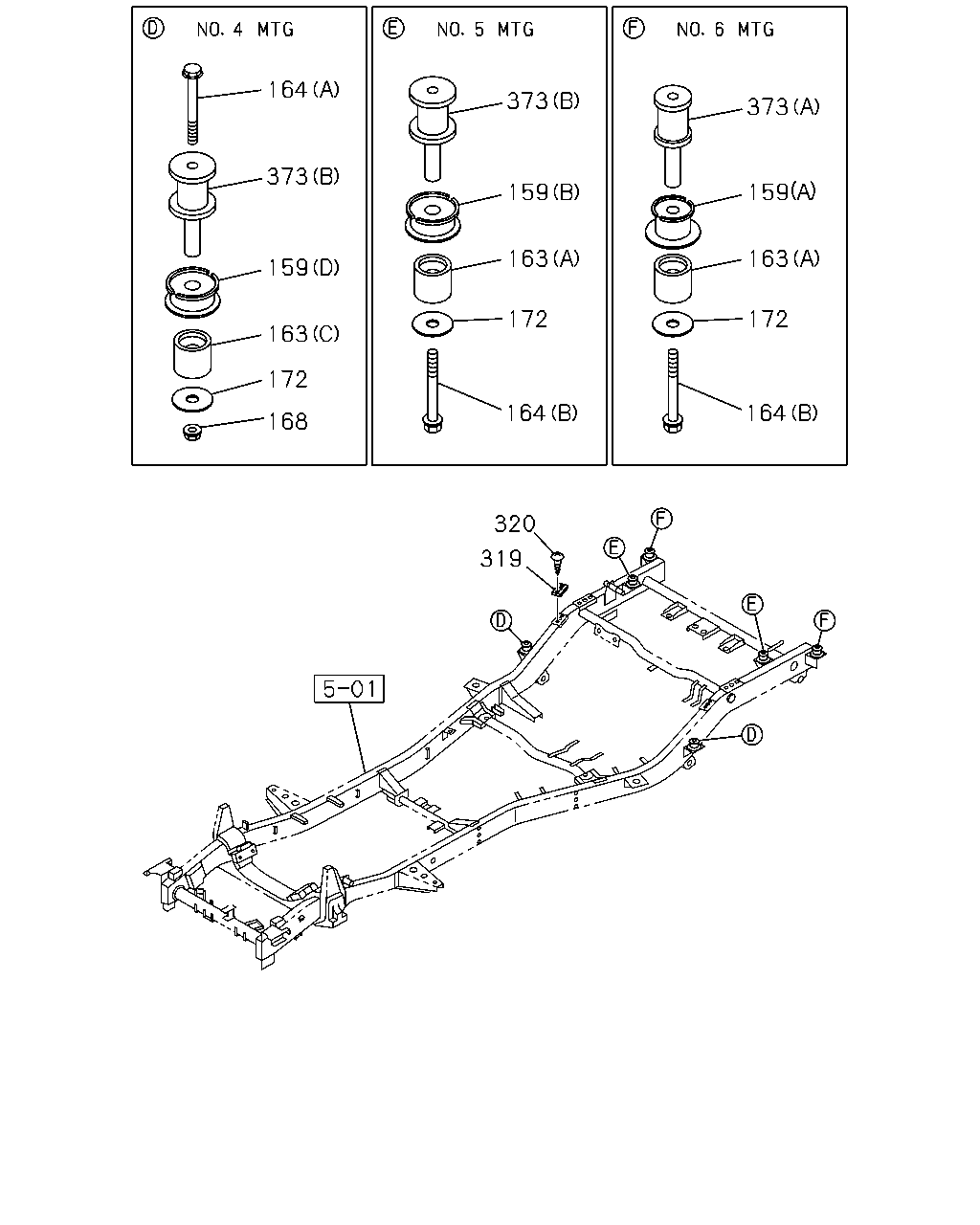

164 373 159 163 172 168 373 159 163 172 164 373 159 163 172 164 320 319

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
159	RUBBER; CUSHION,CAB MTG (A) NO.1,NO.6 MTG IDN	8-94368-398-0	02	1	0201-
159	RUBBER; CUSHION,CAB MTG (A) NO.1,NO.6 MTG IDN	8-94368-398-0	02	1	0201-
159	RUBBER; CUSHION,CAB MTG (B) NO.3,NO.5 MTG IDN	8-94368-400-0	02	1	0201-
159	RUBBER; CUSHION,CAB MTG (B) NO.3,NO.5 MTG IDN	8-94368-400-0	02	1	0201-
159	RUBBER; CUSHION,CAB MTG (C) NO.2 MTG IDN	8-97957-471-0	02	1	0201-
159	RUBBER; CUSHION,CAB MTG (D) NO.4 MTG IDN	8-97957-473-0	02	1	0201-
163	RUBBER; CUSHION,BODY MTG,REBOUND (A) NO.1,NO.3,NO.5,NO.6 MTG IDN	8-94368-399-0	04	1	0201-
163	RUBBER; CUSHION,BODY MTG,REBOUND (A) NO.1,NO.3,NO.5,NO.6 MTG IDN	8-94368-399-0	04	1	0201-
163	RUBBER; CUSHION,BODY MTG,REBOUND (B) NO.2 MTG IDN	8-97957-472-0	02	1	0201-
163	RUBBER; CUSHION,BODY MTG,REBOUND (C) NO.4 MTG IDN	8-97957-474-0	02	1	0201-
164	BOLT; CUSHION RUBBER,CAB MTG (A) NO.1,NO.2,NO.3,NO.4 MTG M10X180 FLANGE	8-97287-269-1	08	1	0201-
164	BOLT; CUSHION RUBBER,CAB MTG (B) NO.5,NO.6 MTG M10X158 W/LK WASHER	8-97287-270-0	04	1	0201-
168	NUT; CUSHION RUBBER,BODY MTG M10 FLANGE	0-91150-210-0	02	1	0201-0602
168	NUT; CUSHION RUBBER,BODY MTG M10 FLANGE	0-91180-210-0	02	1	0603-
168	NUT; CUSHION RUBBER,BODY MTG M10 FLANGE	0-91150-210-0	06	1	0201-0602
168	NUT; CUSHION RUBBER,BODY MTG M10 FLANGE	0-91180-210-0	06	1	0603-
172	WASHER; BODY MTG RUBBER ID=11 OD=48 T=2.9 IDN	8-94223-170-0	02	1	0201-
172	WASHER; BODY MTG RUBBER ID=11 OD=48 T=2.9 IDN	8-94223-170-0	04	1	0201-
172	WASHER; BODY MTG RUBBER ID=11 OD=48 T=2.9 IDN	8-94223-170-0	04	1	0201-
319	GASKET; BODY MTG BOLT IDN	8-94180-225-0	04	1	0201-
320	SCREW; BODY MTG GASKET M6X10	9-09829-194-0	08	1	0201-
373	SPACER; CAB STAY (A) NO.1,NO.2,NO.6 MTG	8-97264-514-3	06	1	0201-
373	SPACER; CAB STAY (B) NO.3,NO.4,NO.5 MTG	8-97264-515-3	06	1	0201-
