5-01 — FRAME AND OTHER PARTS
(#95494) — 25 parça
◀

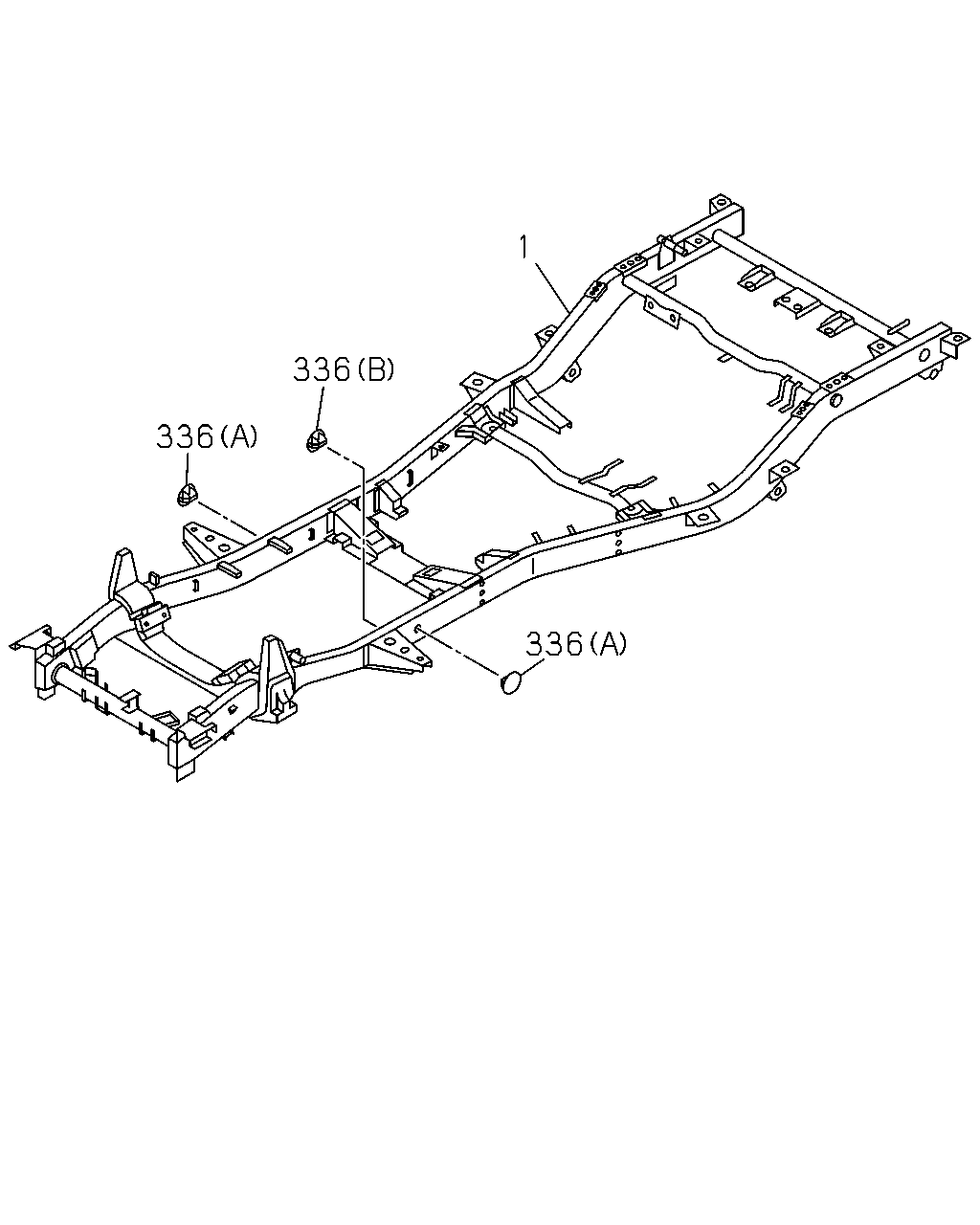

[501A] FRAME ASM AND HOLE PLUG (3 parça)

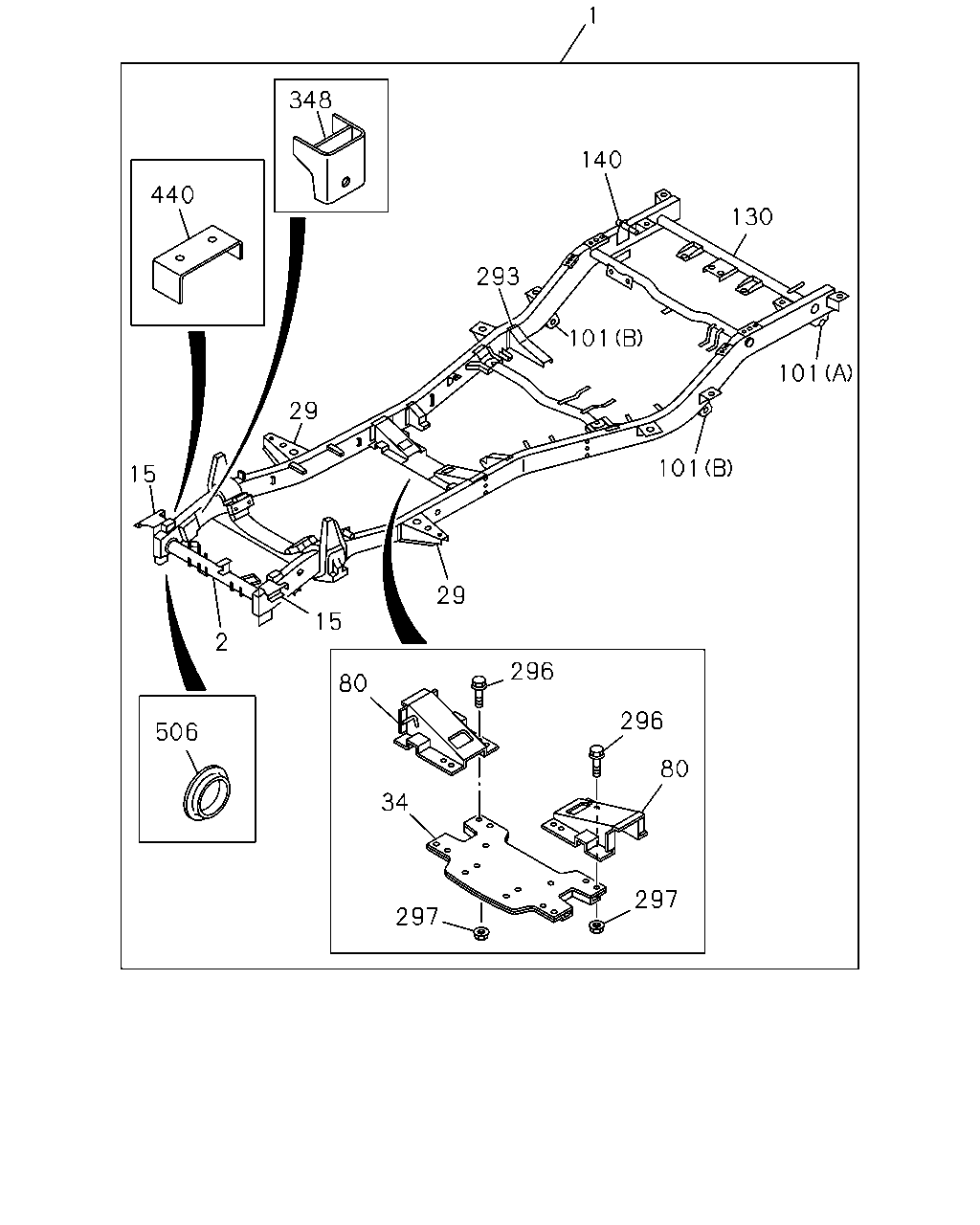

[501A] FRAME COMPONENT (22 parça)
▶
1
336
336
336
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
FRAME ASM
IDN
8-97560-316-4
01
1
0201-
336
PLUG; HOLE
(A) OD=40 BLACK
8-97806-918-0
02
1
0201-
336
PLUG; HOLE
(B) OD=33 BLUE
8-97806-919-0
04
1
0201-0306
1
140
130
101
101
101
293
29
15
440
15
29
2
80
296
296
80
297
297
34
506
348
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
FRAME ASM
IDN
8-97560-316-4
01
1
0201-
2
MEMBER; CROSS,1ST
IDN
8-97956-145-1
01
1
0201-
15
BRACKET; BODY MTG,FRT
IDN
8-97956-585-0
01
1
0201-
15
BRACKET; BODY MTG,FRT
IDN
8-97956-584-0
01
1
0201-
29
BRACKET; CAB MTG
IDN
8-97956-586-0
02
1
0201-
34
MEMBER; CROSS,3RD
IDN
8-97959-919-1
01
1
0201-
80
BRACKET; C/MBR
IDN
8-97956-171-1
01
1
0201-
80
BRACKET; C/MBR
IDN
8-97957-989-1
01
1
0201-
101
BRACKET; RR SPR,FRT
(A) IDN
8-97956-591-0
02
1
0201-
101
BRACKET; RR SPR,FRT
(B) IDN
8-97959-862-0
01
1
0201-
101
BRACKET; RR SPR,FRT
(B) IDN
8-97959-861-0
01
1
0201-
130
MEMBER; CROSS,END
IDN
8-97956-168-2
01
1
0201-
140
BRACKET; S/ABS,RR
IDN
8-97956-129-0
01
1
0201-
140
BRACKET; S/ABS,RR
IDN
8-97956-128-0
01
1
0201-
293
BRACKET; FUEL TANK,FRT
IDN
8-97956-130-0
01
1
0201-
296
BOLT; 3RD C/MBR
M10X25 FLANGE
0-28681-025-0
08
1
0201-0512
296
BOLT; 3RD C/MBR
M10X25 FLANGE IDN
0-28651-025-0
08
1
0601-
297
NUT; 3RD C/MBR
M10 FLANGE
0-91150-210-0
08
1
0201-0602
297
NUT; 3RD C/MBR
M10 FLANGE
0-91180-210-0
08
1
0603-
348
BRACKET; STRG STOPPER
IDN
8-97956-111-2
02
1
0201-
440
BRACKET; HOSE
IDN
8-97958-972-0
02
1
0201-
506
REINFORCEMENT; C/MBR
IDN
8-97958-974-0
04
1
0201-
