◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50919 - TBR (GM-INDONESIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65 - REAR LEAF SPRING ▶
4-65 — REAR LEAF SPRING (#95492) — 20 parça

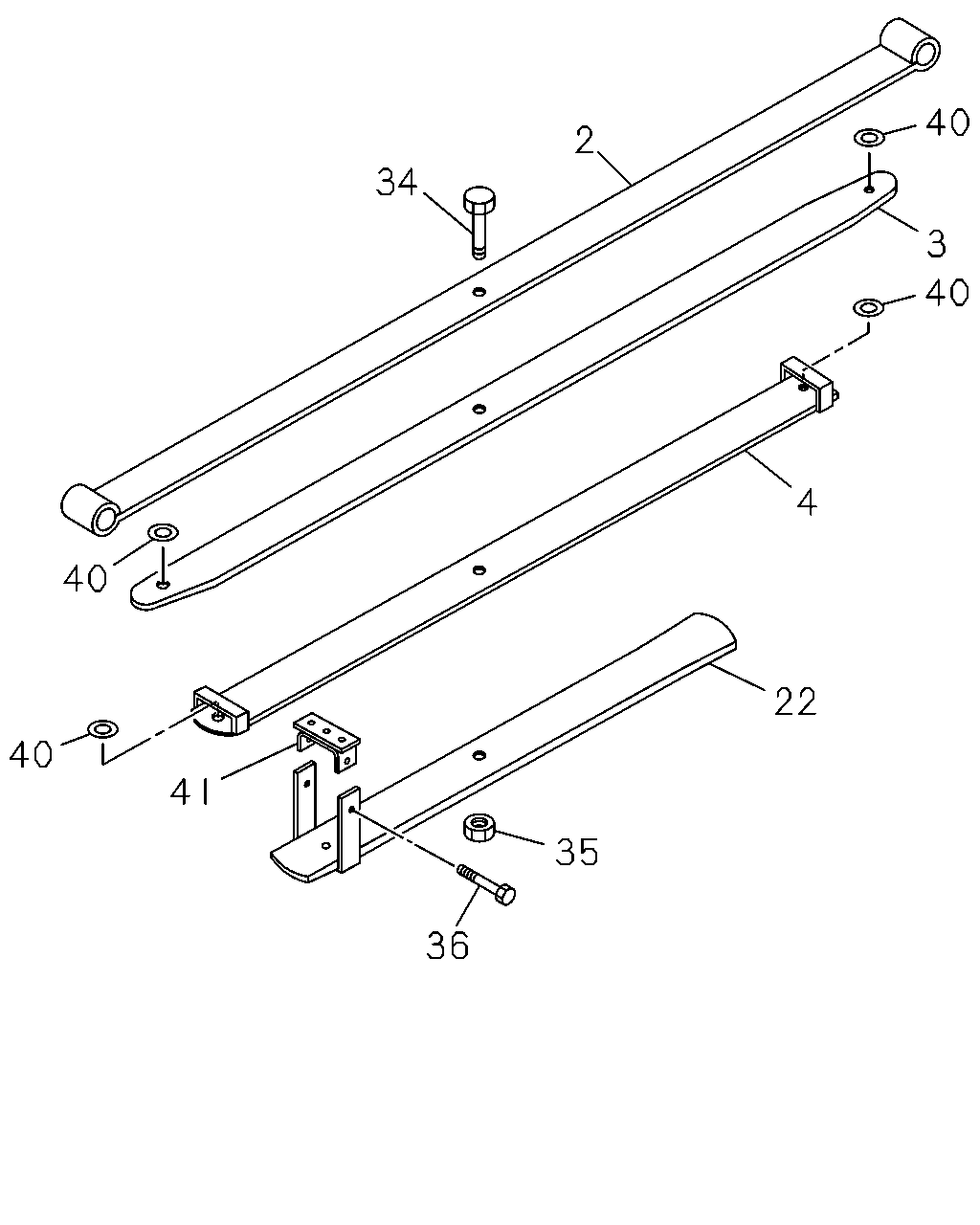

çizim 289142
2 40 3 40 4 22 35 36 41 40 40 34
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING; LEAF,NO 1,RR MAIN
IDN ASM PART: A = 8-97561-089-0 		8-97561-091-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
IDN ASM PART: B = 8-97562-227-0, C = 8-97959-200-1 		8-97958-498-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
IDN ASM PART: B = 8-97562-227-0 		8-97365-493-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
IDN ASM PART: A = 8-97561-089-0 		8-97561-092-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
IDN ASM PART: C = 8-97959-200-1 		8-97959-852-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
IDN ASM PART: A = 8-97561-089-0 		8-97561-093-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
IDN ASM PART: B = 8-97562-227-0, C = 8-97959-200-1 		8-97959-286-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
IDN ASM PART: A = 8-97561-089-0 		8-97561-094-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
IDN ASM PART: B = 8-97562-227-0, C = 8-97959-200-1 		8-97959-287-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
IDN ASM PART: A = 8-97561-089-0 		8-97560-591-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
IDN ASM PART: B = 8-97562-227-0, C = 8-97959-200-1 		8-97958-502-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M8, IDN ASM PART: B = 8-97562-227-0, C = 8-97959-200-1 		8-97956-943-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M8 ASM PART: A = 8-97561-089-0 		9-09110-008-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
IDN ASM PART: A = 8-97561-089-0 		8-97560-595-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
IDN ASM PART: B = 8-97562-227-0, C = 8-97959-200-1 		8-97956-949-0 01 1 -
40 LINER; LEAF SPR,RR
IDN ASM PART: C = 8-97959-200-1 		8-97300-660-0 04 1 -
40 LINER; LEAF SPR,RR
IDN ASM PART: B = 8-97562-227-0 		8-97365-488-0 04 1 -
40 LINER; LEAF SPR,RR
IDN ASM PART: A = 8-97561-089-0 		8-97560-596-0 04 1 -
41 CLIP SUB ASM; RR SPR
IDN ASM PART: A = 8-97561-089-0 		8-97560-594-0 01 1 -
41 CLIP SUB ASM; RR SPR
IDN ASM PART: B = 8-97562-227-0, C = 8-97959-200-1 		8-97956-950-0 01 1 -
