◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50919 - TBR (GM-INDONESIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-42 - POWER STEERING OIL PUMP ▶
4-42 — POWER STEERING OIL PUMP (#95488) — 14 parça

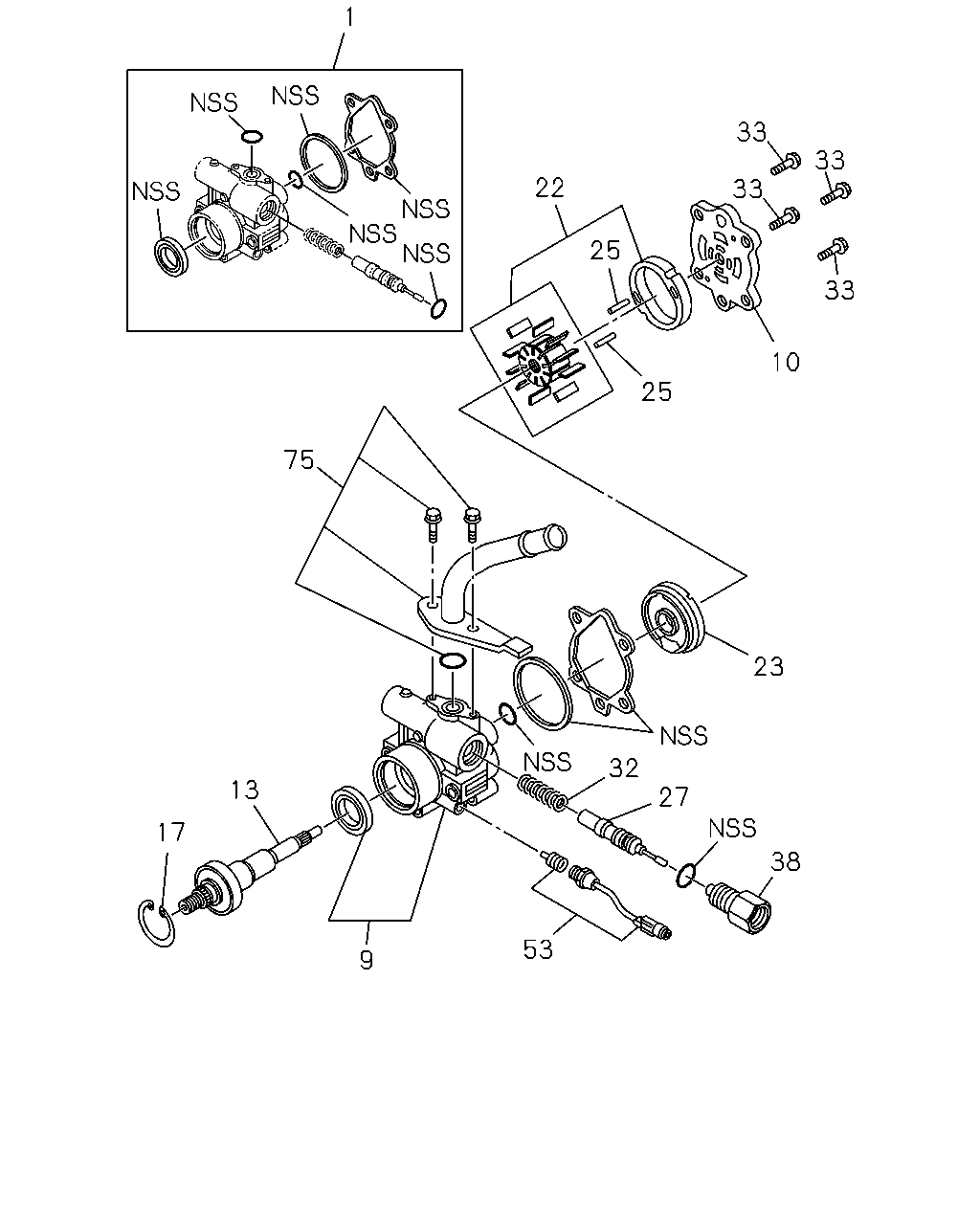

çizim 288922
10 33 33 33 33 25 22 25 1 75 23 27 38 32 53 9 13 17
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; OIL PUMP
ASM PART: A = 8-97316-084-2 		8-97081-867-0 01 1 -
9 BODY ASM; FRT,OIL PUMP
ASM PART: A = 8-97316-084-2 		8-97100-391-0 01 1 -
10 BODY ASM; RR,OIL PUMP
ASM PART: A = 8-97316-084-2 		8-97102-303-0 01 1 -
13 SHAFT KIT; RET
ASM PART: A = 8-97316-084-2 		8-97102-304-0 01 1 -
17 RING; RET
ASM PART: A = 8-97316-084-2 		8-97081-855-0 01 1 -
22 CARTRIDGE ASM; OIL PUMP
ASM PART: A = 8-97316-084-2 		8-97313-095-0 01 1 -
23 PLATE; SIDE,OIL PUMP
ASM PART: A = 8-97316-084-2 		8-97313-094-0 01 1 -
25 PIN; HSG,P/S
ASM PART: A = 8-97316-084-2 		8-97081-859-0 02 1 -
27 VALVE ASM; OIL PUMP
ASM PART: A = 8-97316-084-2 		8-97081-857-0 01 1 -
32 SPRING; OIL PUMP
ASM PART: A = 8-97316-084-2 		8-97064-987-0 01 1 -
33 BOLT; COVER
ASM PART: A = 8-97316-084-2 		8-97081-847-0 04 1 -
38 CONNECTOR; OIL PUMP
ASM PART: A = 8-97316-084-2 		8-97081-865-0 01 1 -
53 SWITCH KIT; PRESSURE
ASM PART: A = 8-97316-084-2 		8-97188-370-0 01 1 -
75 PIPE KIT; OIL PUMP
ASM PART: A = 8-97316-084-2 		8-97316-909-0 01 1 -
