◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50919 - TBR (GM-INDONESIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-25 - REAR FINAL DRIVE ▶
4-25 — REAR FINAL DRIVE (#95481) — 55 parça

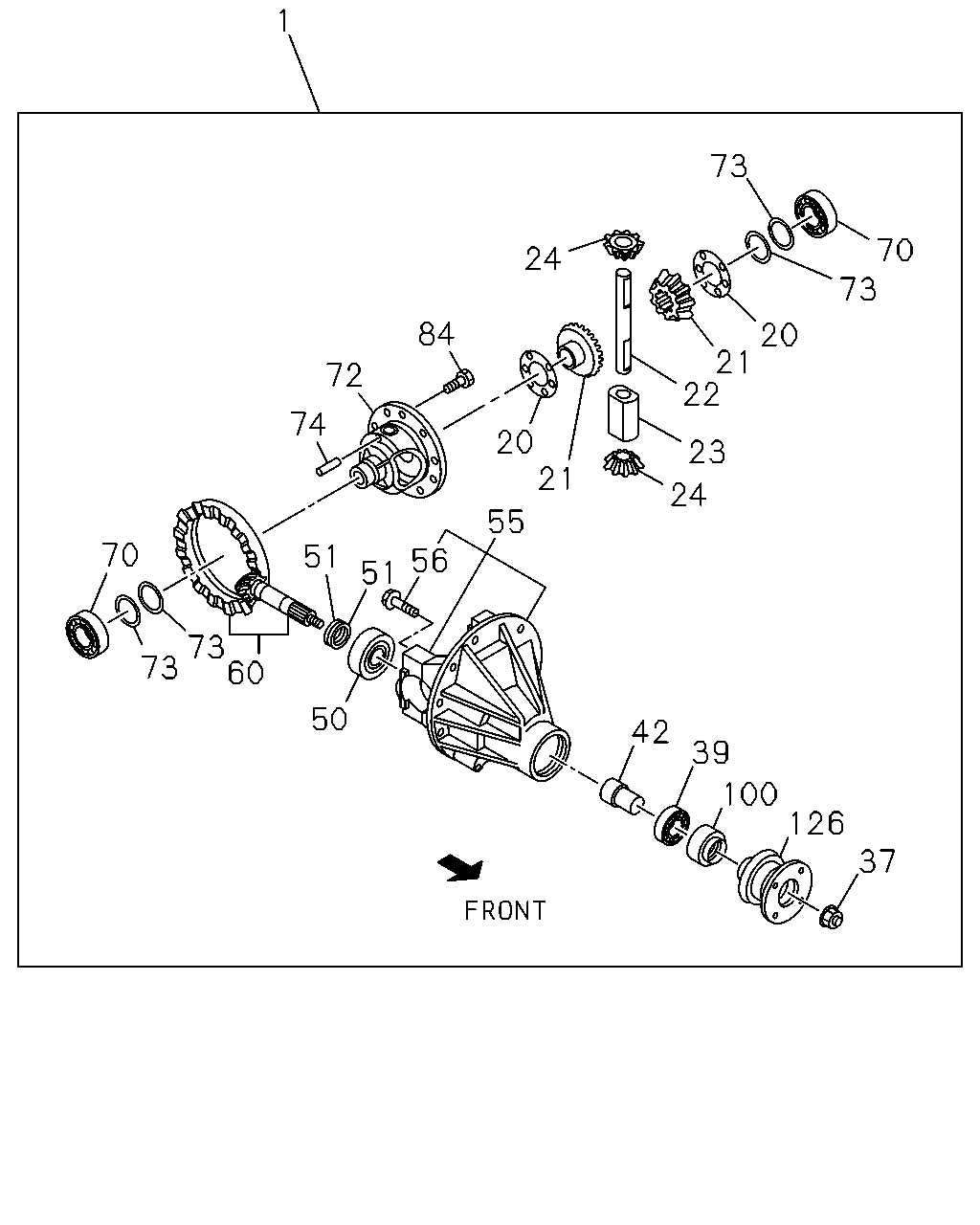

çizim 289060
1 70 73 73 60 50 51 51 56 55 21 20 24 23 42 39 100 126 37 22 21 20 73 70 73 24 84 72 74
BalonParca AdiParca NoAdetTipApplied Date
1 DRIVE ASM; FINAL,RR
43/10 IDN 		8-97306-616-0 01 1 0201-0204
1 DRIVE ASM; FINAL,RR
M/T MSG 5 SPEED(M75) 43/10 IDN 		8-97306-616-0 01 1 0205-0903
1 DRIVE ASM; FINAL,RR
M/T MSG 5 SPEED(M75) 43/10 IDN 		8-98074-857-0 01 1 0904-
1 DRIVE ASM; FINAL,RR
A/T AISIN(RMD) 43/9 		8-97316-848-0 01 1 0205-0903
1 DRIVE ASM; FINAL,RR
A/T AISIN(RMD) 43/9 IDN 		8-98074-860-0 01 1 0904-
20 WASHER; THRUST,SIDE GEAR
T=1.00 		5-41562-005-1 02 1 0201-
20 WASHER; THRUST,SIDE GEAR
T=1.05 		5-41562-006-1 02 1 0201-
20 WASHER; THRUST,SIDE GEAR
T=1.10 		5-41562-007-1 02 1 0201-
21 GEAR; SIDE,DIFF
Z=17 		8-97302-697-0 02 1 0201-
22 PIN; CROSS,DIFF PINION
IDN 		9-41521-044-1 01 1 0201-
23 BLOCK; THRUST,DIFF BOX 9-41525-015-2 01 1 0201-
24 GEAR; PINION,DIFF
Z=10 		8-97302-696-0 02 1 0201-
37 NUT; DRIVING PINION
M18 LOCK NUT 		8-94376-262-0 01 1 0201-
39 BEARING; FINAL PINION
NSK 		8-94472-099-0 01 1 0201-
39 BEARING; FINAL PINION
KOYO 		8-94472-100-1 01 1 0201-
42 COLLAR; DIST,COLLAPSIBLE 8-94472-118-0 01 1 0201-
50 BEARING; FINAL PINION
NSK 		9-00093-621-1 01 1 0201-
51 SHIM; PINION,FINAL DRIVE
T=2.18 		9-41519-153-1 AR 1 0201-
51 SHIM; PINION,FINAL DRIVE
T=2.20 		9-41519-154-1 AR 1 0201-
51 SHIM; PINION,FINAL DRIVE
T=2.22 		9-41519-155-1 AR 1 0201-
51 SHIM; PINION,FINAL DRIVE
T=2.24 		9-41519-156-1 AR 1 0201-
51 SHIM; PINION,FINAL DRIVE
T=2.26 		9-41519-157-1 AR 1 0201-
51 SHIM; PINION,FINAL DRIVE
T=2.28 		9-41519-158-1 AR 1 0201-
51 SHIM; PINION,FINAL DRIVE
T=2.30 		9-41519-159-1 AR 1 0201-
51 SHIM; PINION,FINAL DRIVE
T=2.32 		9-41519-160-1 AR 1 0201-
51 SHIM; PINION,FINAL DRIVE
T=2.34 		9-41519-161-1 AR 1 0201-
51 SHIM; PINION,FINAL DRIVE
T=2.36 		9-41519-162-1 AR 1 0201-
51 SHIM; PINION,FINAL DRIVE
T=2.38 		9-41519-163-1 AR 1 0201-
51 SHIM; PINION,FINAL DRIVE
T=2.40 		9-41519-164-1 AR 1 0201-
51 SHIM; PINION,FINAL DRIVE
T=2.42 		9-41519-165-1 AR 1 0201-
51 SHIM; PINION,FINAL DRIVE
T=2.44 		9-41519-166-1 AR 1 0201-
51 SHIM; PINION,FINAL DRIVE
T=2.46 		9-41519-167-1 AR 1 0201-
51 SHIM; PINION,FINAL DRIVE
T=2.48 		9-41519-168-1 AR 1 0201-
51 SHIM; PINION,FINAL DRIVE
T=2.50 		9-41519-169-1 AR 1 0201-
51 SHIM; PINION,FINAL DRIVE
T=2.52 		9-41519-170-1 AR 1 0201-
51 SHIM; PINION,FINAL DRIVE
T=2.54 		9-41519-171-1 AR 1 0201-
51 SHIM; PINION,FINAL DRIVE
T=2.56 		9-41519-172-1 AR 1 0201-
55 CARRIER; DIFF 5-41110-014-3 01 1 0201-
56 BOLT; BRG CAP
M12X62 		8-94376-322-0 04 1 0201-
60 GEAR SET; FINAL DRIVE,RR
43/10 		8-97039-251-1 01 1 0201-0204
60 GEAR SET; FINAL DRIVE,RR
M/T MSG 5 SPEED(M75) 43/10 		8-97039-251-1 01 1 0205-0903
60 GEAR SET; FINAL DRIVE,RR
M/T MSG 5 SPEED(M75) 43/10 		8-97218-303-0 01 1 0904-
60 GEAR SET; FINAL DRIVE,RR
A/T AISIN(RMD) 43/9 		8-97039-255-1 01 1 0205-0903
60 GEAR SET; FINAL DRIVE,RR
A/T AISIN(RMD) 43/9 		8-98013-590-0 01 1 0904-
70 BEARING; DIFF CAGE
NSK 		9-00093-074-1 02 1 0201-
72 CAGE; DIFF
IDN 		8-97038-515-1 01 1 0201-
73 SHIM; DIFF SIDE BRG
T=0.10 		8-97130-386-0 AR 1 0201-
73 SHIM; DIFF SIDE BRG
T=0.50 		8-97130-387-0 AR 1 0201-
73 SHIM; DIFF SIDE BRG
T=0.24 		9-41519-109-0 AR 1 0201-
73 SHIM; DIFF SIDE BRG
T=0.15 		9-41519-111-0 AR 1 0201-
74 PIN; LK,CROSS PIN
OD=5 L=35 		9-09878-096-0 01 1 0201-
84 BOLT; FINAL DRIVE GEAR
M10X17 		8-97038-065-0 10 1 0201-
100 SEAL; OIL,FINAL PINION
NOK 		8-97146-826-0 01 1 0201-
100 SEAL; OIL,FINAL PINION
TKK 		8-97207-784-0 01 1 0201-
126 COUPLING; DRIVING PINION
IDN 		8-94426-786-7 01 1 0201-
