50919 - TBR (GM-INDONESIA)
▶
3 - Brakes, Brake System
▶
3-55 - BRAKE PIPING; OIL,REAR
▶

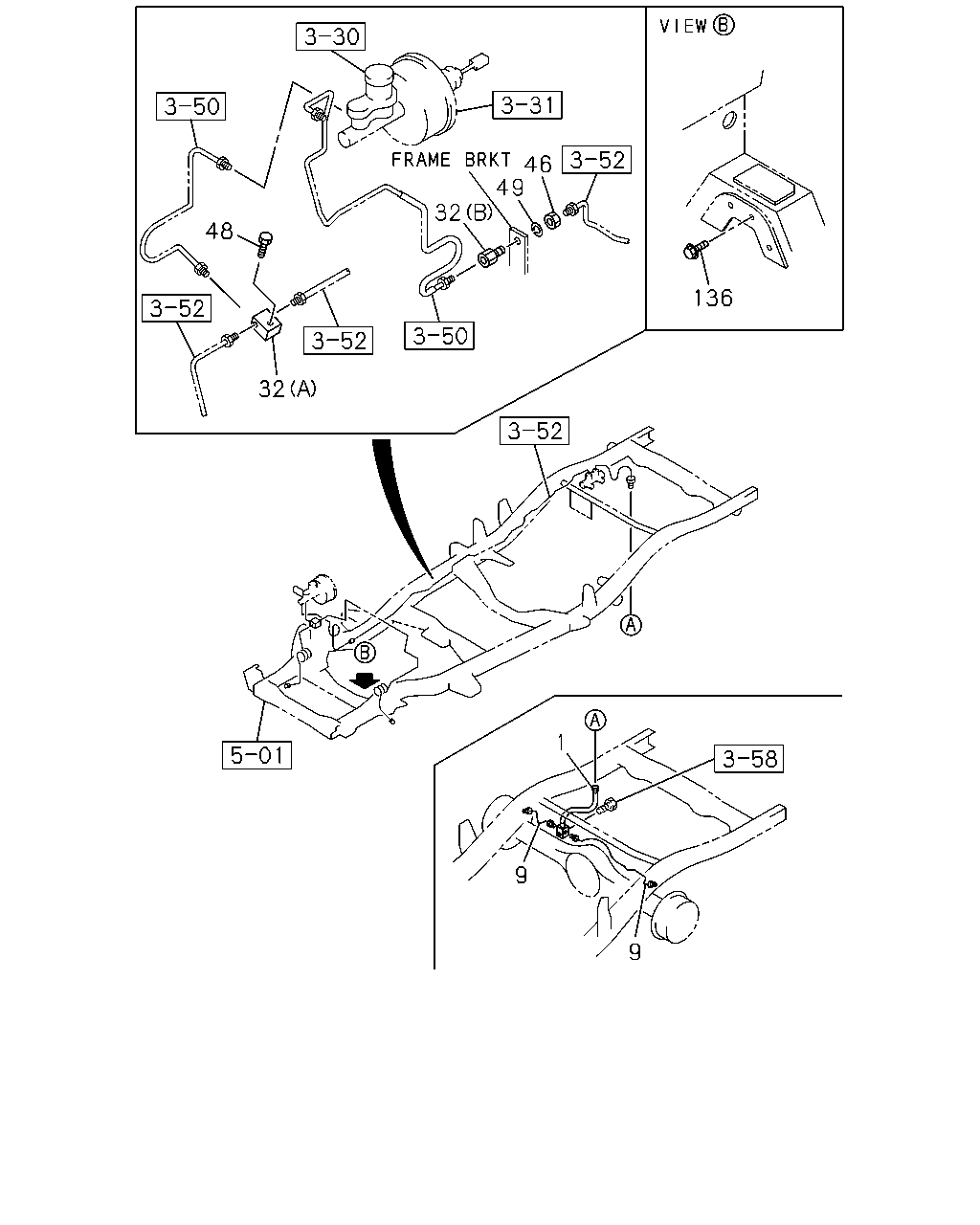

3-55 — BRAKE PIPING; OIL,REAR
(#95474) — 15 parça
9
9
1
32
136
46
49
32
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,RR BRK
8-97251-612-0
01
1
0201-
9
PIPE; BRK,RR AXLE
IDN
8-97956-238-1
01
1
0201-
9
PIPE; BRK,RR AXLE
IDN
8-97956-239-1
01
1
0201-
32
UNION; OIL PIPE
(A)
8-94406-895-0
01
1
0201-0703
32
UNION; OIL PIPE
(A)
8-98008-113-0
01
1
0704-
32
UNION; OIL PIPE
(B) M10 STRAIGHT OUTER M16X21
9-09227-055-0
01
1
0201-0607
32
UNION; OIL PIPE
(B) M10 STRAIGHT OUTER M16X21
0-92107-055-0
01
1
0608-
46
NUT; UNION,OIL PIPE
M16
9-99111-416-0
01
1
0201-0512
46
NUT; UNION,OIL PIPE
M16 IDN
0-91111-516-0
01
1
0601-
48
BOLT; PIPE CONNECTOR
M6X35 W/LK&PL WASHER
0-50140-635-0
01
1
0201-0512
48
BOLT; PIPE CONNECTOR
M6X35 W/LK&PL WASHER
0-50640-635-0
01
1
0601-
49
WASHER; LK,UNION,OIL PIPE
ID=16.2
9-09150-516-0
01
1
0201-0603
49
WASHER; LK,UNION,OIL PIPE
ID=16.2
0-91510-516-0
01
1
0604-
136
BOLT; GROMMET
M6X10 FLANGE IDN
0-28080-610-0
01
1
0201-0512
136
BOLT; GROMMET
M6X10 FLANGE IDN
0-28050-610-0
01
1
0601-
