50919 - TBR (GM-INDONESIA)
▶
3 - Brakes, Brake System
▶

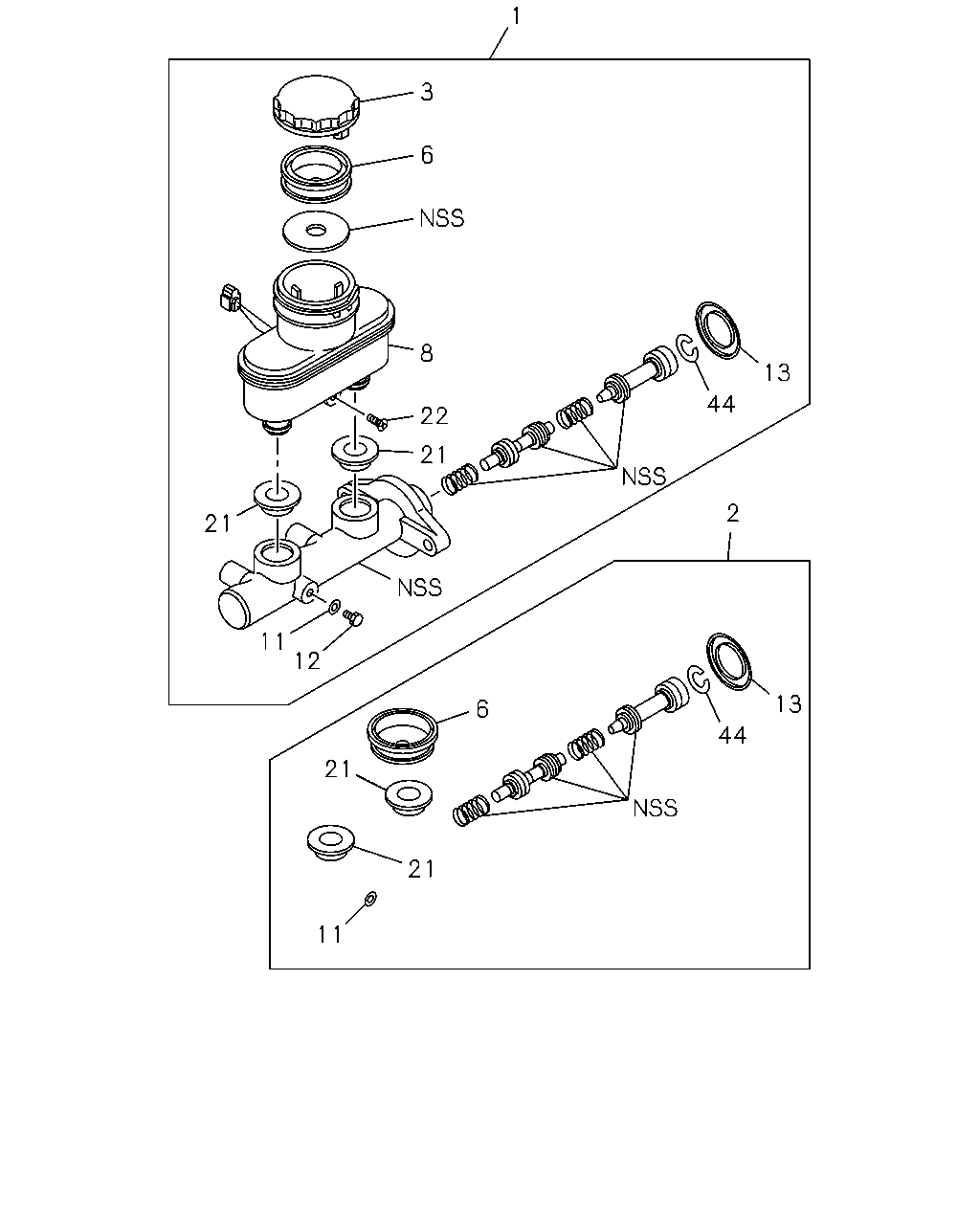

3-30 - BRAKE MASTER CYLINDER
▶
3-30 — BRAKE MASTER CYLINDER
(#95470) — 15 parça
1
3
6
8
22
21
21
11
12
21
11
21
6
44
13
2
44
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CYLINDER ASM; BRK MASTER
8-94313-438-2
01
1
0201-0309
1
CYLINDER ASM; BRK MASTER
THA
8-97943-414-0
01
1
0310-
2
REPAIR KIT; BRK,M/CYL
8-94327-253-1
01
1
0201-0309
2
REPAIR KIT; BRK,M/CYL
THA
8-97943-456-0
01
1
0310-
3
CAP; OIL TANK
8-94124-872-0
01
1
0201-
6
DIAPHRAGM; BRK M/CYL
8-94124-873-0
01
1
0201-
8
TANK; OIL,M/CYL
8-94478-836-1
01
1
0201-
11
GASKET; STOPPER BOLT TO BRK M/CYL BODY
8-94107-675-0
01
1
0201-
12
BOLT; STOPPER,BRK M/CYL
M6X13
8-94107-674-0
01
1
0201-
13
SEAL; DUST,BRK M/CYL TO M/VAC
8-94132-833-0
01
1
0201-
21
GROMMET; BRK M/CYL
8-94133-716-0
02
1
0201-0309
21
GROMMET; BRK M/CYL
THA
8-97940-643-0
02
1
0310-
22
SCREW; OIL TANK
8-94230-600-1
01
1
0201-
44
RING; SNAP,M/CYL
OD=27.9
9-09180-126-0
01
1
0201-0309
44
RING; SNAP,M/CYL
THA
8-97943-455-0
01
1
0310-
