50919 - TBR (GM-INDONESIA)
▶
3 - Brakes, Brake System
▶
3-10 - BRAKE PEDAL AND CONTROL
▶

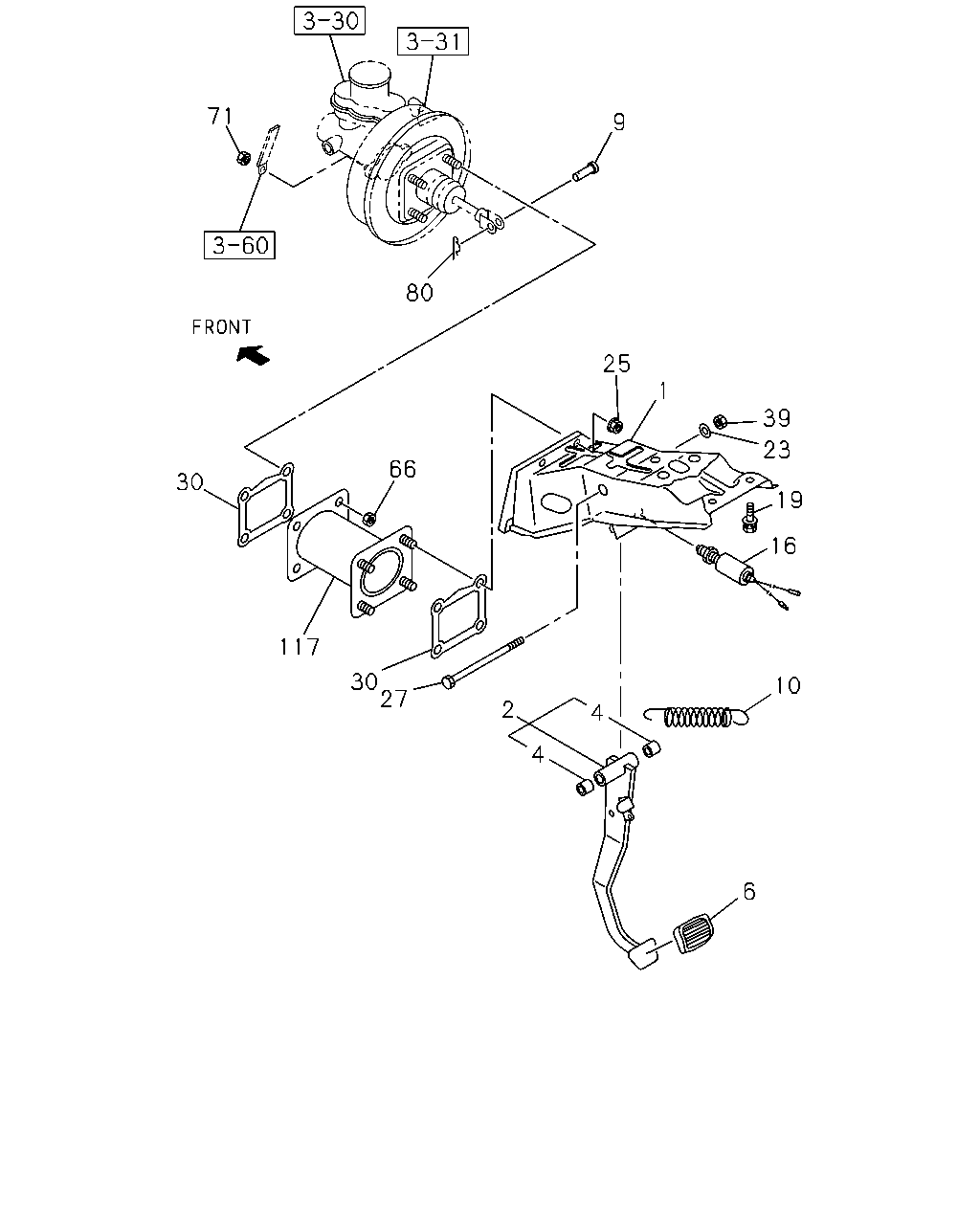

3-10 — BRAKE PEDAL AND CONTROL
(#95468) — 29 parça
39
23
19
16
10
6
4
4
2
27
30
117
66
1
25
80
9
71
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRACKET ASM; PEDAL
8-97040-569-3
01
1
0201-
2
PEDAL; BRK
8-94329-611-1
01
1
0201-0204
2
PEDAL; BRK
M/T MSG 5 SPEED(M75)
8-94329-611-1
01
1
0205-
2
PEDAL; BRK
A/T AISIN(RMD)
8-94329-612-1
01
1
0205-
4
BUSHING; BRK PEDAL
8-94244-439-0
02
1
0201-
6
COVER; BRK PEDAL
8-94222-524-1
01
1
0201-0204
6
COVER; BRK PEDAL
M/T MSG 5 SPEED(M75)
8-94222-524-1
01
1
0205-
6
COVER; BRK PEDAL
A/T AISIN(RMD)
5-31413-004-0
01
1
0205-
9
PIN; JAW JOINT
8-94250-182-0
01
1
0201-
10
SPRING; RETURN,BRK PEDAL
8-94329-696-0
01
1
0201-
16
SWITCH; STOP LAMP
8-94118-754-1
01
1
0201-
19
BOLT; BRKT
M8X16 FLANGE
0-28080-816-0
05
1
0201-0512
19
BOLT; BRKT
M8X16 FLANGE
0-28050-816-0
05
1
0601-
23
WASHER; LK,SHAFT
ID=10.2
9-09150-510-0
01
1
0201-0603
23
WASHER; LK,SHAFT
ID=10.2
0-91510-510-0
01
1
0604-
25
NUT; FLANGE,MTG BRKT TO BODY
M8 FLANGE
5-09440-005-0
04
1
0201-0805
25
NUT; FLANGE,MTG BRKT TO BODY
M8 FLANGE
8-97581-233-0
04
1
0806-
27
SHAFT; BRK PEDAL
8-94480-803-0
01
1
0201-
30
GASKET; M/VAC TO BODY
8-94111-590-0
02
1
0201-0309
30
GASKET; M/VAC TO BODY
THA
8-97943-457-0
02
1
0310-
39
NUT; STOPPER LK
M10
9-09110-410-0
01
1
0201-0512
39
NUT; STOPPER LK
M10
0-91110-510-0
01
1
0601-
66
NUT; SERVO TO BRKT
M8 W/LK WASHER
8-94279-050-0
04
1
0201-0309
66
NUT; SERVO TO BRKT
THA
8-97943-949-0
04
1
0310-
71
NUT; BRK M/CYL
M8 W/LK WASHER
8-94279-050-0
02
1
0201-0309
71
NUT; BRK M/CYL
THA
8-97943-949-0
02
1
0310-
80
PIN; SNAP,BRK PEDAL
L=27.7
8-94157-841-0
01
1
0201-
117
SPACER; M/VAC TO BODY
8-97190-810-0
01
1
0201-0311
117
SPACER; M/VAC TO BODY
THA
8-97943-938-0
01
1
0312-
