50919 - TBR (GM-INDONESIA)
▶
3 - Brakes, Brake System
▶
3-02 - FRONT DISC BRAKE CALIPER
▶

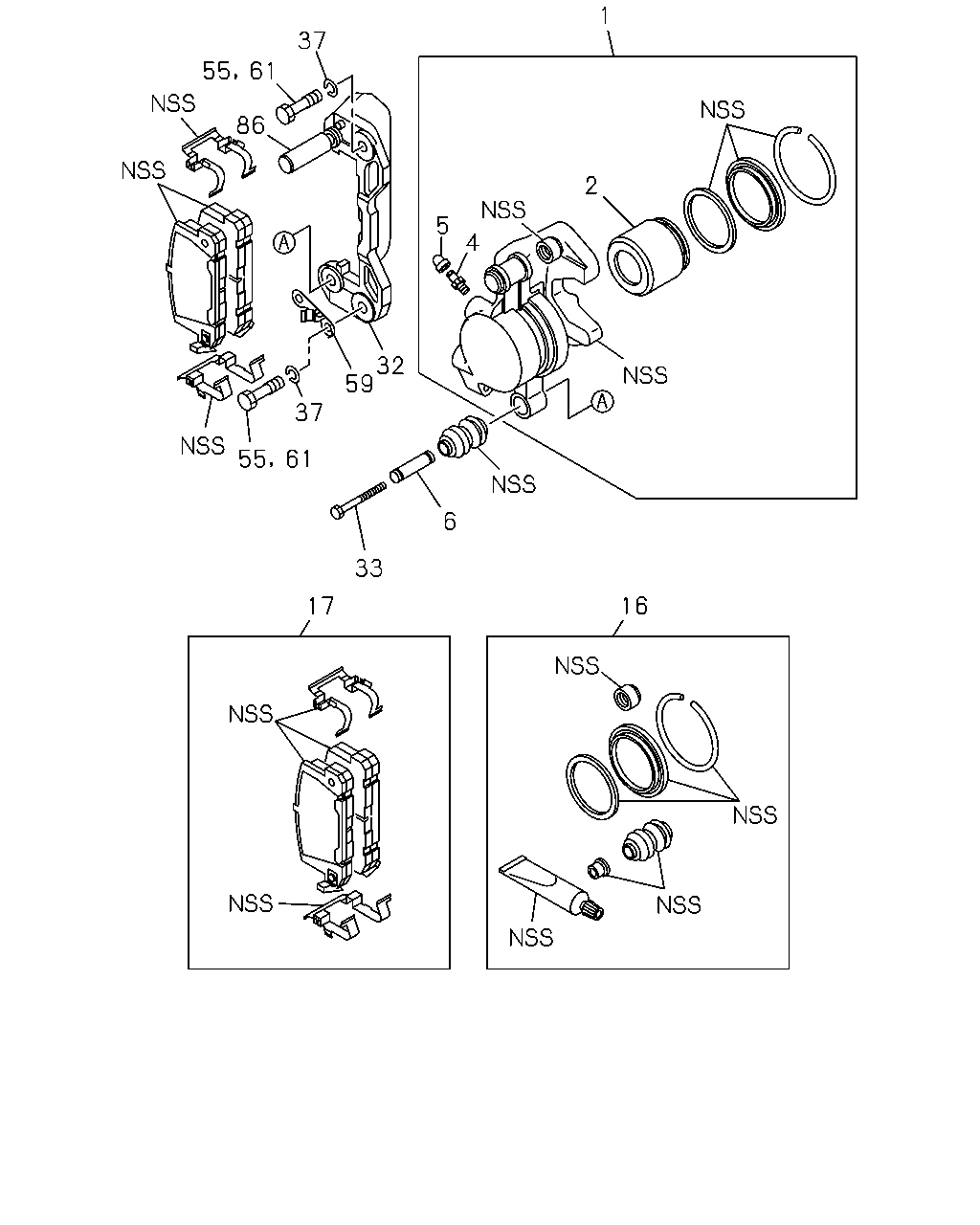

3-02 — FRONT DISC BRAKE CALIPER
(#95466) — 19 parça
16
6
33
17
61
55
37
59
32
4
5
2
1
37
61
55
86
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CALIPER; FRT DISC BRK
IDN
8-97956-915-0
01
1
0201-
1
CALIPER; FRT DISC BRK
IDN
8-97956-914-0
01
1
0201-
2
PISTON; CALIPER,DISC BRK,FRT
IDN
8-94438-689-0
02
1
0201-
4
SCREW; BLEEDER,DISC BRK,FRT
IDN
8-97113-867-0
02
1
0201-
5
CAP; BLEEDER,DISC BRK,FRT
IDN
1-47619-009-0
02
1
0201-
6
SLEEVE; BOOT,CALIPER
8-94136-644-0
02
1
0201-
16
REPAIR KIT; CALIPER,DISC BRK,FRT
8-97134-715-0
01
1
0201-
17
PAD KIT; CALIPER,DISC BRK,FRT
IDN
8-97956-925-0
01
1
0201-
32
SUPPORT; FRT DISC BRK
IDN
8-97956-918-0
02
1
0201-
33
BOLT; SUPPORT BRKT TO DISC BRK
M10X59.5
8-94438-712-0
02
1
0201-
37
WASHER; LK
ID=14.2
9-09150-814-0
04
1
0201-0603
37
WASHER; LK
ID=14.2
0-91510-814-0
04
1
0604-
55
BOLT; SUPPORT BRKT TO DISC BRK
M14X29
8-97126-347-0
02
1
0201-0203
55
BOLT; SUPPORT BRKT TO DISC BRK
M14X29
8-97327-422-0
02
1
0204-
59
BRACKET; FLEX HOSE,FRT
8-94433-667-1
01
1
0201-
59
BRACKET; FLEX HOSE,FRT
8-94433-666-1
01
1
0201-
61
BOLT; SUPPORT BRKT TO KNUCKLE
M14X29
8-97126-347-0
02
1
0201-0203
61
BOLT; SUPPORT BRKT TO KNUCKLE
M14X29
8-97327-422-0
02
1
0204-
86
PIN; GUIDE
IDN
8-94438-694-0
02
1
0201-
