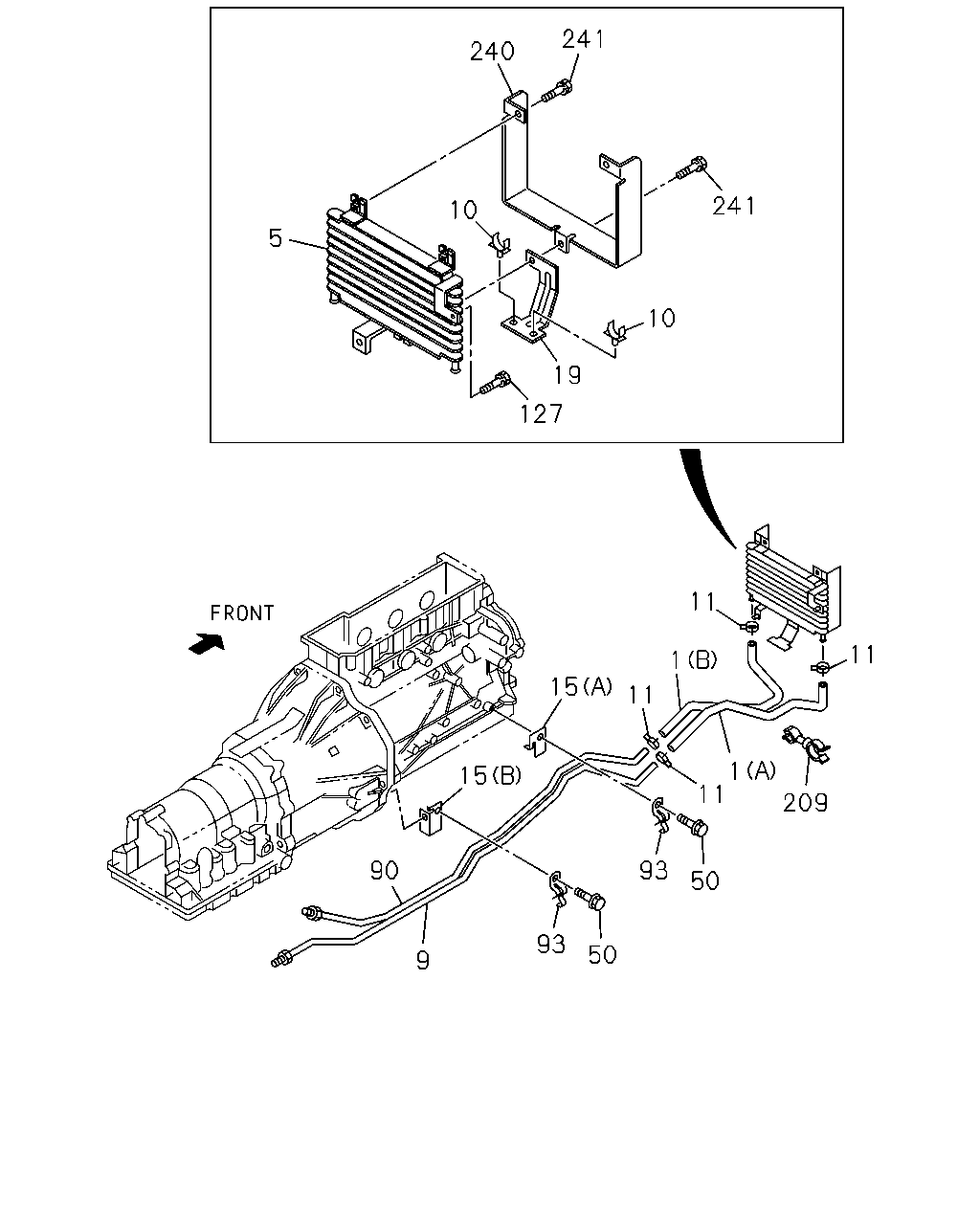

2-53 — TRANSMISSION OIL COOLER SYSTEM
(#95463) — 19 parça
241
241
240
10
10
19
127
5
11
11
1
11
15
209
11
1
50
93
50
93
15
90
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; ATF
(A)
8-97324-589-0
01
1
0205-
1
HOSE; ATF
(B)
8-97324-590-0
01
1
0205-
5
COOLER ASM; OIL,A/T
8-97324-623-0
01
1
0205-
9
PIPE; ATF,INL,A/T
IDN
8-97560-273-1
01
1
0205-
10
CLIP; A/T COOLER HOSE
ID=17
8-94382-792-1
02
1
0205-
11
CLIP; PIPE
ID=14
8-94238-572-0
04
1
0205-
15
BRACKET; ATF PIPE
(A) IDN
8-97560-274-0
01
1
0205-
15
BRACKET; ATF PIPE
(B) IDN
8-97560-275-0
01
1
0205-
19
BRACKET; FLEX HOSE
IDN
8-97560-620-0
01
1
0205-
50
BOLT; CLIP
M8X16 W/LK WASHER
0-50040-816-0
02
1
0205-0512
50
BOLT; CLIP
M8X16 W/LK WASHER
0-50540-816-0
02
1
0601-
90
PIPE ASM; ATF
IDN
8-97560-272-1
01
1
0205-
93
CLIP; BRKT
8-97177-700-0
02
1
0205-
127
BOLT; COOLER
M6X16 FLANGE
0-28080-616-0
02
1
0205-0512
127
BOLT; COOLER
M6X16 FLANGE IDN
0-28050-616-0
02
1
0601-
209
CLIP; HOSE
IDN
8-97210-049-0
01
1
0205-
240
GUIDE; OIL COOLER
IDN
8-97560-621-0
01
1
0205-
241
BOLT; GUIDE
M6X16 FLANGE
0-28080-616-0
03
1
0205-0512
241
BOLT; GUIDE
M6X16 FLANGE IDN
0-28050-616-0
03
1
0601-
