2-52 — AUTO TRANS OVERDRIVE GEAR (#95462) — 41 parça

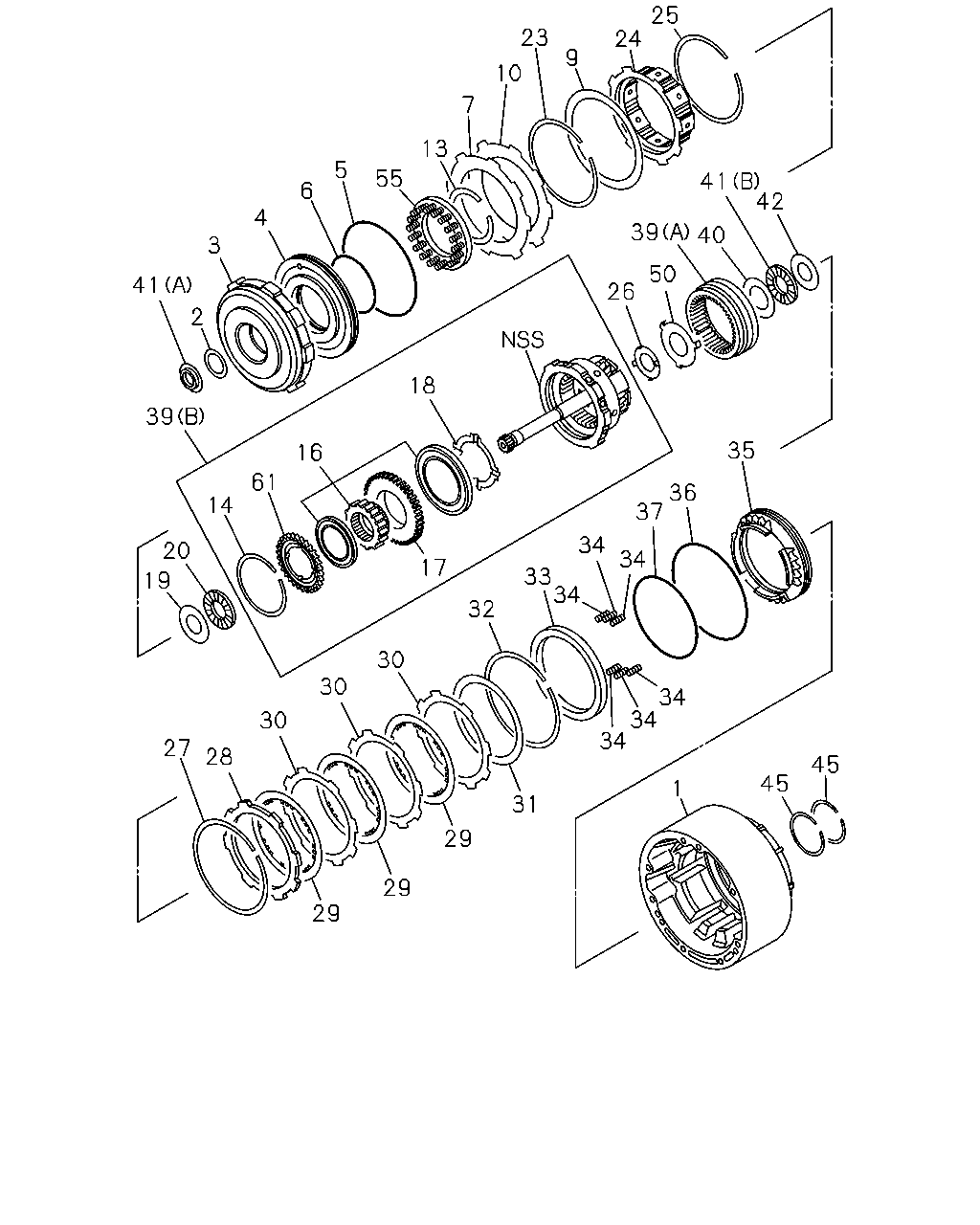

çizim 289926
45 45 1 34 34 34 31 29 29 29 27 28 30 30 30 32 33 34 34 34 17 37 36 35 19 20 14 61 16 18 26 50 40 42 41 39 25 24 9 23 10 7 13 55 5 6 4 3 2 41 39
BalonParca AdiParca NoAdetTipApplied Date
1 CASE ASM; OVERDRIVE,A/T 8-97209-043-0 01 1 0205-
2 RACE; THRUST BRG,OVERDRIVE,A/T 8-94165-958-0 01 1 0205-
3 DRUM; CLU,OVERDRIVE,A/T 8-94165-964-0 01 1 0205-
4 PISTON ASM; CLU,OVERDRIVE,A/T 8-97329-691-0 01 1 0205-
5 GASKET; CLU PISTON,OUTER,OVERDRIVE,A/T 8-94364-920-0 01 1 0205-
6 GASKET; CLU PISTON,INNER,OVERDRIVE,A/T 8-97184-348-0 01 1 0205-
7 PLATE; CLU CUSHION 8-97200-275-0 01 1 0205-
9 DISC ASM; CLU & FACING,OVERDRIVE,A/T 8-97128-816-0 01 1 0205-
10 PLATE; CLU BACKING,OVERDRIVE,A/T
T=2.0 		8-94250-338-0 01 1 0205-
13 RING; SNAP,OVERDRIVE,A/T 5-34268-006-0 01 1 0205-
14 RING; RET,OVERDRIVE,A/T 8-94165-963-0 01 1 0205-
16 CLUTCH ASM; ONEWAY,OVERDRIVE,A/T 8-94165-961-0 01 1 0205-
17 RACE; ONEWAY CLU,A/T 8-94165-960-0 01 1 0205-
18 WASHER; THRUST,OVERDRIVE,A/T 8-94405-304-0 01 1 0205-
19 RACE; THRUST BEARING 8-94165-968-0 01 1 0205-
20 BEARING; THRUST 8-94165-969-0 01 1 0205-
23 RING; RET,OVERDRIVE,A/T 5-34258-001-0 01 1 0205-
24 HUB; OVERDRIVE BRK,A/T 8-94473-603-0 01 1 0205-
25 RING; RET,OVERDRIVE,A/T 8-94250-342-0 01 1 0205-
26 WASHER; THRUST,OVERDRIVE,A/T 8-94250-344-0 01 1 0205-
27 RING; RET,OVERDRIVE,A/T 8-94165-975-0 01 1 0205-
28 PLATE; CLU BACKING,OVERDRIVE,A/T 8-97264-831-0 01 1 0205-
29 DISC ASM; CLU & FACING,OVERDRIVE,A/T 8-97209-067-0 03 1 0205-
30 DISC; CLU,OVERDRIVE,A/T
T=2.0 		8-94165-977-0 03 1 0205-
31 PLATE; CUSHION,OVERDRIVE,A/T 8-94165-976-0 01 1 0205-
32 RING; RET,OVERDRIVE,A/T 8-94165-975-0 01 1 0205-
33 RETAINER; BRK RETURN SPR,OVERDRIVE,A/T 8-94165-974-0 01 1 0205-
34 SPRING; BRK RETURN,OVERDRIVE,A/T 5-34265-002-0 12 1 0205-
35 PISTON; BRK,OVERDRIVE,A/T 8-94165-971-0 01 1 0205-
36 GASKET; PISTON,OUTER,A/T 8-97264-829-0 01 1 0205-
37 GASKET; PISTON,INNER,A/T 8-97264-830-0 01 1 0205-
39 GEAR ASM; PLANETARY INTERNAL,A/T
(B) 		8-97352-373-0 01 1 0205-
39 GEAR ASM; PLANETARY INTERNAL,A/T
(A) 		8-94165-970-0 01 1 0205-
40 RACE; THRUST BRG,OVERDRIVE,A/T 8-94250-346-0 01 1 0205-
41 BEARING; THRUST,OVERDRIVE,A/T
(B) 		5-34258-004-0 01 1 0205-
41 BEARING; THRUST,OVERDRIVE,A/T
(A) 		8-94165-957-0 01 1 0205-
42 RACE; THRUST BRG,OVERDRIVE,A/T 5-34258-005-0 01 1 0205-
45 RING; SEAL,OVERDRIVE,A/T 8-97209-065-0 02 1 0205-
50 RACE; THRUST BRG,OVERDRIVE SUPPORT,RR 8-94473-601-0 01 1 0205-
55 SPRING ASM; CLU RETURN,O/D 8-97128-813-0 01 1 0205-
61 RETAINER; ONEWAY CLU,A/T 8-94165-962-0 01 1 0205-
