◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50919 - TBR (GM-INDONESIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-49 - AUTO TRANS INHIBITOR SWITCH ▶
2-49 — AUTO TRANS INHIBITOR SWITCH (#95460) — 32 parça

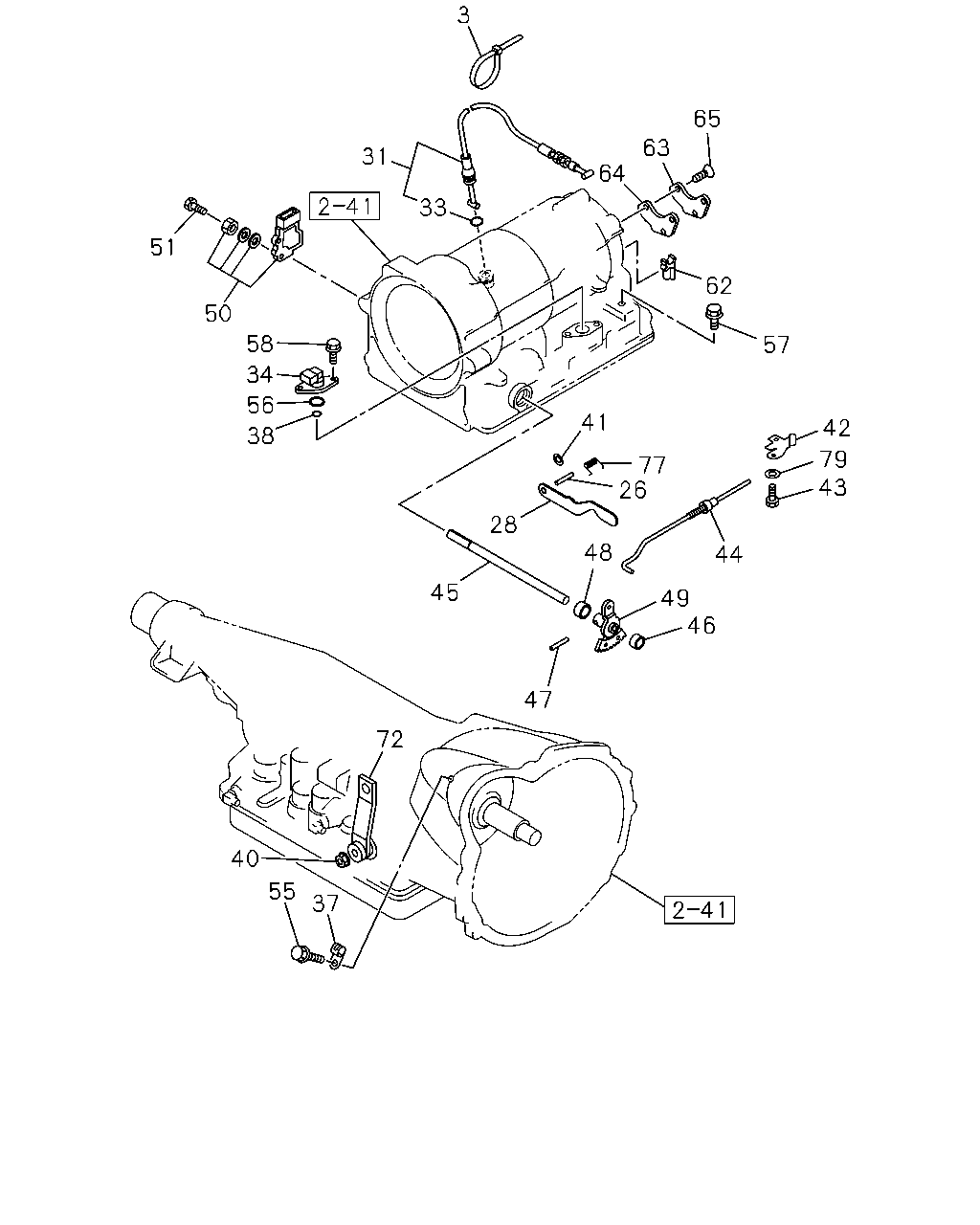

çizim 289233
44 46 49 48 26 77 41 28 45 47 42 79 43 57 62 65 63 64 3 31 33 51 50 58 34 56 38 72 40 55 37
BalonParca AdiParca NoAdetTipApplied Date
3 CLIP; INHIBITOR SW,A/T 8-94473-565-0 01 1 0205-
26 SHAFT; PARKING PAWL,A/T 8-94473-587-0 01 1 0205-
28 PAWL; PARKING,A/T 8-97200-273-0 01 1 0205-
31 CABLE; THROTTLE,A/T 8-97329-678-0 01 1 0205-
33 GASKET; THROTTLE CABLE 8-94364-922-0 01 1 0205-
34 SOLENOID ASM; A/T 8-97327-877-0 01 1 0205-
37 CLAMP; SOLENOID,A/T 8-97025-850-0 01 1 0205-
38 GASKET; SOLENOID INNER 8-94244-566-0 01 1 0205-
40 NUT; LEVER TO SHAFT
M8 FLANGE 		0-91150-108-0 01 1 0205-0602
40 NUT; LEVER TO SHAFT
M8 FLANGE 		0-91180-108-0 01 1 0603-
41 RETAINER; SPR,SHAFT 5-34488-002-0 01 1 0205-
42 BRACKET; PARKING LOCK 8-94323-522-0 01 1 0205-
43 BOLT; BRKT 8-94323-523-0 02 1 0205-
44 ROD ASM; PARKING PAWL 8-94473-589-0 01 1 0205-
45 SHAFT; VALVE LEVER 8-94255-675-0 01 1 0205-
46 SEAL; OIL 8-97065-695-0 02 1 0205-
47 PIN; ROLL SHAFT
D=4 		8-94257-081-0 01 1 0205-
48 COVER; SLEEVE 5-34125-002-0 01 1 0205-
49 LEVER ASM; CAM 8-97209-029-0 01 1 0205-
50 SWITCH; NEUTRAL,A/T 8-97209-145-0 02 1 0205-
51 SCREW; NEUTRAL SW,A/T 8-97200-272-0 01 1 0205-
55 BOLT; SOLENOID TO HSG,A/T
M6X10 		8-94252-680-0 01 1 0205-
56 GASKET; SOLENOID OUTER 8-94244-567-0 01 1 0205-
57 PLUG; BOOSTER 8-94319-583-0 01 1 0205-
58 BOLT; SOLENOID TO A/T 8-94244-568-0 02 1 0205-
62 STRAINER; GOV VALVE 8-94250-353-0 01 1 0205-
63 COVER; OIL GALLERY 5-34125-001-0 01 1 0205-
64 GASKET; OIL GALLERY COVER 8-97032-926-0 01 1 0205-
65 SCREW; COVER TO CASE 5-34128-001-0 03 1 0205-
72 LEVER; SELECT CONT 8-97174-908-2 01 1 0205-
77 SPRING; TORSION,PARKING BRK LK,A/T 8-94473-588-0 01 1 0205-
79 WASHER; PARKING BRK LK,A/T 5-34169-002-0 02 1 0205-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
