2-48 — AUTO TRANS MULTIPLE-DISC CLUTCH (#95459) — 33 parça

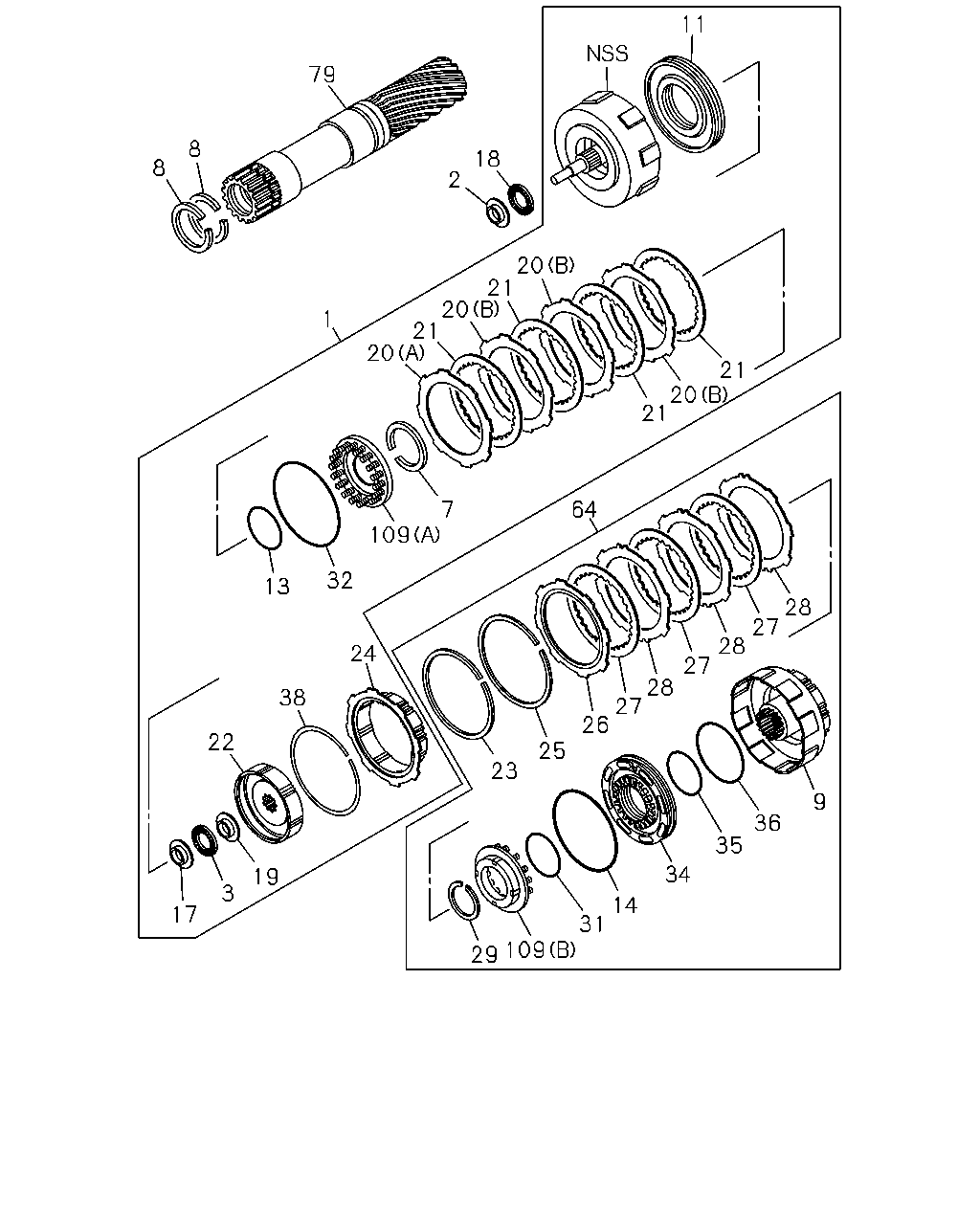

çizim 289924
21 20 21 64 7 109 32 13 24 38 22 19 3 17 29 109 31 14 34 35 36 9 23 25 26 27 28 27 28 27 28 11 18 2 20 21 20 21 20 1 79 8 8
BalonParca AdiParca NoAdetTipApplied Date
1 HUB ASM; CLU,INPUT SHAFT,A/T 8-97352-365-0 01 1 0205-
2 RACE; THRUST BRG,A/T 5-34218-001-0 01 1 0205-
3 BEARING; THRUST,A/T 5-34218-002-0 01 1 0205-
7 RING; RET,PLANETARY GEAR,A/T 5-34268-004-0 01 1 0205-
8 RING; SEAL,PLANETARY GEAR,A/T 8-94166-003-0 02 1 0205-
9 HUB SUB ASM; DIRECT CLU & BRK,A/T 8-94257-067-0 01 1 0205-
11 PISTON ASM; CLU,A/T 8-94400-884-0 01 1 0205-
13 GASKET; INNER,CLU,A/T 8-97184-348-0 01 1 0205-
14 GASKET; OUTER,CLU,A/T 8-94364-920-0 01 1 0205-
17 RACE; THRUST BRG,CLU,A/T 5-34218-001-0 01 1 0205-
18 BEARING; THRUST,CLU,A/T 5-34218-002-0 01 1 0205-
19 RACE; THRUST BRG,CLU,A/T 5-34218-005-0 01 1 0205-
20 DISC; CLU,A/T
(A) T=2.0 		8-94250-338-0 01 1 0205-
20 DISC; CLU,A/T
(B) T=1.8 		8-94473-590-0 03 1 0205-
21 DISC ASM; CLU & FACING,A/T 8-97264-809-0 04 1 0205-
22 HUB; FWD CLU,A/T 8-97264-810-0 01 1 0205-
23 RING; RET,CLU,A/T 8-97128-818-0 01 1 0205-
24 HUB; DIRECT CLU INPUT,A/T 8-94239-555-0 01 1 0205-
25 RING; RET,BACKING PLATE,A/T 5-34258-002-0 01 1 0205-
26 PLATE; CLU,BACKING,A/T
H=3.55 		8-97264-814-0 01 1 0205-
27 DISC ASM; CLU & FACING,A/T 8-97264-809-0 03 1 0205-
28 DISC; CLU,A/T
T=2.0 		8-94250-338-0 03 1 0205-
29 RING; SNAP,CLU,A/T 5-34268-004-0 01 1 0205-
31 GASKET; CLU,INNER,A/T 8-97184-348-0 01 1 0205-
32 GASKET; CLU,OUTER,A/T 8-94364-920-0 01 1 0205-
34 PISTON ASM; CLU,A/T 8-94165-992-0 01 1 0205-
35 GASKET; PISTON,INNER,DIRECT CLU,A/T 8-97184-348-0 01 1 0205-
36 GASKET; PISTON,OUTER,DIRECT CLU,A/T 8-97264-812-0 01 1 0205-
38 RING; RET,CLU,A/T 5-34258-001-0 01 1 0205-
64 DRUM ASM; DIRECT CLU,A/T 8-97352-366-0 01 1 0205-
79 GEAR ASM; INPUT SUN 8-97028-416-0 01 1 0205-
109 SPRING ASM; RETURN,DISC CLU
(A) 		8-97065-696-0 01 1 0205-
109 SPRING ASM; RETURN,DISC CLU
(B) 		8-97065-697-0 01 1 0205-
