2-47 — AUTO TRANS PLANETARY GEAR AND GOVERNOR (#95458) — 34 parça

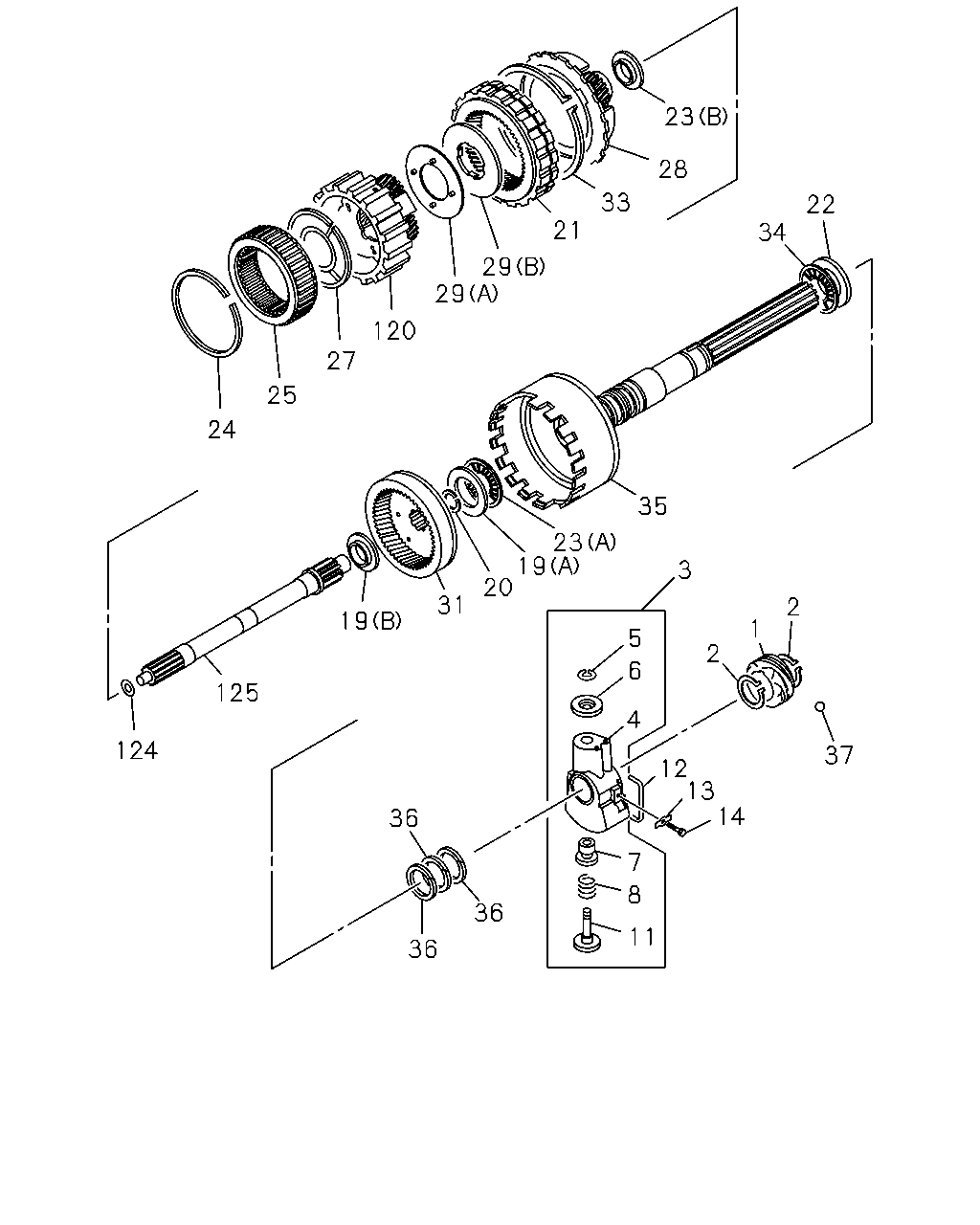

çizim 289925
22 34 23 28 33 21 29 29 120 27 25 24 35 23 19 20 31 19 125 124 2 1 2 3 37 5 6 4 12 13 14 7 8 11 36 36 36
BalonParca AdiParca NoAdetTipApplied Date
1 GEAR; SPEEDOMETER DRIVE,A/T
Z=5 		8-94155-667-0 01 1 0205-
2 RING; SNAP,SPEEDOMETER DRIVE
ID=27.9 		9-09180-030-0 02 1 0205-
3 GOVERNOR ASM; A/T 8-97329-700-0 01 1 0205-
4 BODY ASM; GOV,A/T 8-94244-560-0 01 1 0205-
5 RING; RET,GOV 5-34518-005-0 01 1 0205-
6 WEIGHT; GOV,CONV 5-34518-004-0 01 1 0205-
7 VALVE; GOV,A/T 5-31518-001-0 01 1 0205-
8 SPRING; GOV VALVE 8-97329-692-0 01 1 0205-
11 SHAFT; GOV WEIGHT 5-34518-003-0 01 1 0205-
12 RING; RET & DRIVE 5-34518-006-0 01 1 0205-
13 WASHER; GOV 8-94244-561-0 01 1 0205-
14 SCREW; CAP,GOV
M5X22 		5-34539-010-0 01 1 0205-
19 RACE; THRUST BRG,PLANETARY SHAFT,A/T
(A) 		5-34258-003-0 01 1 0205-
19 RACE; THRUST BRG,PLANETARY SHAFT,A/T
(B) 		8-97028-415-0 01 1 0205-
20 RING; RET,PLANETARY GEAR,A/T 5-34318-007-0 01 1 0205-
21 GEAR; PLANETARY,INTERNAL FRT,A/T 8-94166-011-0 01 1 0205-
22 RACE; THRUST BRG,FRT PLANETARY SHAFT,A 5-34379-003-0 01 1 0205-
23 BEARING; THRUST,PLANETARY SHAFT,A/T
(A) 		5-34258-004-0 01 1 0205-
23 BEARING; THRUST,PLANETARY SHAFT,A/T
(B) 		8-97028-414-0 01 1 0205-
24 RING; RET,FRT PLANETARY,A/T 5-34368-003-0 01 1 0205-
25 CLUTCH ASM; ONEWAY,FRT PLANETARY,A/T 8-94166-008-0 01 1 0205-
27 WASHER; THRUST,FRT PLANETARY,A/T 8-94166-007-0 01 1 0205-
28 GEAR ASM; RR PLANETARY,A/T 8-94166-012-0 01 1 0205-
29 WASHER; THRUST,FRT PLANETARY,A/T
(A) 		8-94166-009-0 01 1 0205-
29 WASHER; THRUST,FRT PLANETARY,A/T
(B) 		8-94166-010-0 01 1 0205-
31 GEAR ASM; INTERNAL,PLANETARY,A/T 8-94166-014-0 01 1 0205-
33 RING; RET,PLANETARY GEAR,A/T 5-34368-004-0 01 1 0205-
34 BEARING; THRUST,FRT PLANETARY SHAFT,A/ 5-34379-002-0 01 1 0205-
35 SHAFT ASM; FRT PLANETARY,A/T 8-94155-666-1 01 1 0205-
36 RING; SEALING,FRT PLANETARY SHAFT,A/T 5-34378-001-0 03 1 0205-
37 BALL; SPD DRIVE 8-94167-674-0 01 1 0205-
120 GEAR SET; FRT PLANETARY,A/T 8-94166-006-0 01 1 0205-
124 RING; SLEEVE,OIL SEAL,RR PLANETARY GEA 8-94250-373-0 01 1 0205-
125 SHAFT ASM; INTERMEDIATE,PLANETARY GEAR 8-94166-013-0 01 1 0205-
