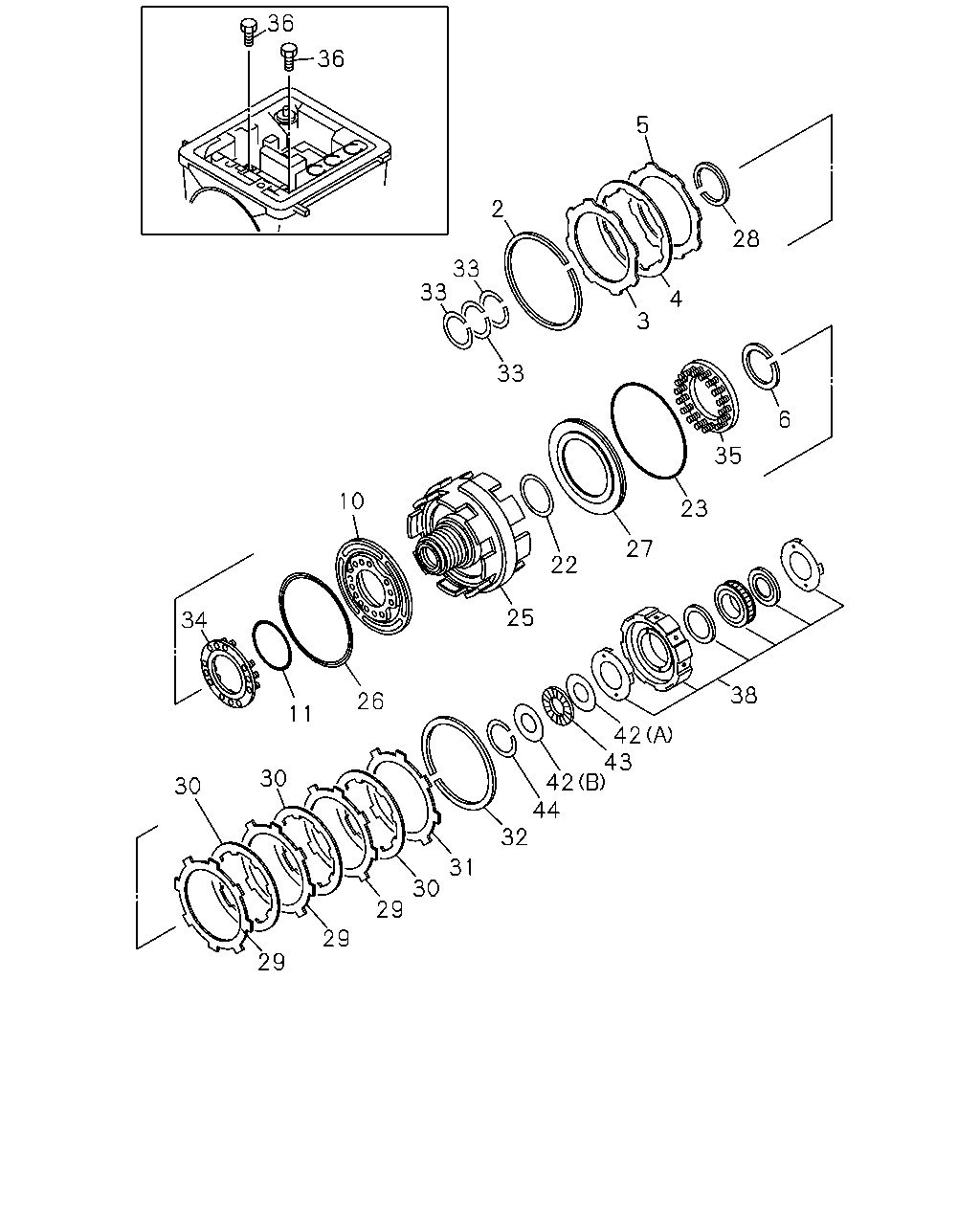

2-46 — AUTO TRANS SUPPORT AND PLANETARY GEAR (#95457) — 26 parça

36 36 5 2 33 33 33 28 4 3 10 34 6 35 23 27 22 25 26 11 30 30 38 42 43 42 44 32 31 30 29 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	RING; RET,FRT BRK,2ND BRK,A/T	5-34258-002-0	01	1	0205-
3	PLATE; CLU BACKING,2ND BRK,A/T H=3.95	5-34256-002-0	01	1	0205-
4	DISC ASM; CLU & FACING,2ND BRK,A/T	8-97209-039-0	01	1	0205-
5	DISC; CLU,2ND BRK,A/T T=1.8	5-34252-003-0	01	1	0205-
6	RING; SNAP,FRT BRK,A/T	5-34268-006-0	01	1	0205-
10	PISTON; BRK,FRT,2ND BRK,A/T	5-34261-006-1	01	1	0205-
11	GASKET; BRK PISTON,FRT,INNER,A/T	8-97184-348-0	01	1	0205-
22	GASKET; BRK PISTON,RR,INNER,A/T	8-97184-348-0	01	1	0205-
23	GASKET; BRK PISTON,RR,OUTER,A/T	8-97264-818-0	01	1	0205-
25	SUPPORT; CENTER,2ND BRK,A/T	8-97209-038-0	01	1	0205-
26	GASKET; BRK PISTON,FRT,OUTER,A/T	8-97264-817-0	01	1	0205-
27	PISTON; BRK,RR,2ND BRK,A/T	8-94250-366-0	01	1	0205-
28	RING; SNAP,RR BRK,A/T	5-34268-006-0	01	1	0205-
29	DISC; CLU,RR BRK,2ND BRK,A/T	8-94165-998-0	03	1	0205-
30	DISC ASM; CLU & FACING,2ND BRK,A/T	8-97264-820-0	03	1	0205-
31	PLATE; CLU BACKING,2ND BRK,A/T	8-94250-351-0	01	1	0205-
32	RING; RET,RR BRK,2ND BRK,A/T	5-34258-002-0	01	1	0205-
33	RING; SEALING,2ND BRK,A/T	8-97264-821-0	03	1	0205-
34	SPRING ASM; RETURN,FRT BRK	8-97065-698-0	01	1	0205-
35	SPRING ASM; RETURN,RR BRK	8-97065-699-0	01	1	0205-
36	BOLT; SHOULDER SUPPORT TO CASE,A/T	8-97065-700-0	02	1	0205-
38	CLUTCH ASM; ONEWAY,2ND BRK,A/T	8-97329-690-0	01	1	0205-
42	RACE; THRUST BRG,A/T (B)	8-97264-825-0	01	1	0205-
42	RACE; THRUST BRG,A/T (A)	8-97289-104-0	01	1	0205-
43	BEARING; THRUST,A/T	5-34258-004-0	01	1	0205-
44	RING; RET	8-94166-000-0	01	1	0205-
