◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50919 - TBR (GM-INDONESIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-44 - AUTO TRANS CONTROL VALVE; LOWER BODY ▶
2-44 — AUTO TRANS CONTROL VALVE; LOWER BODY (#95456) — 97 parça

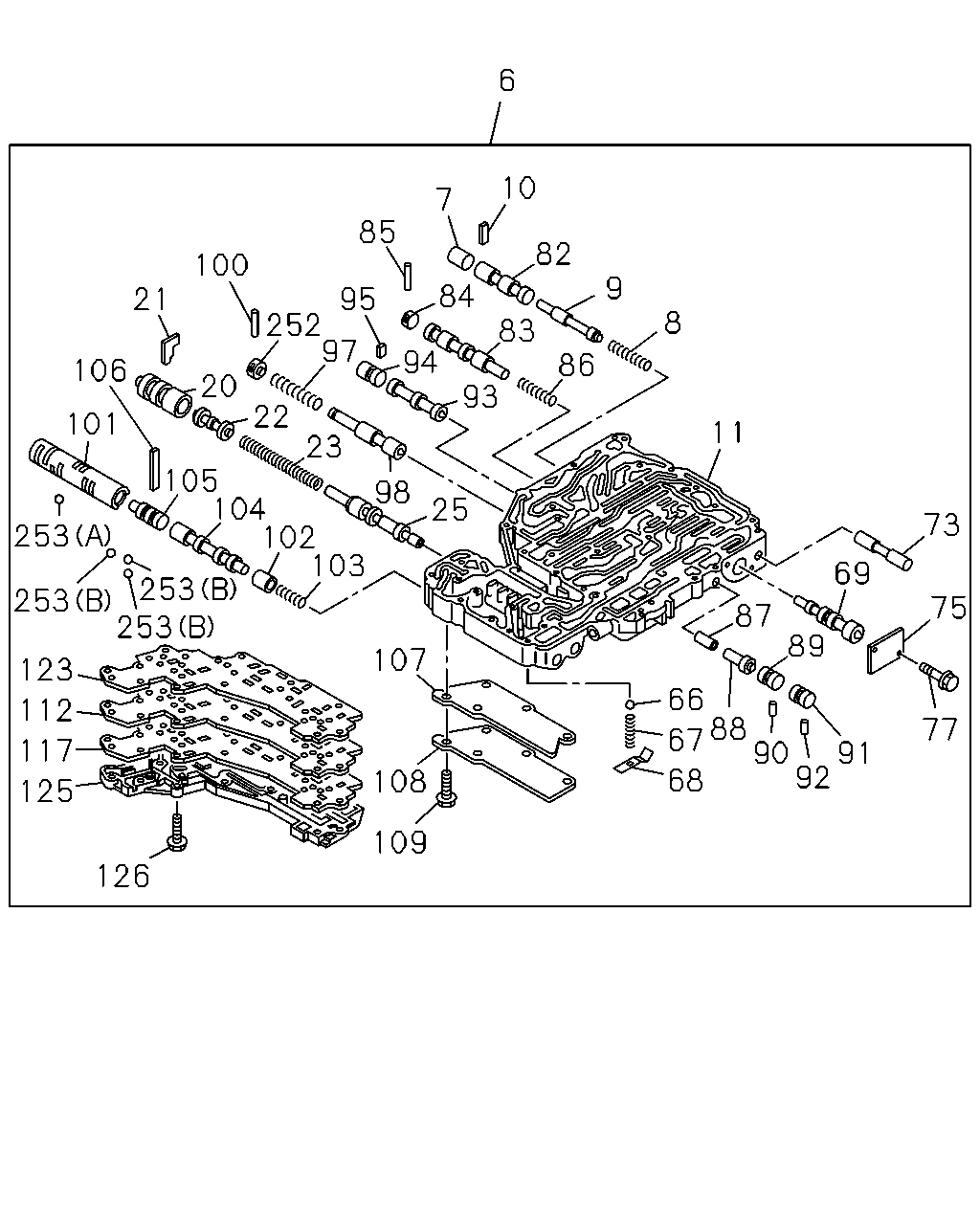

çizim 289922
73 75 77 69 89 87 91 92 90 88 66 67 68 11 8 9 6 82 10 7 86 83 84 85 93 94 95 25 98 23 22 20 252 100 21 106 101 103 102 104 105 253 253 123 112 117 125 126 253 253 107 108 109 97
BalonParca AdiParca NoAdetTipApplied Date
6 BODY ASM; VLV LWR,A/T 8-97329-685-0 01 1 0205-
7 PLUG; VLV,1-2 SHIFT,VLV LWR,A/T 5-34538-002-0 01 1 0205-
8 SPRING; 1ST VALVE 5-34533-004-0 01 1 0205-
9 VALVE; 1-2 SHIFT UPR,VLV LWR,A/T 8-94100-645-0 01 1 0205-
10 RETAINER; 1-2 SHIFT VLV,VLV LWR,A/T 5-34538-003-0 01 1 0205-
11 BODY; VLV LWR,A/T 8-97329-698-0 01 1 0205-
20 SLEEVE; REG VLV,VLV LWR,A/T 8-97329-695-0 01 1 0205-
21 RETAINER; SLEEVE,VLV LWR,A/T 8-97065-704-0 01 1 0205-
22 PLUNGER; REG VLV,VLV LWR,A/T 8-97329-696-0 01 1 0205-
23 SPRING; REG VLV,VLV LWR,A/T 8-97311-554-0 01 1 0205-
25 VALVE; REG,PRIMARY,VLV LWR,A/T 8-97065-702-0 01 1 0205-
66 BALL; STEEL,RELIEF VLV,A/T 5-34538-001-0 01 1 0205-
67 SPRING; PRESSURE,RELIEF VLV,A/T 5-34533-001-0 01 1 0205-
68 RETAINER; RELIEF VLV,A/T 5-34534-001-0 01 1 0205-
69 VALVE; SHIFT,LOW COAST,VLV LWR,A/T 8-94250-378-0 01 1 0205-
73 PLUG; REV,VLV LWR,A/T 8-94116-576-0 01 1 0205-
75 COVER; VLV,LWR COAST SHIFT,VLV LWR,A/T 5-34521-001-0 01 1 0205-
77 BOLT; SHIFT CVR,VLV LWR,A/T
M5X12 		8-94405-335-0 02 1 0205-
82 VALVE; 1ST 8-94100-644-0 01 1 0205-
83 VALVE; 3-4 SHIFT,VLV LWR,A/T 8-94250-379-0 01 1 0205-
84 PLUG; 3-4 SHIFT VLV,VLV LWR,A/T 8-94250-383-0 01 1 0205-
85 ROLLER; NEEDLE,3-4 SHIFT VLV,VLV LWR,A 8-94250-384-0 01 1 0205-
86 SPRING; 3-4 SHIFT VLV,VLV LWR,A/T 8-94473-644-0 01 1 0205-
87 VALVE; 3-4 SHIFT CONT,VLV LWR,A/T 8-94250-381-0 01 1 0205-
88 VALVE; 3RD,COAST SHIFT,VLV LWR,A/T 8-94250-382-0 01 1 0205-
89 PLUG; 3RD,COAST SHIFT VLV,VLV LWR,A/T 8-94250-385-0 01 1 0205-
90 PIN; LOCATING,PLUG,VLV LWR,A/T 8-94250-386-0 01 1 0205-
91 PLUG; MANUAL,VLV LWR,A/T 8-94250-387-0 01 1 0205-
92 PIN; LOCATING,MANUAL PLUG,VLV LWR,A/T 8-94250-386-0 01 1 0205-
93 VALVE; D-2 DOWN TIMING,VLV LWR,A/T 8-94250-389-0 01 1 0205-
94 PLUG; D-2 DOWN TIMING VLV,VLV LWR,A/T 8-94250-390-0 01 1 0205-
95 RETAINER; D-2 DOWN TIMING VLV,VLV LWR 8-94250-391-0 01 1 0205-
97 SPRING; LOCKUP SIGNAL VALVE 8-97329-697-0 01 1 0205-
98 VALVE; LOCKUP SIGNAL 8-97329-689-0 01 1 0205-
100 PIN; LOCATING 8-94405-326-0 01 1 0205-
101 SLEEVE; LOCKUP RELAY VALVE 8-94405-327-0 01 1 0205-
102 VALVE; LOCKUP RELAY VALVE SLEEVE 8-94405-328-0 01 1 0205-
103 SPRING; LOCKUP RELAY VALVE 8-94405-329-0 01 1 0205-
104 VALVE ASM; LOCKUP RELAY 8-94405-330-0 01 1 0205-
105 PLUG; LOCKUP RELAY VALVE 8-94405-331-0 01 1 0205-
106 RETAINER; LOCKUP RELAY VALVE 8-94405-332-0 01 1 0205-
107 GASKET; LOCKUP RELAY VALVE 8-94405-333-0 01 1 0205-
108 PLATE; LOCKUP RELAY VALVE 8-94405-334-0 01 1 0205-
109 SCREW; LOCKUP PLATE
M5X12 		8-94405-335-0 04 1 0205-
112 PLATE; VLV BODY CVR,VLV LWR,A/T 8-94473-645-0 01 1 0205-
117 GASKET; VLV BODY CVR,UPR,VLV LWR,A/T 8-94405-339-0 01 1 0205-
123 GASKET; VLV BODY CVR,LWR,VLV LWR,A/T 8-94405-338-0 01 1 0205-
125 COVER; VLV LWR BODY,A/T 8-94405-340-0 01 1 0205-
126 BOLT; CVR,VLV LWR,A/T
M5X17.5 		8-94473-608-0 07 1 0205-
252 PLUG; LOCKUP SIGNAL VALVE 8-94405-325-0 01 1 0205-
253 BALL; CHECK,VLV LWR,A/T
(A) OD=6.35 		8-94364-913-0 01 1 0205-
253 BALL; CHECK,VLV LWR,A/T
(B) OD=5.595 		8-94473-576-0 07 1 0205-

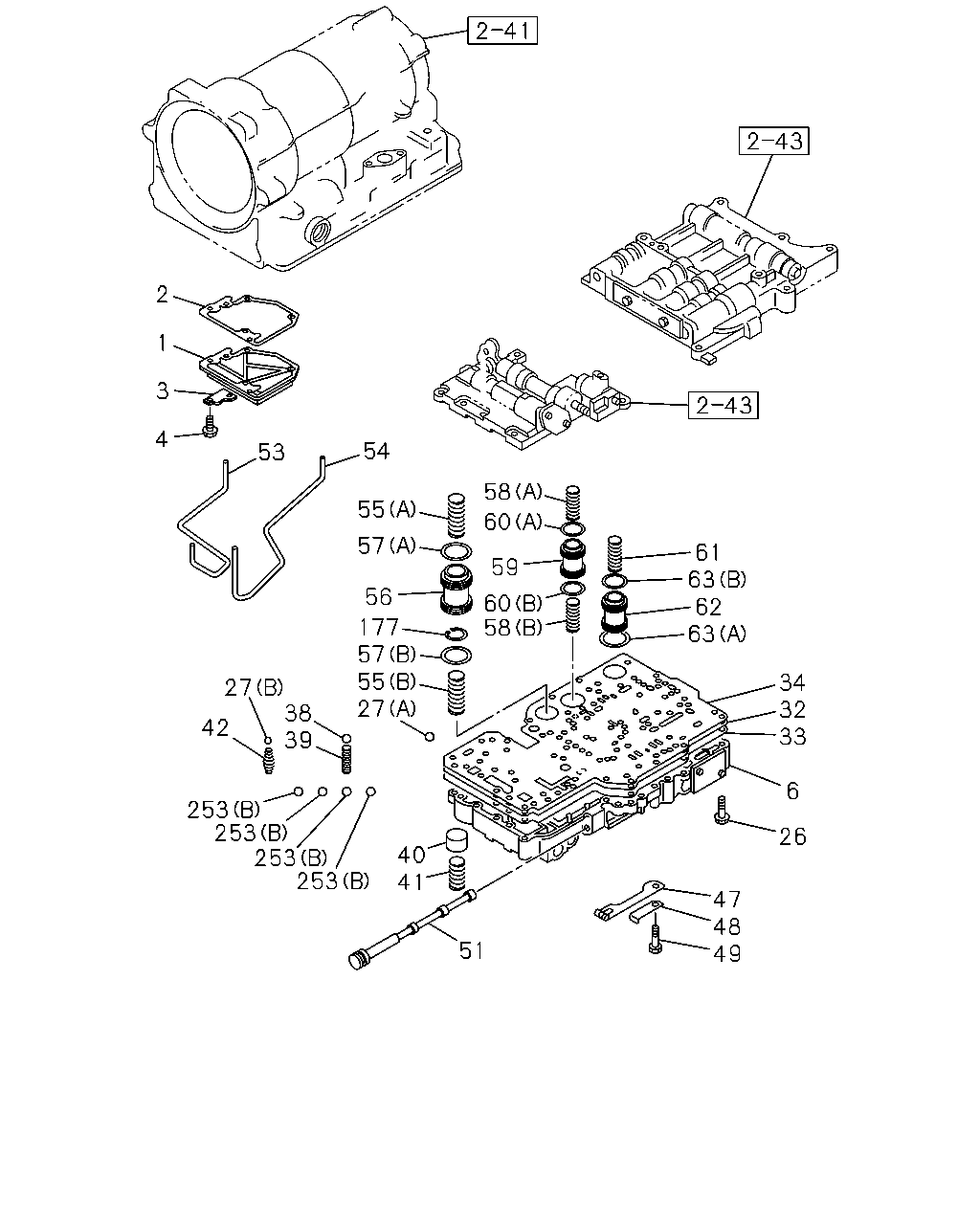

çizim 289923
2 4 3 1 54 53 58 58 60 60 59 55 27 57 56 177 57 55 39 27 38 42 61 63 63 62 34 32 33 6 26 49 47 48 51 40 41 253 253 253 253
BalonParca AdiParca NoAdetTipApplied Date
1 STRAINER ASM; OIL,A/T 8-94405-362-0 01 1 0205-
2 GASKET; OIL STRAINER,A/T 8-97032-927-0 01 1 0205-
3 PLATE; OIL STRAINER 8-94405-361-0 01 1 0205-
4 BOLT; OIL STRAINER,A/T
M5X12 		8-94405-335-0 06 1 0205-
6 BODY ASM; VLV LWR,A/T 8-97329-685-0 01 1 0205-
26 BOLT; BODY FIX,VLV LWR,A/T
M6X30 		8-94473-623-0 04 1 0205-
26 BOLT; BODY FIX,VLV LWR,A/T
M6X25 		8-94473-624-0 02 1 0205-
26 BOLT; BODY FIX,VLV LWR,A/T
M6X40 		8-94473-625-0 01 1 0205-
26 BOLT; BODY FIX,VLV LWR,A/T
M6X36 		8-94473-630-0 02 1 0205-
26 BOLT; BODY FIX,VLV LWR,A/T
M6X64 		8-94473-663-0 01 1 0205-
26 BOLT; BODY FIX,VLV LWR,A/T
M6X55 		8-94473-664-0 05 1 0205-
26 BOLT; BODY FIX,VLV LWR,A/T
M6X20 		8-94479-922-0 02 1 0205-
27 BALL; STEEL,VLV,A/T
(A) OD=5.56 		5-34535-002-0 01 1 0205-
27 BALL; STEEL,VLV,A/T
(B) OD=6.35 		8-94364-913-0 01 1 0205-
32 PLATE; SEPARATOR,VLV BODY,A/T 8-97329-687-0 01 1 0205-
33 GASKET; LWR,VLV BODY,A/T 8-94405-349-0 01 1 0205-
34 GASKET; UPR,VLV BODY,A/T 8-94405-348-0 01 1 0205-
38 BALL; BALL VALVE
OD=3/8" 		8-94405-352-0 01 1 0205-
39 SPRING; BALL VALVE
OD=3/8" 		8-94405-353-0 01 1 0205-
40 VALVE; BYPASS,A/T 5-34531-016-0 01 1 0205-
41 SPRING; BYPASS VLV,A/T 8-94473-622-0 01 1 0205-
42 SPRING; PRIMARY,A/T 5-34533-016-0 01 1 0205-
47 SPRING; DETENT,A/T 8-97209-087-0 01 1 0205-
48 PLATE; DETENT SPR,A/T 8-97209-080-0 01 1 0205-
49 BOLT; DETENT SPR PLATE,A/T
M5X40 		8-94473-621-0 01 1 0205-
51 VALVE; MANUAL,A/T 5-34531-017-0 01 1 0205-
53 TUBE; FWD CLU,A/T 8-94405-356-0 01 1 0205-
54 TUBE; OVERDRIVE BRK,A/T 8-97200-226-0 01 1 0205-
55 SPRING; ACCUMLATOR PISTON
(A) 		8-97209-020-0 01 1 0205-
55 SPRING; ACCUMLATOR PISTON
(B) 		8-97329-683-0 01 1 0205-
56 PISTON; ACCUMLATOR 8-97209-148-0 01 1 0205-
57 GASKET; 2ND SPD PISTON,A/T
(A) ID=24 		8-97184-889-0 01 1 0205-
57 GASKET; 2ND SPD PISTON,A/T
(B) 		8-97264-842-0 01 1 0205-
58 SPRING; DIRECT CLU (C-2 ACCUM),A/T
(A) 		8-94405-360-0 01 1 0205-
58 SPRING; DIRECT CLU (C-2 ACCUM),A/T
(B) 		8-97209-021-0 01 1 0205-
59 PISTON; DIRECT CLU,A/T 8-94166-028-0 01 1 0205-
60 GASKET; DIRECT CLU PISTON,A/T
(A) 		8-97264-843-0 01 1 0205-
60 GASKET; DIRECT CLU PISTON,A/T
(B) 		8-97264-844-0 01 1 0205-
61 SPRING; FWD CLU,(C-1 ACUUM),A/T 8-94166-029-0 01 1 0205-
62 PISTON; FWD CLU,A/T 5-34461-003-0 01 1 0205-
63 GASKET; FWD CLU,A/T
(B) 		8-97264-844-0 01 1 0205-
63 GASKET; FWD CLU,A/T
(A) 		8-97264-845-0 01 1 0205-
177 RING; SNAP
ID=19 		8-97025-821-0 01 1 0205-
253 BALL; CHECK,VLV LWR,A/T
(A) OD=6.35 		8-94364-913-0 01 1 0205-
253 BALL; CHECK,VLV LWR,A/T
(B) OD=5.595 		8-94473-576-0 07 1 0205-
