2-43 — AUTO TRANS CONTROL VALVE; UPPER BODY (#95455) — 47 parça

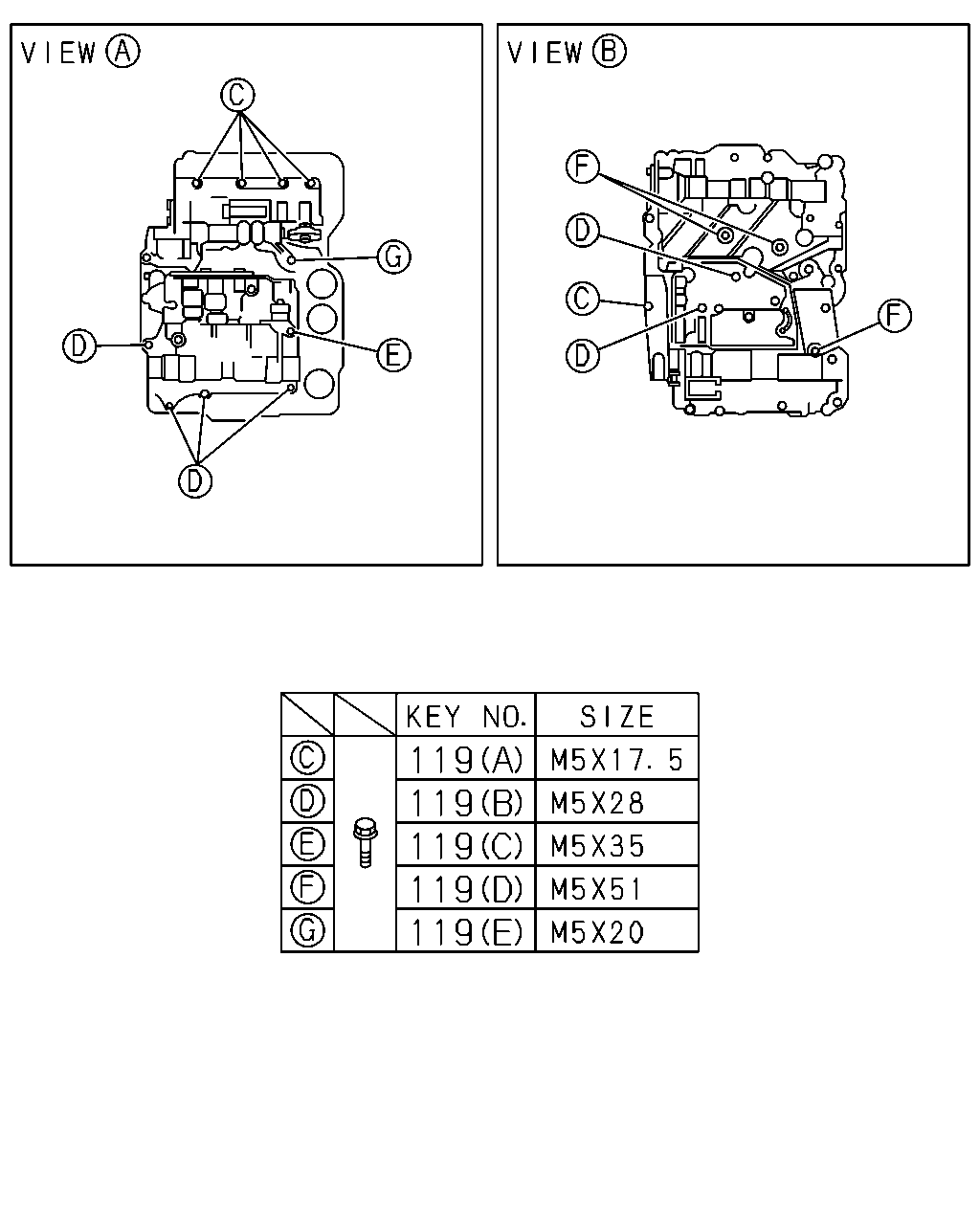

çizim 289133
119 119 119 119 119
BalonParca AdiParca NoAdetTipApplied Date
119 BOLT; VLV BODY,A/T
(A) M5X17.5 		8-94473-608-0 04 1 0205-
119 BOLT; VLV BODY,A/T
(B) M5X28 		8-94473-616-0 06 1 0205-
119 BOLT; VLV BODY,A/T
(C) M5X35 		8-94473-617-0 01 1 0205-
119 BOLT; VLV BODY,A/T
(D) M5X51 		8-94473-618-0 03 1 0205-
119 BOLT; VLV BODY,A/T
(E) M5X20 		8-97232-033-0 02 1 0205-

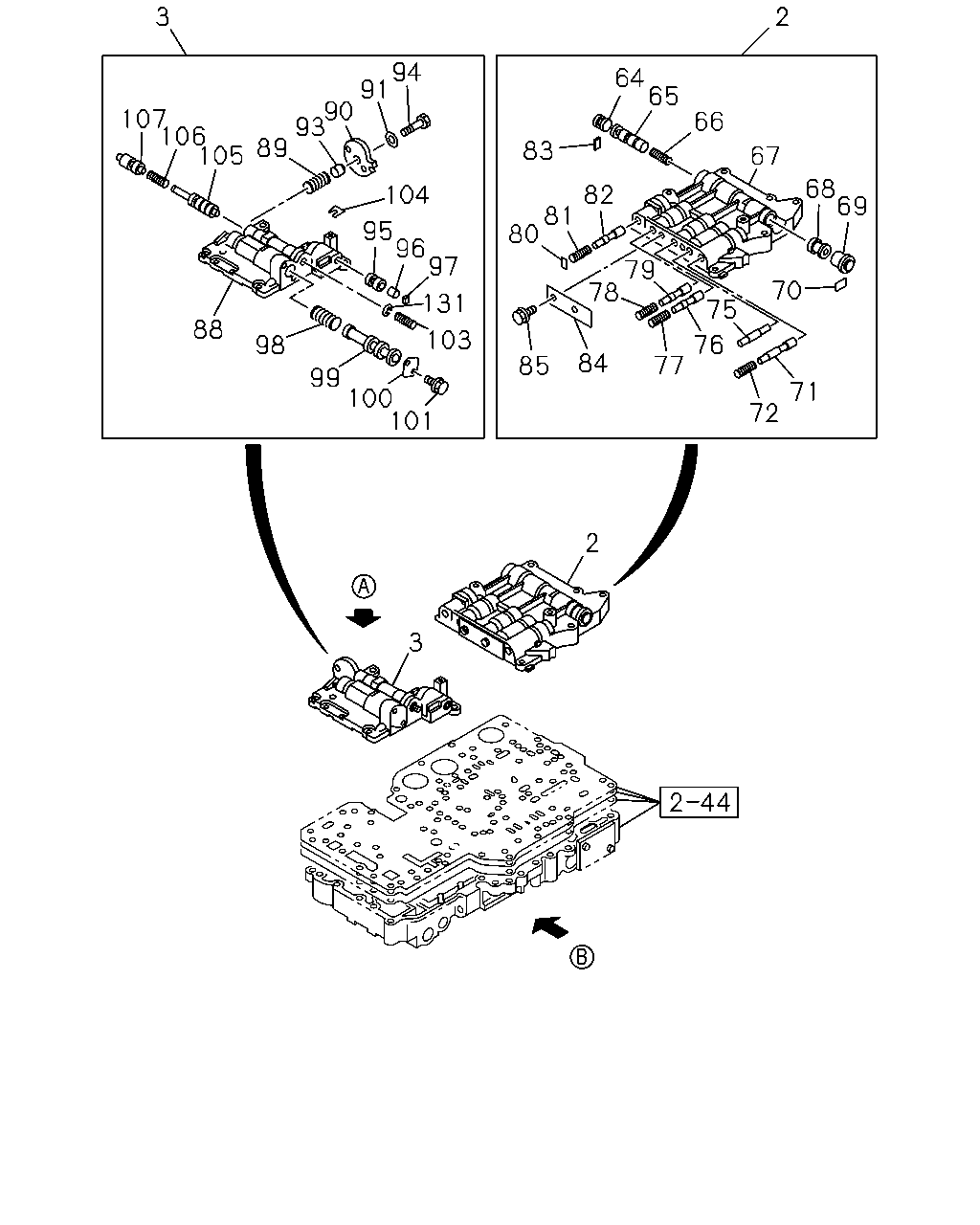

çizim 289921
2 3 71 72 69 68 67 66 65 64 2 83 82 81 80 70 75 76 77 79 78 84 85 3 94 91 90 93 89 105 106 107 104 95 103 131 97 96 101 100 99 98 88
BalonParca AdiParca NoAdetTipApplied Date
2 BODY ASM; VLV UPR RR,A/T 8-97329-686-0 01 1 0205-
3 BODY ASM; VLV UPR FRT,A/T 8-97209-078-0 01 1 0205-
64 PLUG; VLV,2-3 SHIFT,VLV UPR RR,A/T 5-34538-007-0 01 1 0205-
65 VALVE; 2-3 SHIFT,VLV UPR RR,A/T 5-34531-010-0 01 1 0205-
66 SPRING; VLV,2-3 SHIFT,VLV UPR RR,A/T 5-34533-010-0 01 1 0205-
67 BODY; VLV UPR RR,A/T 8-94250-397-0 01 1 0205-
68 VALVE; INTERMEDIATE,VLV UPR RR,A/T 5-34531-009-0 01 1 0205-
69 PLUG; INTERMEDIATE,VLV UPR RR,A/T 5-34538-005-0 01 1 0205-
70 RETAINER; INTERMEDIATE,VLV UPR RR,A/T 5-34538-006-0 01 1 0205-
71 VALVE; LOW,VLV UPR RR,A/T 5-34531-007-0 01 1 0205-
72 SPRING; VLV LOW,VLV UPR RR,A/T 5-34533-008-0 01 1 0205-
75 PLUG; GOV MODULATOR 8-94405-342-0 01 1 0205-
76 VALVE; REV CLU,A/T 5-34531-018-0 01 1 0205-
77 SPRING; VLV,REV,A/T 5-34533-003-0 01 1 0205-
78 SPRING; INTERMEDIATE,VLV UPR RR,A/T 8-94116-579-0 01 1 0205-
79 VALVE; INTERMEDIATE,VLV UPR RR,A/T 5-34531-005-0 01 1 0205-
80 RETAINER; VLV UPR RR,A/T 5-34538-004-0 01 1 0205-
81 SPRING; VLV DETENT,VLV UPR RR,A/T 5-34533-018-0 01 1 0205-
82 VALVE; DETENT,VLV UPR RR,A/T 5-34531-008-0 01 1 0205-
83 RETAINER; VLV,VLV UPR RR,A/T 5-34538-008-0 01 1 0205-
84 COVER; VLV UPR RR,A/T 5-34521-002-0 01 1 0205-
85 BOLT; COVER TO VLV,A/T
M5X12 		8-94405-335-0 02 1 0205-
88 BODY; VLV,VLV UPR FRT,A/T 8-94405-344-0 01 1 0205-
89 SPRING; THROTTLE CAM RETURN,A/T 5-34533-014-0 01 1 0205-
90 CAM; VLV,KICK DOWN & THROTTLE,A/T 8-94166-023-0 01 1 0205-
91 COLLAR; CAM,A/T 5-34539-004-0 01 1 0205-
93 PIECE; DIST,CAM,A/T 5-34538-014-0 01 1 0205-
94 BOLT; CAM,KICK DOWN,A/T
M6X28 		8-94473-611-0 01 1 0205-
95 VALVE; CUT BACK,VLV UPR FRT,A/T 5-34531-011-0 01 1 0205-
96 PLUG; VLV,CUT BACK,VLV UPR FRT,A/T 5-34538-009-0 01 1 0205-
97 RETAINER; VLV,VLV UPR FRT,A/T 5-34538-003-0 01 1 0205-
98 SPRING; SECONDARY,A/T 8-94250-400-0 01 1 0205-
99 VALVE; SECONDARY,A/T 8-94473-662-0 01 1 0205-
100 COVER; VLV,FRT END,A/T 5-34521-003-0 01 1 0205-
101 BOLT; VLV COVER,A/T
M5X12 		8-94405-335-0 02 1 0205-
103 SPRING; THROTTLE BODY,SECONDARY,A/T
NATURAL 		5-34533-012-0 01 1 0205-
103 SPRING; THROTTLE BODY,SECONDARY,A/T
RED 		8-97200-218-0 01 1 0205-
104 PLATE; THROTTLE BODY,A/T 5-34538-010-0 01 1 0205-
105 VALVE; THROTTLE,A/T 5-34531-013-0 01 1 0205-
106 SPRING; THROTTLE BODY,PRIMARY,A/T 8-94405-346-0 01 1 0205-
107 VALVE ASM; KICK DOWN,A/T 8-94405-347-0 01 1 0205-
131 RING; THROTTLE BODY,A/T 5-34538-011-0 06 1 0205-
