Sayfa 2-42 - Isuzu EPC

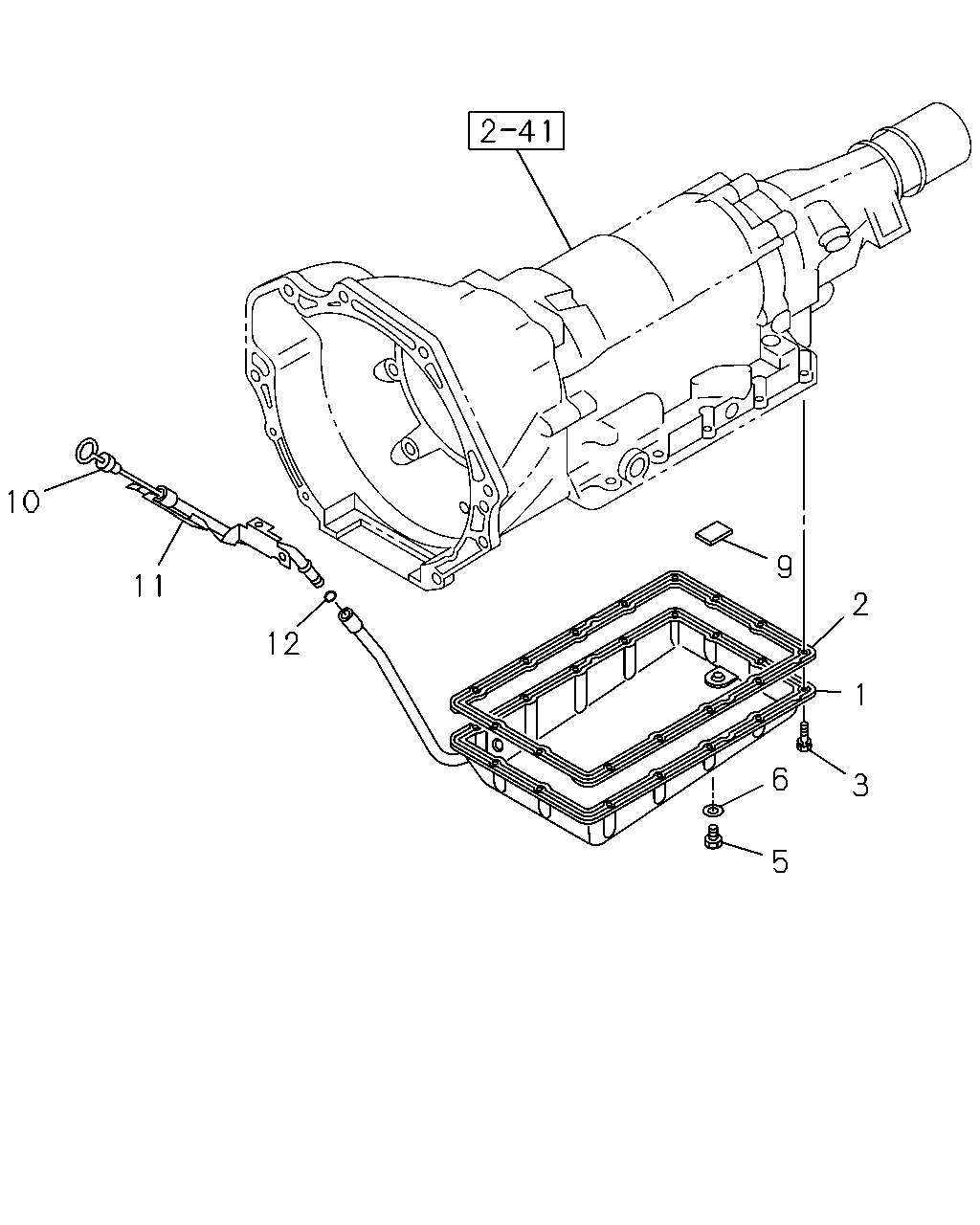

2-42 — AUTO TRANS OIL PAN AND OIL CONTROL (#95454) — 9 parça

2 1 9 3 6 5 12 11 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PAN ASM; OIL,A/T	8-97209-075-0	01	1	0205-
2	GASKET; OIL PAN,A/T	5-34132-001-0	01	1	0205-
3	BOLT; OIL PAN TO CASE M6	5-34139-001-0	14	1	0205-
5	PLUG; OIL PAN	5-34132-003-0	01	1	0205-
6	GASKET; OIL PAN TO PLUG ID=12	5-34132-002-0	01	1	0205-
9	MAGNET; OIL PAN	5-34138-004-0	02	1	0205-
10	GAUGE; OIL LEVEL	8-97210-397-0	01	1	0205-
11	TUBE; OIL FILLER	8-97307-119-0	01	1	0205-
12	GASKET; OIL FILLER TUBE TO A/T ID=9.8	9-09561-110-0	01	1	0205-
