50919 - TBR (GM-INDONESIA)
▶
2 - Clutch, Transmission, Trans Axle
▶

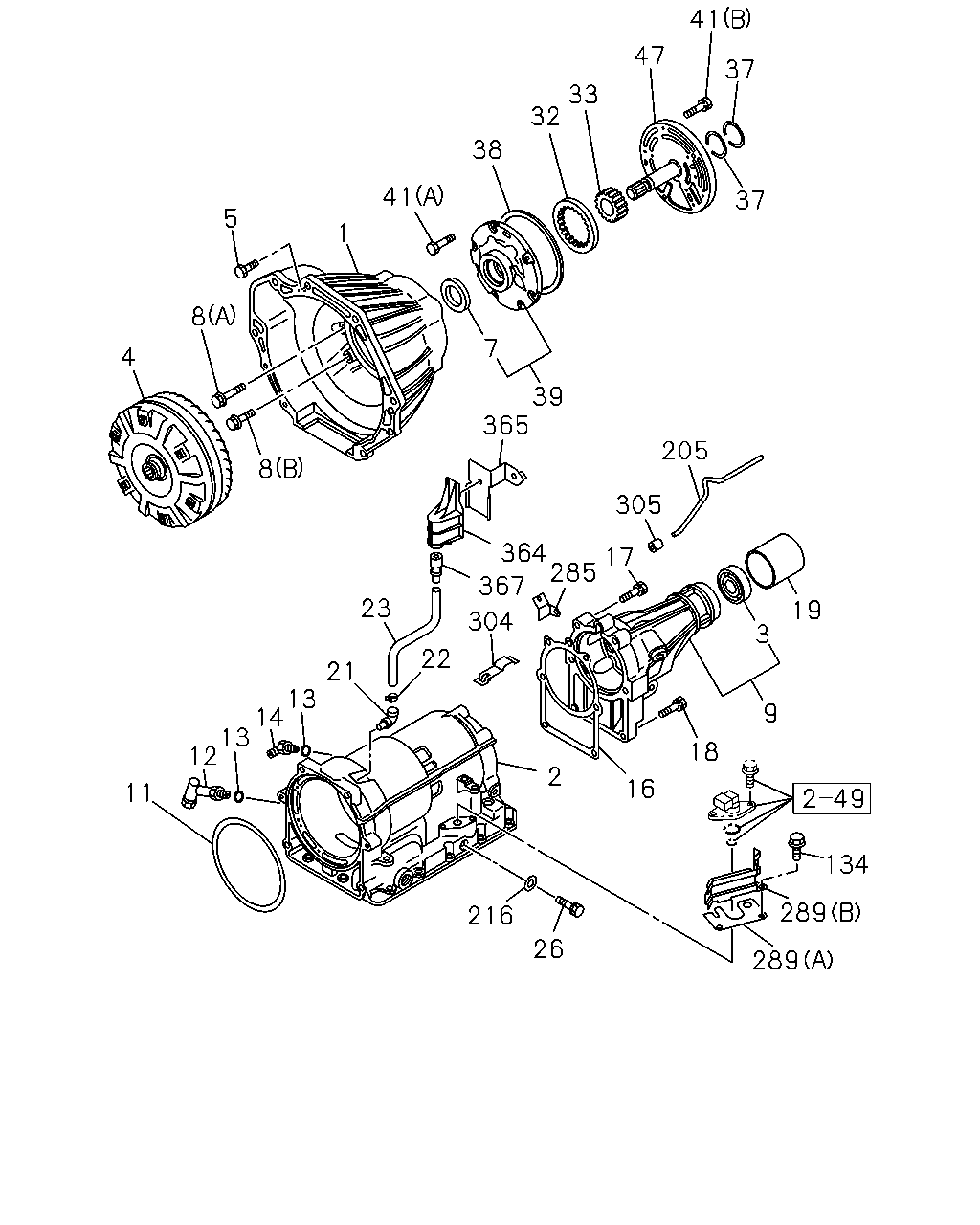

2-41 - AUTO TRANS CASE,CONVERTER AND OIL PUMP
▶
2-41 — AUTO TRANS CASE,CONVERTER AND OIL PUMP
(#95453) — 40 parça
37
37
41
47
33
32
38
41
1
5
8
4
7
39
365
205
305
17
285
364
367
304
22
23
8
21
13
14
13
12
11
19
3
9
18
16
2
26
216
134
289
289
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOUSING; CONV,A/T
8-97209-144-0
01
1
0205-
2
CASE ASM; A/T
8-97329-684-0
01
1
0205-
3
SEAL; OIL,RR COVER,A/T
8-94473-633-0
01
1
0205-
4
CONVERTER ASM; TORQUE,A/T
8-97329-677-0
01
1
0205-
5
BOLT; RR PLATE TO TORQUE CONV
M8X10
8-94460-742-0
06
1
0205-
7
SEAL; OIL,LIP,A/T
8-97264-795-0
01
1
0205-
8
BOLT; HSG TO CASE
(A) M10X118
8-94473-572-0
04
1
0205-
8
BOLT; HSG TO CASE
(B) M12X97
8-94473-573-0
02
1
0205-
9
COVER ASM; RR,A/T
8-97329-693-0
01
1
0205-
11
RING; SEALING,TRANS CASE
8-94250-604-0
01
1
0205-
12
CONNECTOR; OIL COOLER OUTLET PIPE
8-94473-570-0
01
1
0205-
13
GASKET; OIL COOLER PIPE
5-34588-001-0
02
1
0205-
14
UNION; OIL COOLER RETURN PIPE
8-94479-970-0
01
1
0205-
16
GASKET; EXT HSG
8-97032-928-0
01
1
0205-
17
BOLT; REAR COVER TO CASE
M10X45
8-94473-632-0
04
1
0205-
18
BOLT; RR CVR TO CASE,LWR,A/T
M10X35
8-94479-951-0
02
1
0205-
19
COVER; DUST,REAR COVER
5-33138-007-0
01
1
0205-
21
PLUG; BREATHER,A/T
8-94479-727-0
01
1
0205-
22
CLIP; BREATHER HOSE,A/T
8-94479-730-0
01
1
0205-
23
HOSE; BREATHER,A/T
8-97264-789-0
01
1
0205-
26
PLUG; TRANS CASE
5-34119-002-0
02
1
0205-
32
GEAR; OUTER,OIL PUMP,A/T
8-97100-794-0
01
1
0205-
33
GEAR; INNER,OIL PUMP,A/T
8-97176-139-0
01
1
0205-
37
RING; SEAL,OIL PUMP,A/T
8-97128-812-0
02
1
0205-
38
GASKET; OIL PUMP,A/T
5-34165-003-0
01
1
0205-
39
BODY SUB ASM; FRT,OIL PUMP,A/T
8-94405-299-0
01
1
0205-
41
BOLT; OIL PUMP HSG,A/T
(A) M8X135
8-94473-574-0
07
1
0205-
41
BOLT; OIL PUMP HSG,A/T
(B) M6X15.5
8-97019-532-0
06
1
0205-
47
SHAFT; OIL PUMP,A/T
8-94405-302-0
01
1
0205-
134
BOLT; COVER TO CASE
8-97329-682-0
02
1
0205-
205
TUBE; EXT HSG
8-97027-228-0
01
1
0205-
216
GASKET; SOLENOID OUTER
ID=6
5-34119-001-0
02
1
0205-
285
BRACKET; HARNESS
8-97329-679-0
01
1
0205-
289
COVER; VALVE
(A)
8-97329-680-0
01
1
0205-
289
COVER; VALVE
(B)
8-97329-681-0
01
1
0205-
304
SPRING; LEAF,A/T
8-97200-141-0
01
1
0205-
305
GASKET; TUBE,EXT HSG
8-97328-862-0
01
1
0205-
364
COVER; AIR BREATHER,A/T
8-97228-324-0
01
1
0205-
365
BRACKET; BREATHER HOSE,A/T
8-97257-258-2
01
1
0205-
367
BREATHER; AIR,MISSION
8-97164-362-0
01
1
0205-
