50919 - TBR (GM-INDONESIA)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-30 - GEAR SHIFTER AND QUADRANT BOX
▶
2-30 — GEAR SHIFTER AND QUADRANT BOX
(#95450) — 38 parça
◀

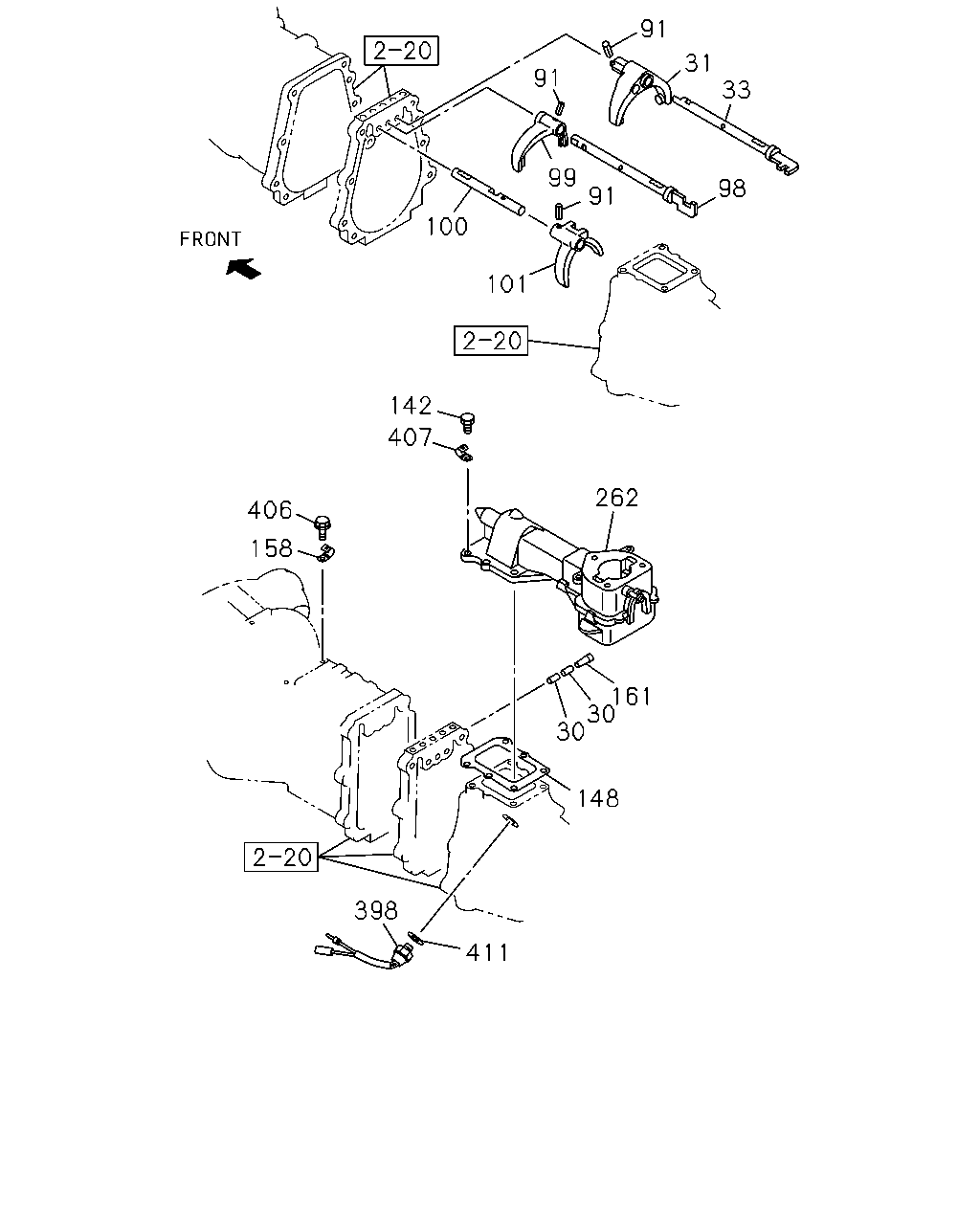

[230A] NO.1 (23 parça)
[230A] NO.2 (15 parça)
▶
91
91
31
33
98
91
99
100
101
142
407
262
406
158
161
30
30
148
411
398
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
30
PIN; INTER LK
OD=5.5 L=10
5-33534-002-1
02
1
0201-
31
ARM; SHIFT,LOW & 2ND
8-97024-503-1
01
1
0201-
33
ROD; SHIFT,LOW & 2ND
IDN
8-97248-600-0
01
1
0201-
91
PIN; SPR,SHIFT ARM
D=4.2 L=25
8-94171-541-0
03
1
0201-
98
ROD; SHIFT,TOP & 3RD
IDN
8-97248-598-0
01
1
0201-
99
ARM; SHIFT,4TH & 3RD
8-94435-153-1
01
1
0201-
100
ROD; SHIFT,REV & 5TH
IDN
8-97248-601-0
01
1
0201-
101
ARM; SHIFT,REV & 5TH
8-94455-851-3
01
1
0201-
142
BOLT; QUAD BOX
M8X22 FLANGE
8-94448-815-3
04
1
0201-0604
142
BOLT; QUAD BOX
M8X22 FLANGE
8-97365-376-0
04
1
0605-
148
GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T).
8-97184-922-0
01
1
0201-
158
CLIP; HARNESS
ID=12 B=14 ID=8.5 IDN
5-09700-350-0
02
1
0201-0604
158
CLIP; HARNESS
ID=12 IDN
8-97367-984-1
02
1
0605-
161
PLUG; INTER LK HOLE
8-94239-543-1
01
1
0201-
262
BOX ASM; SHIFT CONT
8-97181-530-3
01
1
0201-0603
262
BOX ASM; SHIFT CONT
8-98017-731-0
01
1
0604-
398
SWITCH; REV LAMP
8-94411-366-1
01
1
0201-0602
398
SWITCH; REV LAMP
8-98042-851-0
01
1
0603-
406
BOLT; HARNESS CLIP
M8X16 FLANGE
0-28080-816-0
01
1
0201-0512
406
BOLT; HARNESS CLIP
M8X16 FLANGE
0-28050-816-0
01
1
0601-
407
CLIP; SWITCH HARNESS
ID=12 B=14 ID=8.5 IDN
5-09700-350-0
01
1
0201-0708
407
CLIP; SWITCH HARNESS
ID=12 IDN
8-97367-984-1
01
1
0709-
411
GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2
8-94462-114-0
01
1
0201-
262
271
271
289
261
268
459
174
22
132
22
248
288
274
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
22
CAP; RETURN SPR,SHIFT BLOCK
IDN
8-97181-326-0
02
1
0201-
132
SPRING; SELECT STOP
IDN
8-97181-395-0
01
1
0201-
174
SPRING; REV
IDN
8-97181-394-0
01
1
0201-
248
RETAINER; CONT BOX
IDN
8-97181-325-0
02
1
0201-
261
ROD; GEAR CONT
8-97257-910-0
01
1
0201-
262
BOX ASM; SHIFT CONT
8-97181-530-3
01
1
0201-0603
262
BOX ASM; SHIFT CONT
8-98017-731-0
01
1
0604-
268
LEVER; CONT,INTERNAL
IDN
8-97184-894-0
01
1
0201-
271
BUSHING; QUAD BOX
ID=14 L=12 IDN
8-97203-909-0
02
1
0201-0603
271
BUSHING; QUAD BOX
ID=14 L=12
8-98017-908-0
02
1
0604-
274
COVER; SHAFT,QUAD BOX
IDN
8-97181-324-1
01
1
0201-
288
PLUG; AIR BREATHER
IDN
9-00097-517-0
01
1
0201-
289
SEAL; OIL,CONT SHAFT,QUAD BOX
IDN
8-97181-327-0
01
1
0201-0603
289
SEAL; OIL,CONT SHAFT,QUAD BOX
8-98017-744-0
01
1
0604-
459
PIN; SPR,ROD TO ARM
OD=5 IDN
8-97184-905-0
01
1
0201-
