◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10827 - FTR(AUSTRALIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-39 - POWER ASSISTOR ▶
2-39 — POWER ASSISTOR (#9545) — 140 parça

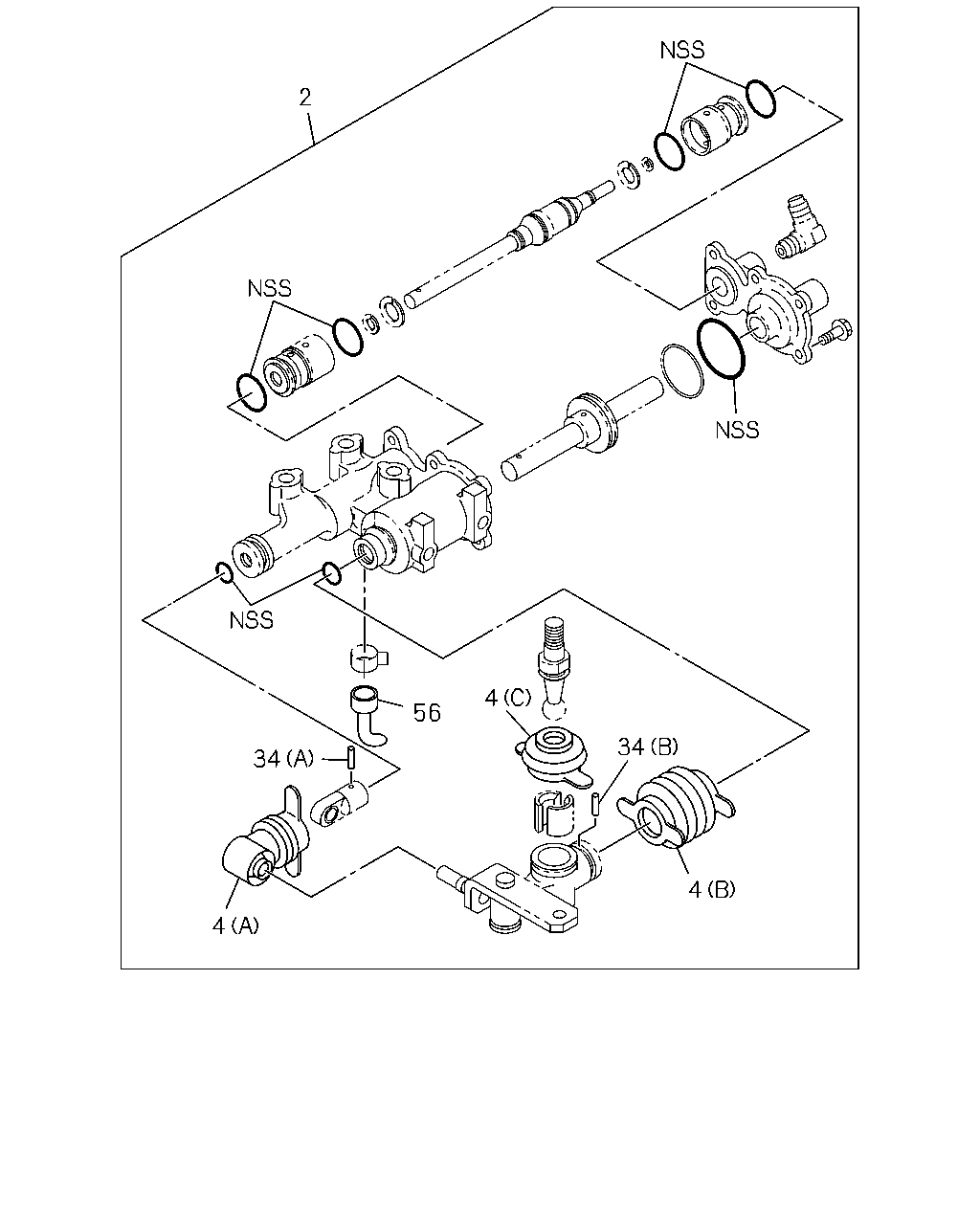

çizim 40282
2 4 56 34 34 4 4
BalonParca AdiParca NoAdetTipApplied Date A B
2 REPAIR KIT; POWER SHIFTER 1-33738-028-0 01 1 0005-0210 ●
2 REPAIR KIT; POWER SHIFTER 1-33739-593-0 01 1 0005-0108 ●
2 REPAIR KIT; POWER SHIFTER 1-33738-103-0 01 1 0109- ●
4 BOOT; POWER SHIFTER
(A) 		1-33739-843-0 01 1 0005-0210 ●
4 BOOT; POWER SHIFTER
(B) 		1-33739-844-0 01 1 0005-0210 ●
4 BOOT; POWER SHIFTER
(C) 		1-33739-847-0 01 1 0005-0210 ●
4 BOOT; POWER SHIFTER
(A) 		1-33739-038-0 01 1 0005- ●
4 BOOT; POWER SHIFTER
(B) 		1-33739-571-0 01 1 0005-0108 ●
4 BOOT; POWER SHIFTER
(B) 		1-33738-101-0 01 1 0109- ●
34 PIN; STRAIGHT,POWER SHIFTER
(B) 		1-33739-885-0 01 1 0005-0210 ●
34 PIN; STRAIGHT,POWER SHIFTER
(A) 		1-33739-974-0 01 1 0005-0210 ●
34 PIN; STRAIGHT,POWER SHIFTER
(C) 		1-33739-575-0 01 1 0005- ●
56 HOSE; POWER SHIFTER 1-33739-848-0 01 1 0005-0210 ●
56 HOSE; POWER SHIFTER 1-33739-570-0 01 1 0005- ●

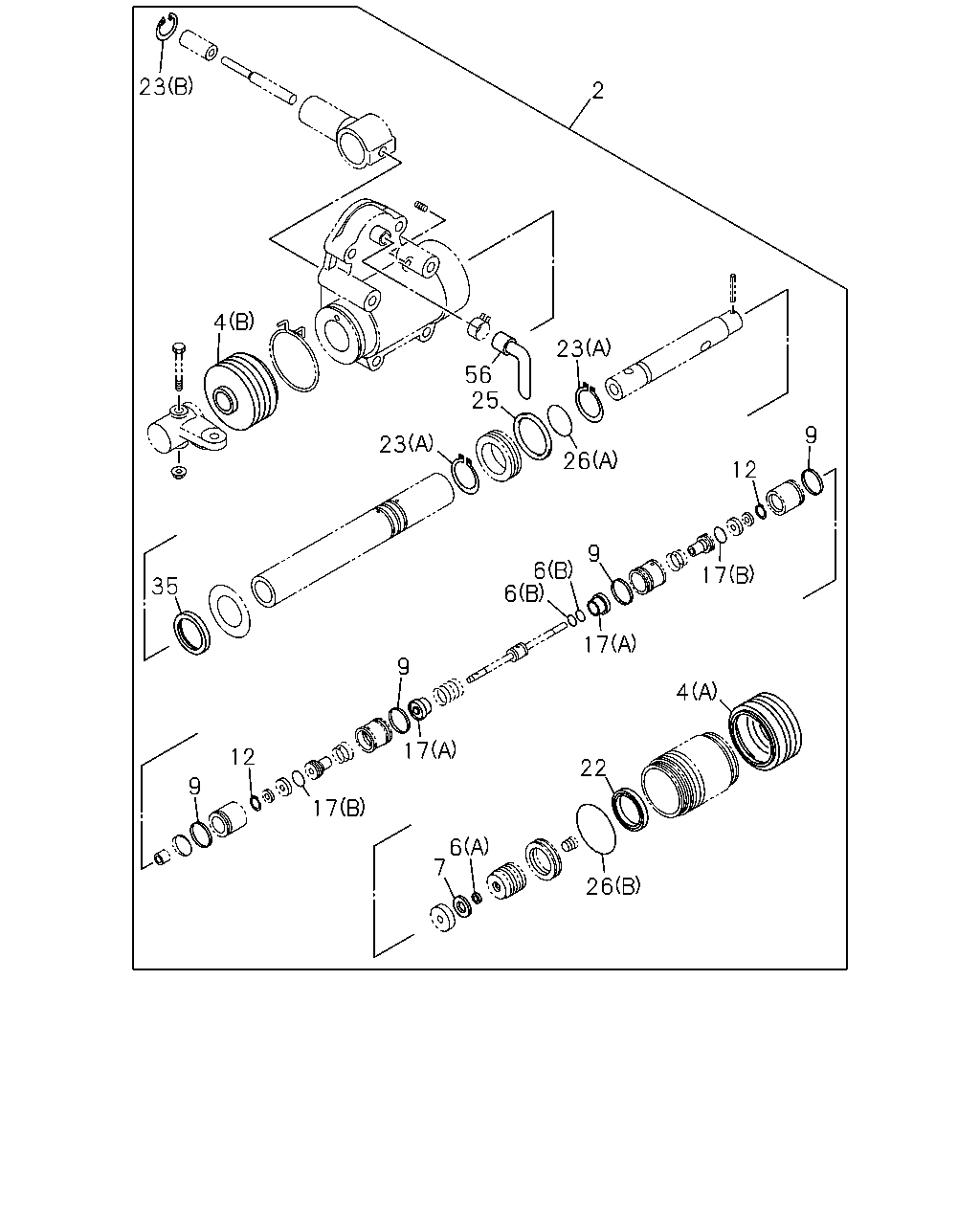

çizim 40283
23 2 4 23 56 25 9 23 26 12 9 6 6 17 35 17 9 4 17 12 22 9 17 6 7 26
BalonParca AdiParca NoAdetTipApplied Date A B
2 REPAIR KIT; POWER SHIFTER 1-33738-028-0 01 1 0005-0210 ●
2 REPAIR KIT; POWER SHIFTER 1-33739-593-0 01 1 0005-0108 ●
2 REPAIR KIT; POWER SHIFTER 1-33738-103-0 01 1 0109- ●
4 BOOT; POWER SHIFTER
(A) 		1-33739-843-0 01 1 0005-0210 ●
4 BOOT; POWER SHIFTER
(B) 		1-33739-844-0 01 1 0005-0210 ●
4 BOOT; POWER SHIFTER
(C) 		1-33739-847-0 01 1 0005-0210 ●
4 BOOT; POWER SHIFTER
(A) 		1-33739-038-0 01 1 0005- ●
4 BOOT; POWER SHIFTER
(B) 		1-33739-571-0 01 1 0005-0108 ●
4 BOOT; POWER SHIFTER
(B) 		1-33738-101-0 01 1 0109- ●
6 GASKET
(A) 		1-33739-013-0 01 1 0005- ●
6 GASKET
(B) 		1-33739-583-0 02 1 0005- ●
7 FILTER; AIR 1-33739-033-0 01 1 0005- ●
9 RING; SQUARE 1-33739-086-0 04 1 0005- ●
12 RING; RET 1-33739-016-0 02 1 0005- ●
17 SEAL ASM; VALVE
(B) 		1-33739-584-0 02 1 0005- ●
17 SEAL ASM; VALVE
(A) 		9-83335-055-0 02 1 0005- ●
22 SEAL; OIL 1-33739-353-0 01 1 0005- ●
23 RING; RET
(A) 		1-33739-022-0 02 1 0005- ●
23 RING; RET
(B) 		1-33739-564-0 01 1 0005- ●
25 RING; "X",PISTON 1-33739-420-0 01 1 0005- ●
26 GASKET
(A) 		1-33739-496-0 01 1 0005- ●
26 GASKET
(B) 		1-33739-573-0 01 1 0005- ●
35 GASKET; CUP 1-33739-073-0 01 1 0005- ●
56 HOSE; POWER SHIFTER 1-33739-848-0 01 1 0005-0210 ●
56 HOSE; POWER SHIFTER 1-33739-570-0 01 1 0005- ●

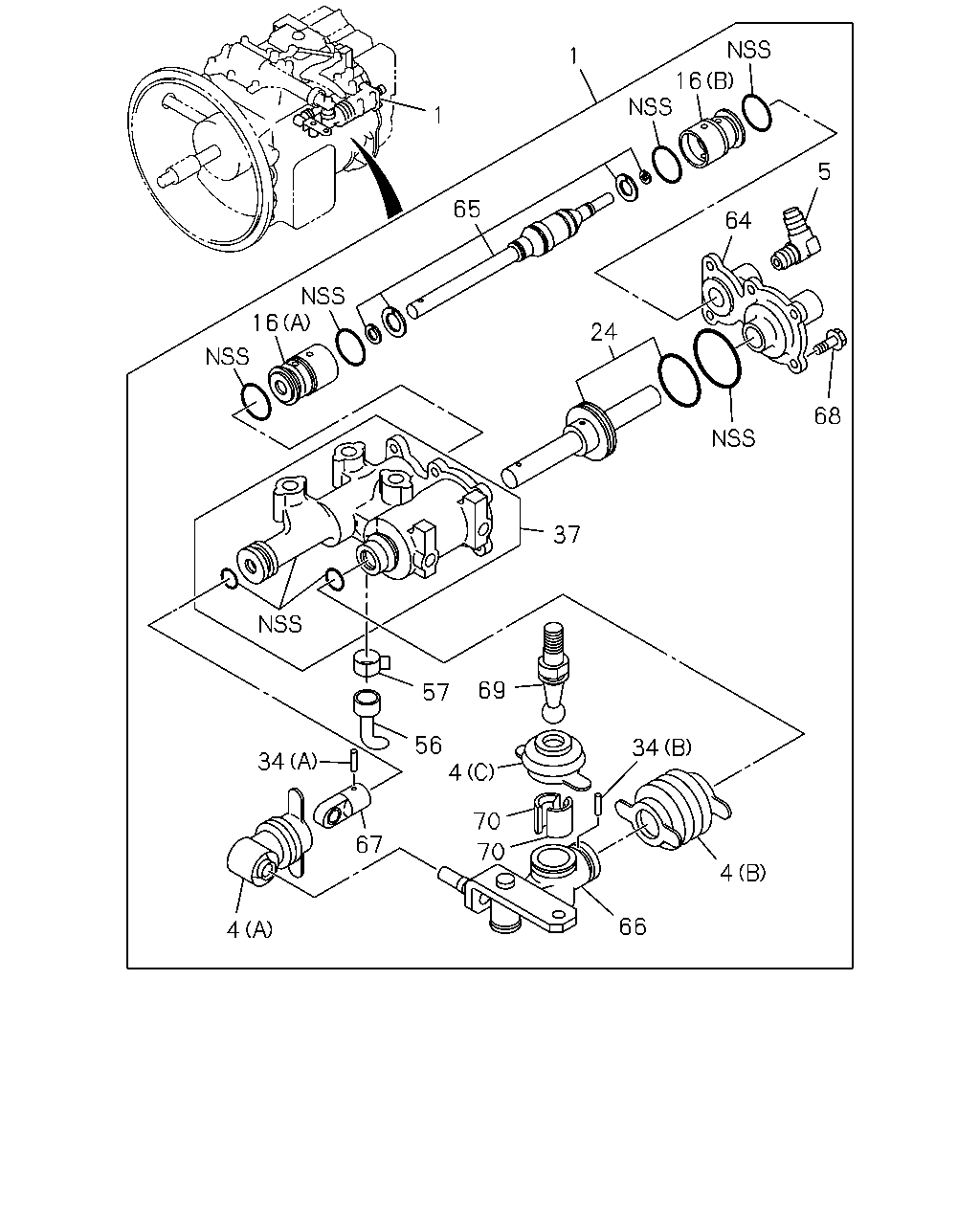

çizim 40318
1 16 1 5 65 64 16 24 68 37 69 57 56 4 34 34 70 67 70 4 66 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 ASSISTOR ASM; POWER,SHIFT 1-33730-233-3 01 1 0005-0210 ●
1 ASSISTOR ASM; POWER,SHIFT 1-33730-127-2 01 1 0005-0210 ●
1 ASSISTOR ASM; POWER,SHIFT 1-33730-287-0 01 1 0211- ●
4 BOOT; POWER SHIFTER
(A) 		1-33739-843-0 01 1 0005-0210 ●
4 BOOT; POWER SHIFTER
(B) 		1-33739-844-0 01 1 0005-0210 ●
4 BOOT; POWER SHIFTER
(C) 		1-33739-847-0 01 1 0005-0210 ●
4 BOOT; POWER SHIFTER
(A) 		1-33739-038-0 01 1 0005- ●
4 BOOT; POWER SHIFTER
(B) 		1-33739-571-0 01 1 0005-0108 ●
4 BOOT; POWER SHIFTER
(B) 		1-33738-101-0 01 1 0109- ●
5 CONNECTOR; CYL
M12 & PT1/8 		9-09224-306-2 01 1 0005-0210 ●
5 CONNECTOR; CYL 1-33739-017-0 01 1 0005- ●
16 SEAT; VALVE
(A) 		1-33739-838-1 01 1 0005-0210 ●
16 SEAT; VALVE
(B) 		1-33739-839-1 01 1 0005-0210 ●
16 SEAT; VALVE
(C) 		1-33739-585-0 02 1 0005- ●
24 PISTON 1-33739-836-1 01 1 0005-0210 ●
24 PISTON 1-33739-578-0 01 1 0005- ●
34 PIN; STRAIGHT,POWER SHIFTER
(B) 		1-33739-885-0 01 1 0005-0210 ●
34 PIN; STRAIGHT,POWER SHIFTER
(A) 		1-33739-974-0 01 1 0005-0210 ●
34 PIN; STRAIGHT,POWER SHIFTER
(C) 		1-33739-575-0 01 1 0005- ●
37 HOUSING; POWER SHIFTER 1-33739-969-0 01 1 0005-0210 ●
37 HOUSING; POWER SHIFTER 1-33739-574-0 01 1 0005- ●
56 HOSE; POWER SHIFTER 1-33739-848-0 01 1 0005-0210 ●
56 HOSE; POWER SHIFTER 1-33739-570-0 01 1 0005- ●
57 CLAMP; HOSE 1-33739-849-0 01 1 0005-0210 ●
57 CLAMP; HOSE 1-33739-569-0 01 1 0005- ●
64 COVER; HOUSING 1-33739-970-0 01 1 0005-0210 ●
65 VALVE; POWER SHIFTER 1-33739-971-0 01 1 0005-0210 ●
66 JOINT ASM; POWER SHIFTER 1-33739-972-0 01 1 0005-0210 ●
67 JOINT; BALL,POWER SHIFTER 1-33739-973-0 01 1 0005-0210 ●
68 BOLT; COVER
M6X12 FLANGE 		1-33739-842-0 06 1 0005-0210 ●
69 STUD; BALL,POWER SHIFTER 1-33739-846-0 01 1 0005-0210 ●
70 SEAT; BALL STUD 1-33659-118-0 02 1 0005-0210 ●
çizim 99973
44 50 49 52 43
BalonParca AdiParca NoAdetTipApplied Date A B
43 BOLT; BRKT,FRAME
M8X30 FLANGE 		0-28680-830-0 02 1 0005-0210 ●
44 NUT; BRKT,FRAME
M8 FLANGE 		0-91150-108-0 02 1 0005-0210 ●
49 NUT; FLEX HOSE
M12 		9-09840-280-0 01 1 0005-0210 ●
50 BRACKET; POWER ASSIST 1-47475-028-0 01 1 0005-0210 ●
52 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 01 1 0005-0210 ●

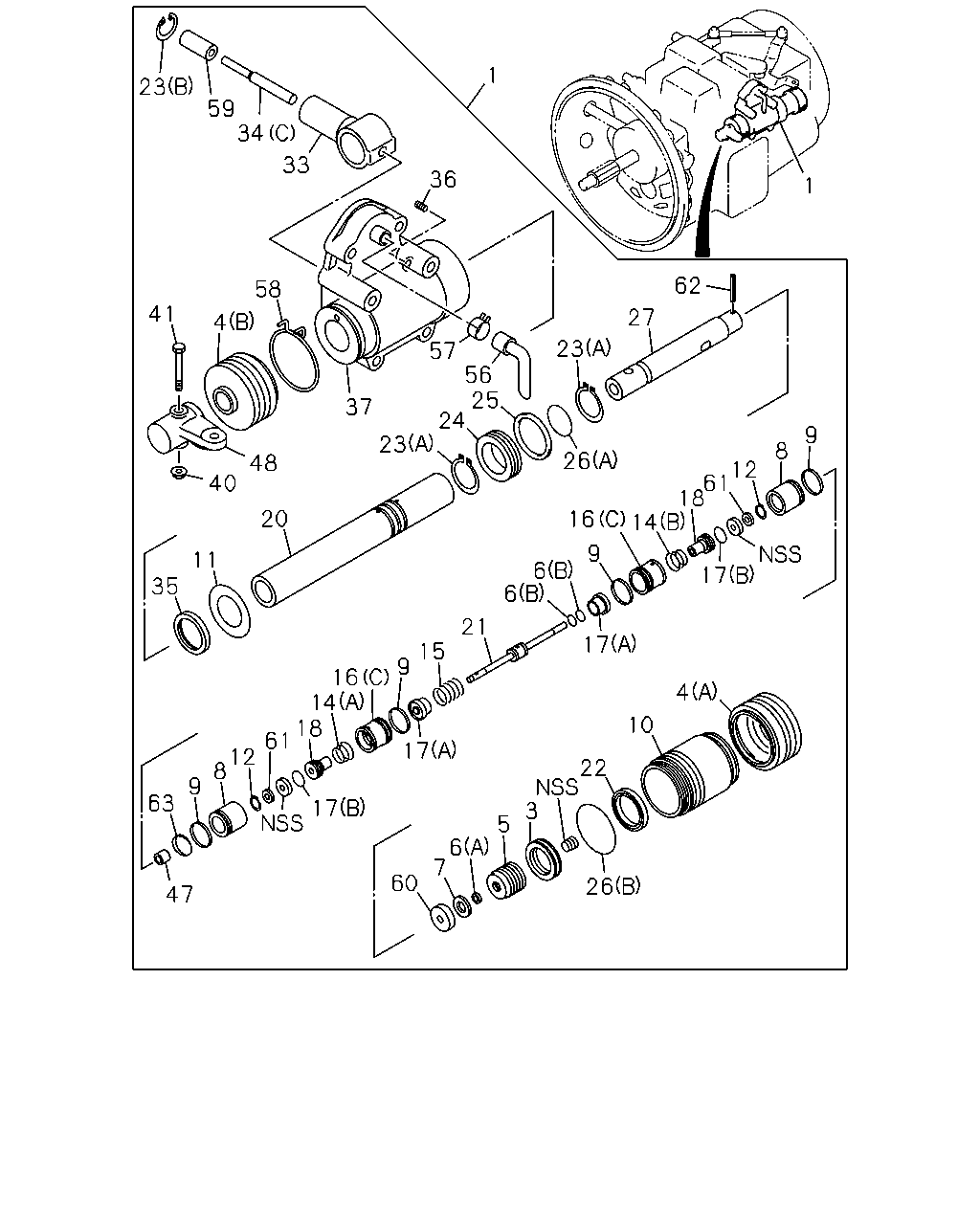

çizim 100037
1 23 59 34 33 36 1 62 58 41 27 4 57 56 25 24 23 37 9 23 8 26 48 12 61 18 16 14 40 20 9 11 6 6 17 35 21 17 15 9 16 14 18 4 10 61 17 12 8 22 3 9 63 17 5 6 7 60 26 47
BalonParca AdiParca NoAdetTipApplied Date A B
1 ASSISTOR ASM; POWER,SHIFT 1-33730-233-3 01 1 0005-0210 ●
1 ASSISTOR ASM; POWER,SHIFT 1-33730-127-2 01 1 0005-0210 ●
1 ASSISTOR ASM; POWER,SHIFT 1-33730-287-0 01 1 0211- ●
3 NUT; LK,ROD 1-33739-025-0 01 1 0005- ●
4 BOOT; POWER SHIFTER
(A) 		1-33739-843-0 01 1 0005-0210 ●
4 BOOT; POWER SHIFTER
(B) 		1-33739-844-0 01 1 0005-0210 ●
4 BOOT; POWER SHIFTER
(C) 		1-33739-847-0 01 1 0005-0210 ●
4 BOOT; POWER SHIFTER
(A) 		1-33739-038-0 01 1 0005- ●
4 BOOT; POWER SHIFTER
(B) 		1-33739-571-0 01 1 0005-0108 ●
4 BOOT; POWER SHIFTER
(B) 		1-33738-101-0 01 1 0109- ●
5 CONNECTOR; CYL
M12 & PT1/8 		9-09224-306-2 01 1 0005-0210 ●
5 CONNECTOR; CYL 1-33739-017-0 01 1 0005- ●
6 GASKET
(A) 		1-33739-013-0 01 1 0005- ●
6 GASKET
(B) 		1-33739-583-0 02 1 0005- ●
7 FILTER; AIR 1-33739-033-0 01 1 0005- ●
8 TUBE 1-33739-560-0 02 1 0005- ●
9 RING; SQUARE 1-33739-086-0 04 1 0005- ●
10 CYLINDER; POWER SHIFTER 1-33739-572-0 01 1 0005- ●
11 PLATE; CYL 1-33739-576-0 01 1 0005- ●
12 RING; RET 1-33739-016-0 02 1 0005- ●
14 SPRING; VALVE LIFTER
(A) 		1-33739-066-0 01 1 0005- ●
14 SPRING; VALVE LIFTER
(B) 		1-33739-568-0 01 1 0005- ●
15 SPRING; VALVE SEAL 1-33739-582-0 01 1 0005- ●
16 SEAT; VALVE
(A) 		1-33739-838-1 01 1 0005-0210 ●
16 SEAT; VALVE
(B) 		1-33739-839-1 01 1 0005-0210 ●
16 SEAT; VALVE
(C) 		1-33739-585-0 02 1 0005- ●
17 SEAL ASM; VALVE
(B) 		1-33739-584-0 02 1 0005- ●
17 SEAL ASM; VALVE
(A) 		9-83335-055-0 02 1 0005- ●
18 LIFTER; VALVE 1-33739-586-0 02 1 0005- ●
20 ROD ASM; W/CAP 1-33739-765-0 01 1 0005- ●
21 PIPE; AIR,POWER SHIFTER 1-33739-587-0 01 1 0005- ●
22 SEAL; OIL 1-33739-353-0 01 1 0005- ●
23 RING; RET
(A) 		1-33739-022-0 02 1 0005- ●
23 RING; RET
(B) 		1-33739-564-0 01 1 0005- ●
24 PISTON 1-33739-836-1 01 1 0005-0210 ●
24 PISTON 1-33739-578-0 01 1 0005- ●
25 RING; "X",PISTON 1-33739-420-0 01 1 0005- ●
26 GASKET
(A) 		1-33739-496-0 01 1 0005- ●
26 GASKET
(B) 		1-33739-573-0 01 1 0005- ●
27 ROD; POWER SHIFTER 1-33739-580-0 01 1 0005- ●
33 STRIKER; POWER SHIFTER 1-33739-577-0 01 1 0005- ●
34 PIN; STRAIGHT,POWER SHIFTER
(B) 		1-33739-885-0 01 1 0005-0210 ●
34 PIN; STRAIGHT,POWER SHIFTER
(A) 		1-33739-974-0 01 1 0005-0210 ●
34 PIN; STRAIGHT,POWER SHIFTER
(C) 		1-33739-575-0 01 1 0005- ●
35 GASKET; CUP 1-33739-073-0 01 1 0005- ●
36 SCREW; SET 1-33739-040-0 01 1 0005- ●
37 HOUSING; POWER SHIFTER 1-33739-969-0 01 1 0005-0210 ●
37 HOUSING; POWER SHIFTER 1-33739-574-0 01 1 0005- ●
40 NUT; LEVER 1-33739-940-0 01 1 0005- ●
41 BOLT; SET,LEVER 1-33739-939-0 01 1 0005- ●
47 BUSHING; CYL 1-33739-567-0 01 1 0005- ●
48 LEVER; CONT,CABLE 1-33739-559-0 01 1 0005-0210 ●
48 LEVER; CONT,CABLE 1-33738-108-0 01 1 0211- ●
56 HOSE; POWER SHIFTER 1-33739-848-0 01 1 0005-0210 ●
56 HOSE; POWER SHIFTER 1-33739-570-0 01 1 0005- ●
57 CLAMP; HOSE 1-33739-849-0 01 1 0005-0210 ●
57 CLAMP; HOSE 1-33739-569-0 01 1 0005- ●
58 CLAMP; BOOT 1-33739-562-0 01 1 0005-0108 ●
59 SHIM; POWER SHIFTER 1-33739-563-0 01 1 0005-0108 ●
59 SHIM; POWER SHIFTER 1-33738-102-0 01 1 0109- ●
60 COLLAR; CYL 1-33739-561-0 01 1 0005- ●
61 PLATE; VLV LIFTER 1-33739-581-0 02 1 0005- ●
62 PIN; PIPE 1-33739-566-0 01 1 0005- ●
63 CLAMP; CYL 1-33739-565-0 01 1 0005- ●
