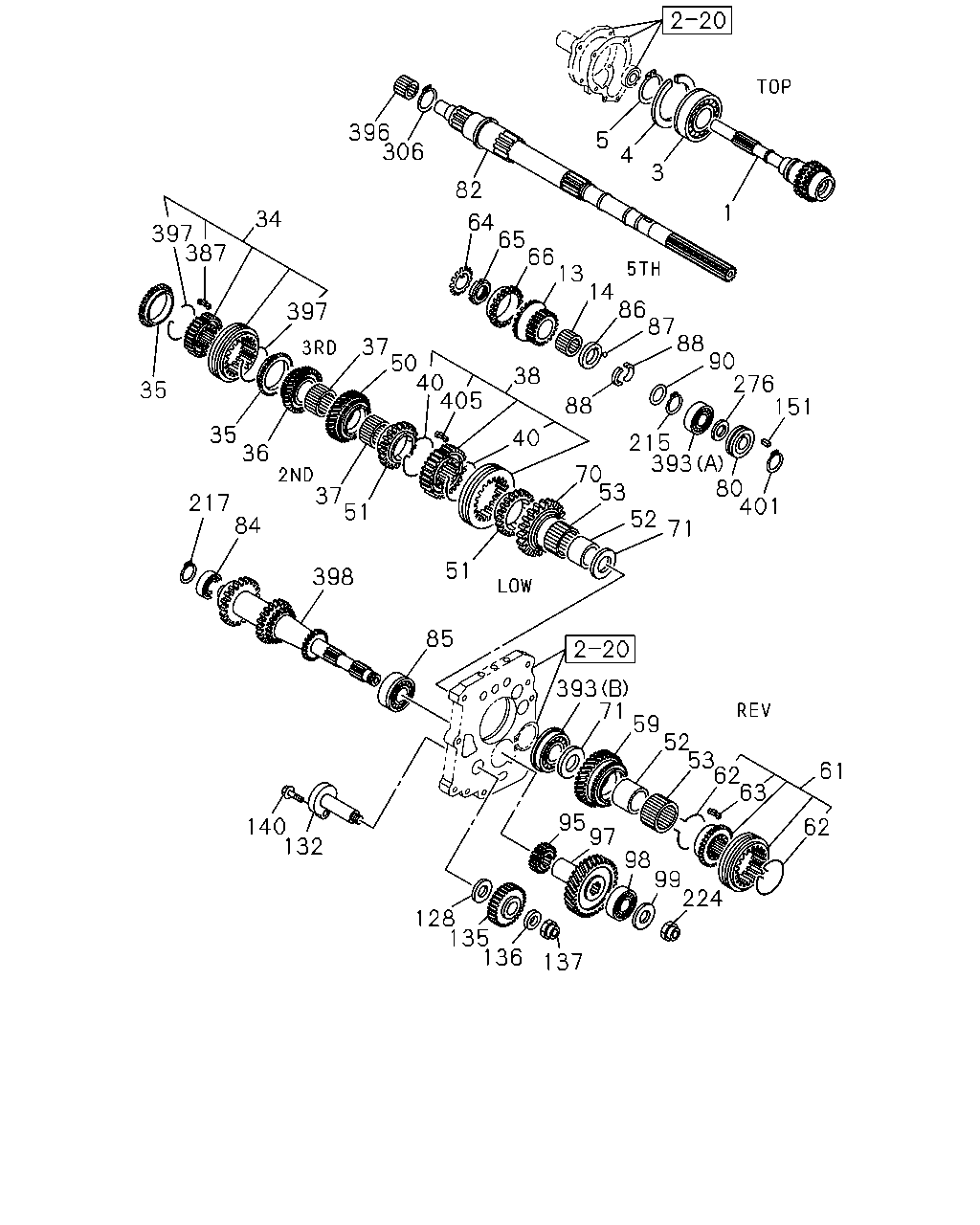

1 |
SHAFT; TOP GEAR,TRANS
Z=23
|
8-97016-002-1 |
01 |
1 |
0201- |
| |
3 |
BEARING; TOP GEAR SHAFT
NSK
|
8-94167-637-0 |
01 |
1 |
0201-0901 |
| |
3 |
BEARING; TOP GEAR SHAFT
NSK
|
8-97943-882-0 |
01 |
1 |
0902- |
| |
4 |
RING; SNAP,BRG TO TOP GEAR SHAFT
NSK
|
8-94206-485-0 |
01 |
1 |
0201- |
| |
5 |
RING; SNAP,BRG TO TOP GEAR SHAFT
ID=37.0
|
9-09180-040-0 |
01 |
1 |
0201- |
| |
13 |
GEAR; 5TH,MAINSHAFT
Z=25
|
8-94161-912-3 |
01 |
1 |
0201- |
| |
14 |
BEARING; NEEDLE,5TH
NSK
|
8-94161-994-0 |
01 |
1 |
0201- |
| |
34 |
SYNCHRONIZER; 4TH & 3RD
|
8-94161-860-0 |
01 |
1 |
0201- |
| |
35 |
RING; BLOCK,4TH & 3RD
Z=30
|
8-94463-830-1 |
02 |
1 |
0201- |
| |
36 |
GEAR; 3RD,MAINSHAFT
Z=29
|
8-94161-137-1 |
01 |
1 |
0201- |
| |
37 |
BEARING; NEEDLE,2ND & 3RD
NSK
|
8-94161-989-0 |
02 |
1 |
0201- |
| |
38 |
SYNCHRONIZER; LOW & 2ND
|
8-94435-140-0 |
01 |
1 |
0201- |
| |
40 |
SPRING; INSERT,LOW & 2ND
|
8-94152-558-1 |
02 |
1 |
0201- |
| |
50 |
GEAR; 2ND,MAINSHAFT
Z=31
|
8-94311-564-1 |
01 |
1 |
0201- |
| |
51 |
RING; BLOCK,LOW & 2ND
Z=45
|
8-94151-510-3 |
02 |
1 |
0201- |
| |
52 |
COLLAR; NEEDLE BRG,LOW
|
8-94248-620-1 |
02 |
1 |
0201-0901 |
| |
52 |
COLLAR; NEEDLE BRG,LOW
|
8-97238-834-0 |
02 |
1 |
0902- |
| |
53 |
BEARING; NEEDLE,LOW & REV
NSK
|
8-94161-991-0 |
02 |
1 |
0201- |
| |
59 |
GEAR; REV MAINSHAFT
Z=37
|
8-94310-158-1 |
01 |
1 |
0201- |
| |
61 |
SYNCHRONIZER; REV & 5TH
|
5-33260-010-0 |
01 |
1 |
0201- |
| |
62 |
SPRING; INSERT,REV & 5TH
|
5-33264-010-0 |
02 |
1 |
0201- |
| |
63 |
INSERT; SYN,REV & 5TH
|
5-33263-002-3 |
03 |
1 |
0201- |
| |
64 |
WASHER; LK,LOW
|
8-94238-095-0 |
01 |
1 |
0201- |
| |
65 |
NUT; MAINSHAFT
M32
|
8-94238-094-1 |
01 |
1 |
0201- |
| |
66 |
RING; BLOCK,SYN
Z=30
|
8-94463-830-1 |
01 |
1 |
0201- |
| |
70 |
GEAR; 1ST,MAINSHAFT
Z=41
|
8-94310-154-1 |
01 |
1 |
0201- |
| |
71 |
WASHER; THRUST,LOW
ID=32.0
|
5-33239-043-3 |
02 |
1 |
0201- |
| |
80 |
GEAR; SPD DRIVE
Z=6
|
8-94161-085-1 |
01 |
1 |
0201- |
| |
82 |
SHAFT; MAIN,TRANS
Z=26-24-27
|
8-94435-162-3 |
01 |
1 |
0201- |
| |
84 |
BEARING; COUNTER SHAFT,FRT
NSK ID=20 OD=47
|
8-97063-365-0 |
01 |
1 |
0201- |
| |
85 |
BEARING; ANGULAR BALL,CLUSTER
NSK ID=25 OD=52
|
8-94124-766-0 |
01 |
1 |
0201-0305 |
| |
85 |
BEARING; ANGULAR BALL,CLUSTER
NSK ID=25 OD=52
|
8-97365-931-0 |
01 |
1 |
0306- |
| |
86 |
WASHER; THRUST,5TH
T=7.80
|
8-94238-099-4 |
01 |
1 |
0201- |
| |
86 |
WASHER; THRUST,5TH
T=7.90
|
8-94238-100-4 |
01 |
1 |
0201- |
| |
86 |
WASHER; THRUST,5TH
T=8.00
|
8-94238-101-4 |
01 |
1 |
0201- |
| |
86 |
WASHER; THRUST,5TH
T=8.10
|
8-94238-102-4 |
01 |
1 |
0201- |
| |
86 |
WASHER; THRUST,5TH
T=8.20
|
8-94238-103-4 |
01 |
1 |
0201- |
| |
86 |
WASHER; THRUST,5TH
T=8.30
|
8-94238-104-4 |
01 |
1 |
0201- |
| |
87 |
BALL; THRUST WASHER
|
8-94201-356-0 |
01 |
1 |
0201- |
| |
88 |
RING; THRUST,THRUST WASHER
|
8-94473-936-2 |
02 |
1 |
0201- |
| |
90 |
RING; SNAP,THRUST RING
ID=37.0
|
9-09180-040-0 |
01 |
1 |
0201- |
| |
95 |
GEAR; REV,COUNTER
Z=16
|
8-94161-120-1 |
01 |
1 |
0201- |
| |
97 |
GEAR; 5TH,COUNTER
Z=47
|
8-94161-098-2 |
01 |
1 |
0201- |
| |
98 |
BEARING; BALL,COUNTER END
NSK
|
8-97063-366-0 |
01 |
1 |
0201-0211 |
| |
98 |
BEARING; BALL,COUNTER END
NSK
|
8-97359-571-0 |
01 |
1 |
0212-0601 |
| |
98 |
BEARING; BALL,COUNTER END
NSK
|
8-98019-664-0 |
01 |
1 |
0602- |
| |
99 |
WASHER; PL,COUNTER 5TH GEAR
ID=17
|
9-09160-516-0 |
01 |
1 |
0201-0605 |
| |
99 |
WASHER; PL,COUNTER 5TH GEAR
ID=17 OD=30
|
0-91610-516-0 |
01 |
1 |
0606- |
| |
128 |
WASHER; THRUST,REV SHAFT
ID=22.0
|
5-33363-004-0 |
01 |
1 |
0201- |
| |
132 |
SHAFT; REV
|
8-94435-146-0 |
01 |
1 |
0201- |
| |
135 |
GEAR; REV IDLER
Z=23
|
8-94161-118-1 |
01 |
1 |
0201-0705 |
| |
135 |
GEAR; REV IDLER
Z=23
|
8-98080-126-0 |
01 |
1 |
0706-0708 |
| |
135 |
GEAR; REV IDLER
Z=23
|
8-98082-807-0 |
01 |
1 |
0709-0809 |
| |
135 |
GEAR; REV IDLER
Z=23
|
8-98080-126-0 |
01 |
1 |
0810-1003 |
| |
135 |
GEAR; REV IDLER
Z=33
IDN
|
8-98146-724-0 |
01 |
1 |
1004- |
| |
136 |
WASHER; THRUST,REV IDLE,RR
ID=16.2
|
5-33363-003-3 |
01 |
1 |
0201- |
| |
137 |
NUT; REV GEAR
M16
|
9-09844-195-0 |
01 |
1 |
0201-0604 |
| |
137 |
NUT; REV GEAR
M16
|
8-98035-678-0 |
01 |
1 |
0605- |
| |
140 |
BOLT; LK PIECE
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
0201-0512 |
| |
140 |
BOLT; LK PIECE
M8X16 FLANGE
|
0-28050-816-0 |
01 |
1 |
0601- |
| |
151 |
KEY; FEATHER,SPD DRIVE GEAR
|
9-08020-510-0 |
01 |
1 |
0201- |
| |
215 |
RING; SNAP,BALL BRG
ID=27.9
|
9-09180-030-0 |
01 |
1 |
0201- |
| |
217 |
RING; SNAP,COUNTER FRT BRG
ID=18.5
|
9-09180-020-0 |
01 |
1 |
0201- |
| |
224 |
NUT; SELF LK,COUNTER
M16
|
9-09844-195-0 |
01 |
1 |
0201-0604 |
| |
224 |
NUT; SELF LK,COUNTER
M16
|
8-98035-678-0 |
01 |
1 |
0605- |
| |
276 |
SPACER; BRG TO DRIVE GEAR
|
8-94161-087-0 |
01 |
1 |
0201- |
| |
306 |
RING; SNAP,MAINSHAFT
T=1.50
|
5-09588-020-1 |
01 |
1 |
0201- |
| |
306 |
RING; SNAP,MAINSHAFT
T=1.55
|
5-09588-021-1 |
01 |
1 |
0201- |
| |
306 |
RING; SNAP,MAINSHAFT
T=1.60
|
5-09588-022-1 |
01 |
1 |
0201- |
| |
306 |
RING; SNAP,MAINSHAFT
T=1.65
|
5-09588-023-1 |
01 |
1 |
0201- |
| |
387 |
INSERT; SYN,4TH & 3RD
|
9-33263-048-2 |
03 |
1 |
0201- |
| |
393 |
BEARING; MAINSHAFT END
(A) NSK
|
8-94173-863-0 |
01 |
1 |
0201- |
| |
393 |
BEARING; MAINSHAFT END
(B) NSK
|
8-94173-866-0 |
01 |
1 |
0201- |
| |
396 |
BEARING; NEEDLE,MAINSHAFT
KOYO
|
9-00096-100-1 |
01 |
1 |
0201- |
| |
397 |
SPRING; INSERT,4TH & 3RD
|
5-33264-010-0 |
02 |
1 |
0201- |
| |
398 |
GEAR; COUNTER
Z=37-31-20-16
|
8-94469-524-1 |
01 |
1 |
0201- |
| |
401 |
RING; SNAP,SPD DRIVE GEAR
ID=27.9
|
9-09180-030-0 |
01 |
1 |
0201- |
| |
405 |
INSERT; SYN,LOW & 2ND
|
8-94152-557-1 |
03 |
1 |
0201- |
