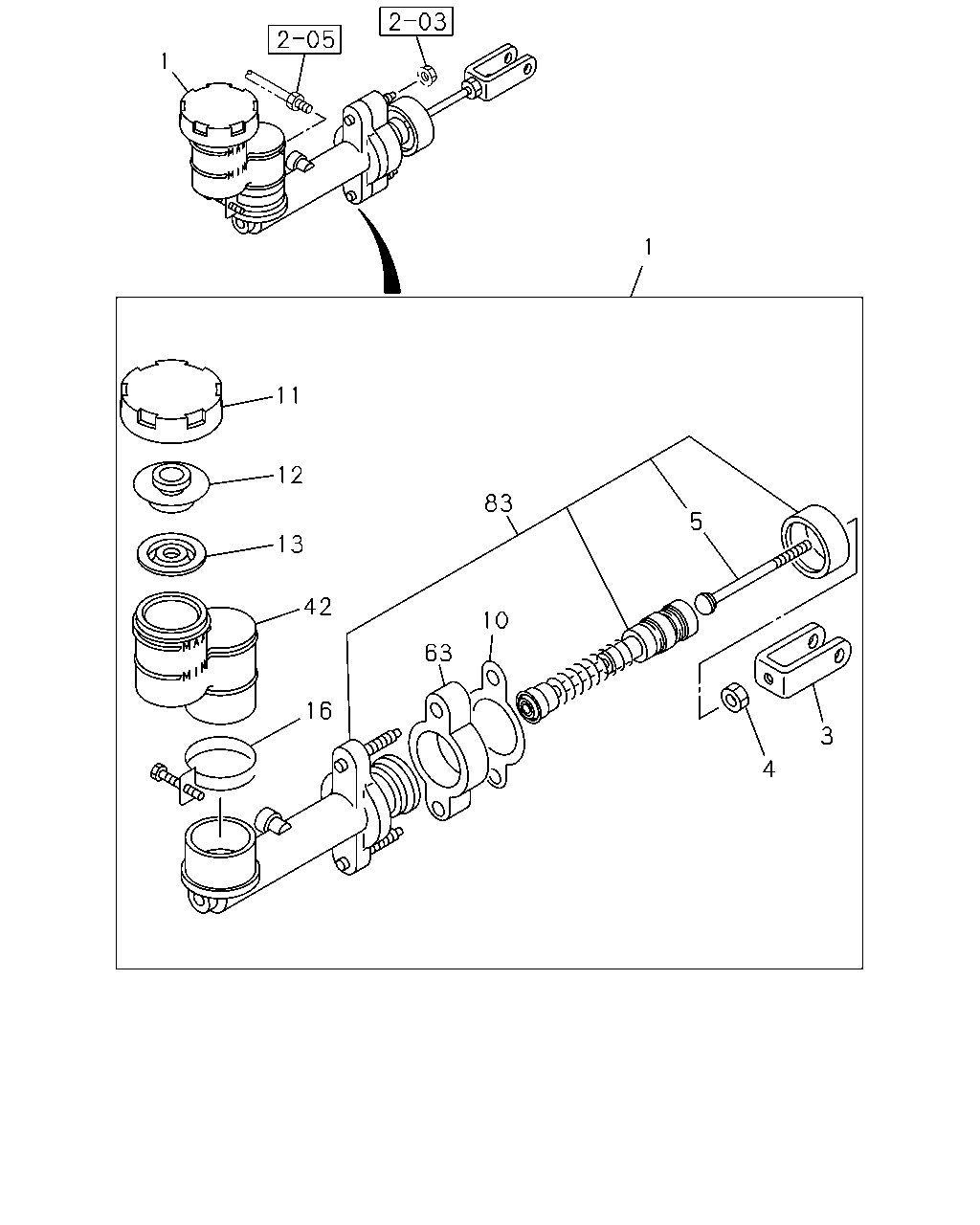

2-08 — CLUTCH MASTER CYLINDER (#95445) — 25 parça

1 1 11 12 13 42 16 83 10 63 5 3 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CYLINDER ASM; CLUTCH MASTER	8-97315-763-1	01	1	0201-0204
1	CYLINDER ASM; CLUTCH MASTER M/T MSG 5 SPEED(M75)	8-97315-763-1	01	1	0205-
3	JOINT; JAW,CLU M/CYL	8-94412-201-0	01	1	0201-0204
3	JOINT; JAW,CLU M/CYL M/T MSG 5 SPEED(M75)	8-94412-201-0	01	1	0205-
4	NUT; JAW JOINT M8	9-09111-408-0	01	1	0201-0204
4	NUT; JAW JOINT M/T MSG 5 SPEED(M75) M8	9-09111-408-0	01	1	0205-0511
4	NUT; JAW JOINT M/T MSG 5 SPEED(M75) M8	0-91111-508-0	01	1	0512-
5	ROD; PUSH,CLU M/CYL	8-97318-505-0	01	1	0201-0204
5	ROD; PUSH,CLU M/CYL M/T MSG 5 SPEED(M75)	8-97318-505-0	01	1	0205-
10	GASKET; CLU M/CYL	8-97184-654-0	01	1	0201-0204
10	GASKET; CLU M/CYL M/T MSG 5 SPEED(M75)	8-97184-654-0	01	1	0205-
11	CAP; OUTER,CLU M/CYL	8-94412-207-0	01	1	0201-0204
11	CAP; OUTER,CLU M/CYL M/T MSG 5 SPEED(M75)	8-94412-207-0	01	1	0205-
12	CAP; INNER,OIL TANK,CLU M/CYL	8-94412-206-0	01	1	0201-0204
12	CAP; INNER,OIL TANK,CLU M/CYL M/T MSG 5 SPEED(M75)	8-94412-206-0	01	1	0205-
13	GASKET; OIL TANK	8-94412-205-0	01	1	0201-0204
13	GASKET; OIL TANK M/T MSG 5 SPEED(M75)	8-94412-205-0	01	1	0205-
16	CLIP; OIL TANK,CLU M/CYL	8-94412-202-0	01	1	0201-0204
16	CLIP; OIL TANK,CLU M/CYL M/T MSG 5 SPEED(M75)	8-94412-202-0	01	1	0205-
42	TANK; OIL,CLU	8-97318-506-0	01	1	0201-0204
42	TANK; OIL,CLU M/T MSG 5 SPEED(M75)	8-97318-506-0	01	1	0205-
63	ADAPTER	8-97318-507-0	01	1	0201-0204
63	ADAPTER M/T MSG 5 SPEED(M75)	8-97318-507-0	01	1	0205-
83	CYLINDER SUB ASM; CLUTCH MASTER	8-97318-496-0	01	1	0201-0204
83	CYLINDER SUB ASM; CLUTCH MASTER M/T MSG 5 SPEED(M75)	8-97318-496-0	01	1	0205-
