2-03 — CLUTCH PEDAL AND CONTROL (#95442) — 37 parça

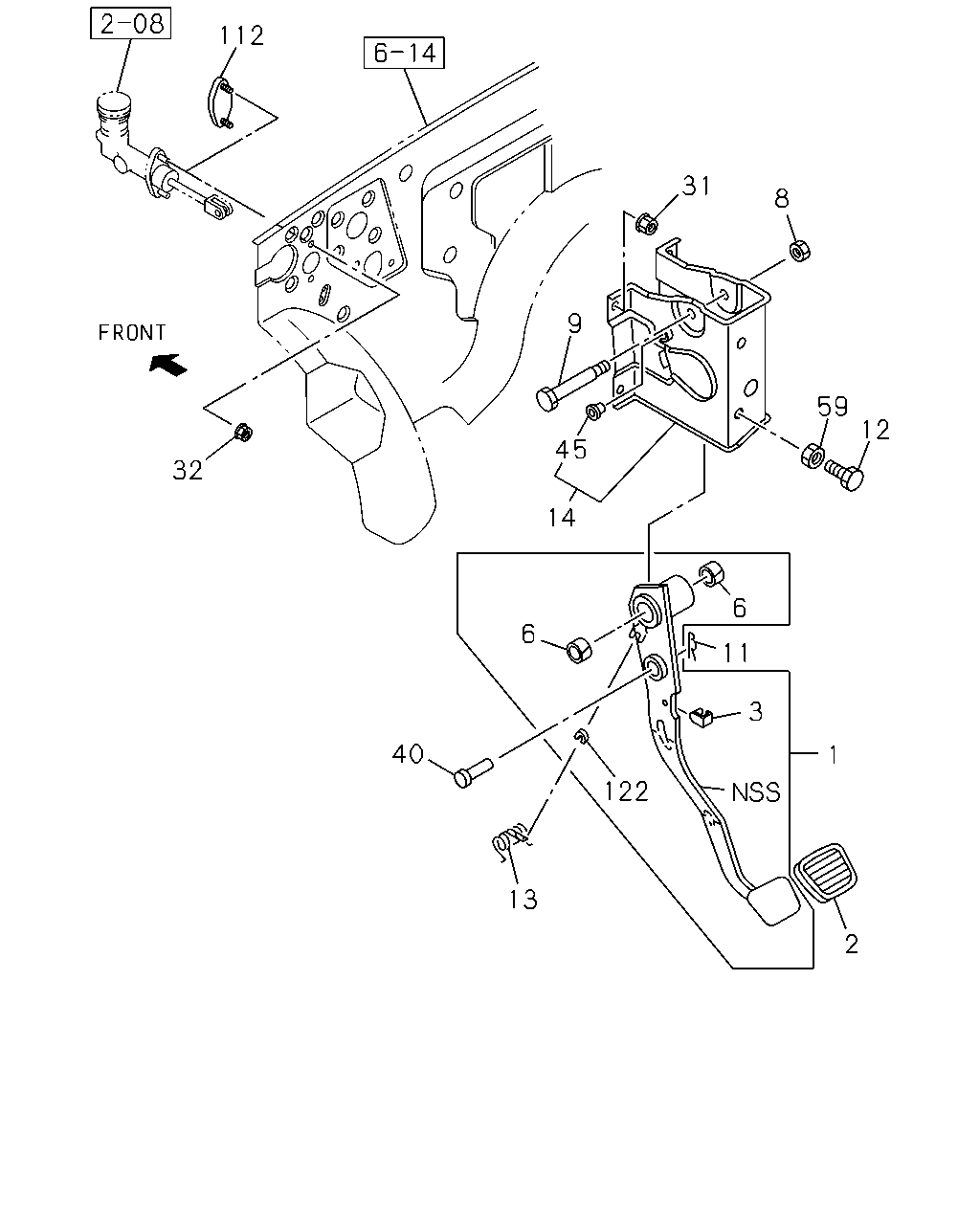

çizim 289199
112 31 8 9 45 14 59 12 6 11 3 1 2 122 6 40 13 32
BalonParca AdiParca NoAdetTipApplied Date
1 PEDAL; CLU 8-97135-073-0 01 1 0201-0204
1 PEDAL; CLU
M/T MSG 5 SPEED(M75) 		8-97135-073-0 01 1 0205-
2 COVER; CLU PEDAL 8-94222-524-1 01 1 0201-0204
2 COVER; CLU PEDAL
M/T MSG 5 SPEED(M75) 		8-94222-524-1 01 1 0205-
3 RUBBER; STOPPER,CLU PEDAL 8-94463-258-0 01 1 0201-0204
3 RUBBER; STOPPER,CLU PEDAL
M/T MSG 5 SPEED(M75) 		8-94463-258-0 01 1 0205-
6 BUSHING; CLU PEDAL 8-94244-439-0 02 1 0201-0204
6 BUSHING; CLU PEDAL
M/T MSG 5 SPEED(M75) 		8-94244-439-0 02 1 0205-
8 NUT; PIN TO PEDAL
M10 FLANGE 		0-91150-110-0 01 1 0201-0204
8 NUT; PIN TO PEDAL
M/T MSG 5 SPEED(M75) M10 FLANGE 		0-91150-110-0 01 1 0205-0602
8 NUT; PIN TO PEDAL
M/T MSG 5 SPEED(M75) M10 FLANGE 		0-91180-110-0 01 1 0603-
9 PIN; CLU PEDAL 8-94455-308-0 01 1 0201-0204
9 PIN; CLU PEDAL
M/T MSG 5 SPEED(M75) 		8-94455-308-0 01 1 0205-
11 PIN; SNAP,PUSH ROD TO PEDAL
L=27.7 		1-09747-005-0 01 1 0201-0204
11 PIN; SNAP,PUSH ROD TO PEDAL
M/T MSG 5 SPEED(M75) L=27.7 		1-09747-005-0 01 1 0205-
12 BOLT; CLU PEDAL ADJ
M10X35 		0-20801-035-0 01 1 0201-0204
12 BOLT; CLU PEDAL ADJ
M/T MSG 5 SPEED(M75) M10X35 		0-20801-035-0 01 1 0205-0512
12 BOLT; CLU PEDAL ADJ
M/T MSG 5 SPEED(M75) M10X35 		0-20851-035-0 01 1 0601-
13 SPRING; ASSIST,CLU PEDAL 8-97312-882-0 01 1 0201-0204
13 SPRING; ASSIST,CLU PEDAL
M/T MSG 5 SPEED(M75) 		8-97312-882-0 01 1 0205-
14 BRACKET ASM; CLU PEDAL MTG 8-94329-888-1 01 1 0201-0204
14 BRACKET ASM; CLU PEDAL MTG
M/T MSG 5 SPEED(M75) 		8-94329-888-1 01 1 0205-
31 NUT; MTG BRKT TO BODY
M8 FLANGE 		5-09440-005-0 04 1 0201-0204
31 NUT; MTG BRKT TO BODY
M/T MSG 5 SPEED(M75) M8 FLANGE 		5-09440-005-0 04 1 0205-0805
31 NUT; MTG BRKT TO BODY
M/T MSG 5 SPEED(M75) M8 FLANGE 		8-97581-233-0 04 1 0806-
32 NUT; BRKT TO CLU M/CYL
M8 FLANGE 		0-91150-108-0 02 1 0201-0602
32 NUT; BRKT TO CLU M/CYL
M8 FLANGE 		0-91180-108-0 02 1 0603-
40 PIN; JOINT,CLU DAMPER 8-94432-133-1 01 1 0201-0204
40 PIN; JOINT,CLU DAMPER
M/T MSG 5 SPEED(M75) 		8-94432-133-1 01 1 0205-
45 BUSHING; ASSIST SPRING,CLU PEDAL 8-94175-433-0 02 1 0201-0204
45 BUSHING; ASSIST SPRING,CLU PEDAL
M/T MSG 5 SPEED(M75) 		8-94175-433-0 02 1 0205-
59 NUT; CLU PEDAL ADJ
M10 		9-09110-410-0 01 1 0201-0204
59 NUT; CLU PEDAL ADJ
M/T MSG 5 SPEED(M75) M10 		9-09110-410-0 01 1 0205-0512
59 NUT; CLU PEDAL ADJ
M/T MSG 5 SPEED(M75) M10 		0-91110-510-0 01 1 0601-
112 PLUG; METAL,M/CYL
A/T AISIN(RMD) 		8-97259-210-0 01 1 0205-
122 BUSHING; ASSIST PEDAL,CLU 8-94175-434-0 01 1 0201-0204
122 BUSHING; ASSIST PEDAL,CLU
M/T MSG 5 SPEED(M75) 		8-94175-434-0 01 1 0205-
