1-41 — FUEL PIPING; CHASSIS
(#95439) — 29 parça
◀

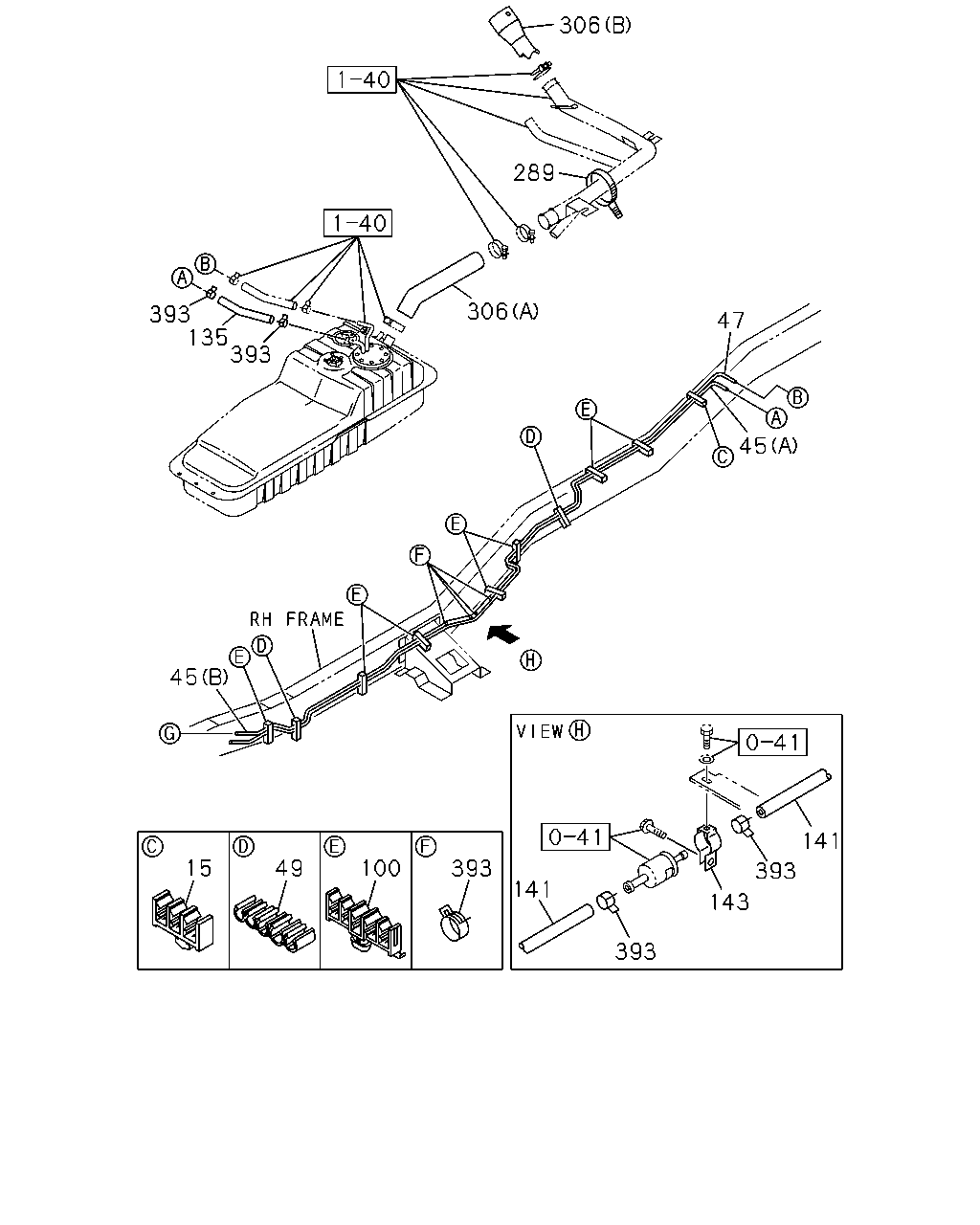

[141A] NO.1 (14 parça)

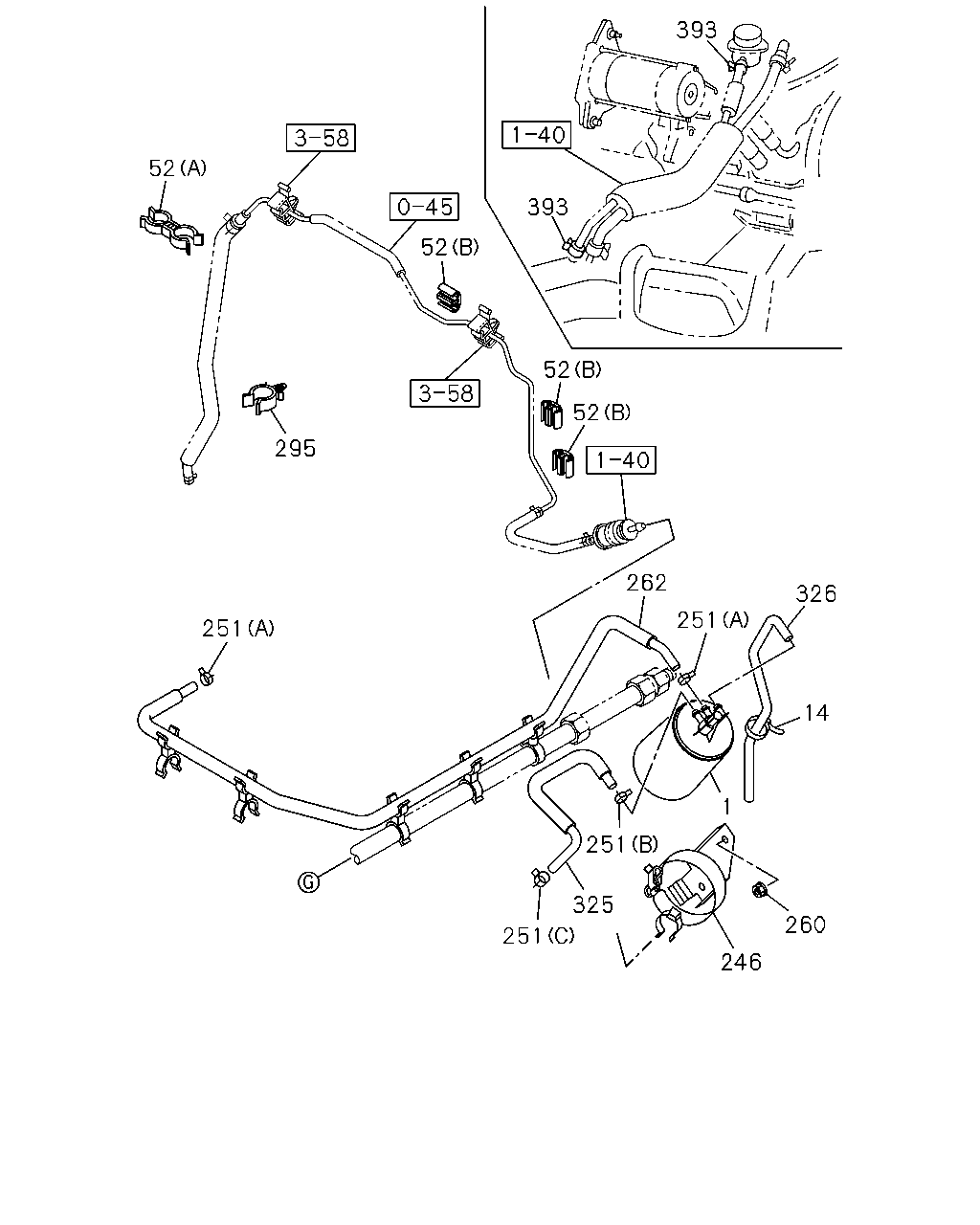

[141A] NO.2 (15 parça)
▶
289
306
47
306
393
135
393
45
141
393
143
393
141
393
100
49
15
45
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
15
CLIP; FUEL PIPE
8-97012-498-1
01
1
0201-
45
PIPE; FUEL,DELIVERY
(A) IDN
8-97560-137-0
01
1
0201-
45
PIPE; FUEL,DELIVERY
(B) IDN
8-97560-138-0
01
1
0201-
47
PIPE; FUEL,RETURN
IDN
8-97560-139-0
01
1
0201-
49
CLIP; PIPE TO FRAME
8-97073-935-0
02
1
0201-
100
CLIP; FUEL PIPE
L=7.4
8-94435-550-0
07
1
0201-
135
HOSE; FUEL TANK TO FUEL PIPE
L=180 SERVICED BY L=3000
0-01558-300-0
01
1
0201-
141
HOSE; FUEL FILTER TO PIPE
L=100 SERVICED BY L=3000
0-01558-300-0
02
1
0201-
143
CLAMP; FUEL FILTER
8-97049-810-1
01
1
0201-
289
CLIP; BAND,HOSE
L=250 IDN
5-09707-030-1
01
1
0201-
289
CLIP; BAND,HOSE
L=250 IDN
5-09707-030-1
02
1
0201-
306
HOSE; FUEL,FILTER
(A) IDN
8-97560-959-0
01
1
0201-
306
HOSE; FUEL,FILTER
(B) IDN
8-97957-514-1
01
1
0201-
393
CLIP; HOSE,DELIVERY
ID=12
8-97148-892-1
08
1
0201-
393
52
52
52
52
295
262
251
326
14
251
251
1
260
246
251
325
393
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CANISTER; FUEL
8-17096-164-0
01
1
0201-
14
CLIP; HOSE
L=172
8-94232-620-0
01
1
0201-
52
CLIP; EVAP PIPE
(A) ID=16.5 & 16.5
8-94473-320-0
01
1
0201-0306
52
CLIP; EVAP PIPE
(B) ID=6.35 & 6.35
8-94474-113-0
03
1
0201-
246
BRACKET; CANISTER
8-97322-782-1
01
1
0201-
251
CLIP; RUBBER HOSE
(A) ID=11
8-94238-570-0
02
1
0201-
251
CLIP; RUBBER HOSE
(B) ID=12 IDN
8-94238-610-0
01
1
0201-
251
CLIP; RUBBER HOSE
(C) ID=11
8-97173-219-0
01
1
0201-
260
NUT; CANISTER BRKT
M6 FLANGE
0-91150-106-0
02
1
0201-0602
260
NUT; CANISTER BRKT
M6 FLANGE
0-91180-106-0
02
1
0603-
262
HOSE; CANISTER PURGE
8-97316-836-1
01
1
0201-
295
CLIP; HOSE,EVAP
ID=17
8-94382-792-1
01
1
0201-
325
HOSE; EVAPO
L=255
8-97230-433-0
01
1
0201-
326
HOSE; VACUUM
L=540
8-97088-858-1
01
1
0201-
393
CLIP; HOSE,DELIVERY
ID=12
8-97148-892-1
08
1
0201-
