Isuzu WW
▶
AUV
▶
TBR
▶
50919 - TBR (GM-INDONESIA)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-40 - FUEL TANK
▶
1-40 — FUEL TANK
(#95438) — 37 parça
◀

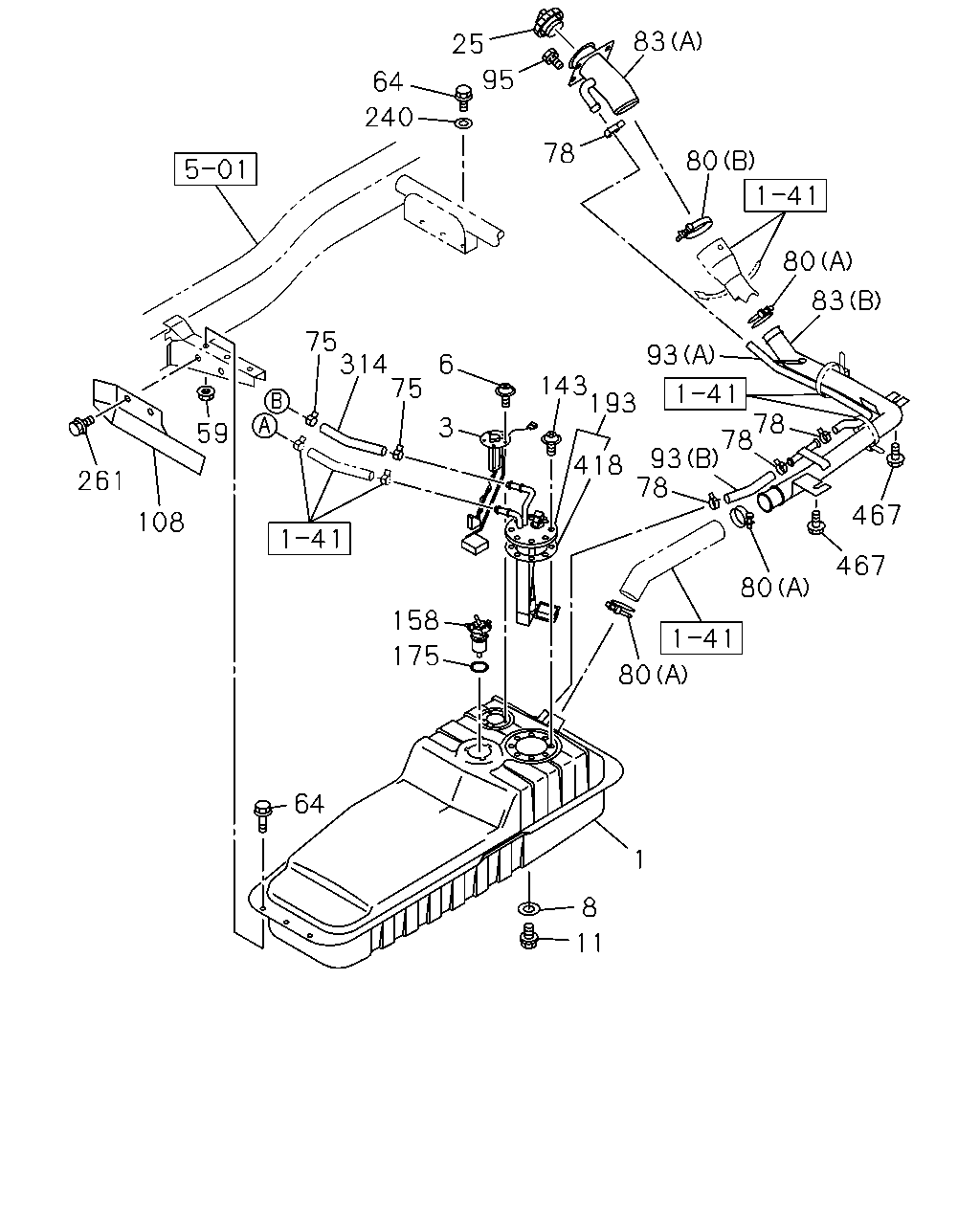

[140A] NO.1 (34 parça)

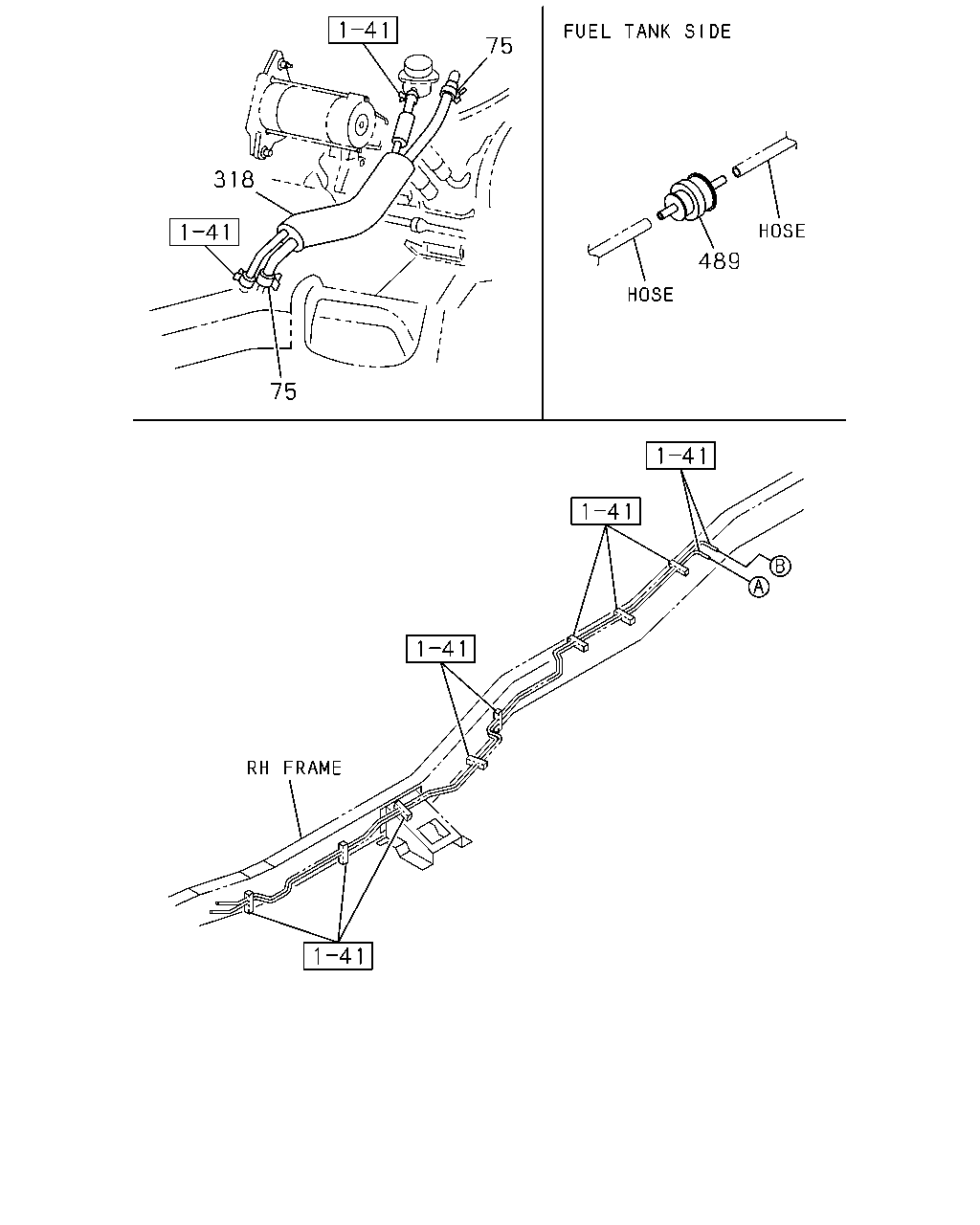

[140A] NO.2 (3 parça)
▶
80
78
95
25
64
240
83
80
83
93
78
78
93
78
418
193
143
6
3
75
314
75
59
108
261
158
175
80
1
8
64
80
467
467
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; FUEL
IDN
8-97959-928-2
01
1
0201-
3
UNIT; FUEL TANK,SUB
8-97956-834-2
01
1
0201-
6
SCREW; TANK UNIT TO SUB FUEL TANK
M5X10 W/LK WASHER
9-03910-510-0
05
1
0201-0604
6
SCREW; TANK UNIT TO SUB FUEL TANK
M5X10 W/LK WASHER
0-36220-510-0
05
1
0605-
8
GASKET; DRAIN PLUG,FUEL TANK
IDN
9-09920-624-0
01
1
0201-
11
PLUG; DRAIN,FUEL TANK
M14X14 IDN
8-94152-613-0
01
1
0201-
25
CAP; FILLER,FUEL TANK
8-94450-279-1
01
1
0201-0202
25
CAP; FILLER,FUEL TANK
8-94310-199-4
01
1
0203-
59
NUT; FUEL TANK
M8 FLANGE
8-94328-243-1
06
1
0201-
64
BOLT; FUEL TANK
M8X24
8-97034-130-1
06
1
0201-
75
CLIP; RUB HOSE
ID=13
8-97173-220-0
04
1
0201-
78
CLIP; BREATHER HOSE
ID=21
8-94242-034-0
04
1
0201-
80
CLIP; FILLER HOSE
(A) ID=42 IDN
9-09915-042-1
03
1
0201-
80
CLIP; FILLER HOSE
(B) ID=60 IDN
9-09915-265-1
01
1
0201-
83
NECK; FUEL FILLER
(A)
8-97315-992-1
01
1
0201-
83
NECK; FUEL FILLER
(B) IDN
8-97560-499-1
01
1
0201-
93
HOSE; BREATHER,FUEL TANK
(A) L=600
8-97320-336-0
01
1
0201-
93
HOSE; BREATHER,FUEL TANK
(B) L=340
8-97320-337-0
01
1
0201-
95
SCREW; FILLER NECK
M6X16
8-94381-646-0
03
1
0201-0703
95
SCREW; FILLER NECK
M6X16
8-98022-271-0
03
1
0704-
108
PROTECTOR; FUEL TANK
IDN
8-97956-729-2
01
1
0201-
143
SCREW; FUEL PUMP
M5X10 W/LK WASHER
9-03910-510-0
08
1
0201-0604
143
SCREW; FUEL PUMP
M5X10 W/LK WASHER
0-36220-510-0
08
1
0605-
158
VALVE; ROLL OVER & FLOAT
8-97120-906-2
01
1
0201-
175
SEAL; VALVE
8-94246-338-2
01
1
0201-
193
PUMP; FUEL
8-97183-450-1
01
1
0201-
240
WASHER; PL,FUEL TANK
ID=8.4 OD=22
9-09164-708-0
03
1
0201-0605
240
WASHER; PL,FUEL TANK
ID=8.4 OD=22
0-91614-708-0
03
1
0606-
261
BOLT; PROTECTOR
M8X20 FLANGE
0-28680-820-0
02
1
0201-0512
261
BOLT; PROTECTOR
M8X20 FLANGE IDN
0-28650-820-0
02
1
0601-
314
HOSE; RUBBER,FUEL RETURN
L=170 SERVICED BY L=3000
0-01256-300-0
01
1
0201-
418
GASKET; FUEL PUMP
IDN
8-94386-449-0
01
1
0201-
467
BOLT
M8X25
8-97091-076-0
02
1
0201-0203
467
BOLT
M8X25
8-97327-634-0
02
1
0204-
489
75
318
75
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
75
CLIP; RUB HOSE
ID=13
8-97173-220-0
04
1
0201-
318
HOSE ASM; FUEL,DELIVERY,RETURN
8-97327-941-0
01
1
0201-
489
VALVE; CONT
8-97076-391-0
01
1
0201-
