Isuzu WW
▶
AUV
▶
TBR
▶
50919 - TBR (GM-INDONESIA)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶

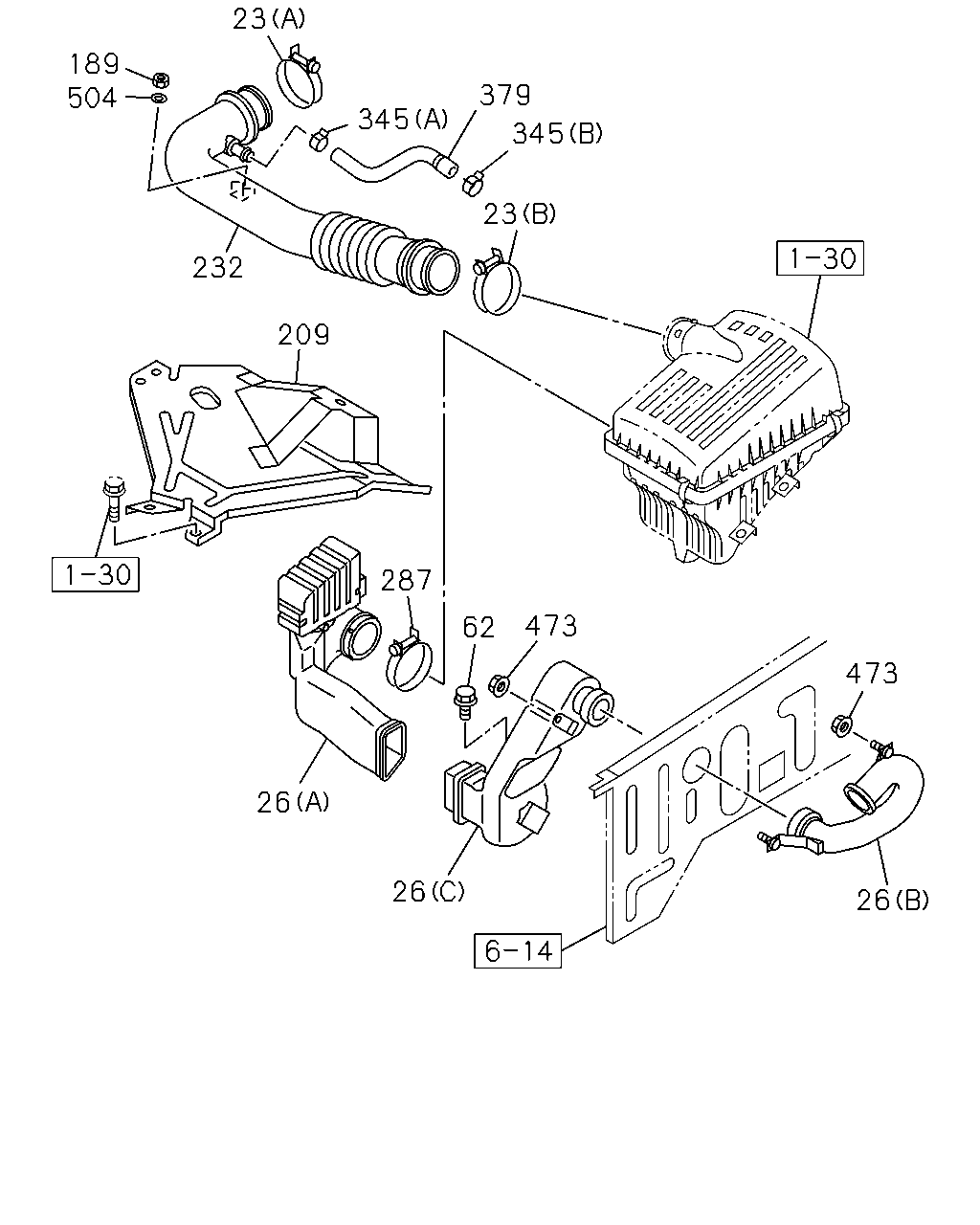

1-31 - AIR DUCT
▶
1-31 — AIR DUCT
(#95437) — 19 parça
379
345
23
345
23
189
504
232
209
287
62
473
26
26
26
473
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
23
CLIP; HOSE
(A) ID=75
8-94101-706-0
01
1
0201-
23
CLIP; HOSE
(B) ID=90
8-94156-938-0
01
1
0201-0305
23
CLIP; HOSE
(B) ID=90
8-97367-377-0
01
1
0306-
26
DUCT; AIR INT
(A)
8-97174-583-1
01
1
0201-
26
DUCT; AIR INT
(B)
8-97190-988-1
01
1
0201-
26
DUCT; AIR INT
(C)
8-97316-761-1
01
1
0201-
62
BOLT; AIR INT DUCT
M6X16 IDN
8-97020-619-0
02
1
0201-
189
NUT; BRKT,INL HOSE
M8 FLANGE
8-94279-518-0
01
1
0201-
209
BRACKET; ACL
IDN
8-97560-333-0
01
1
0201-
232
HOSE; CONN
8-97173-180-1
01
1
0201-
287
CLIP; AIR DUCT
ID=75
8-94101-706-0
01
1
0201-
345
CLIP; PCV HOSE
(A) ID=22
8-94382-401-0
01
1
0201-1003
345
CLIP; PCV HOSE
(A) ID=22
8-97359-141-0
01
1
1004-
345
CLIP; PCV HOSE
(B) ID=24
8-97010-605-0
01
1
0201-
379
HOSE; RUBBER
8-97168-152-0
01
1
0201-
473
NUT; DUCT
M6 FLANGE
0-91150-106-0
02
1
0201-0602
473
NUT; DUCT
M6 FLANGE
0-91180-106-0
02
1
0603-
504
WASHER; PL,HOSE
ID=8.4 OD=22
9-09160-708-0
01
1
0201-0605
504
WASHER; PL,HOSE
ID=8.4 OD=22
0-91610-708-0
01
1
0606-
