50919 - TBR (GM-INDONESIA)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶

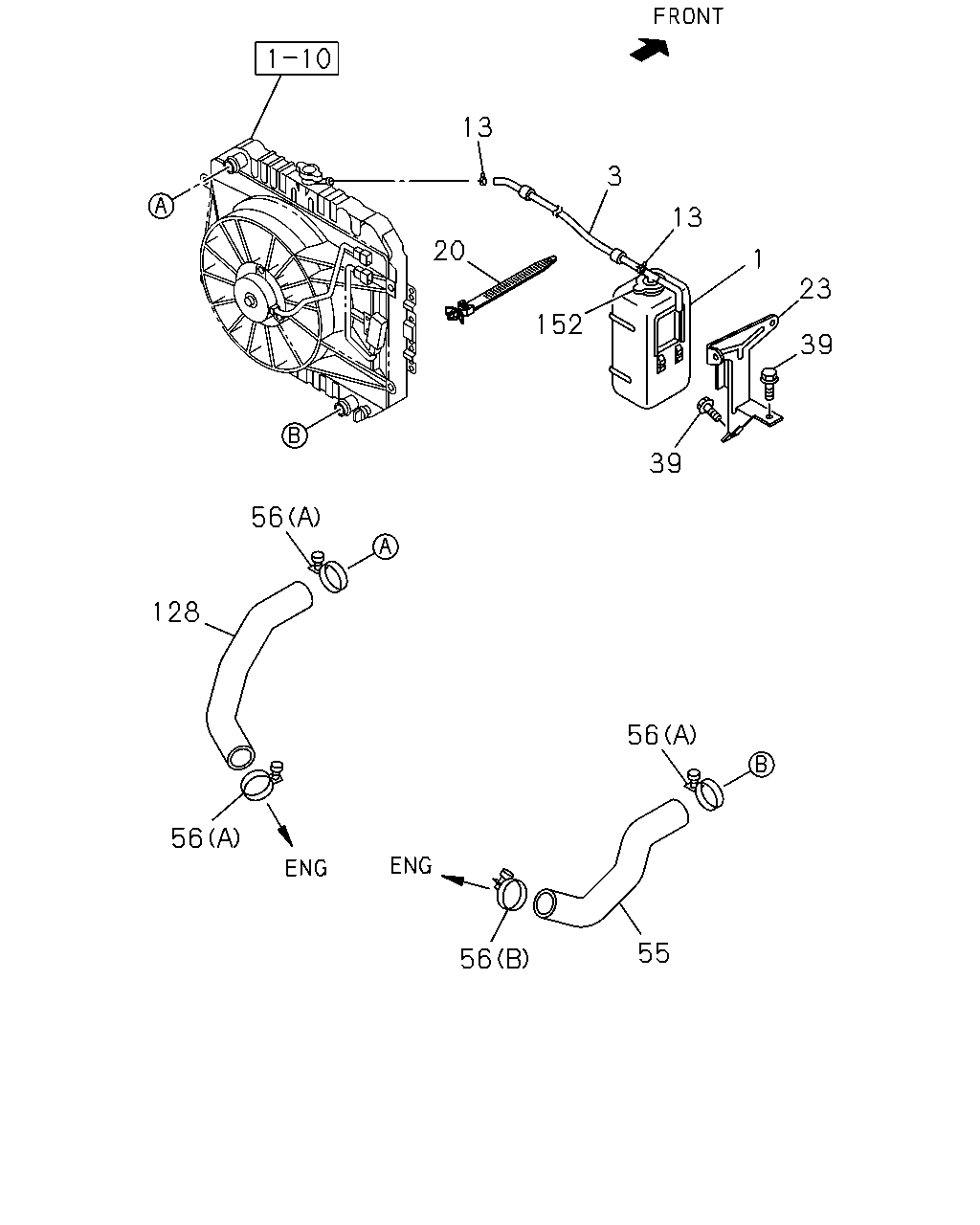

1-11 - RADIATOR HOSE AND SUB TANK
▶
1-11 — RADIATOR HOSE AND SUB TANK
(#95435) — 12 parça
13
3
13
1
23
39
39
152
20
128
56
55
56
56
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; SURGE,RAD
IDN
8-97956-340-4
01
1
0201-
3
HOSE; SURGE TANK
IDN
8-97957-604-2
01
1
0201-
13
CLIP; HOSE,SURGE TANK
IDN
8-97957-610-0
02
1
0201-
20
CLIP; HOSE,RAD
L=212
8-94107-652-0
01
1
0201-
23
BRACKET; RESERVE TANK
IDN
8-97956-341-3
01
1
0201-
39
BOLT; BRKT FIX
M8X16 FLANGE
0-28480-816-0
02
1
0201-0512
39
BOLT; BRKT FIX
M8X16 FLANGE
0-28450-816-0
02
1
0601-
55
HOSE; WATER,RAD OUTLET
IDN
8-97560-282-0
01
1
0201-
56
CLIP; WATER HOSE,RAD
(A) ID=42 IDN
8-97209-203-0
03
1
0201-
56
CLIP; WATER HOSE,RAD
(B) ID=45 IDN
9-09915-281-1
01
1
0201-
128
HOSE; WATER,RAD INL
IDN
8-97560-281-0
01
1
0201-
152
CAP ASM; SURGE TANK
IDN
8-97957-609-0
01
1
0201-
