50919 - TBR (GM-INDONESIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-60 - ENGINE ELECTRICAL CONTROL PARTS
▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS
(#95430) — 17 parça
◀
[060A] NO.1 (14 parça)
[060A] NO.2 (3 parça)
▶
611
715
10
4
23
2
16
16
245
142
245
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date

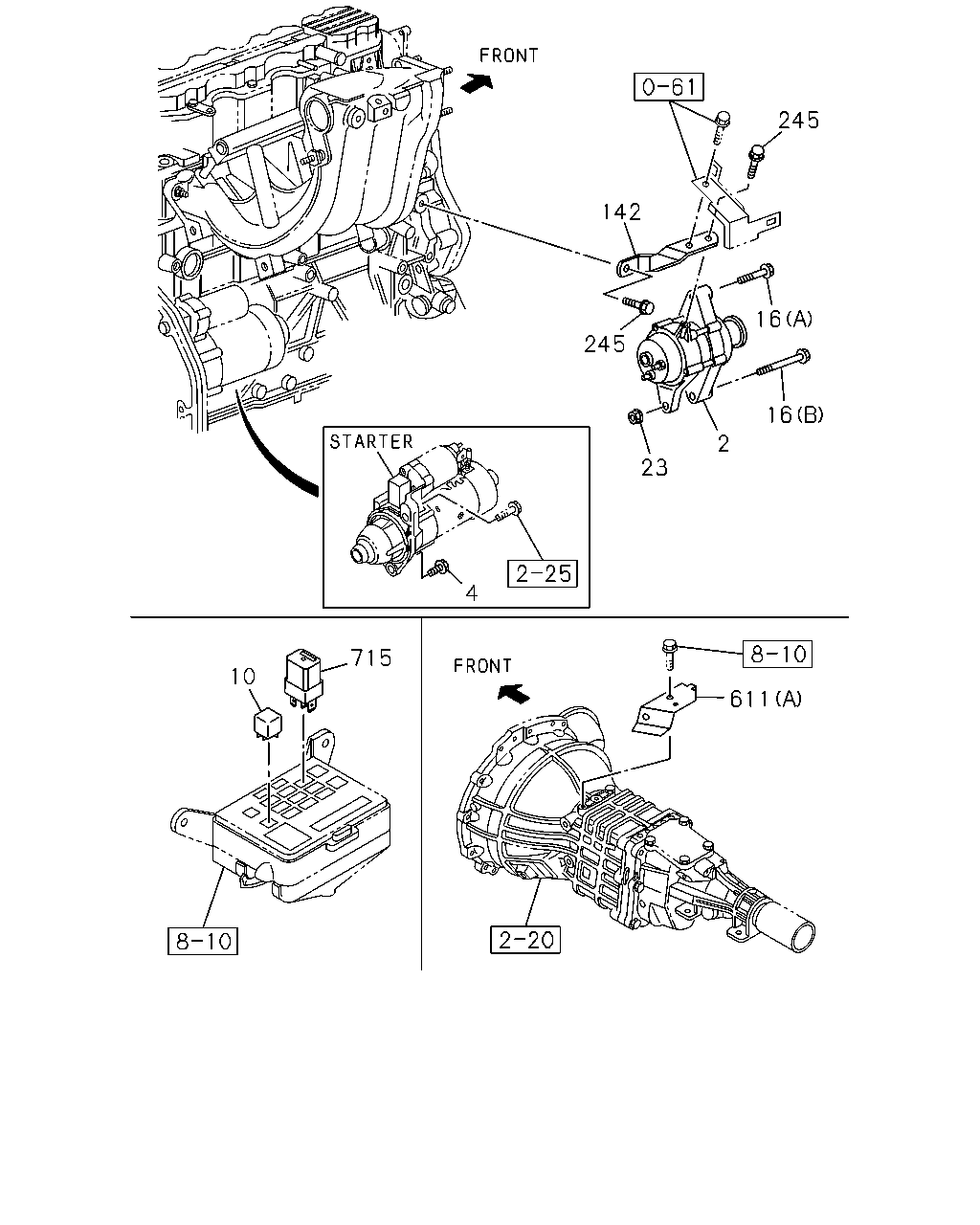

2
GENERATOR ASM
12V 100A SEE FIG-NO 0-66 FOR COMPONENT. IDN
8-10479-923-0
01
1
0201-0204
2
GENERATOR ASM
12V 100A IDN
8-10480-384-0
01
1
0205-
4
BOLT; STARTER
M10X25 FLANGE
0-28181-025-0
01
1
0201-0512
4
BOLT; STARTER
M10X25 FLANGE
0-28151-025-0
01
1
0601-
10
RELAY; STARTER
12V 20A
8-97060-926-1
01
1
0201-
16
BOLT; GEN
(B) M10X125 FLANGE IDN
8-11093-141-0
01
1
0201-
16
BOLT; GEN
(A) M8X20 FLANGE IDN
8-11097-731-0
01
1
0201-
23
NUT; GEN
M10 FLANGE IDN
8-11086-913-0
01
1
0201-
142
BRACE
IDN
8-92066-055-0
01
1
0201-
245
BOLT; STAY
IDN
8-11086-983-0
02
1
0201-
611
BRACKET; SENSOR
(A)
8-97181-086-0
01
1
0201-0204
611
BRACKET; SENSOR
M/T MSG 5 SPEED(M75) (A)
8-97181-086-0
01
1
0205-

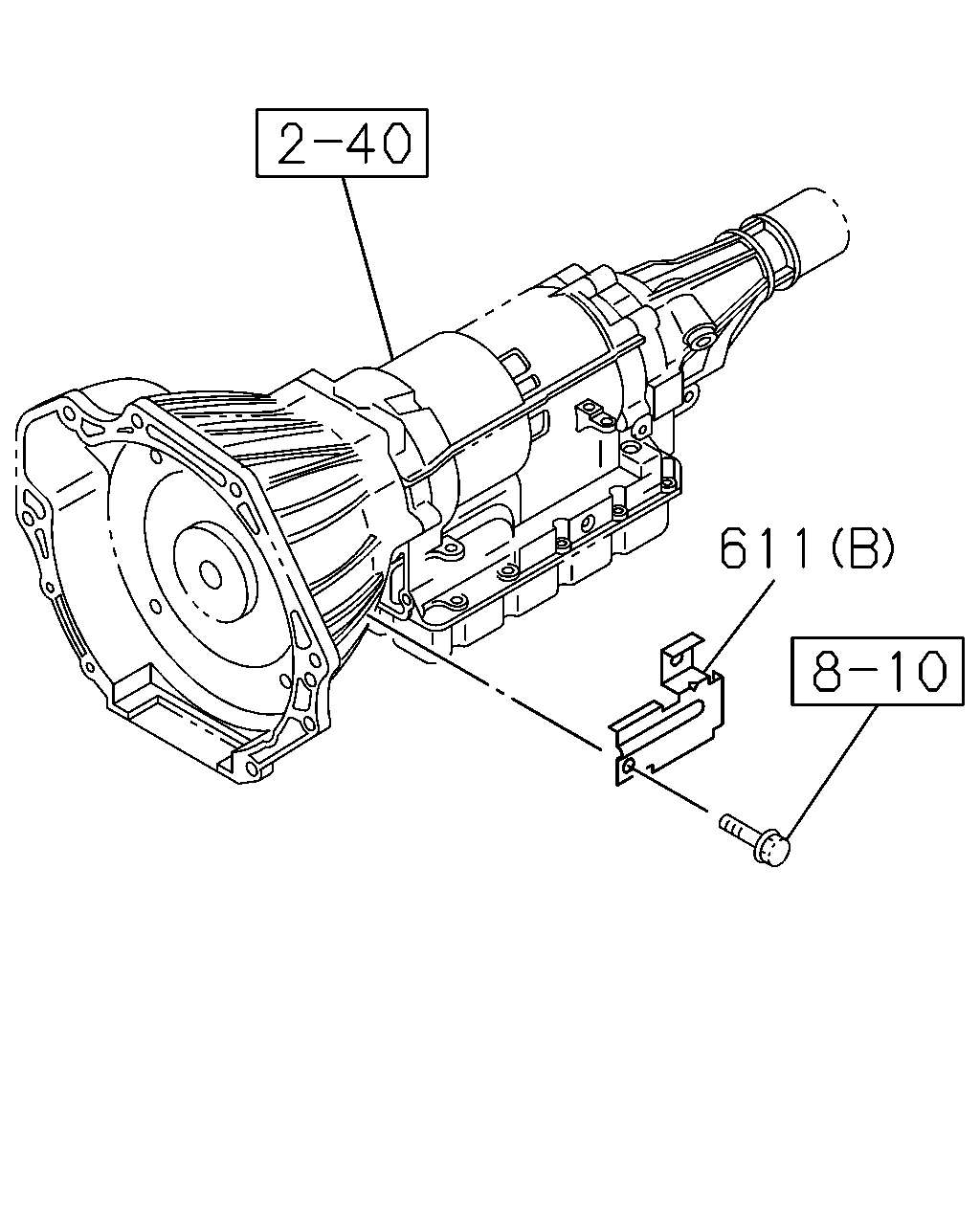

611
BRACKET; SENSOR
A/T AISIN(RMD) (B) IDN
8-97560-198-0
01
1
0205-
715
RELAY; FUEL PUMP
12V 20A IDN
8-97173-037-1
01
1
0201-
611
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
611
BRACKET; SENSOR
(A)
8-97181-086-0
01
1
0201-0204
611
BRACKET; SENSOR
M/T MSG 5 SPEED(M75) (A)
8-97181-086-0
01
1
0205-
611
BRACKET; SENSOR
A/T AISIN(RMD) (B) IDN
8-97560-198-0
01
1
0205-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
