◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10827 - FTR(AUSTRALIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#9543) — 50 parça

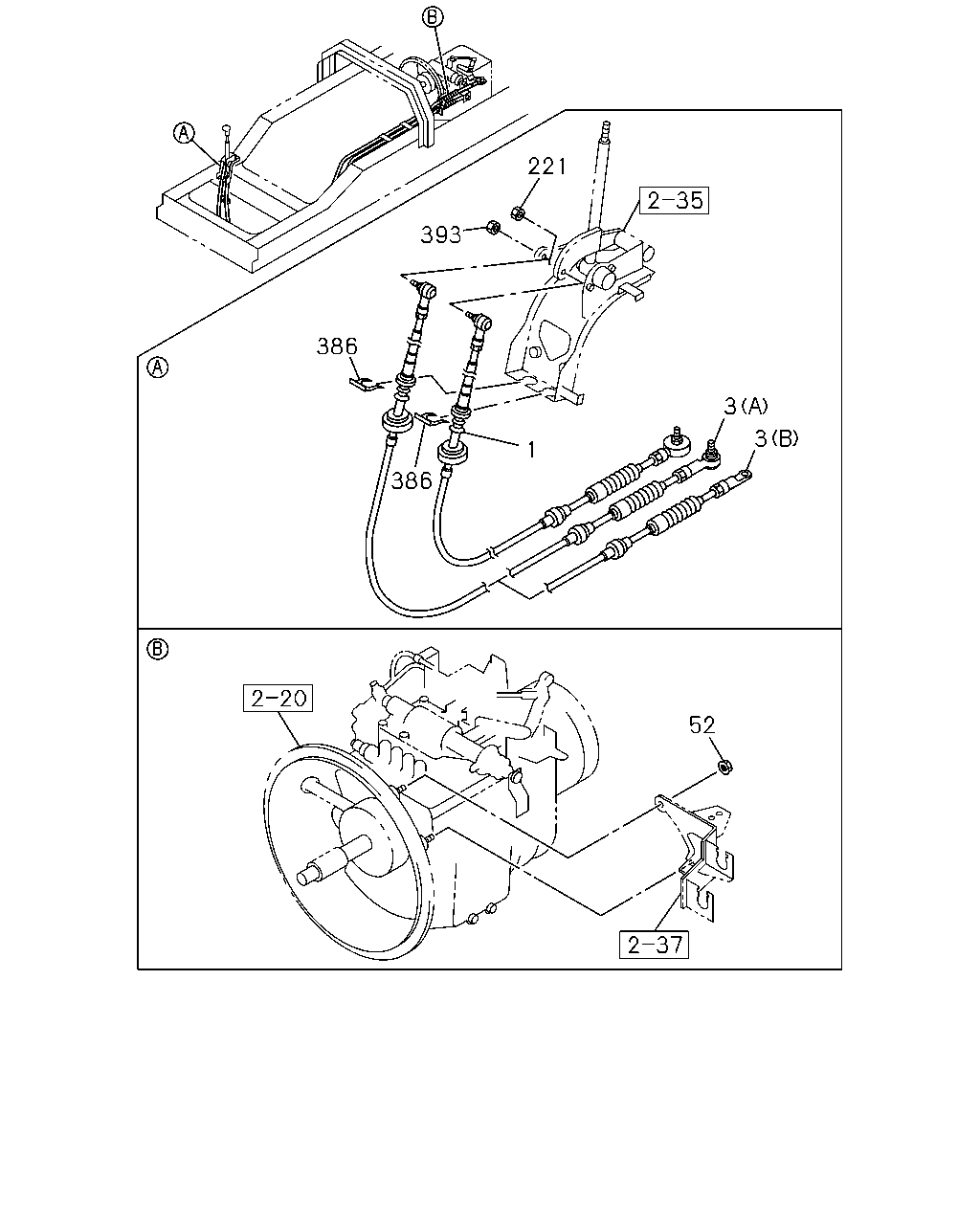

çizim 40349
221 393 386 3 3 1 386 52
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
DOUBLE CAB(FT**W*) L=3795.5 		1-33671-893-0 01 1 0302- ●
1 CABLE; SHIFT,TRANS CONT
L=3465 		1-33671-053-0 01 1 0005-0210 ●
1 CABLE; SHIFT,TRANS CONT
L=3442 		1-33671-591-0 01 1 0005-0210 ●
1 CABLE; SHIFT,TRANS CONT
L=3595.5 		1-33671-839-1 01 1 0211-0301 ●
1 CABLE; SHIFT,TRANS CONT
STD CAB(FT**M*) L=3595.5 		1-33671-839-1 01 1 0302- ●
3 CABLE; SELECT,TRANS CONT
DOUBLE CAB(FT**W*) (B) L=3735 		1-33671-894-1 01 1 0302- ●
3 CABLE; SELECT,TRANS CONT
(A) L=3580 		1-33670-933-0 01 1 0005-0210 ●
3 CABLE; SELECT,TRANS CONT
(B) L=3695 		1-33671-594-0 01 1 0005-0210 ●
3 CABLE; SELECT,TRANS CONT
(B) L=3835 		1-33671-840-1 01 1 0211-0301 ●
3 CABLE; SELECT,TRANS CONT
STD CAB(FT**M*) (B) L=3835 		1-33671-840-1 01 1 0302- ●
52 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 0005-0210 ● ●
52 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 0211-0602 ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603- ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-049-0 01 1 0005-0210 ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-049-0 01 1 0211-1011 ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1012- ●
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 0005-0210 ● ●
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 0211- ●
393 NUT; SELECT CABLE,CAB
M8 FLANGE 		1-09440-049-0 01 1 0005-0210 ● ●
393 NUT; SELECT CABLE,CAB
M8 FLANGE 		1-09440-049-0 01 1 0211-1011 ●
393 NUT; SELECT CABLE,CAB
M8 FLANGE 		1-09440-062-1 01 1 1012- ●

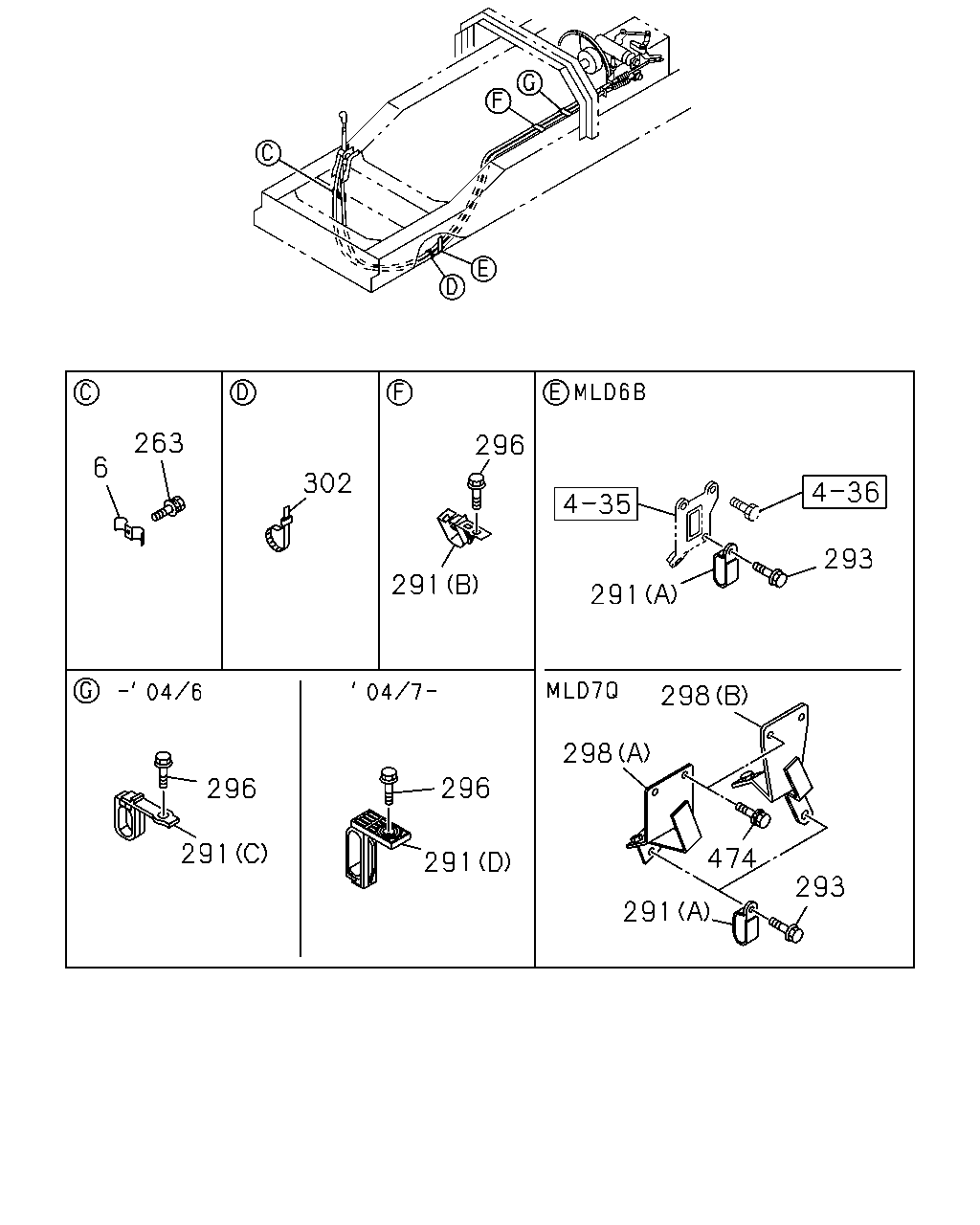

çizim 40382
263 296 6 302 293 291 291 298 298 296 296 291 474 291 293 291
BalonParca AdiParca NoAdetTipApplied Date A B
6 CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0005-0210 ● ●
6 CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0211- ●
263 BOLT; CLIP,TRANS CONT WIRE
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0005-0210 ● ●
263 BOLT; CLIP,TRANS CONT WIRE
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0211- ●
291 CLIP; SHIFT TO SELECT,FRAME
(C) ID=10 & 10 M8 		1-09701-220-0 01 1 0005-0210 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(C) ID=10 & 10 M8 		1-09701-220-0 01 1 0211-0406 ●
291 CLIP; SHIFT TO SELECT,FRAME
(D) 		1-09701-307-2 01 1 0407- ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13X2 L=32 		1-09701-245-0 01 1 0005-0210 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13X2 L=32 		1-09701-245-0 01 1 0211-0506 ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13X2 L=32 		1-09701-312-0 01 1 0507- ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		9-09535-026-0 01 1 0005-0210 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		9-09535-026-0 01 1 0211-0606 ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		0-95325-026-0 01 1 0607- ●
293 BOLT; CLIP,SHIFT TO SELECT
M8X16 FLANGE 		0-28080-816-0 01 1 0005-0210 ● ●
293 BOLT; CLIP,SHIFT TO SELECT
M8X16 FLANGE 		0-28080-816-0 01 1 0211-0512 ●
293 BOLT; CLIP,SHIFT TO SELECT
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
296 BOLT; CLIP,SHIFT & SELECT
M8X20 FLANGE 		0-28080-820-0 02 1 0005-0210 ● ●
296 BOLT; CLIP,SHIFT & SELECT
M8X20 FLANGE 		0-28080-820-0 02 1 0211-0512 ●
296 BOLT; CLIP,SHIFT & SELECT
M8X20 FLANGE 		0-28050-820-0 02 1 0601- ●
298 BRACKET
DOUBLE CAB(FT**W*) FRT TAPER LEAF SUSPENSION<SAR> (B) 		1-36183-248-0 01 1 0406- ●
298 BRACKET
DOUBLE CAB(FT**W*) (B) 		1-36183-220-0 01 1 0302-0405 ●
298 BRACKET
DOUBLE CAB(FT**W*) EXC. FRT TAPER LEAF SUSPENSION<SAR> (B) 		1-36183-220-0 01 1 0406- ●
298 BRACKET
(A) 		1-47478-852-0 01 1 0005-0005 ●
298 BRACKET
(A) 		1-47479-010-0 01 1 0005-0210 ●
298 BRACKET
(A) 		1-36183-231-0 01 1 0211-0301 ●
298 BRACKET
STD CAB(FT**M*) (A) 		1-36183-235-0 01 1 0302- ●
302 CLIP; BAND
L=300 		1-09707-001-1 01 1 0005-0210 ● ●
302 CLIP; BAND
L=300 		1-09707-001-1 01 1 0211- ●
474 BOLT; BRKT
M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 0005- ●
