50823 - TBR(INDONESIA)
▶
9 - Tools
▶
9-33 - REAR BODY; GATE AND SIDE GUARD
▶

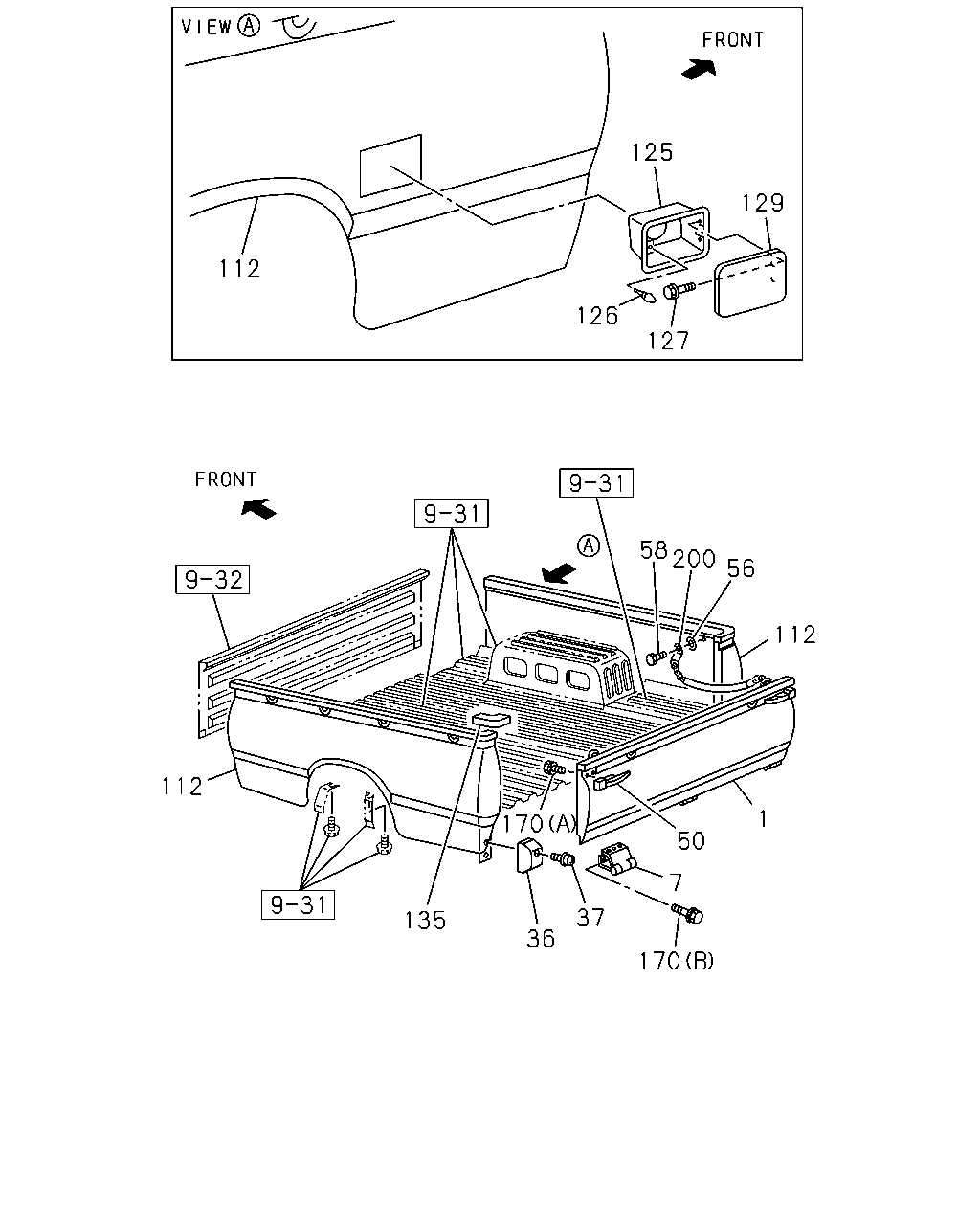

9-33 — REAR BODY; GATE AND SIDE GUARD
(#95424) — 17 parça
129
125
127
126
112
112
56
200
58
1
50
7
170
37
170
36
135
112
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GATE ASM; RR
IDN
8-94367-226-0
01
1
0008-0106
7
HINGE ASM; RR GATE
IDN
8-94367-231-1
03
1
0008-0106
36
RUBBER; STOPPER,RR GATE
IDN
8-94367-697-0
02
1
0008-0106
37
SCREW
M6X20 W/PL WASHER
9-03900-620-0
02
1
0008-0106
50
LOCK ASM; TAIL GATE,RR BODY
IDN
8-94385-443-0
02
1
0008-0106
56
WASHER; PL,CHAIN TO RR BODY
ID=8.4 OD=22
9-09160-708-0
02
1
0008-0106
58
BOLT; CHAIN TO RR BODY
5-09000-065-2
02
1
0008-0106
112
PANEL; SIDE GATE
IDN
8-94367-185-0
01
1
0008-0106
112
PANEL; SIDE GATE
IDN
8-94367-184-0
01
1
0008-0106
125
RECESS; FUEL FILLER NECK,RR BODY
IDN
8-94380-515-0
01
1
0008-0106
126
RUBBER; STOPPER,FUEL FILLER LID
IDN
9-09956-829-0
01
1
0008-0106
127
BOLT; FUEL FILLER LID
M6X12 W/LK&PL WASHER IDN
0-50140-612-0
02
1
0008-0106
129
LID ASM; FUEL FILLER,RR BODY
IDN
8-94380-518-0
01
1
0008-0106
135
STRIKER; TAIL GATE,RR BODY
IDN
8-94367-216-1
02
1
0008-0106
170
BOLT; TAIL GATE LOCK
(A) M6X18
0-28280-618-0
04
1
0008-0106
170
BOLT; TAIL GATE LOCK
(B) M8X18
8-94419-345-0
06
1
0008-0106
200
CHAIN; REAR GATE
IDN
8-94367-702-1
02
1
0008-0106
