50823 - TBR(INDONESIA)
▶
9 - Tools
▶
9-31 - REAR BODY; FLOOR AND FENDER
▶

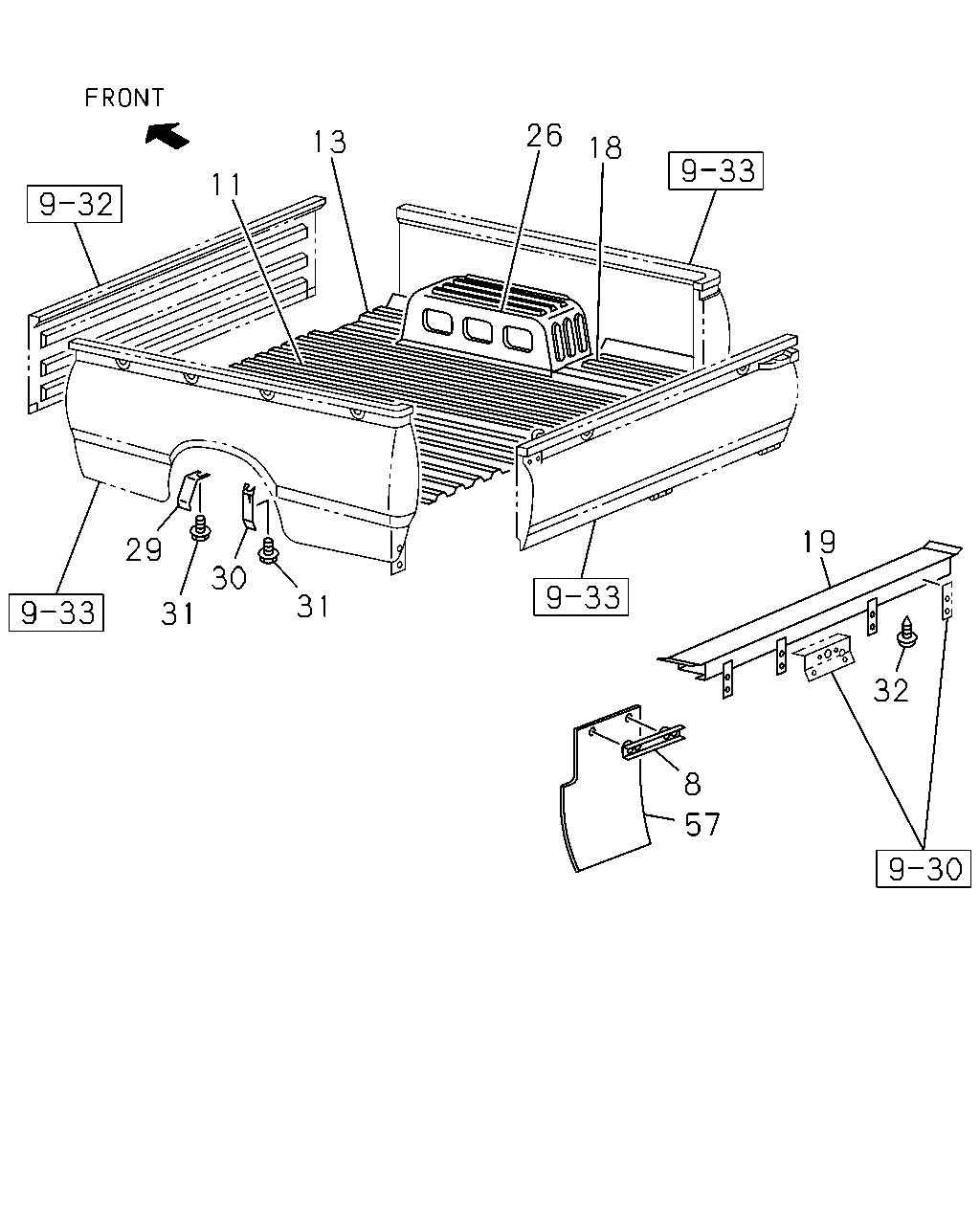

9-31 — REAR BODY; FLOOR AND FENDER
(#95422) — 15 parça
18
26
13
11
19
32
8
57
31
30
29
31
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
HOLDER; FLAP RUBBER
IDN
8-94366-921-0
02
1
0008-0106
11
PANEL; FLOOR BOARD,RR BODY
IDN
8-94367-149-0
01
1
0008-0106
13
PANEL; FLOOR BOARD,FRT SIDE,RR BODY
IDN
8-94388-902-0
01
1
0008-0106
13
PANEL; FLOOR BOARD,FRT SIDE,RR BODY
IDN
8-94388-901-0
01
1
0008-0106
18
PANEL; FLOOR BOARD,RR SIDE
IDN
8-94388-897-0
01
1
0008-0106
18
PANEL; FLOOR BOARD,RR SIDE
IDN
8-94388-896-0
01
1
0008-0106
19
BOLSTER; RR END,RR BODY
IDN
8-94367-165-1
01
1
0008-0106
26
PANEL; WHEEL HOUSE,RR BODY
IDN
8-94367-217-1
02
1
0008-0106
29
STAY; SIDE PANEL TO FLOOR,RR BODY FRT
IDN
8-94367-225-0
02
1
0008-0106
30
STAY; SIDE PANEL TO FLOOR,RR BODY RR
IDN
8-94389-329-0
01
1
0008-0106
30
STAY; SIDE PANEL TO FLOOR,RR BODY RR
IDN
8-94389-328-0
01
1
0008-0106
31
BOLT; SIDE PANEL STAY,RR BODY
M6X16 W/PL WASHER IDN
8-94204-636-0
04
1
0008-0106
32
SCREW; FLOOR BOLSTER,RR BODY
M6X16 IDN
8-97020-619-0
12
1
0008-0106
57
RUBBER; FLAP RR
IDN
8-97957-317-0
01
1
0008-0106
57
RUBBER; FLAP RR
IDN
8-97957-316-0
01
1
0008-0106
