Isuzu WW
▶
AUV
▶
TBR
▶
50823 - TBR(INDONESIA)
▶
9 - Tools
▶
9-30 - REAR BODY ASM AND MOUNTING
▶

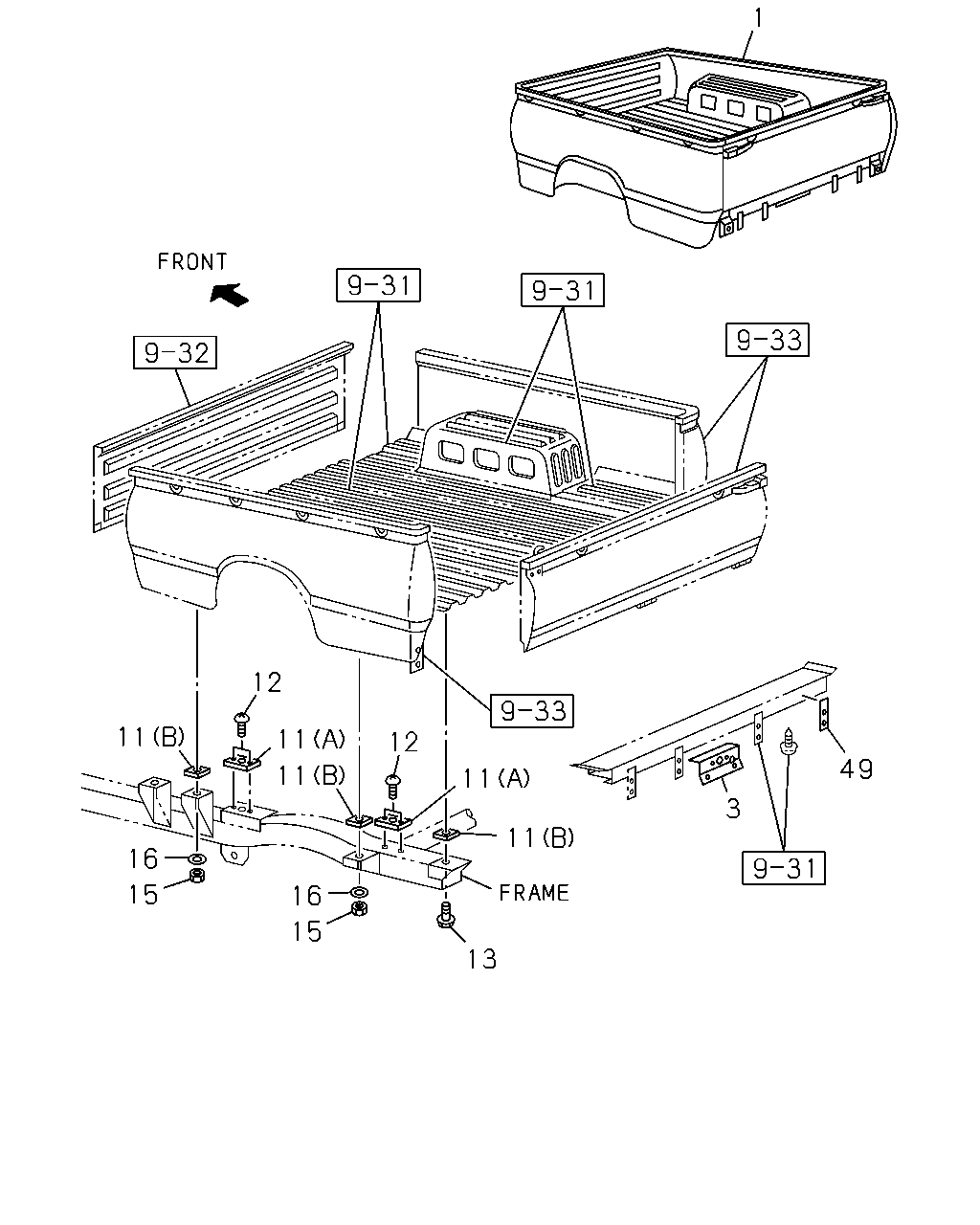

9-30 — REAR BODY ASM AND MOUNTING
(#95421) — 9 parça
1
49
3
11
11
13
12
12
11
11
16
15
11
16
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BODY ASM; REAR
IDN
8-94367-143-0
01
1
0008-0106
3
BRACKET; LICENSE PLATE LAMP
IDN
8-94367-177-2
01
1
0008-0106
11
GASKET; RR BODY MTG
(A) IDN
8-94331-737-0
06
1
0008-0106
11
GASKET; RR BODY MTG
(B) IDN
8-94331-738-1
08
1
0008-0106
12
SCREW; RR BODY MTG GASKET
M6X14 TAPPING W/PL WASHER
0-74100-614-0
12
1
0008-0106
13
BOLT; RR BODY MTG
M12X35 W/PL WASHER
8-94483-977-0
02
1
0008-0106
15
NUT; RR BODY MTG
M12 FLANGE
8-97028-764-0
06
1
0008-0106
16
WASHER; FRAME END,RR BODY
ID=12.5 OD=26
9-09164-612-0
06
1
0008-0106
49
BRACKET; RR COMB LAMP
IDN
8-94367-173-0
04
1
0008-0106
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
