8-90 — RADIO AND TV (#95419) — 88 parça

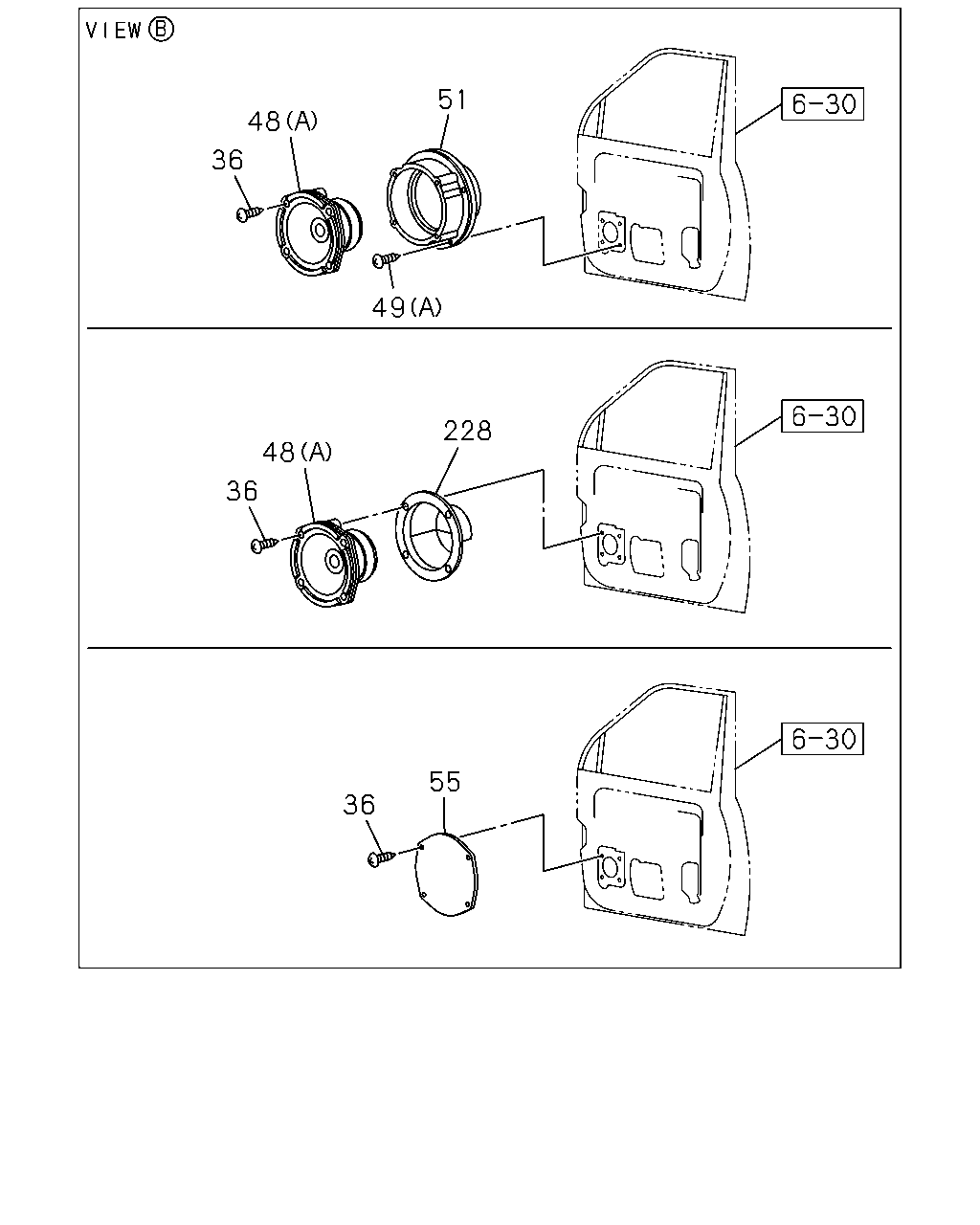

51 48 36 49 228 48 36 55 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
36	SCREW; COVER M5X14 TAPPING	9-07076-514-0	08	1	0008-0106	●	●	●
36	SCREW; COVER M5X14 TAPPING	9-07076-514-0	08	1	0107-0603		●	●
36	SCREW; COVER M5X14 TAPPING	0-71240-514-0	08	1	0604-		●	●
48	SPEAKER; AUDIO GRADE TOURING(RBG) TWEETER<7LE> (C) JVC BLACK IDN	8-97562-703-0	02	1	0509-		●	●
48	SPEAKER; AUDIO AM/FM RADIO CASSETTE STEREO(UM2),AM/FM W/CASSETTE4 SPEAKERS(UM6) (A) IDN	8-97956-751-1	02	1	0008-0106	●	●	●
48	SPEAKER; AUDIO AM/FM RADIO CASSETTE STEREO(UM2),AM/FM W/CASSETTE4 SPEAKERS(UM6) (A) IDN	8-97956-751-1	02	1	0107-		●	●
48	SPEAKER; AUDIO GRADE TOURING(RBG) TWEETER<7LE> (C) JVC GRAY IDN	8-97561-087-0	02	1	0111-0209		●	●
48	SPEAKER; AUDIO TWEETER<7LE> (B) IDN	8-97956-749-0	01	1	0008-0106		●	●
48	SPEAKER; AUDIO TWEETER<7LE> (B) IDN	8-97956-748-0	01	1	0008-0106		●	●
48	SPEAKER; AUDIO TWEETER<7LE> (C) KENWOOD GRAY IDN	8-97959-933-1	02	1	0107-0209		●	●
48	SPEAKER; AUDIO TWEETER<7LE> (C) KENWOOD BLACK IDN	8-97561-614-1	02	1	0210-0508		●	●
48	SPEAKER; AUDIO TWEETER<7LE> (C) KENWOOD BLACK IDN	8-97562-704-1	02	1	0509-		●	●
49	SCREW; SPEAKER AM/FM W/CASSETTE 4 SPEAKERS(UM6) (B) M5X14 TAPPING	9-07076-514-0	06	1	0008-0209		●	●
49	SCREW; SPEAKER AM/FM W/CASSETTE 4 SPEAKERS(UM6) (B) M5X14 TAPPING	9-07076-514-0	06	1	0210-0603		●	●
49	SCREW; SPEAKER AM/FM W/CASSETTE 4 SPEAKERS(UM6) (B) M5X14 TAPPING	0-71240-514-0	06	1	0604-		●	●
49	SCREW; SPEAKER GRADE LS(RBD) AM/FM W/CASSETTE 4 SPEAKERS(UM6) (A) M5X14 TAPPING	9-07076-514-0	08	1	0008-0106			●
49	SCREW; SPEAKER GRADE TOURING(RBG) AM/FM W/CASSETTE 4 SPEAKERS(UM6) (A) M5X14 TAPPING	9-07076-514-0	08	1	0107-0405		●	●
49	SCREW; SPEAKER GRADE TOURING(RBG) AM/FM W/CASSETTE 4 SPEAKERS(UM6) (A) M5X14 TAPPING	9-07076-514-0	08	1	0406-0603		●	●
49	SCREW; SPEAKER GRADE LS(RBD) AM/FM W/CASSETTE 4 SPEAKERS(UM6) UP GRADE PACKAGE<7MA> (A) M5X14 TAPPING	9-07076-514-0	08	1	0406-0603			●
49	SCREW; SPEAKER GRADE TOURING(RBG) AM/FM W/CASSETTE 4 SPEAKERS(UM6) (A) M5X14 TAPPING	0-71240-514-0	08	1	0604-		●	●
49	SCREW; SPEAKER GRADE LS(RBD) AM/FM W/CASSETTE 4 SPEAKERS(UM6) UP GRADE PACKAGE<7MA> (A) M5X14 TAPPING	0-71240-514-0	08	1	0604-			●
51	SPACER; SPEAKER GRADE LS(RBD) AM/FM W/CASSETTE 4 SPEAKERS(UM6) IDN	8-97956-717-0	02	1	0008-0106			●
51	SPACER; SPEAKER GRADE TOURING(RBG) AM/FM W/CASSETTE 4 SPEAKERS(UM6) IDN	8-97956-717-0	02	1	0107-0405		●	●
51	SPACER; SPEAKER GRADE TOURING(RBG) AM/FM W/CASSETTE 4 SPEAKERS(UM6) IDN	8-97956-717-0	02	1	0406-		●	●
51	SPACER; SPEAKER GRADE LS(RBD) AM/FM W/CASSETTE 4 SPEAKERS(UM6) UP GRADE PACKAGE<7MA> IDN	8-97956-717-0	02	1	0406-			●
55	COVER; SPEAKER HOLE EXC. AM/FM RADIO CASSETTE STEREO(UM2) IDN	8-97956-754-0	02	1	0008-0106	●
55	COVER; SPEAKER HOLE EXC. AM/FM RADIO CASSETTE STEREO(UM2),AM/FM W/CASSETTE 4 SPEAKERS(UM6) IDN	8-97956-754-0	02	1	0008-0106		●	●
55	COVER; SPEAKER HOLE EXC. AM/FM RADIO CASSETTE STEREO(UM2),AM/FM W/CASSETTE 4 SPEAKERS(UM6) IDN	8-97956-754-0	02	1	0107-		●	●
228	COVER; WATER PROOF AM/FM RADIO CASSETTE STEREO(UM2) IDN	8-97956-715-3	02	1	0008-0106	●	●	●
228	COVER; WATER PROOF GRADE ROYAL(RBB) AM/FM W/CASSETTE 4 SPEAKERS(UM6) IDN	8-97956-715-3	02	1	0008-0106		●	●
228	COVER; WATER PROOF GRADE ROYAL(RBB) AM/FM W/CASSETTE 4 SPEAKERS(UM6) IDN	8-97956-715-3	02	1	0107-0209		●	●
228	COVER; WATER PROOF AM/FM RADIO CASSETTE STEREO(UM2) IDN	8-97956-715-3	02	1	0107-0209		●	●
228	COVER; WATER PROOF GRADE ROYAL(RBB),GRADE LS(RBD) AM/FM W/CASSETTE 4 SPEAKERS(UM6) IDN	8-97956-715-3	02	1	0210-0405		●	●
228	COVER; WATER PROOF AM/FM RADIO CASSETTE STEREO(UM2) IDN	8-97956-715-3	02	1	0210-0405		●	●
228	COVER; WATER PROOF GRADE LS(RBD) AM/FM W/CASSETTE 4 SPEAKERS(UM6) IDN	8-97956-715-3	02	1	0406-		●	●
228	COVER; WATER PROOF AM/FM RADIO CASSETTE STEREO(UM2) IDN	8-97956-715-3	02	1	0406-		●	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

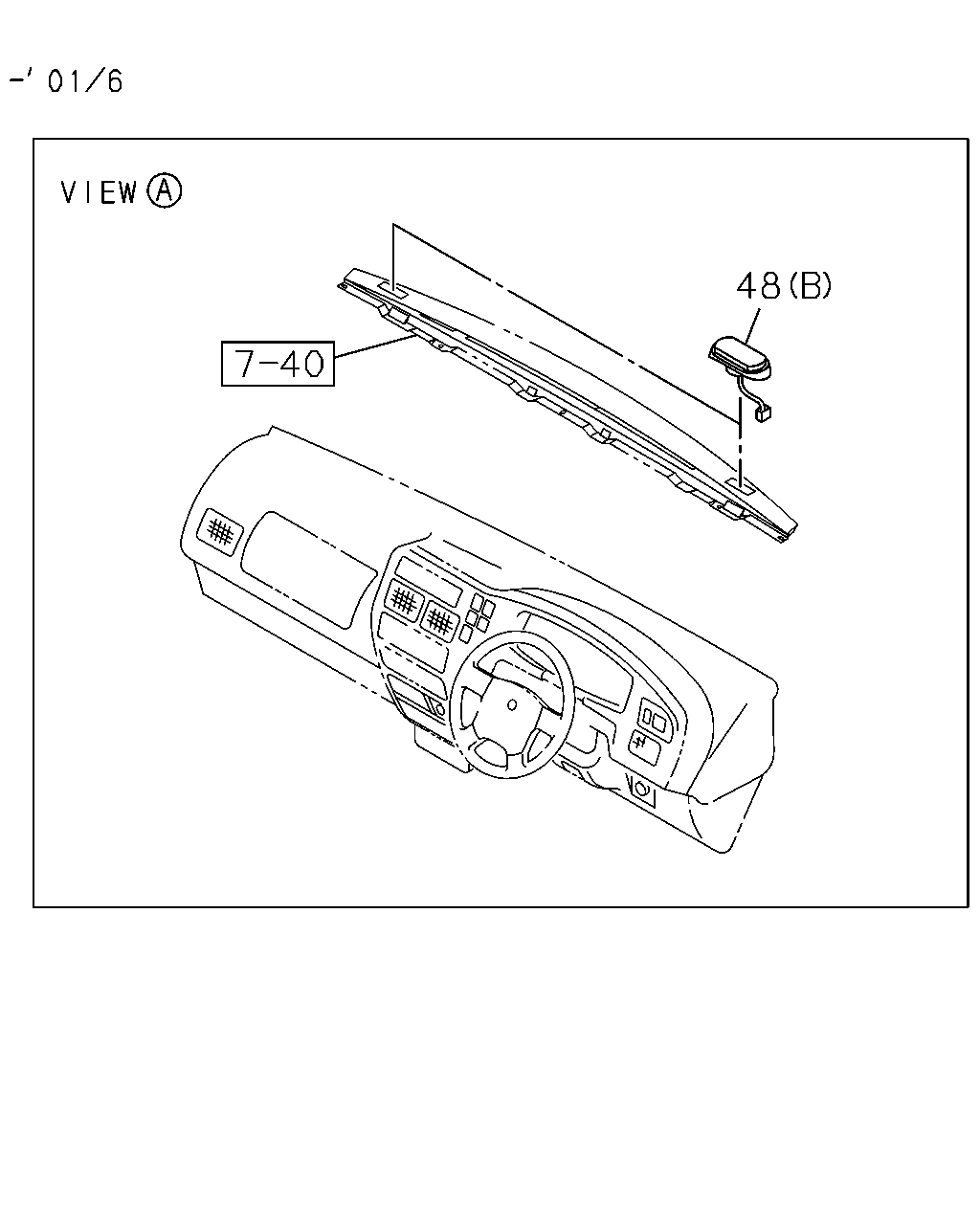

48	SPEAKER; AUDIO GRADE TOURING(RBG) TWEETER<7LE> (C) JVC BLACK IDN	8-97562-703-0	02	1	0509-		●	●
48	SPEAKER; AUDIO AM/FM RADIO CASSETTE STEREO(UM2),AM/FM W/CASSETTE4 SPEAKERS(UM6) (A) IDN	8-97956-751-1	02	1	0008-0106	●	●	●
48	SPEAKER; AUDIO AM/FM RADIO CASSETTE STEREO(UM2),AM/FM W/CASSETTE4 SPEAKERS(UM6) (A) IDN	8-97956-751-1	02	1	0107-		●	●
48	SPEAKER; AUDIO GRADE TOURING(RBG) TWEETER<7LE> (C) JVC GRAY IDN	8-97561-087-0	02	1	0111-0209		●	●
48	SPEAKER; AUDIO TWEETER<7LE> (B) IDN	8-97956-749-0	01	1	0008-0106		●	●
48	SPEAKER; AUDIO TWEETER<7LE> (B) IDN	8-97956-748-0	01	1	0008-0106		●	●
48	SPEAKER; AUDIO TWEETER<7LE> (C) KENWOOD GRAY IDN	8-97959-933-1	02	1	0107-0209		●	●
48	SPEAKER; AUDIO TWEETER<7LE> (C) KENWOOD BLACK IDN	8-97561-614-1	02	1	0210-0508		●	●
48	SPEAKER; AUDIO TWEETER<7LE> (C) KENWOOD BLACK IDN	8-97562-704-1	02	1	0509-		●	●

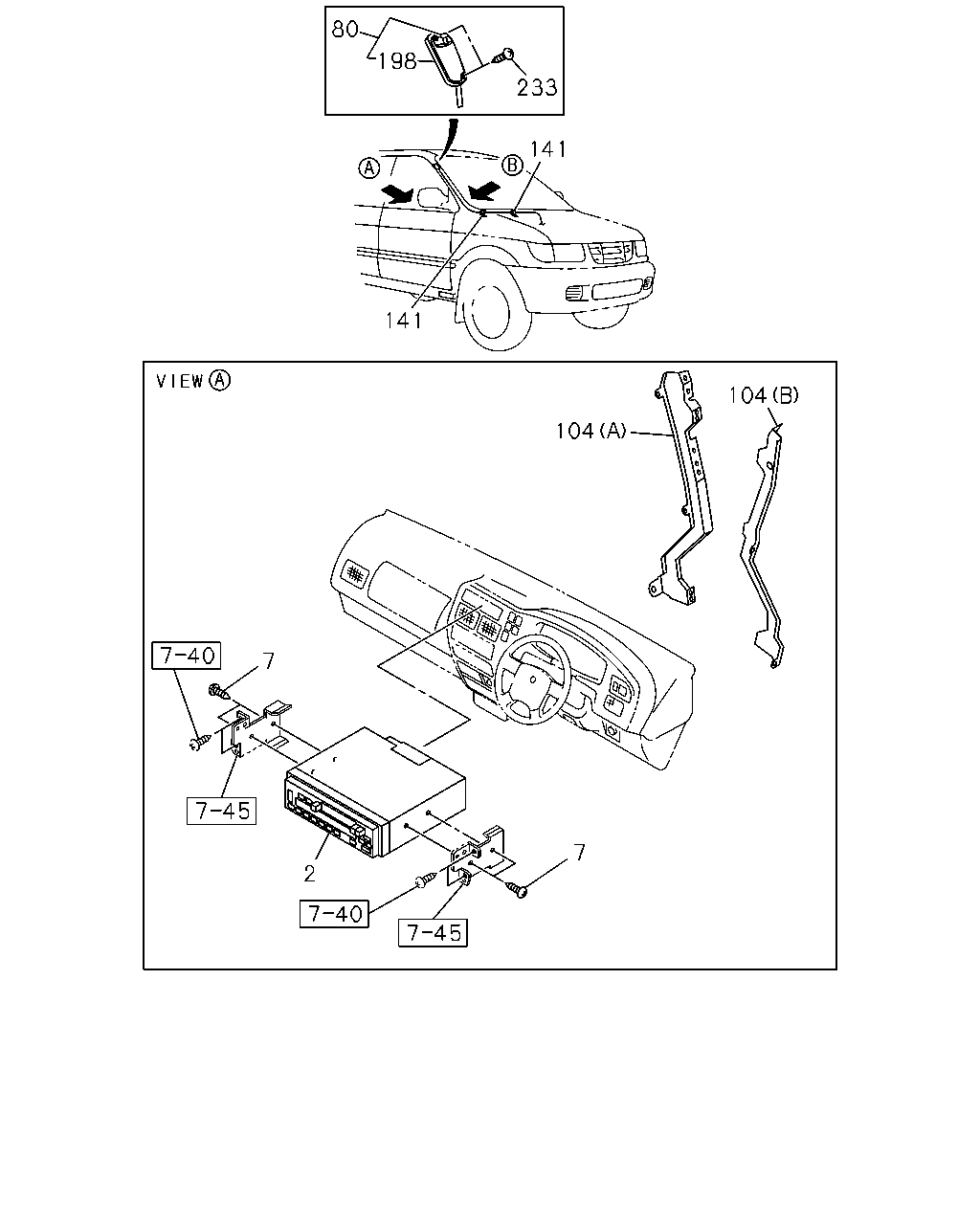

233 198 80 141 141 104 104 7 7 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	RADIO & CASSETTE DECK ASM AM/FM RADIO CASSETTE STEREO(UM2),AM/FM W/CASSETTE4 SPEAKERS(UM6) KENWOOD IDN	8-97957-519-2	01	1	0008-0106	●	●	●
2	RADIO & CASSETTE DECK ASM AM/FM RADIO CASSETTE STEREO(UM2),AM/FM W/CASSETTE4 SPEAKERS(UM6) KENWOOD IDN	8-97957-519-2	01	1	0107-0209		●	●
2	RADIO & CASSETTE DECK ASM AM/FM RADIO CASSETTE STEREO(UM2),AM/FM W/CASSETTE4 SPEAKERS(UM6) KENWOOD IDN	8-97353-686-0	01	1	0210-		●	●
2	RADIO & CASSETTE DECK ASM GRADE TOURING(RBG) AM/FM W/CASSETTE 4 SPEAKERS(UM6) JVC IDN	8-97560-612-0	01	1	0111-		●	●
7	SCREW; RADIO AM/FM RADIO CASSETTE STEREO(UM2),AM/FM W/CASSETTE4 SPEAKERS(UM6) M5X10 TAPPING W/PL WASHER	0-74100-510-0	04	1	0008-0106	●	●	●
7	SCREW; RADIO AM/FM RADIO CASSETTE STEREO(UM2),AM/FM W/CASSETTE4 SPEAKERS(UM6) M5X10 TAPPING W/PL WASHER	0-74100-510-0	04	1	0107-0604		●	●
7	SCREW; RADIO AM/FM RADIO CASSETTE STEREO(UM2),AM/FM W/CASSETTE4 SPEAKERS(UM6) M5X10 TAPPING W/PL WASHER	0-74160-510-0	04	1	0605-		●	●
80	ANTENNA IDN	8-97956-716-1	01	1	0008-0106	●	●	●
80	ANTENNA IDN	8-97956-716-1	01	1	0107-		●	●
104	BRACKET; AUDIO (A) THA	8-97910-982-0	01	1	0008-0106	●	●	●
104	BRACKET; AUDIO (A) THA	8-97910-982-0	01	1	0107-		●	●
104	BRACKET; AUDIO (B) THA	8-97910-983-0	01	1	0008-0106	●	●	●
104	BRACKET; AUDIO (B) THA	8-97910-983-0	01	1	0107-		●	●
141	CLIP; ANTENNA CABLE L=250 IDN	5-09707-030-1	03	1	0008-0106	●	●	●
141	CLIP; ANTENNA CABLE L=250 IDN	5-09707-030-1	03	1	0107-		●	●
198	SHEET; ANTENNA IDN	8-97958-188-0	01	1	0008-0106	●	●	●
198	SHEET; ANTENNA IDN	8-97958-188-0	01	1	0107-		●	●
233	SCREW M4X14 TAPPING	0-71090-414-0	02	1	0008-0106	●	●	●
233	SCREW M4X14 TAPPING	0-71090-414-0	02	1	0107-		●	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

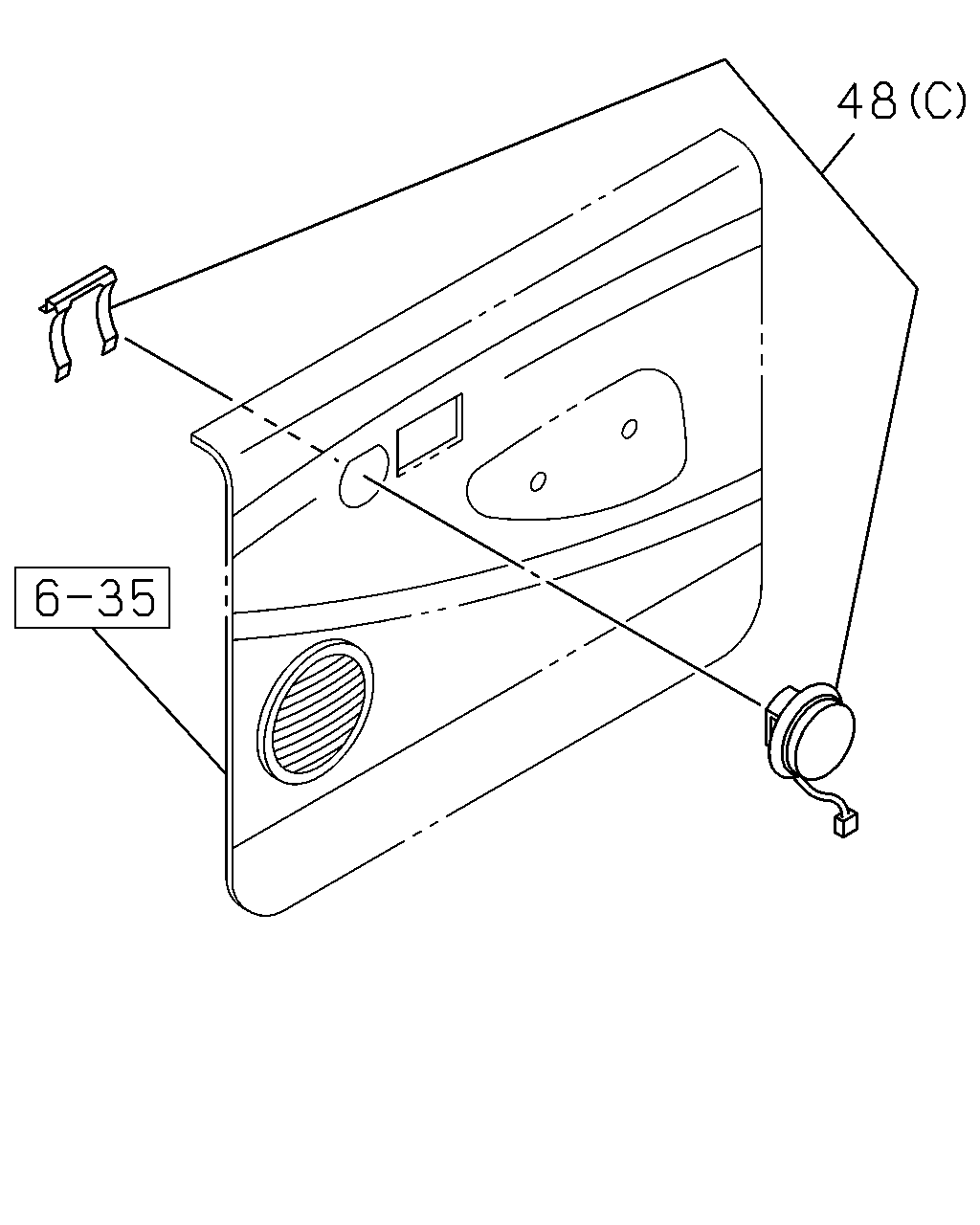

48	SPEAKER; AUDIO GRADE TOURING(RBG) TWEETER<7LE> (C) JVC BLACK IDN	8-97562-703-0	02	1	0509-		●	●
48	SPEAKER; AUDIO AM/FM RADIO CASSETTE STEREO(UM2),AM/FM W/CASSETTE4 SPEAKERS(UM6) (A) IDN	8-97956-751-1	02	1	0008-0106	●	●	●
48	SPEAKER; AUDIO AM/FM RADIO CASSETTE STEREO(UM2),AM/FM W/CASSETTE4 SPEAKERS(UM6) (A) IDN	8-97956-751-1	02	1	0107-		●	●
48	SPEAKER; AUDIO GRADE TOURING(RBG) TWEETER<7LE> (C) JVC GRAY IDN	8-97561-087-0	02	1	0111-0209		●	●
48	SPEAKER; AUDIO TWEETER<7LE> (B) IDN	8-97956-749-0	01	1	0008-0106		●	●
48	SPEAKER; AUDIO TWEETER<7LE> (B) IDN	8-97956-748-0	01	1	0008-0106		●	●
48	SPEAKER; AUDIO TWEETER<7LE> (C) KENWOOD GRAY IDN	8-97959-933-1	02	1	0107-0209		●	●
48	SPEAKER; AUDIO TWEETER<7LE> (C) KENWOOD BLACK IDN	8-97561-614-1	02	1	0210-0508		●	●
48	SPEAKER; AUDIO TWEETER<7LE> (C) KENWOOD BLACK IDN	8-97562-704-1	02	1	0509-		●	●

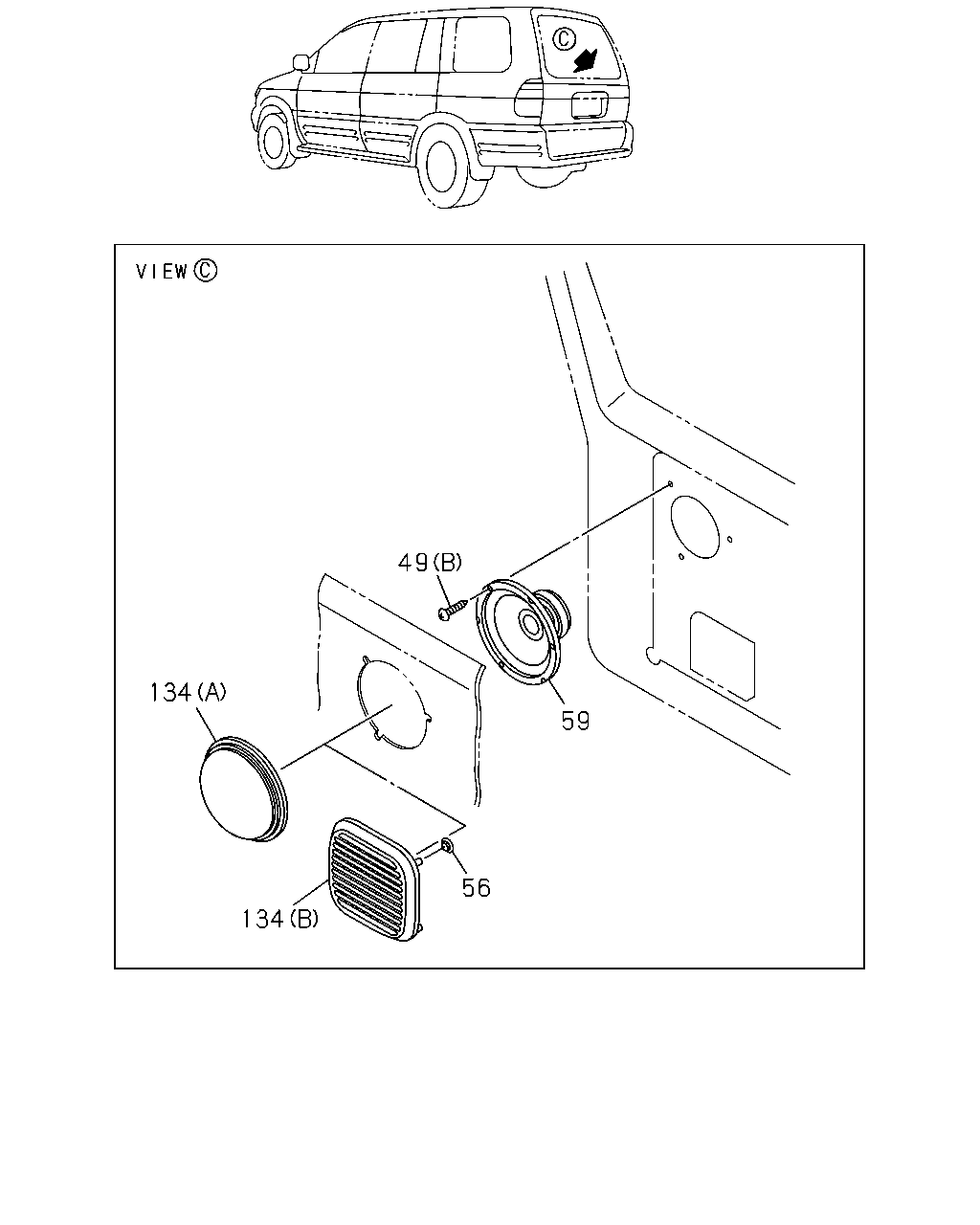

59 49 134 56 134

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C
49	SCREW; SPEAKER AM/FM W/CASSETTE 4 SPEAKERS(UM6) (B) M5X14 TAPPING	9-07076-514-0	06	1	0008-0209	●	●
49	SCREW; SPEAKER AM/FM W/CASSETTE 4 SPEAKERS(UM6) (B) M5X14 TAPPING	9-07076-514-0	06	1	0210-0603	●	●
49	SCREW; SPEAKER AM/FM W/CASSETTE 4 SPEAKERS(UM6) (B) M5X14 TAPPING	0-71240-514-0	06	1	0604-	●	●
49	SCREW; SPEAKER GRADE LS(RBD) AM/FM W/CASSETTE 4 SPEAKERS(UM6) (A) M5X14 TAPPING	9-07076-514-0	08	1	0008-0106		●
49	SCREW; SPEAKER GRADE TOURING(RBG) AM/FM W/CASSETTE 4 SPEAKERS(UM6) (A) M5X14 TAPPING	9-07076-514-0	08	1	0107-0405	●	●
49	SCREW; SPEAKER GRADE TOURING(RBG) AM/FM W/CASSETTE 4 SPEAKERS(UM6) (A) M5X14 TAPPING	9-07076-514-0	08	1	0406-0603	●	●
49	SCREW; SPEAKER GRADE LS(RBD) AM/FM W/CASSETTE 4 SPEAKERS(UM6) UP GRADE PACKAGE<7MA> (A) M5X14 TAPPING	9-07076-514-0	08	1	0406-0603		●
49	SCREW; SPEAKER GRADE TOURING(RBG) AM/FM W/CASSETTE 4 SPEAKERS(UM6) (A) M5X14 TAPPING	0-71240-514-0	08	1	0604-	●	●
49	SCREW; SPEAKER GRADE LS(RBD) AM/FM W/CASSETTE 4 SPEAKERS(UM6) UP GRADE PACKAGE<7MA> (A) M5X14 TAPPING	0-71240-514-0	08	1	0604-		●
56	NUT; SPEAKER,RADIO OR STEREO AM/FM W/CASSETTE 4 SPEAKERS(UM6) OD=14	8-94107-541-0	06	1	0107-	●	●
59	SPEAKER; AUDIO AM/FM W/CASSETTE 4 SPEAKERS(UM6) IDN	8-97956-752-1	02	1	0008-	●	●
134	GRILLE; SPEAKER,RR AM/FM W/CASSETTE 4 SPEAKERS(UM6) (A) GRAY IDN	8-97196-931-0	02	1	0008-0106	●	●
134	GRILLE; SPEAKER,RR AM/FM W/CASSETTE 4 SPEAKERS(UM6) (B) GRAY IDN	8-97959-426-1	02	1	0107-0209	●	●
134	GRILLE; SPEAKER,RR AM/FM W/CASSETTE 4 SPEAKERS(UM6) (B) BLACK IDN	8-97561-615-1	02	1	0210-0508	●	●
134	GRILLE; SPEAKER,RR AM/FM W/CASSETTE 4 SPEAKERS(UM6) (B) BLACK IDN	8-97562-705-1	02	1	0509-	●	●
