◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50823 - TBR(INDONESIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-85 - REAR WIPER AND WASHER ▶
8-85 — REAR WIPER AND WASHER (#95418) — 35 parça

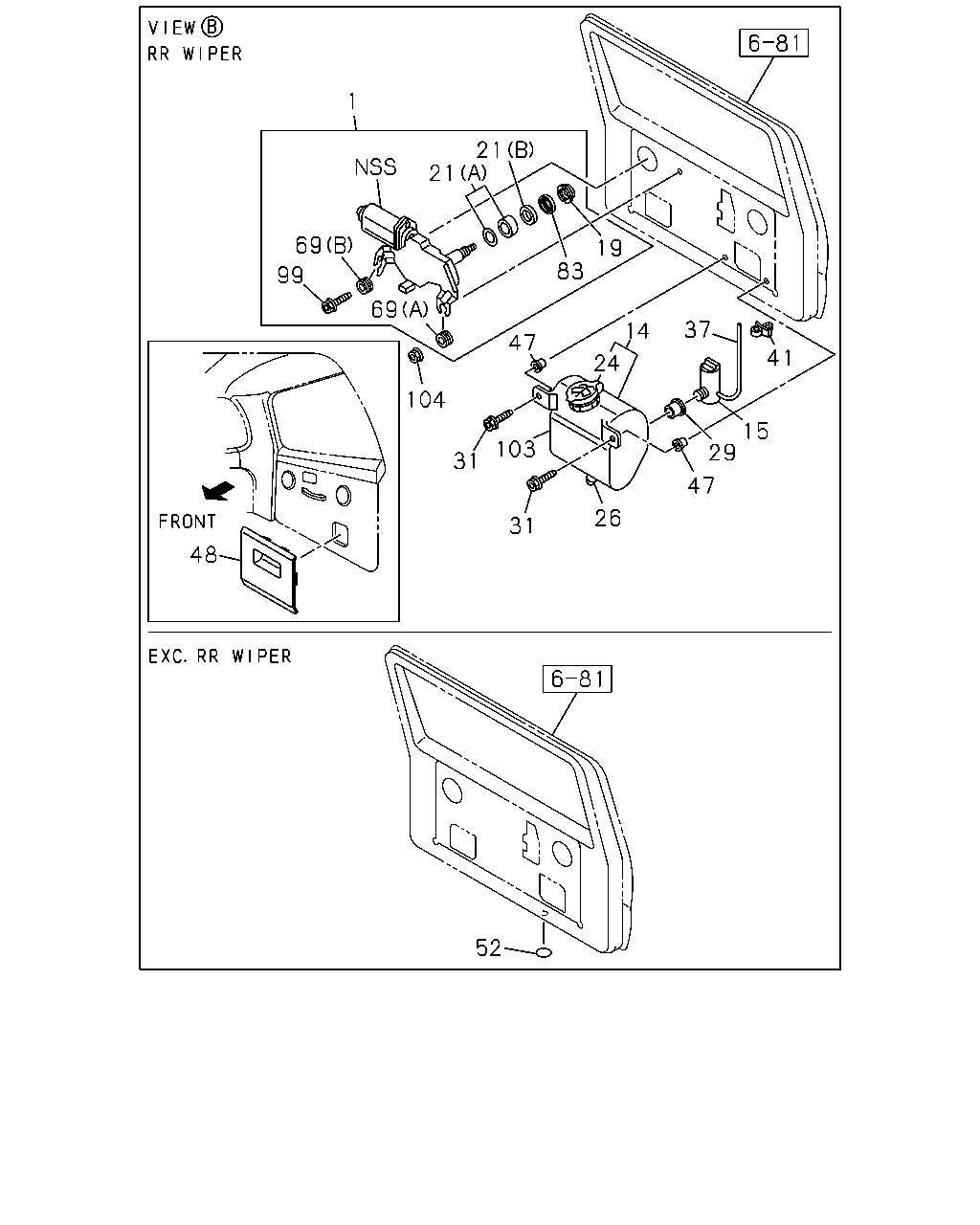

çizim 289367
1 41 37 14 19 83 21 21 69 69 99 15 29 47 24 47 26 31 103 31 104 48 52
BalonParca AdiParca NoAdetTipApplied Date A B
1 MOTOR ASM; RR WIPER
RR WIPER<C25> 		8-97175-434-1 01 1 0008-0106 ● ●
1 MOTOR ASM; RR WIPER
RR WIPER<C25> IDN 		8-97306-684-0 01 1 0107-0206 ● ●
1 MOTOR ASM; RR WIPER
RR WIPER<C25> IDN 		8-97322-389-0 01 1 0207- ● ●
14 TANK ASM; WASHER,REAR WIPER
RR WIPER<C25> IDN 		8-97958-182-0 01 1 0008- ● ●
15 MOTOR ASM; RR,WASHER TANK
RR WIPER<C25> IDN 		8-97958-183-0 01 1 0008- ● ●
19 NUT; LOCK,PIVOT
RR WIPER<C25> IDN 		8-97260-188-0 01 1 0008- ● ●
21 SEAL; PIVOT,RR WIPER
RR WIPER<C25> (A) 		8-97260-182-0 01 1 0008- ● ●
21 SEAL; PIVOT,RR WIPER
RR WIPER<C25> (B) IDN 		8-97260-183-0 01 1 0008- ● ●
24 CAP; WASHER TANK,RR
RR WIPER<C25> IDN 		8-97958-184-0 01 1 0008- ● ●
26 RUBBER; CUSHION,RR WASHER TANK
RR WIPER<C25> IDN 		8-97958-548-0 01 1 0008- ● ●
29 GASKET; TANK TO MOTOR
RR WIPER<C25> IDN 		8-97958-547-0 01 1 0008- ● ●
31 SCREW; RR WASHER TANK TO BODY
RR WIPER<C25> M6X25 W/PL WASHER 		9-03900-625-0 02 1 0008-0604 ● ●
31 SCREW; RR WASHER TANK TO BODY
RR WIPER<C25> M6X25 W/PL WASHER 		0-36210-625-0 02 1 0605- ● ●
37 HOSE; WASHER TANK,RR
RR WIPER<C25> SERVICED BY L=10000 IDN 		8-97958-549-0 01 1 0008- ● ●
41 CLIP; RR WASHER TANK HOSE
RR WIPER<C25> ID=6 		8-94417-625-0 05 1 0008-0212 ● ●
41 CLIP; RR WASHER TANK HOSE
RR WIPER<C25> ID=6 		8-94417-625-0 03 1 0301- ● ●
47 NUT; HANGER,RR WIPER
RR WIPER<C25> M6 RUBBER NUT 		8-97023-281-0 02 1 0008- ● ●
48 LID; RR WASHER TANK
RR WIPER<C25> GRAY 		8-97198-127-1 01 1 0008-0209 ● ●
48 LID; RR WASHER TANK
RR WIPER<C25> BLACK IDN 		8-97394-010-1 01 1 0210-0508 ● ●
48 LID; RR WASHER TANK
RR WIPER<C25> BLACK 		8-97404-855-1 01 1 0509- ● ●
52 PLUG; RR WASHER
EXC. RR WIPER<C25> IDN 		8-97957-855-0 01 1 0008- ● ●
69 RUBBER; CUSHION,RR,WIPER
RR WIPER<C25> (A) IDN 		8-97264-709-0 01 1 0008- ● ●
69 RUBBER; CUSHION,RR,WIPER
RR WIPER<C25> (B) IDN 		8-97264-710-0 01 1 0008- ● ●
83 COVER; LOCK NUT
RR WIPER<C25> IDN 		8-97260-184-0 01 1 0008- ● ●
99 BOLT; WIPER MOTOR
RR WIPER<C25> M6X25 W/LK&PL WASHER 		8-94416-136-0 01 1 0008- ● ●
103 NECK; RR WASHER TANK
RR WIPER<C25> IDN 		8-97958-621-0 01 1 0008- ● ●
104 NUT; WIPER MOTOR
RR WIPER<C25> M6 FLANGE 		0-91150-106-0 01 1 0008-0602 ● ●
104 NUT; WIPER MOTOR
RR WIPER<C25> M6 FLANGE 		0-91180-106-0 01 1 0603- ● ●
çizim 289881
39 4 3 2 8 6
BalonParca AdiParca NoAdetTipApplied Date A B
2 ARM ASM; REAR WIPER
RR WIPER<C25> IDN 		8-97175-418-0 01 1 0008- ● ●
3 BLADE ASM; REAR WIPER
RR WIPER<C25> IDN 		8-97175-464-0 01 1 0008- ● ●
4 RUBBER; BLADE,RR WIPER
RR WIPER<C25> IDN 		8-97264-873-0 01 1 0008- ● ●
6 CLIP; COVER
RR WIPER<C25> 		8-94460-965-0 01 1 0008- ● ●
8 NUT; RR WIPER ARM TO WIPER MOTOR
RR WIPER<C25> M8 FLANGE 		9-09844-190-0 01 1 0008-0803 ● ●
8 NUT; RR WIPER ARM TO WIPER MOTOR
RR WIPER<C25> M8 FLANGE 		8-98053-188-0 01 1 0804- ● ●
39 NOZZLE; RR WINDSHIELD,WASHER
RR WIPER<C25> 		8-97175-419-1 01 1 0008- ● ●
