◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50823 - TBR(INDONESIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-74 - EVAPORATOR ▶
8-74 — EVAPORATOR (#95415) — 67 parça

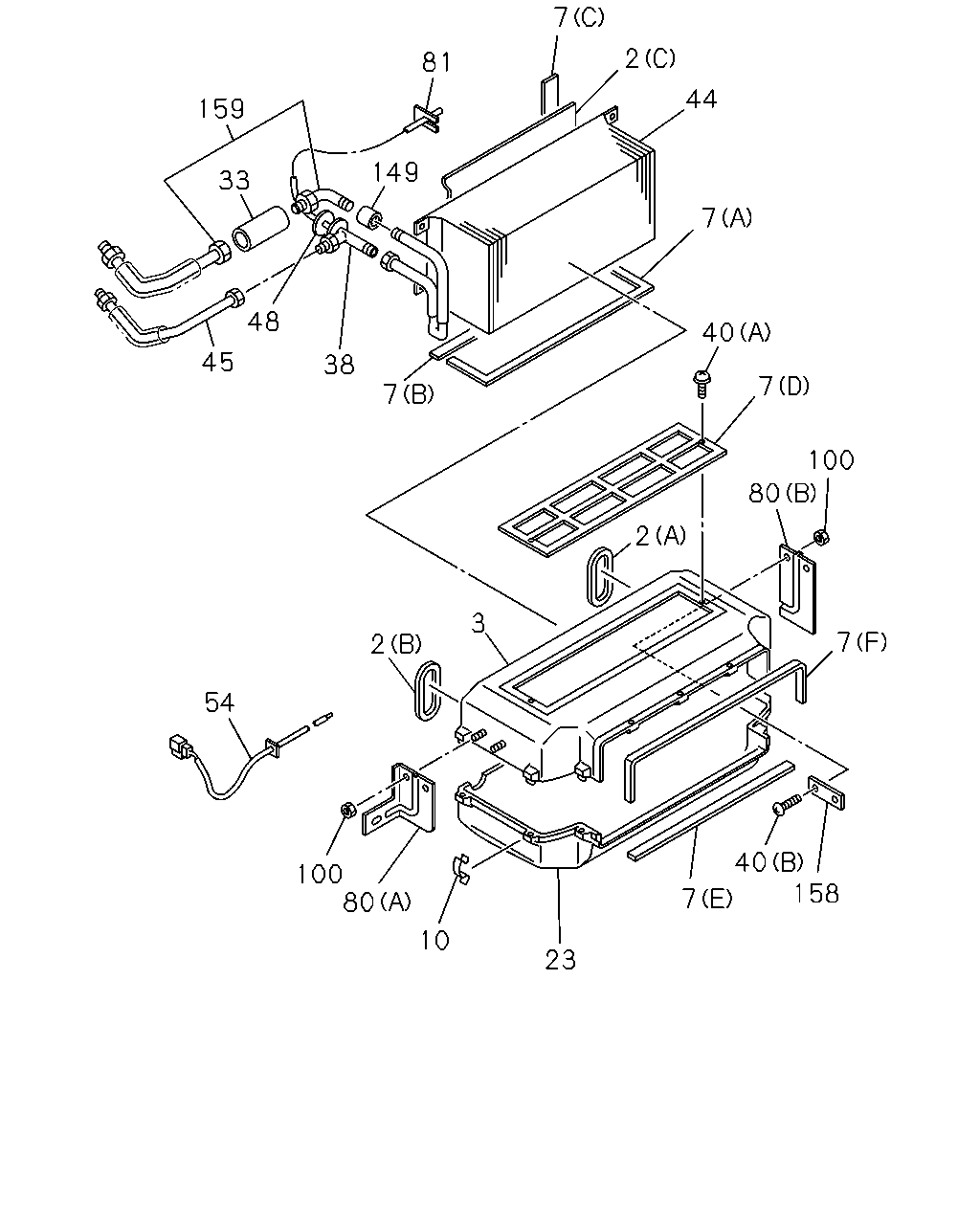

çizim 289221
45 48 38 7 33 159 149 81 7 2 44 7 40 7 100 80 7 2 158 40 7 23 10 80 100 54 2 3
BalonParca AdiParca NoAdetTipApplied Date A B C
2 GROMMET; CASE,EVAP
COOLER WO/HEATER(YL1) (A) IDN 		8-97262-272-0 01 1 0008-0106 ● ● ●
2 GROMMET; CASE,EVAP
COOLER WO/HEATER(YL1) (A) IDN 		8-97262-272-0 01 1 0107- ● ●
2 GROMMET; CASE,EVAP
COOLER WO/HEATER(YL1) (B) IDN 		8-97262-273-0 01 1 0008-0106 ● ● ●
2 GROMMET; CASE,EVAP
COOLER WO/HEATER(YL1) (B) IDN 		8-97262-273-0 01 1 0107- ● ●
2 GROMMET; CASE,EVAP
COOLER WO/HEATER(YL1) (C) IDN 		8-97262-277-0 01 1 0008-0106 ● ● ●
2 GROMMET; CASE,EVAP
COOLER WO/HEATER(YL1) (C) IDN 		8-97262-277-0 01 1 0107- ● ●
3 CASE; EVAP,UPR
COOLER WO/HEATER(YL1) IDN 		8-97262-259-0 01 1 0008-0106 ● ● ●
3 CASE; EVAP,UPR
COOLER WO/HEATER(YL1) IDN 		8-97262-259-0 01 1 0107- ● ●
7 LINING; EVAP
COOLER WO/HEATER(YL1) (A) IDN 		8-97262-278-0 01 1 0008-0106 ● ● ●
7 LINING; EVAP
COOLER WO/HEATER(YL1) (A) IDN 		8-97262-278-0 01 1 0107- ● ●
7 LINING; EVAP
COOLER WO/HEATER(YL1) (B) IDN 		8-97262-279-0 01 1 0008-0106 ● ● ●
7 LINING; EVAP
COOLER WO/HEATER(YL1) (B) IDN 		8-97262-279-0 01 1 0107- ● ●
7 LINING; EVAP
COOLER WO/HEATER(YL1) (C) IDN 		8-97262-280-0 02 1 0008-0106 ● ● ●
7 LINING; EVAP
COOLER WO/HEATER(YL1) (C) IDN 		8-97262-280-0 02 1 0107- ● ●
7 LINING; EVAP
COOLER WO/HEATER(YL1) (D) IDN 		8-97262-281-0 01 1 0008-0106 ● ● ●
7 LINING; EVAP
COOLER WO/HEATER(YL1) (D) IDN 		8-97262-281-0 01 1 0107- ● ●
7 LINING; EVAP
COOLER WO/HEATER(YL1) (E) IDN 		8-97262-283-0 01 1 0008-0106 ● ● ●
7 LINING; EVAP
COOLER WO/HEATER(YL1) (E) IDN 		8-97262-283-0 01 1 0107- ● ●
7 LINING; EVAP
COOLER WO/HEATER(YL1) (F) IDN 		8-97262-284-2 01 1 0008-0106 ● ● ●
7 LINING; EVAP
COOLER WO/HEATER(YL1) (F) IDN 		8-97262-284-2 01 1 0107- ● ●
10 CLIP; EVAP CASE
COOLER WO/HEATER(YL1) 		1-87540-422-0 06 1 0008-0106 ● ● ●
10 CLIP; EVAP CASE
COOLER WO/HEATER(YL1) 		1-87540-422-0 06 1 0107- ● ●
23 CASE; EVAP,LWR
COOLER WO/HEATER(YL1) IDN 		8-97262-260-0 01 1 0008-0106 ● ● ●
23 CASE; EVAP,LWR
COOLER WO/HEATER(YL1) IDN 		8-97262-260-0 01 1 0107- ● ●
33 LINING; EVAP
COOLER WO/HEATER(YL1) 		1-87540-611-0 01 1 0008-0106 ● ● ●
33 LINING; EVAP
COOLER WO/HEATER(YL1) 		1-87540-611-0 01 1 0107- ● ●
33 LINING; EVAP
COOLER WO/HEATER(YL1) IDN 		8-97302-723-0 02 1 0009-0106 ● ● ●
33 LINING; EVAP
COOLER WO/HEATER(YL1) IDN 		8-97302-723-0 02 1 0107- ● ●
38 VALVE; EXPANSION
COOLER WO/HEATER(YL1) IDN 		8-97262-264-0 01 1 0008-0106 ● ● ●
38 VALVE; EXPANSION
COOLER WO/HEATER(YL1) IDN 		8-97262-264-0 01 1 0107- ● ●
40 SCREW; EVAP
COOLER WO/HEATER(YL1) (A) IDN 		8-97262-288-0 02 1 0008-0106 ● ● ●
40 SCREW; EVAP
COOLER WO/HEATER(YL1) (A) IDN 		8-97262-288-0 02 1 0107- ● ●
40 SCREW; EVAP
COOLER WO/HEATER(YL1) (B) IDN 		8-97262-291-0 02 1 0008-0106 ● ● ●
40 SCREW; EVAP
COOLER WO/HEATER(YL1) (B) IDN 		8-97262-291-0 02 1 0107- ● ●
44 EVAPORATOR ASM; A/C
COOLER WO/HEATER(YL1) IDN 		8-97262-258-0 01 1 0008-0106 ● ● ●
44 EVAPORATOR ASM; A/C
COOLER WO/HEATER(YL1) IDN 		8-97262-258-1 01 1 0107- ● ●
45 PIPE; EXPANSION VLV
COOLER WO/HEATER(YL1) IDN 		8-97262-298-0 01 1 0008-0106 ● ● ●
45 PIPE; EXPANSION VLV
COOLER WO/HEATER(YL1) IDN 		8-97262-298-0 01 1 0107- ● ●
48 INSULATOR; EVAP
COOLER WO/HEATER(YL1) IDN 		8-97262-287-0 03 1 0008-0106 ● ● ●
48 INSULATOR; EVAP
COOLER WO/HEATER(YL1) IDN 		8-97262-287-0 03 1 0107-0107 ● ●
48 INSULATOR; EVAP
COOLER WO/HEATER(YL1) IDN 		8-97262-287-0 02 1 0107- ● ●
48 INSULATOR; EVAP
COOLER WO/HEATER(YL1) IDN 		8-97560-548-0 01 1 0107- ● ●
54 THERMOSTAT; A/C
COOLER WO/HEATER(YL1) IDN 		8-97262-269-0 01 1 0008-0106 ● ● ●
54 THERMOSTAT; A/C
COOLER WO/HEATER(YL1) IDN 		8-97262-269-0 01 1 0107- ● ●
80 BRACKET
COOLER WO/HEATER(YL1) (A) IDN 		8-97262-296-0 01 1 0008-0106 ● ● ●
80 BRACKET
COOLER WO/HEATER(YL1) (A) IDN 		8-97262-296-0 01 1 0107- ● ●
80 BRACKET
COOLER WO/HEATER(YL1) (B) IDN 		8-97262-297-0 01 1 0008-0106 ● ● ●
80 BRACKET
COOLER WO/HEATER(YL1) (B) IDN 		8-97262-297-0 01 1 0107- ● ●
81 CLIP; THERMOSTAT A/C
COOLER WO/HEATER(YL1) 		1-87540-606-0 01 1 0008-0106 ● ● ●
81 CLIP; THERMOSTAT A/C
COOLER WO/HEATER(YL1) 		1-87540-606-0 01 1 0107- ● ●
100 NUT; CASE
COOLER WO/HEATER(YL1) 		8-94239-121-0 04 1 0008-0106 ● ● ●
100 NUT; CASE
COOLER WO/HEATER(YL1) 		8-94239-121-0 04 1 0107- ● ●
149 HOLDER; PIPE,EVAP
COOLER WO/HEATER(YL1) IDN 		8-97262-286-0 01 1 0008-0106 ● ● ●
149 HOLDER; PIPE,EVAP
COOLER WO/HEATER(YL1) IDN 		8-97262-286-0 01 1 0107- ● ●
158 PLATE; CASE
COOLER WO/HEATER(YL1) IDN 		8-97262-285-0 02 1 0008-0106 ● ● ●
158 PLATE; CASE
COOLER WO/HEATER(YL1) IDN 		8-97262-285-0 02 1 0107- ● ●
159 PIPE; EVAPORATOR
COOLER WO/HEATER(YL1) IDN 		8-97262-299-1 01 1 0008-0106 ● ● ●
159 PIPE; EVAPORATOR
COOLER WO/HEATER(YL1) IDN 		8-97262-299-1 01 1 0107- ● ●

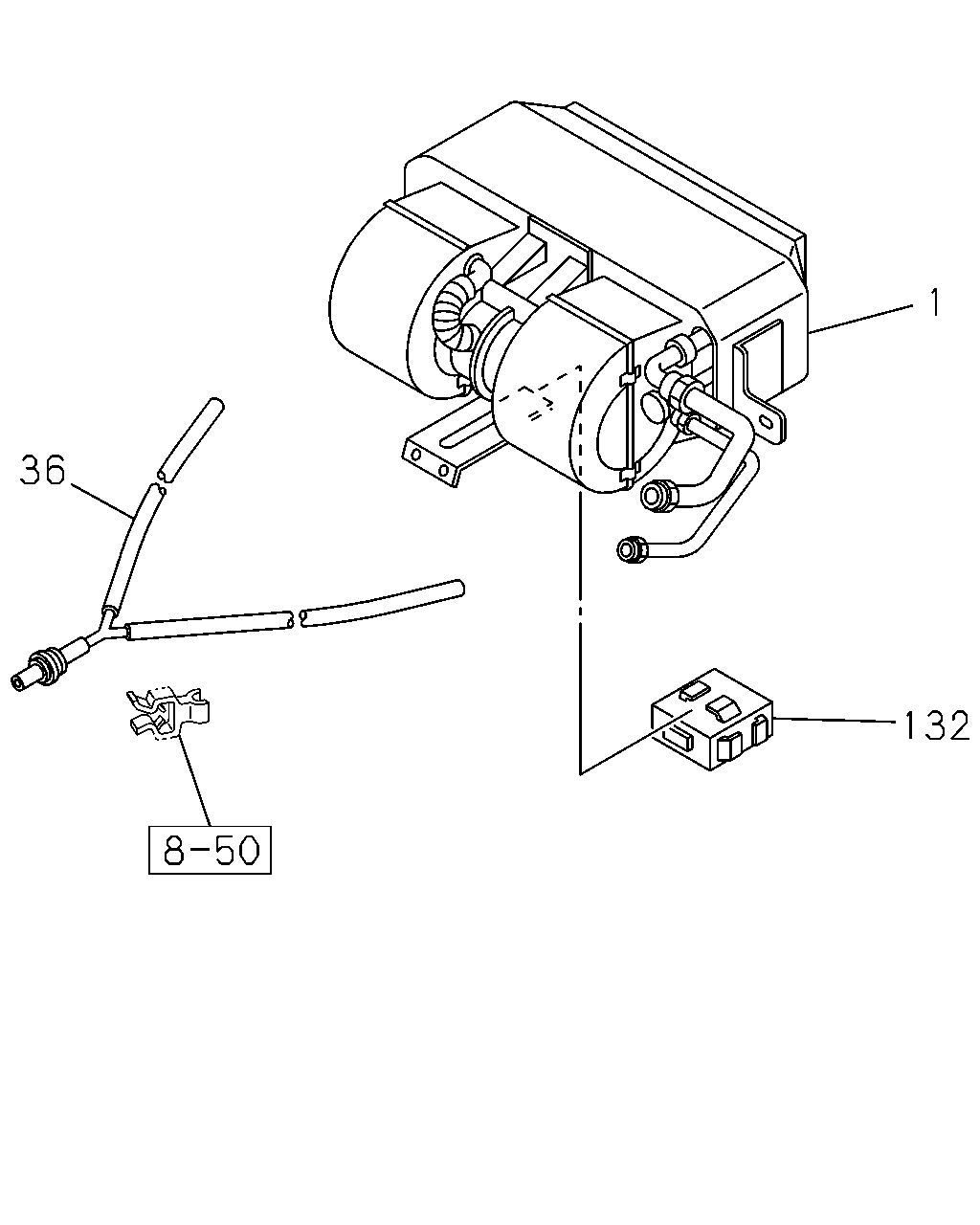

çizim 289882
1 132 36
BalonParca AdiParca NoAdetTipApplied Date A B C
1 EVAPORATOR ASM
COOLER WO/HEATER(YL1) IDN 		8-97956-861-5 01 1 0008-0106 ● ● ●
1 EVAPORATOR ASM
COOLER WO/HEATER(YL1) IDN 		8-97956-861-7 01 1 0107- ● ●
36 HOSE; DRAIN EVAP
A/T AISIN(RMD) AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97560-542-0 01 1 0501- ● ●
36 HOSE; DRAIN EVAP
COOLER WO/HEATER(YL1) IDN 		8-97956-315-0 01 1 0008-0106 ● ● ●
36 HOSE; DRAIN EVAP
COOLER WO/HEATER(YL1) IDN 		8-97956-315-0 01 1 0107-0412 ● ●
36 HOSE; DRAIN EVAP
M/T MSG 5 SPEED(M75) AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97956-315-0 01 1 0501- ● ●
36 HOSE; DRAIN EVAP
COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97956-315-0 01 1 0501- ● ●
132 AMPLIFIER; EVAP
COOLER WO/HEATER(YL1) IDN 		8-97957-722-0 01 1 0008-0106 ● ● ●
132 AMPLIFIER; EVAP
COOLER WO/HEATER(YL1) IDN 		8-97957-722-0 01 1 0107- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
