◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50823 - TBR(INDONESIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-73 - BLOWER UNIT ▶
8-73 — BLOWER UNIT (#95413) — 42 parça

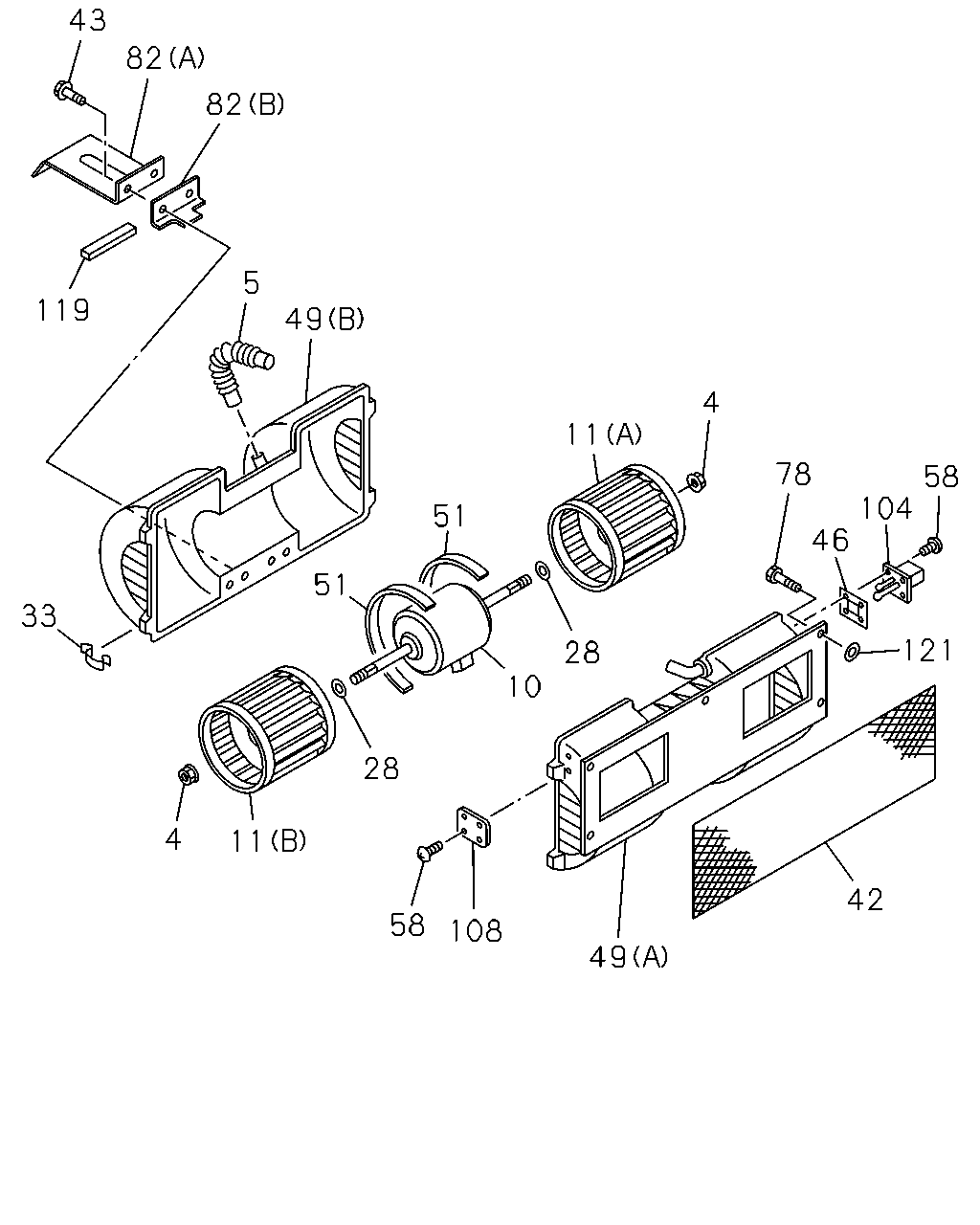

çizim 289190
43 82 82 119 5 49 33 4 11 51 28 58 108 49 10 28 51 11 4 78 46 104 58 121 42
BalonParca AdiParca NoAdetTipApplied Date A B C
4 NUT; FAN MOTOR
COOLER WO/HEATER(YL1) 		1-83539-313-0 02 1 0008-0106 ● ● ●
4 NUT; FAN MOTOR
COOLER WO/HEATER(YL1) 		1-83539-313-0 02 1 0107- ● ●
5 HOSE; AIR
COOLER WO/HEATER(YL1) IDN 		8-97262-275-0 01 1 0008-0106 ● ● ●
5 HOSE; AIR
COOLER WO/HEATER(YL1) IDN 		8-97262-275-0 01 1 0107- ● ●
10 MOTOR ASM; FAN,BLOWER UNIT
COOLER WO/HEATER(YL1) IDN 		8-97262-263-0 01 1 0008-0106 ● ● ●
10 MOTOR ASM; FAN,BLOWER UNIT
COOLER WO/HEATER(YL1) IDN 		8-97262-263-0 01 1 0107- ● ●
11 IMPELLER; FAN MOTOR
COOLER WO/HEATER(YL1) (A) 		1-87540-414-0 01 1 0008-0106 ● ● ●
11 IMPELLER; FAN MOTOR
COOLER WO/HEATER(YL1) (A) 		1-87540-414-0 01 1 0107- ● ●
11 IMPELLER; FAN MOTOR
COOLER WO/HEATER(YL1) (B) 		1-87540-415-0 01 1 0008-0106 ● ● ●
11 IMPELLER; FAN MOTOR
COOLER WO/HEATER(YL1) (B) 		1-87540-415-0 01 1 0107- ● ●
28 WASHER; PL,FAN MOTOR
COOLER WO/HEATER(YL1) 		1-87540-630-0 02 1 0008-0106 ● ● ●
28 WASHER; PL,FAN MOTOR
COOLER WO/HEATER(YL1) 		1-87540-630-0 02 1 0107- ● ●
33 CLIP; BLOWER UNIT
COOLER WO/HEATER(YL1) 		1-87540-422-0 04 1 0008-0106 ● ● ●
33 CLIP; BLOWER UNIT
COOLER WO/HEATER(YL1) 		1-87540-422-0 04 1 0107- ● ●
42 FILTER; BLOWER UNIT
COOLER WO/HEATER(YL1) IDN 		8-97262-270-0 01 1 0008-0106 ● ● ●
42 FILTER; BLOWER UNIT
COOLER WO/HEATER(YL1) IDN 		8-97262-270-0 01 1 0107-0308 ● ●
43 BOLT; CASE
COOLER WO/HEATER(YL1) M6X25 IDN 		8-97254-310-0 08 1 0008-0106 ● ● ●
43 BOLT; CASE
COOLER WO/HEATER(YL1) M6X25 IDN 		8-97254-310-0 08 1 0107- ● ●
46 PLATE; BLOWER UNIT
COOLER WO/HEATER(YL1) IDN 		8-97262-274-0 01 1 0008-0106 ● ● ●
46 PLATE; BLOWER UNIT
COOLER WO/HEATER(YL1) IDN 		8-97262-274-0 01 1 0107- ● ●
49 CASE; BLOWER UNIT
COOLER WO/HEATER(YL1) (A) IDN 		8-97262-261-0 01 1 0008-0106 ● ● ●
49 CASE; BLOWER UNIT
COOLER WO/HEATER(YL1) (A) IDN 		8-97262-261-0 01 1 0107- ● ●
49 CASE; BLOWER UNIT
COOLER WO/HEATER(YL1) (B) IDN 		8-97262-262-0 01 1 0008-0106 ● ● ●
49 CASE; BLOWER UNIT
COOLER WO/HEATER(YL1) (B) IDN 		8-97262-262-0 01 1 0107- ● ●
51 ISOLATOR; BLOWER UNIT
COOLER WO/HEATER(YL1) IDN 		8-97262-276-0 02 1 0008-0106 ● ● ●
51 ISOLATOR; BLOWER UNIT
COOLER WO/HEATER(YL1) IDN 		8-97262-276-0 02 1 0107- ● ●
58 SCREW; PLATE TO CASE
COOLER WO/HEATER(YL1) IDN 		8-97262-289-0 04 1 0008-0106 ● ● ●
58 SCREW; PLATE TO CASE
COOLER WO/HEATER(YL1) IDN 		8-97262-289-0 04 1 0107- ● ●
78 SCREW; CASE TO CASE
COOLER WO/HEATER(YL1) IDN 		8-97262-290-0 05 1 0008-0106 ● ● ●
78 SCREW; CASE TO CASE
COOLER WO/HEATER(YL1) IDN 		8-97262-290-0 05 1 0107- ● ●
82 BRACKET; BLOWER UNIT
COOLER WO/HEATER(YL1) (A) IDN 		8-97262-294-0 01 1 0008-0106 ● ● ●
82 BRACKET; BLOWER UNIT
COOLER WO/HEATER(YL1) (A) IDN 		8-97262-294-0 01 1 0107- ● ●
82 BRACKET; BLOWER UNIT
COOLER WO/HEATER(YL1) (B) IDN 		8-97262-295-0 01 1 0008-0106 ● ● ●
82 BRACKET; BLOWER UNIT
COOLER WO/HEATER(YL1) (B) IDN 		8-97262-295-0 01 1 0107- ● ●
104 RESISTOR; BLOWER UNIT
COOLER WO/HEATER(YL1) IDN 		8-97262-271-0 01 1 0008-0106 ● ● ●
104 RESISTOR; BLOWER UNIT
COOLER WO/HEATER(YL1) IDN 		8-97262-271-0 01 1 0107- ● ●
108 LINING; RESISTOR
COOLER WO/HEATER(YL1) IDN 		8-97262-293-0 01 1 0008-0106 ● ● ●
108 LINING; RESISTOR
COOLER WO/HEATER(YL1) IDN 		8-97262-293-0 01 1 0107- ● ●
119 LINING; CASE
COOLER WO/HEATER(YL1) IDN 		8-97262-282-0 01 1 0008-0106 ● ● ●
119 LINING; CASE
COOLER WO/HEATER(YL1) IDN 		8-97262-282-0 01 1 0107- ● ●
121 WASHER; BLOWER UNIT
COOLER WO/HEATER(YL1) IDN 		8-97262-292-0 02 1 0008-0106 ● ● ●
121 WASHER; BLOWER UNIT
COOLER WO/HEATER(YL1) IDN 		8-97262-292-0 02 1 0107- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
