8-72 — COOLER UNIT (#95412) — 62 parça

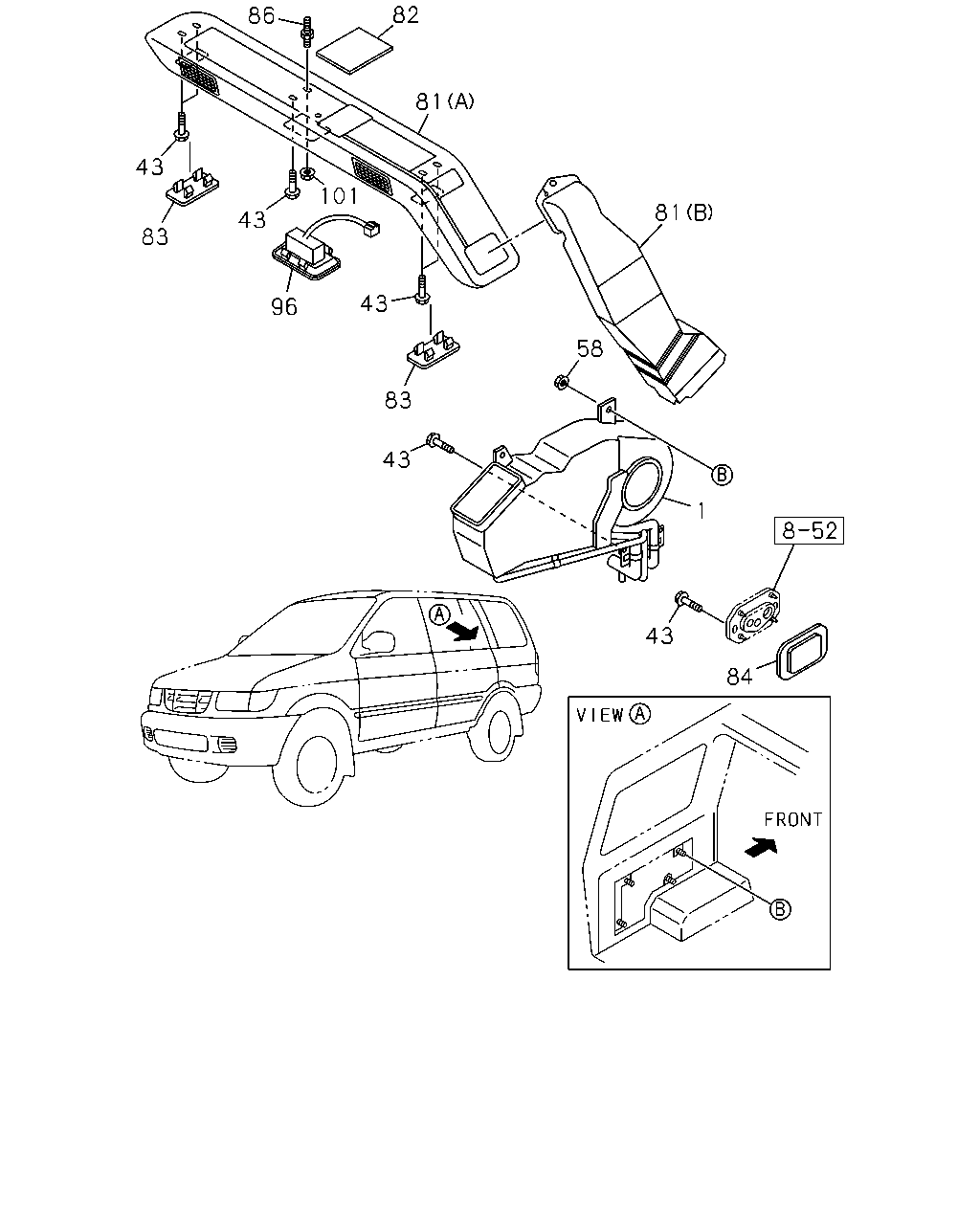

43 83 43 86 82 81 101 43 83 43 58 81 1 43 84 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COOLING UNIT; RR AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97956-883-4	01	1	0008-	●	●
43	BOLT; COOLER UNIT AIR CONDITIONER ROOF MOUNTED<C69> M6X20 FLANGE	0-28480-620-0	09	1	0008-0512	●	●
43	BOLT; COOLER UNIT AIR CONDITIONER ROOF MOUNTED<C69> M6X20 FLANGE	0-28450-620-0	09	1	0601-	●	●
58	NUT; CASE AIR CONDITIONER ROOF MOUNTED<C69> M6 FLANGE	8-94279-514-0	04	1	0008-	●	●
81	DUCT; RR COOLER AIR CONDITIONER ROOF MOUNTED<C69> (A) LIGHT GRAY IDN	8-97196-926-3	01	1	0008-0209	●	●
81	DUCT; RR COOLER AIR CONDITIONER ROOF MOUNTED<C69> (A) LIGHT GRAY IDN	8-97561-612-0	01	1	0210-	●	●
81	DUCT; RR COOLER AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN	8-97956-854-2	01	1	0008-	●	●
82	SEAL; DUCT AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97957-721-0	01	1	0008-	●	●
83	CAP AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97956-881-1	02	1	0008-0209	●	●
83	CAP AIR CONDITIONER ROOF MOUNTED<C69> LIGHT GRAY IDN	8-97561-387-0	02	1	0210-	●	●
84	RUBBER EXC. AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97956-887-0	01	1	0008-	●	●
86	STUD; DUCT AIR CONDITIONER ROOF MOUNTED<C69>	8-97256-495-0	01	1	0008-	●	●
96	SWITCH ASM; FAN AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97956-860-3	01	1	0008-0209	●	●
96	SWITCH ASM; FAN AIR CONDITIONER ROOF MOUNTED<C69> LIGHT GRAY IDN	8-97561-385-0	01	1	0210-	●	●
101	NUT; DUCT AIR CONDITIONER ROOF MOUNTED<C69> M6 FLANGE	8-94279-514-0	01	1	0008-	●	●

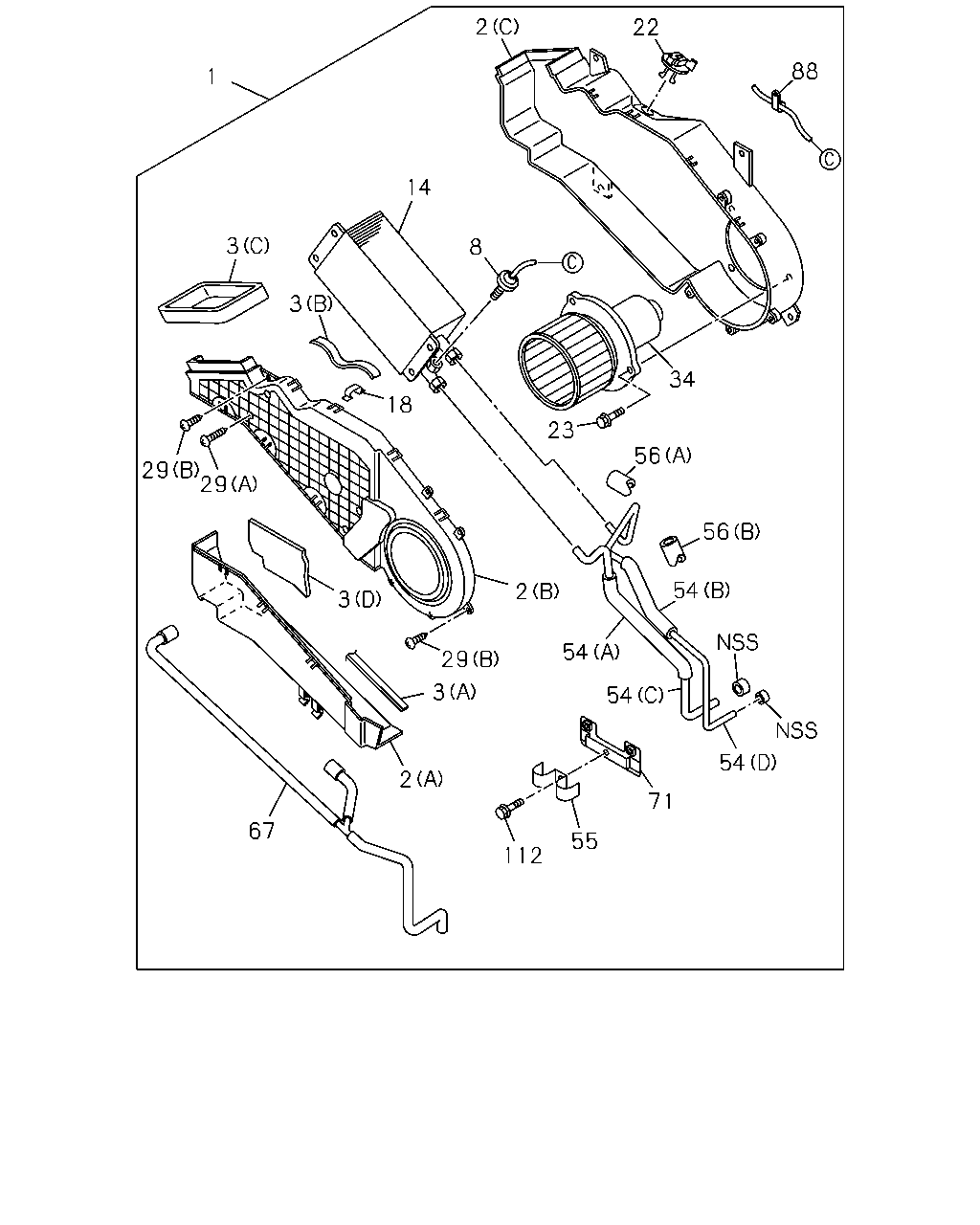

1 3 3 29 29 3 67 2 3 29 2 54 54 112 55 71 54 54 56 56 23 34 8 14 2 22 88 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COOLING UNIT; RR AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97956-883-4	01	1	0008-	●	●
2	CASE; RR COOLER AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN	8-97957-702-0	01	1	0008-	●	●
2	CASE; RR COOLER AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN	8-97957-703-0	01	1	0008-	●	●
2	CASE; RR COOLER AIR CONDITIONER ROOF MOUNTED<C69> (C) IDN	8-97957-704-0	01	1	0008-	●	●
3	LINING; CASE AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN	8-97957-686-0	01	1	0008-	●	●
3	LINING; CASE AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN	8-97957-687-0	01	1	0008-	●	●
3	LINING; CASE AIR CONDITIONER ROOF MOUNTED<C69> (C) IDN	8-97957-688-0	01	1	0008-	●	●
3	LINING; CASE AIR CONDITIONER ROOF MOUNTED<C69> (D) IDN	8-97957-712-0	01	1	0008-	●	●
8	VALVE; EXPANSION AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97957-698-0	01	1	0008-	●	●
14	EVAPORATOR; RR COOLER AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97957-700-1	01	1	0008-	●	●
18	CLIP; CASE AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97957-711-0	05	1	0008-	●	●
22	RESISTOR; RR COOLER AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97957-697-0	01	1	0008-	●	●
23	SCREW; CASE TO MOTOR AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97957-709-0	03	1	0008-	●	●
29	SCREW; CASE AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN	8-97957-707-0	04	1	0008-0009	●	●
29	SCREW; CASE AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN	8-97957-707-0	03	1	0010-	●	●
29	SCREW; CASE AIR CONDITIONER ROOF MOUNTED<C69> (B) M4X16 TAPPING IDN	8-97957-708-0	11	1	0008-	●	●
34	MOTOR; FAN,COOLER UNIT AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97957-699-0	01	1	0008-	●	●
54	PIPE; COOLER UNIT AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN	8-97957-691-0	01	1	0008-	●	●
54	PIPE; COOLER UNIT AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN	8-97957-692-0	01	1	0008-	●	●
54	PIPE; COOLER UNIT AIR CONDITIONER ROOF MOUNTED<C69> (C) IDN	8-97957-694-0	01	1	0008-	●	●
54	PIPE; COOLER UNIT AIR CONDITIONER ROOF MOUNTED<C69> (D) IDN	8-97957-695-0	01	1	0008-	●	●
55	CLAMP; PIPE AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97957-706-0	01	1	0008-	●	●
56	LINING; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN	8-97957-689-0	01	1	0008-	●	●
56	LINING; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN	8-97957-690-0	02	1	0008-	●	●
67	HOSE; DRAIN AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97957-696-0	01	1	0008-	●	●
71	BRACKET; HOSE AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97957-705-0	01	1	0008-	●	●
88	HOLDER; COOLING UNIT AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97262-256-0	01	1	0008-	●	●
112	BOLT; CLIP AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97957-710-0	01	1	0008-	●	●

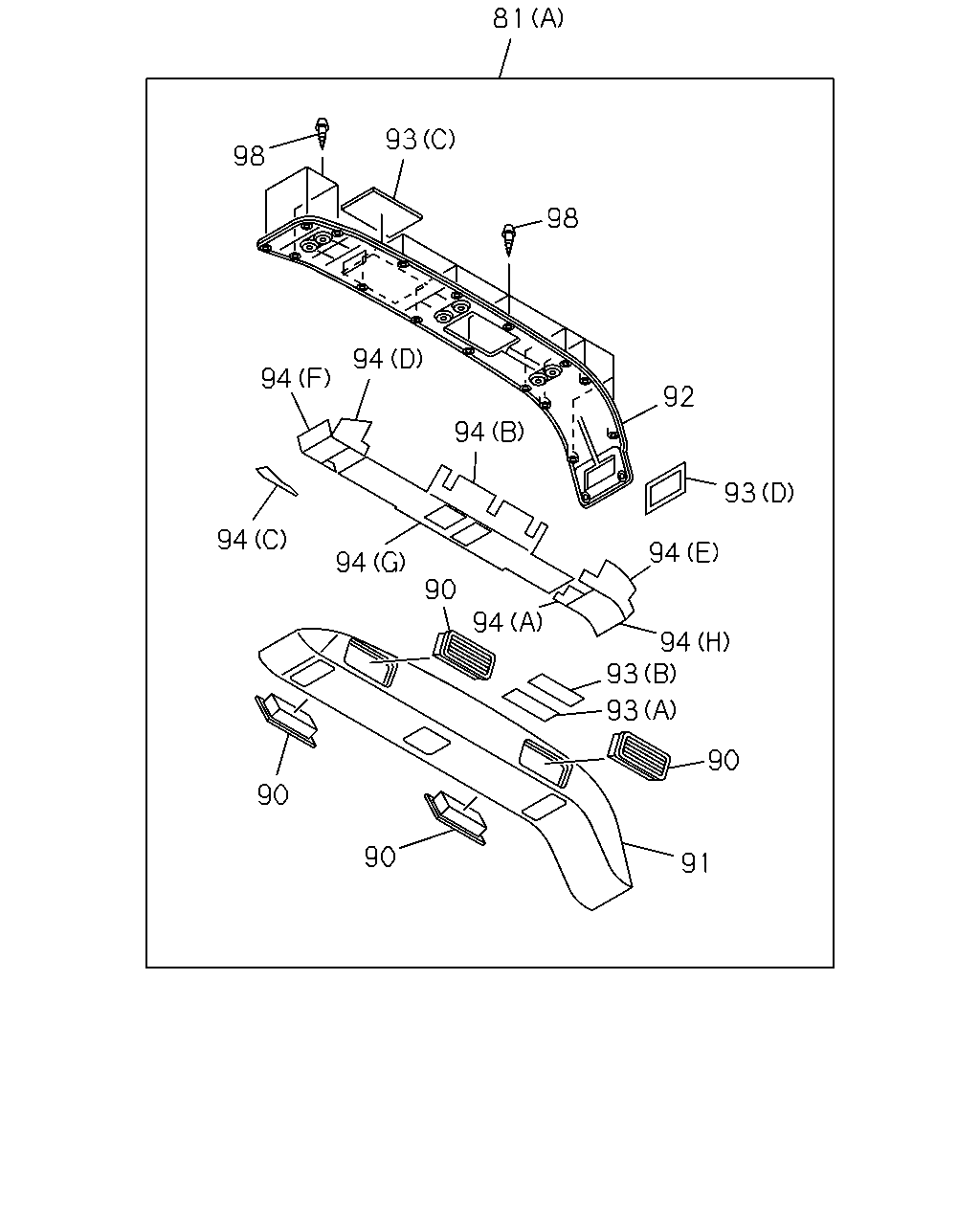

81 98 93 98 94 94 94 94 94 90 94 90 90 91 90 93 93 94 94 93 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
81	DUCT; RR COOLER AIR CONDITIONER ROOF MOUNTED<C69> (A) LIGHT GRAY IDN	8-97196-926-3	01	1	0008-0209	●	●
81	DUCT; RR COOLER AIR CONDITIONER ROOF MOUNTED<C69> (A) LIGHT GRAY IDN	8-97561-612-0	01	1	0210-	●	●
81	DUCT; RR COOLER AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN	8-97956-854-2	01	1	0008-	●	●
90	GRILL; DUCT AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97561-480-0	04	1	0210-	●	●
91	DUCT; O/H,LWR AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97561-479-0	01	1	0210-	●	●
92	DUCT; O/H,UPR AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97957-719-0	01	1	0210-	●	●
93	GASKET; DUCT AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN	8-97562-161-0	01	1	0210-	●	●
93	GASKET; DUCT AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN	8-97562-162-0	01	1	0210-	●	●
93	GASKET; DUCT AIR CONDITIONER ROOF MOUNTED<C69> (C) IDN	8-97562-163-0	02	1	0210-	●	●
93	GASKET; DUCT AIR CONDITIONER ROOF MOUNTED<C69> (D) IDN	8-97562-164-0	01	1	0210-	●	●
94	INSULATOR; DUCT AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN	8-97562-157-0	01	1	0210-	●	●
94	INSULATOR; DUCT AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN	8-97562-158-0	02	1	0210-	●	●
94	INSULATOR; DUCT AIR CONDITIONER ROOF MOUNTED<C69> (C) IDN	8-97562-159-0	01	1	0210-	●	●
94	INSULATOR; DUCT AIR CONDITIONER ROOF MOUNTED<C69> (D) IDN	8-97562-160-0	01	1	0210-	●	●
94	INSULATOR; DUCT AIR CONDITIONER ROOF MOUNTED<C69> (E) IDN	8-97957-713-0	01	1	0210-	●	●
94	INSULATOR; DUCT AIR CONDITIONER ROOF MOUNTED<C69> (F) IDN	8-97957-714-0	01	1	0210-	●	●
94	INSULATOR; DUCT AIR CONDITIONER ROOF MOUNTED<C69> (G) IDN	8-97957-715-0	02	1	0210-	●	●
94	INSULATOR; DUCT AIR CONDITIONER ROOF MOUNTED<C69> (H) IDN	8-97957-716-0	01	1	0210-	●	●
98	SCREW; DUCT AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97957-717-0	16	1	0210-	●	●
