8-71 — COMPRESSOR; AIR CONDITIONING (#95411) — 56 parça

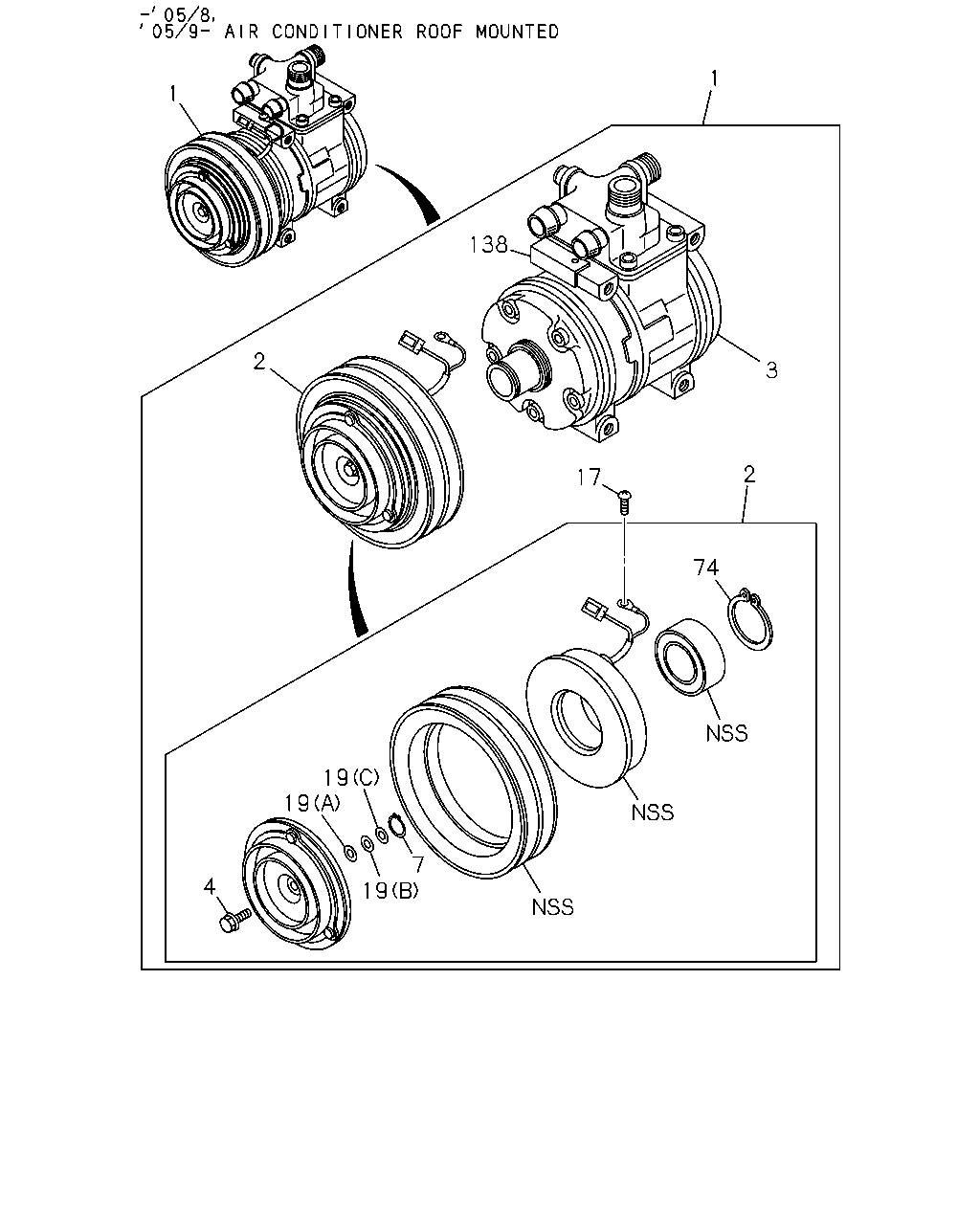

1 1 138 2 3 17 2 74 7 19 4 19 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COMPRESSOR ASM; A/C COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97562-627-0	01	1	0509-	●	●
1	COMPRESSOR ASM; A/C COOLER WO/HEATER(YL1)	8-97956-891-0	01	1	0008-0106	●	●	●
1	COMPRESSOR ASM; A/C COOLER WO/HEATER(YL1)	8-97956-891-0	01	1	0107-0508	●	●
1	COMPRESSOR ASM; A/C COOLER WO/HEATER(YL1) AIR CONDITIONER ROOF MOUNTED<C69>	8-97956-891-0	01	1	0509-	●	●
2	CLUTCH; MAGNET,A/C COOLER WO/HEATER(YL1) IDN	8-97254-499-0	01	1	0008-0106	●	●	●
2	CLUTCH; MAGNET,A/C COOLER WO/HEATER(YL1) IDN	8-97254-499-0	01	1	0107-	●	●
3	COMPRESSOR ASM; A/C COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-98016-874-0	01	1	0509-	●	●
3	COMPRESSOR ASM; A/C COOLER WO/HEATER(YL1) IDN	8-97254-498-0	01	1	0008-0106	●	●	●
3	COMPRESSOR ASM; A/C COOLER WO/HEATER(YL1) IDN	8-97254-498-0	01	1	0107-0508	●	●
3	COMPRESSOR ASM; A/C COOLER WO/HEATER(YL1) AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97254-498-0	01	1	0509-	●	●
4	BOLT; MAGNET CLU COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97126-316-0	01	1	0509-	●	●
4	BOLT; MAGNET CLU COOLER WO/HEATER(YL1)	1-83539-323-0	01	1	0008-0106	●	●	●
4	BOLT; MAGNET CLU COOLER WO/HEATER(YL1)	1-83539-323-0	01	1	0107-0508	●	●
4	BOLT; MAGNET CLU COOLER WO/HEATER(YL1) AIR CONDITIONER ROOF MOUNTED<C69>	1-83539-323-0	01	1	0509-	●	●
7	RING; SNAP,PULLEY COOLER WO/HEATER(YL1) IDN	1-83579-932-0	01	1	0008-0106	●	●	●
7	RING; SNAP,PULLEY COOLER WO/HEATER(YL1) IDN	1-83579-932-0	01	1	0107-	●	●
17	SCREW; WIRE CLIP MAGNET CLU COOLER WO/HEATER(YL1)	5-81129-130-0	01	1	0008-0106	●	●	●
17	SCREW; WIRE CLIP MAGNET CLU COOLER WO/HEATER(YL1)	5-81129-130-0	01	1	0107-	●	●
19	WASHER; LK,PULLEY,MAGNET CLU COOLER WO/HEATER(YL1) (A) T=0.1	1-83579-890-0	01	1	0008-0106	●	●	●
19	WASHER; LK,PULLEY,MAGNET CLU COOLER WO/HEATER(YL1) (A) T=0.1	1-83579-890-0	01	1	0107-	●	●
19	WASHER; LK,PULLEY,MAGNET CLU COOLER WO/HEATER(YL1) (B) T=0.3 IDN	1-83579-891-0	01	1	0008-0106	●	●	●
19	WASHER; LK,PULLEY,MAGNET CLU COOLER WO/HEATER(YL1) (B) T=0.3 IDN	1-83579-891-0	01	1	0107-	●	●
19	WASHER; LK,PULLEY,MAGNET CLU COOLER WO/HEATER(YL1) (C) T=0.5 IDN	1-83579-892-0	01	1	0008-0106	●	●	●
19	WASHER; LK,PULLEY,MAGNET CLU COOLER WO/HEATER(YL1) (C) T=0.5 IDN	1-83579-892-0	01	1	0107-	●	●
74	RING; SNAP,MAGNET CLU COOLER WO/HEATER(YL1) IDN	1-83579-889-0	01	1	0008-0106	●	●	●
74	RING; SNAP,MAGNET CLU COOLER WO/HEATER(YL1) IDN	1-83579-889-0	01	1	0107-	●	●
138	BRACKET; COMPRESSOR COOLER WO/HEATER(YL1) IDN	8-97254-501-0	01	1	0008-0106	●	●	●
138	BRACKET; COMPRESSOR COOLER WO/HEATER(YL1) IDN	8-97254-501-0	01	1	0107-	●	●

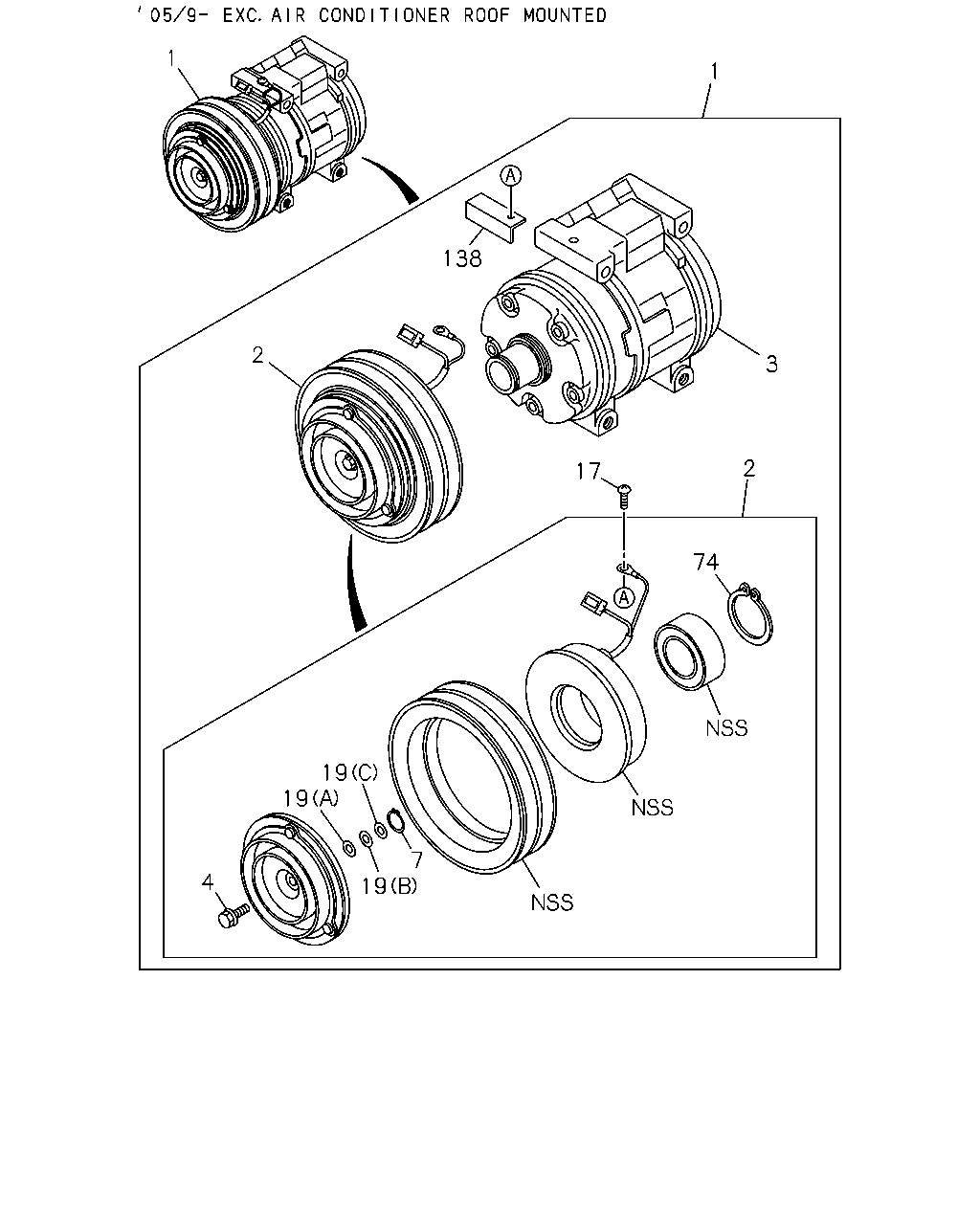

1 1 138 2 17 3 2 74 7 19 19 19 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COMPRESSOR ASM; A/C COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97562-627-0	01	1	0509-	●	●
1	COMPRESSOR ASM; A/C COOLER WO/HEATER(YL1)	8-97956-891-0	01	1	0008-0106	●	●	●
1	COMPRESSOR ASM; A/C COOLER WO/HEATER(YL1)	8-97956-891-0	01	1	0107-0508	●	●
1	COMPRESSOR ASM; A/C COOLER WO/HEATER(YL1) AIR CONDITIONER ROOF MOUNTED<C69>	8-97956-891-0	01	1	0509-	●	●
2	CLUTCH; MAGNET,A/C COOLER WO/HEATER(YL1) IDN	8-97254-499-0	01	1	0008-0106	●	●	●
2	CLUTCH; MAGNET,A/C COOLER WO/HEATER(YL1) IDN	8-97254-499-0	01	1	0107-	●	●
3	COMPRESSOR ASM; A/C COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-98016-874-0	01	1	0509-	●	●
3	COMPRESSOR ASM; A/C COOLER WO/HEATER(YL1) IDN	8-97254-498-0	01	1	0008-0106	●	●	●
3	COMPRESSOR ASM; A/C COOLER WO/HEATER(YL1) IDN	8-97254-498-0	01	1	0107-0508	●	●
3	COMPRESSOR ASM; A/C COOLER WO/HEATER(YL1) AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97254-498-0	01	1	0509-	●	●
4	BOLT; MAGNET CLU COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97126-316-0	01	1	0509-	●	●
4	BOLT; MAGNET CLU COOLER WO/HEATER(YL1)	1-83539-323-0	01	1	0008-0106	●	●	●
4	BOLT; MAGNET CLU COOLER WO/HEATER(YL1)	1-83539-323-0	01	1	0107-0508	●	●
4	BOLT; MAGNET CLU COOLER WO/HEATER(YL1) AIR CONDITIONER ROOF MOUNTED<C69>	1-83539-323-0	01	1	0509-	●	●
7	RING; SNAP,PULLEY COOLER WO/HEATER(YL1) IDN	1-83579-932-0	01	1	0008-0106	●	●	●
7	RING; SNAP,PULLEY COOLER WO/HEATER(YL1) IDN	1-83579-932-0	01	1	0107-	●	●
17	SCREW; WIRE CLIP MAGNET CLU COOLER WO/HEATER(YL1)	5-81129-130-0	01	1	0008-0106	●	●	●
17	SCREW; WIRE CLIP MAGNET CLU COOLER WO/HEATER(YL1)	5-81129-130-0	01	1	0107-	●	●
19	WASHER; LK,PULLEY,MAGNET CLU COOLER WO/HEATER(YL1) (A) T=0.1	1-83579-890-0	01	1	0008-0106	●	●	●
19	WASHER; LK,PULLEY,MAGNET CLU COOLER WO/HEATER(YL1) (A) T=0.1	1-83579-890-0	01	1	0107-	●	●
19	WASHER; LK,PULLEY,MAGNET CLU COOLER WO/HEATER(YL1) (B) T=0.3 IDN	1-83579-891-0	01	1	0008-0106	●	●	●
19	WASHER; LK,PULLEY,MAGNET CLU COOLER WO/HEATER(YL1) (B) T=0.3 IDN	1-83579-891-0	01	1	0107-	●	●
19	WASHER; LK,PULLEY,MAGNET CLU COOLER WO/HEATER(YL1) (C) T=0.5 IDN	1-83579-892-0	01	1	0008-0106	●	●	●
19	WASHER; LK,PULLEY,MAGNET CLU COOLER WO/HEATER(YL1) (C) T=0.5 IDN	1-83579-892-0	01	1	0107-	●	●
74	RING; SNAP,MAGNET CLU COOLER WO/HEATER(YL1) IDN	1-83579-889-0	01	1	0008-0106	●	●	●
74	RING; SNAP,MAGNET CLU COOLER WO/HEATER(YL1) IDN	1-83579-889-0	01	1	0107-	●	●
138	BRACKET; COMPRESSOR COOLER WO/HEATER(YL1) IDN	8-97254-501-0	01	1	0008-0106	●	●	●
138	BRACKET; COMPRESSOR COOLER WO/HEATER(YL1) IDN	8-97254-501-0	01	1	0107-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
