8-65 — CONTROL LEVER; HEATER AND AIR CON (#95410) — 29 parça

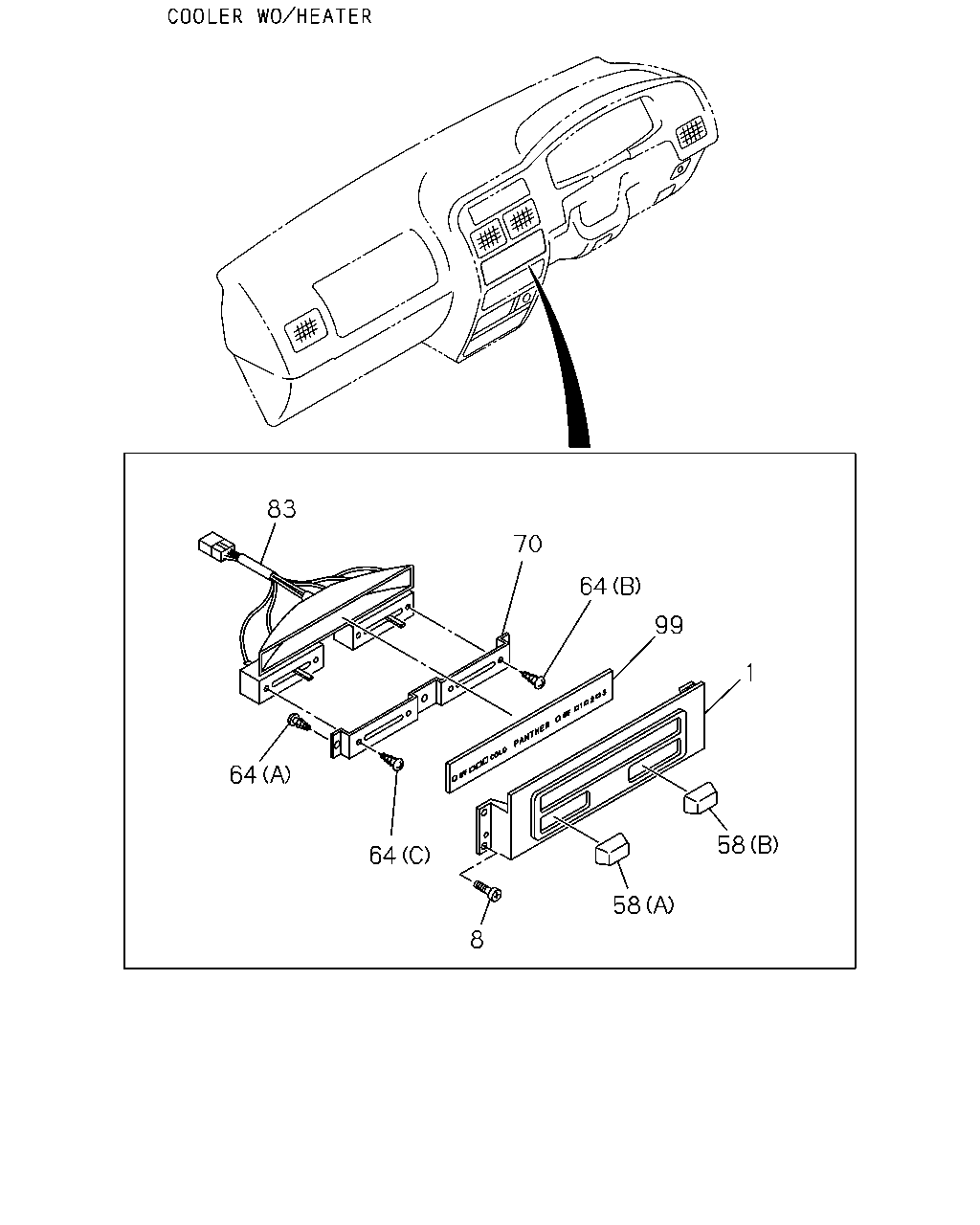

çizim 289048
1 99 64 70 83 64 64 8 58 58
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LEVER SUB ASM; HTR CONT
COOLER WO/HEATER(YL1) IDN 		8-97957-772-0 01 1 0008-0106 ● ● ●
1 LEVER SUB ASM; HTR CONT
COOLER WO/HEATER(YL1) IDN 		8-97957-772-0 01 1 0107- ● ●
8 SCREW; CONT LVR TO INST PNL
M5X16 TAPPING 		9-09829-323-1 04 1 0008-0106 ● ● ●
8 SCREW; CONT LVR TO INST PNL
M5X16 TAPPING 		9-09829-323-1 04 1 0107- ● ●
58 KNOB; LVR,HTR CONT LVR
COOLER WO/HEATER(YL1) (B) IDN 		8-97254-518-0 01 1 0008-0106 ● ● ●
58 KNOB; LVR,HTR CONT LVR
COOLER WO/HEATER(YL1) (B) IDN 		8-97254-518-0 01 1 0107-0209 ● ●
58 KNOB; LVR,HTR CONT LVR
COOLER WO/HEATER(YL1) (A),(B) IDN 		8-97562-130-0 02 1 0210- ● ●
58 KNOB; LVR,HTR CONT LVR
COOLER WO/HEATER(YL1) (A) IDN 		8-97957-771-0 01 1 0008-0106 ● ● ●
58 KNOB; LVR,HTR CONT LVR
COOLER WO/HEATER(YL1) (A) IDN 		8-97957-771-0 01 1 0107-0209 ● ●
64 SCREW; PANEL,HTR CONT LVR
COOLER WO/HEATER(YL1) (A) IDN 		1-87540-812-0 03 1 0008-0106 ● ● ●
64 SCREW; PANEL,HTR CONT LVR
COOLER WO/HEATER(YL1) (A) IDN 		1-87540-812-0 03 1 0107- ● ●
64 SCREW; PANEL,HTR CONT LVR
COOLER WO/HEATER(YL1) (B) IDN 		8-97254-520-0 02 1 0008-0106 ● ● ●
64 SCREW; PANEL,HTR CONT LVR
COOLER WO/HEATER(YL1) (B) IDN 		8-97254-520-0 02 1 0107- ● ●
64 SCREW; PANEL,HTR CONT LVR
COOLER WO/HEATER(YL1) (C) IDN 		8-97254-521-0 02 1 0008-0106 ● ● ●
64 SCREW; PANEL,HTR CONT LVR
COOLER WO/HEATER(YL1) (C) IDN 		8-97254-521-0 02 1 0107- ● ●
70 BRACKET; CONT PANEL
COOLER WO/HEATER(YL1) IDN 		8-97254-513-0 01 1 0008-0106 ● ● ●
70 BRACKET; CONT PANEL
COOLER WO/HEATER(YL1) IDN 		8-97254-513-0 01 1 0107- ● ●
83 HARNESS; CONT PANEL
COOLER WO/HEATER(YL1) IDN 		8-97254-519-0 01 1 0008-0106 ● ● ●
83 HARNESS; CONT PANEL
COOLER WO/HEATER(YL1) IDN 		8-97254-519-0 01 1 0107- ● ●
99 ORNAMENT; PANEL
COOLER WO/HEATER(YL1) IDN 		8-97957-773-0 01 1 0008-0106 ● ● ●
99 ORNAMENT; PANEL
COOLER WO/HEATER(YL1) IDN 		8-97957-773-0 01 1 0107-0209 ● ●
99 ORNAMENT; PANEL
COOLER WO/HEATER(YL1) IDN 		8-97561-481-0 01 1 0210- ● ●

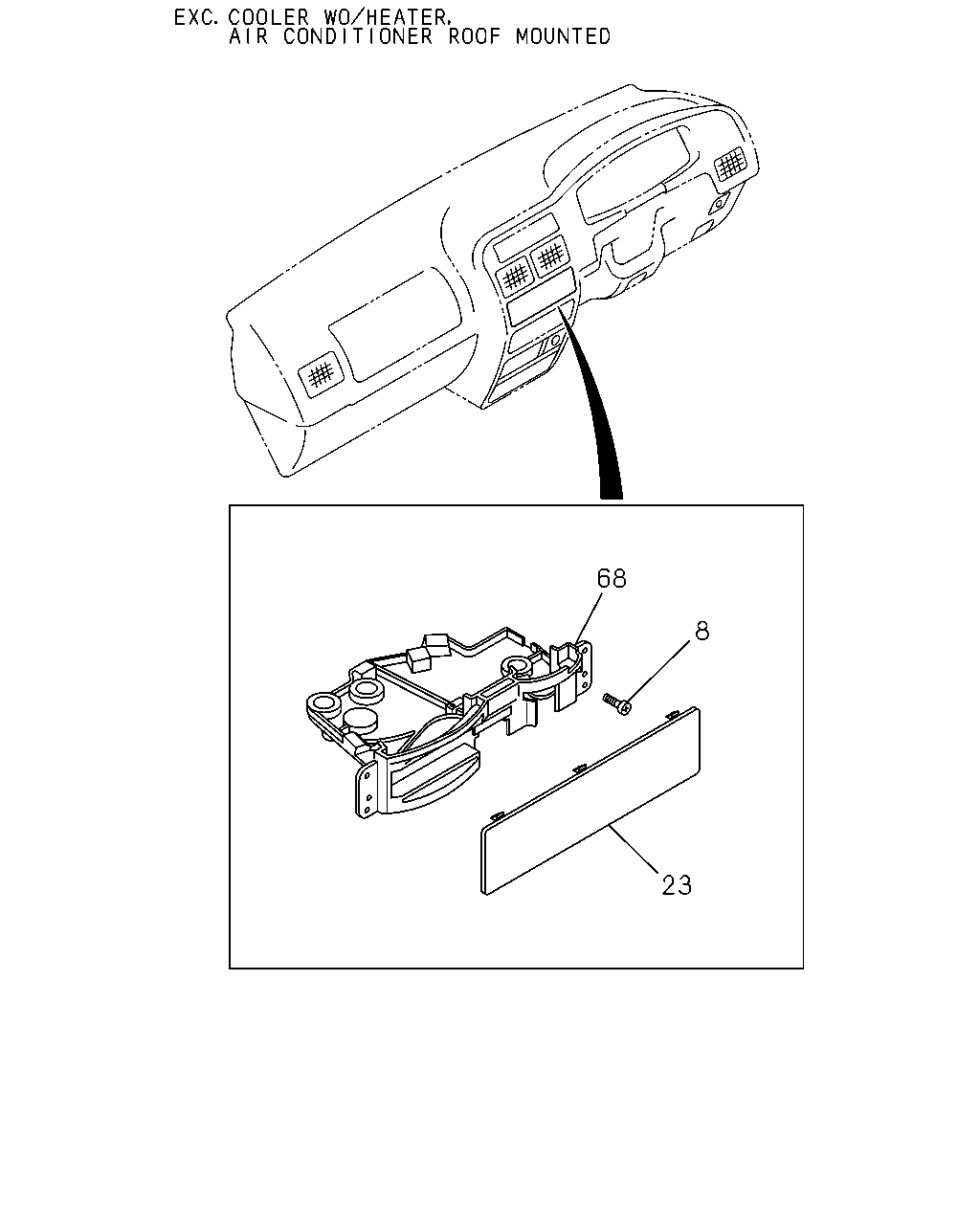

çizim 289879
23 68 8
BalonParca AdiParca NoAdetTipApplied Date A B C
8 SCREW; CONT LVR TO INST PNL
M5X16 TAPPING 		9-09829-323-1 04 1 0008-0106 ● ● ●
8 SCREW; CONT LVR TO INST PNL
M5X16 TAPPING 		9-09829-323-1 04 1 0107- ● ●
23 BEZEL; CONT LEVER
EXC. COOLER WO/HEATER(YL1) 		8-97112-443-0 01 1 0008-0106 ● ● ●
23 BEZEL; CONT LEVER
EXC. COOLER WO/HEATER(YL1) 		8-97112-443-0 01 1 0107- ● ●
68 BRACKET; BEZEL
EXC. COOLER WO/HEATER(YL1) 		8-97165-592-0 01 1 0008-0106 ●
68 BRACKET; BEZEL
EXC. AIR CONDITIONER ROOF MOUNTED<C69>,COOLER WO/HEATER(YL1) 		8-97165-592-0 01 1 0008-0106 ● ●
68 BRACKET; BEZEL
EXC. AIR CONDITIONER ROOF MOUNTED<C69>,COOLER WO/HEATER(YL1) 		8-97165-592-0 01 1 0107- ● ●
