Sayfa 2-30 - Isuzu EPC

2-30 — GEAR SHIFTER AND QUADRANT BOX (#9541) — 323 parça

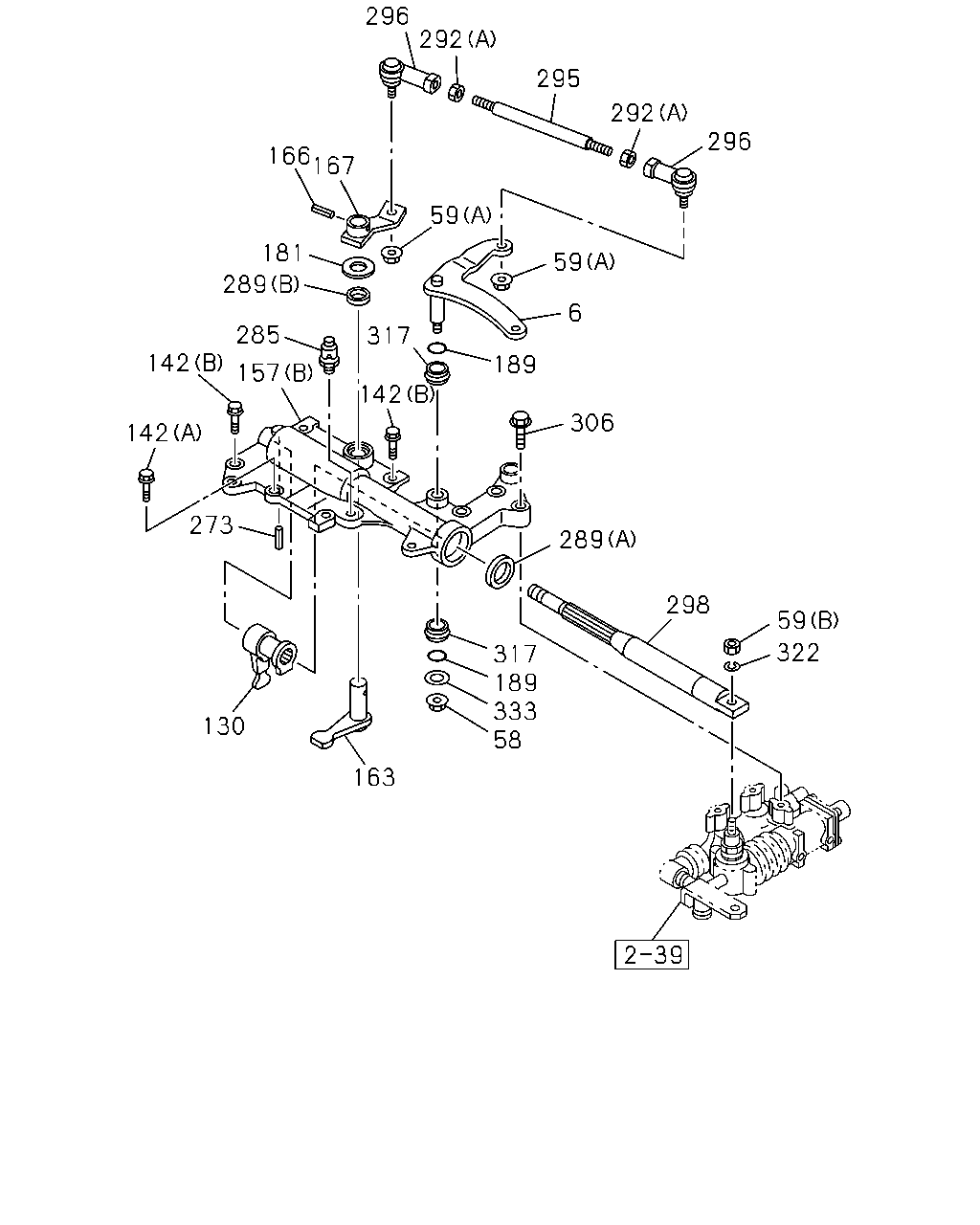

296 292 295 292 296 166 167 59 181 59 289 6 285 317 142 189 157 142 306 142 273 289 298 59 322 317 189 333 58 130 163

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	LEVER; RELAY	1-33651-686-2	01	1	0005-0210	●
6	LEVER; RELAY	1-33511-009-1	01	1	0005-		●
58	NUT M10 FLANGE	0-91150-110-0	01	1	0005-0210	●
59	NUT (A) M8 FLANGE	0-91150-108-0	02	1	0005-0210	●
59	NUT (B) M12	9-99110-412-0	01	1	0005-0210	●
130	LEVER; SHIFT,INTERNAL	1-33521-165-0	01	1	0005-0210	●
130	LEVER; SHIFT,INTERNAL	1-33521-146-0	01	1	0005-		●
142	BOLT; QUAD BOX (C) M10X60 FLANGE	0-28181-060-0	04	1	0005-0210	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0005-0210	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0211-0805		●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	12	1	0806-		●
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0005-0210	●	●
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0211-0805		●
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-		●
142	BOLT; QUAD BOX (C) M10X60 FLANGE	0-28181-060-0	03	1	0005-0512		●
142	BOLT; QUAD BOX (C) M10X60 FLANGE	0-28151-060-0	03	1	0601-		●
142	BOLT; QUAD BOX (D) M10X20,M10X60 L=90	1-09049-020-0	01	1	0005-		●
157	BOX; QUAD,TRANS (B)	1-33541-479-0	01	1	0005-0210	●
157	BOX; QUAD,TRANS (A)	1-33541-480-0	01	1	0005-0210	●
157	BOX; QUAD,TRANS (B)	1-33541-451-0	01	1	0005-		●
157	BOX; QUAD,TRANS (A)	1-33541-482-0	01	1	0005-		●
163	LEVER; SELECT,INTERNAL	1-33522-153-0	01	1	0005-0210	●
163	LEVER; SELECT,INTERNAL	1-33522-041-4	01	1	0005-		●
166	PIN; SPR,SELECT LEVER L=25 OD=5	1-09748-032-0	01	1	0005-0210	●
167	LEVER; SELECT,EXTERNAL	1-33521-159-0	01	1	0005-0210	●
167	LEVER; SELECT,EXTERNAL	1-33521-064-1	01	1	0005-		●
181	WASHER; PL,SELECT LEVER	1-09503-280-0	01	1	0005-0210	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	0005-		●
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	0005-0210	●
273	PIN; SPR,STOPPER L=30 OD=4	1-09748-031-0	01	1	0005-0210	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0005-0210	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0211-		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A)	1-09625-599-0	01	1	0005-0210	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B)	1-09625-600-0	01	1	0005-0210	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	0005-0307		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-647-0	01	1	0308-		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	0005-		●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	0005-0210	●	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	0211-0512		●
292	NUT; LINK ROD (A) M8	0-91111-508-0	02	1	0601-		●
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-062-1	02	1	0005-		●
295	ROD; LINK,RELAY LEVER	9-08400-808-0	01	1	0005-0210	●
295	ROD; LINK,RELAY LEVER L=222	9-08400-818-0	01	1	0005-		●
296	ROD END L=48	1-09760-038-1	02	1	0005-0210	●	●
296	ROD END L=48	1-09760-038-1	02	1	0211-0309		●
296	ROD END L=45.5	1-09760-118-1	02	1	0310-		●
298	SHAFT; SHIFT LEVER	1-33522-163-0	01	1	0005-0210	●
298	SHAFT; SHIFT LEVER	1-33522-136-0	01	1	0005-0307		●
298	SHAFT; SHIFT LEVER	1-33522-188-0	01	1	0308-		●
306	BOLT; SHIFT ASSISTOR M10X50 FLANGE	0-28081-050-0	03	1	0005-0210	●
306	BOLT; SHIFT ASSISTOR M10X45 FLANGE	0-28181-045-0	02	1	0005-0512		●
306	BOLT; SHIFT ASSISTOR M10X45 FLANGE	0-28151-045-0	02	1	0601-		●
306	BOLT; SHIFT ASSISTOR M10X70 FLANGE	0-28181-070-0	04	1	0005-0512		●
306	BOLT; SHIFT ASSISTOR M10X70 FLANGE	0-28151-070-0	04	1	0601-		●
317	BUSHING; LEVER	1-09330-119-0	02	1	0005-0210	●	●
317	BUSHING; LEVER	1-09330-119-0	02	1	0211-		●
322	WASHER; LK ID=12.2	9-09150-512-0	01	1	0005-0210	●
333	WASHER; PL,LEVER ID=10.5 OD=26	9-09160-710-0	01	1	0005-0210	●

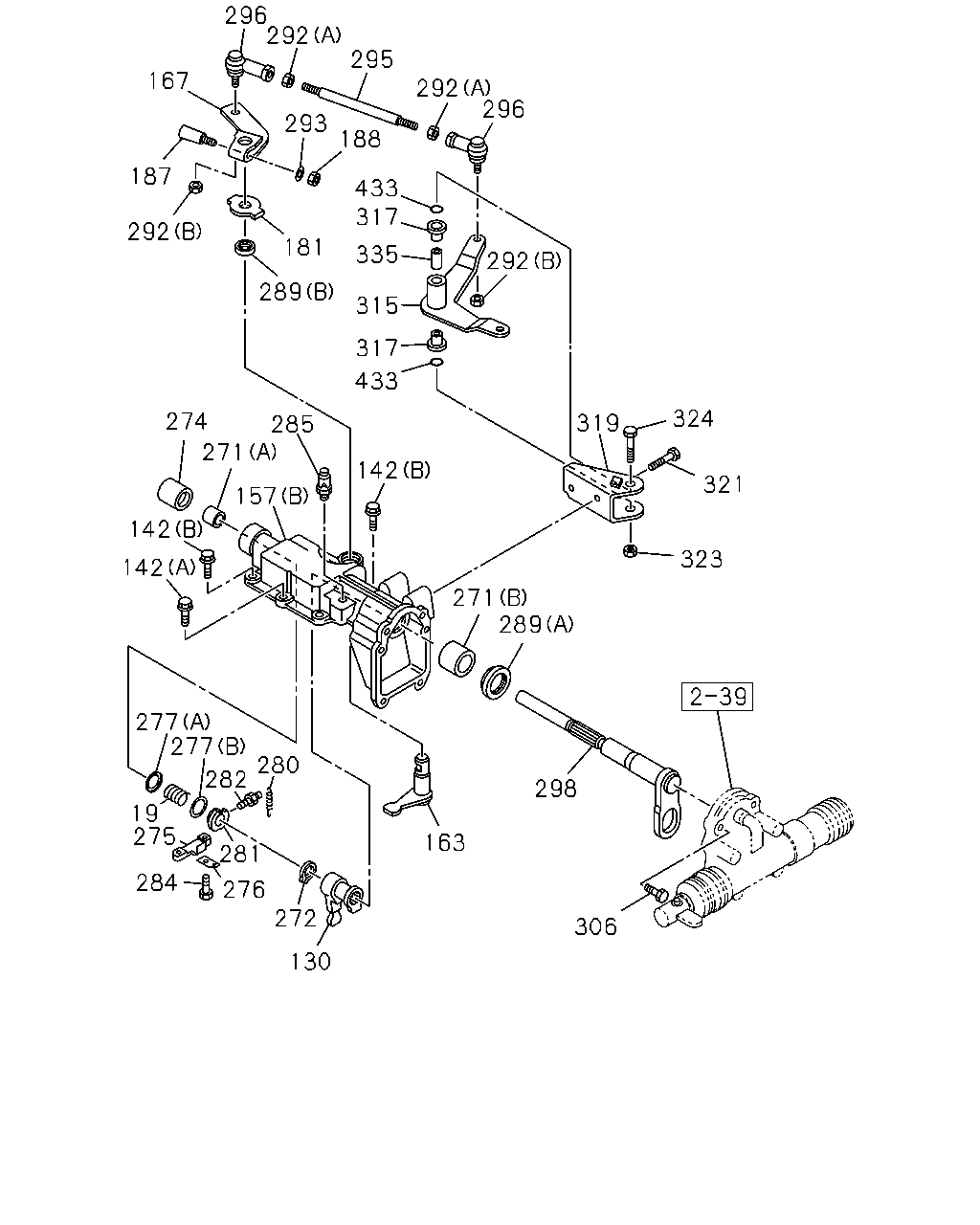

296 292 295 167 292 296 293 188 187 433 317 292 292 181 335 289 315 317 433 324 274 319 285 271 142 321 157 142 323 142 271 289 277 277 280 282 298 19 275 163 281 284 276 272 306 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	SPRING; COIL COMP	1-09580-441-0	01	1	0005-0210	●
19	SPRING; COIL COMP	1-09580-531-0	01	1	0005-		●
130	LEVER; SHIFT,INTERNAL	1-33521-165-0	01	1	0005-0210	●
130	LEVER; SHIFT,INTERNAL	1-33521-146-0	01	1	0005-		●
142	BOLT; QUAD BOX (C) M10X60 FLANGE	0-28181-060-0	04	1	0005-0210	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0005-0210	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0211-0805		●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	12	1	0806-		●
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0005-0210	●	●
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0211-0805		●
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-		●
142	BOLT; QUAD BOX (C) M10X60 FLANGE	0-28181-060-0	03	1	0005-0512		●
142	BOLT; QUAD BOX (C) M10X60 FLANGE	0-28151-060-0	03	1	0601-		●
142	BOLT; QUAD BOX (D) M10X20,M10X60 L=90	1-09049-020-0	01	1	0005-		●
157	BOX; QUAD,TRANS (B)	1-33541-479-0	01	1	0005-0210	●
157	BOX; QUAD,TRANS (A)	1-33541-480-0	01	1	0005-0210	●
157	BOX; QUAD,TRANS (B)	1-33541-451-0	01	1	0005-		●
157	BOX; QUAD,TRANS (A)	1-33541-482-0	01	1	0005-		●
163	LEVER; SELECT,INTERNAL	1-33522-153-0	01	1	0005-0210	●
163	LEVER; SELECT,INTERNAL	1-33522-041-4	01	1	0005-		●
167	LEVER; SELECT,EXTERNAL	1-33521-159-0	01	1	0005-0210	●
167	LEVER; SELECT,EXTERNAL	1-33521-064-1	01	1	0005-		●
181	WASHER; PL,SELECT LEVER	1-09503-280-0	01	1	0005-0210	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	0005-		●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	0005-		●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	0005-		●
271	BUSHING; QUAD BOX (A) ID=20 OD=23	1-33549-016-0	01	1	0005-		●
271	BUSHING; QUAD BOX (B) ID=28 OD=32	1-33549-104-0	01	1	0005-		●
272	RING; SNAP,QUAD BOX	1-09588-175-0	01	1	0005-		●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	0005-		●
275	BLOCK; OBSTRUCT,QUAD BOX	1-33529-063-0	01	1	0005-		●
276	PLATE; SPRING RET	1-33529-010-0	01	1	0005-		●
277	PLATE; SPRING SEAT (B)	1-09503-198-0	01	1	0005-		●
277	PLATE; SPRING SEAT (A)	1-33529-061-0	01	1	0005-		●
280	SPRING; COIL TENSION	1-09583-227-0	01	1	0005-		●
281	PLATE; OBSTRUCT,QUAD BOX	1-33529-060-0	01	1	0005-		●
282	BOLT; SPRING REAMER	1-33529-024-0	01	1	0005-		●
284	BOLT; REAMER,QUAD BOX	1-09040-075-1	02	1	0005-		●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0005-0210	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0211-		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A)	1-09625-599-0	01	1	0005-0210	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B)	1-09625-600-0	01	1	0005-0210	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	0005-0307		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-647-0	01	1	0308-		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	0005-		●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	0005-0210	●	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	0211-0512		●
292	NUT; LINK ROD (A) M8	0-91111-508-0	02	1	0601-		●
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-062-1	02	1	0005-		●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	0005-0605		●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	0-91610-708-0	01	1	0606-		●
295	ROD; LINK,RELAY LEVER	9-08400-808-0	01	1	0005-0210	●
295	ROD; LINK,RELAY LEVER L=222	9-08400-818-0	01	1	0005-		●
296	ROD END L=48	1-09760-038-1	02	1	0005-0210	●	●
296	ROD END L=48	1-09760-038-1	02	1	0211-0309		●
296	ROD END L=45.5	1-09760-118-1	02	1	0310-		●
298	SHAFT; SHIFT LEVER	1-33522-163-0	01	1	0005-0210	●
298	SHAFT; SHIFT LEVER	1-33522-136-0	01	1	0005-0307		●
298	SHAFT; SHIFT LEVER	1-33522-188-0	01	1	0308-		●
306	BOLT; SHIFT ASSISTOR M10X50 FLANGE	0-28081-050-0	03	1	0005-0210	●
306	BOLT; SHIFT ASSISTOR M10X45 FLANGE	0-28181-045-0	02	1	0005-0512		●
306	BOLT; SHIFT ASSISTOR M10X45 FLANGE	0-28151-045-0	02	1	0601-		●
306	BOLT; SHIFT ASSISTOR M10X70 FLANGE	0-28181-070-0	04	1	0005-0512		●
306	BOLT; SHIFT ASSISTOR M10X70 FLANGE	0-28151-070-0	04	1	0601-		●
315	LEVER; SELECT	1-33651-640-1	01	1	0005-		●
317	BUSHING; LEVER	1-09330-119-0	02	1	0005-0210	●	●
317	BUSHING; LEVER	1-09330-119-0	02	1	0211-		●
319	BRACKET; SELECT LEVER	1-33657-603-0	01	1	0005-		●
321	BOLT; BRKT,RELAY LEVER M10X22 FLANGE	0-28181-022-0	02	1	0005-		●
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	0005-		●
324	BOLT; SHAFT M10X60 FLANGE	0-28081-060-0	01	1	0005-		●
335	COLLAR; DIST,RELAY LEVER ASM	1-33659-192-0	01	1	0005-		●
433	GASKET; BUSHING	1-09623-594-0	02	1	0005-		●

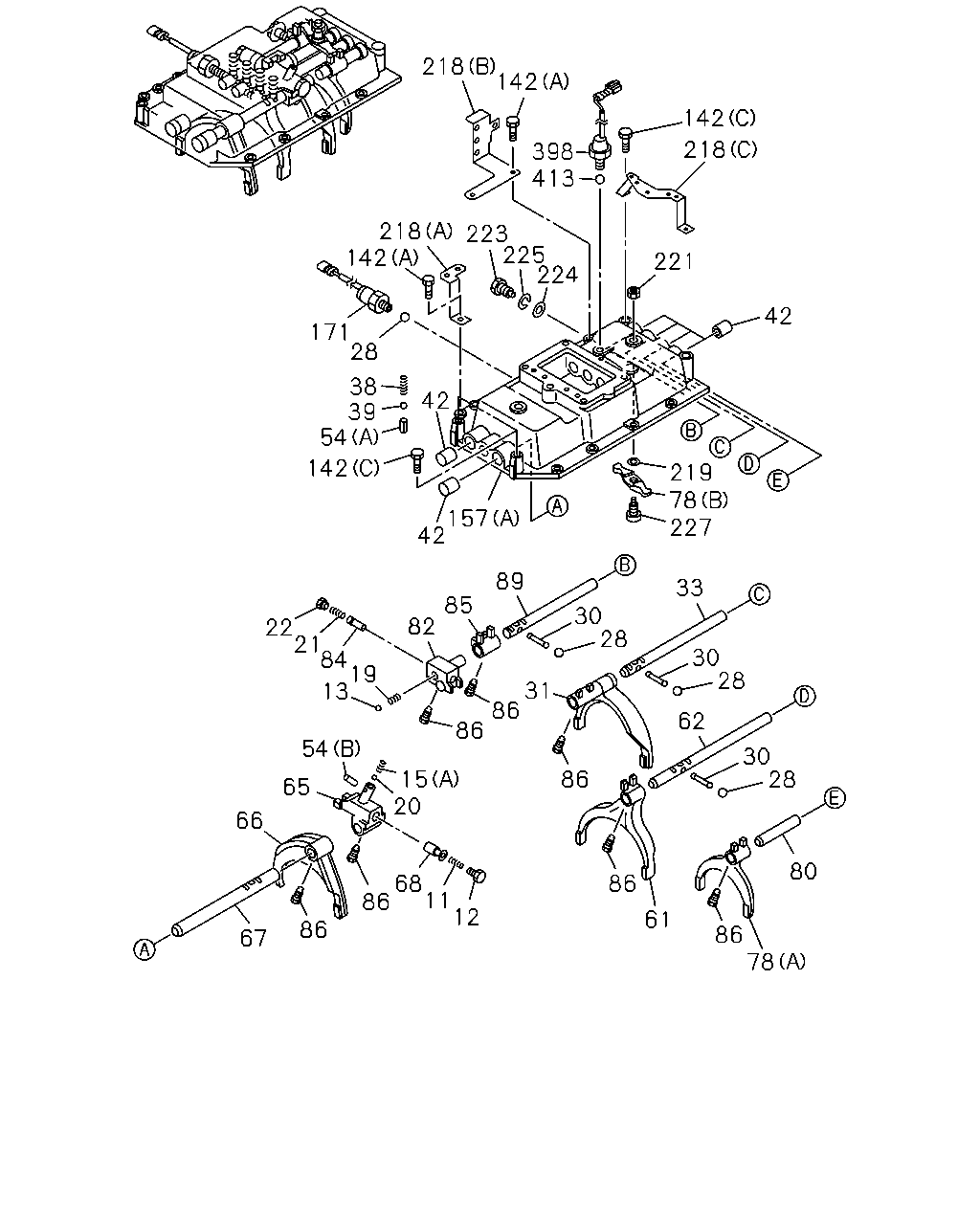

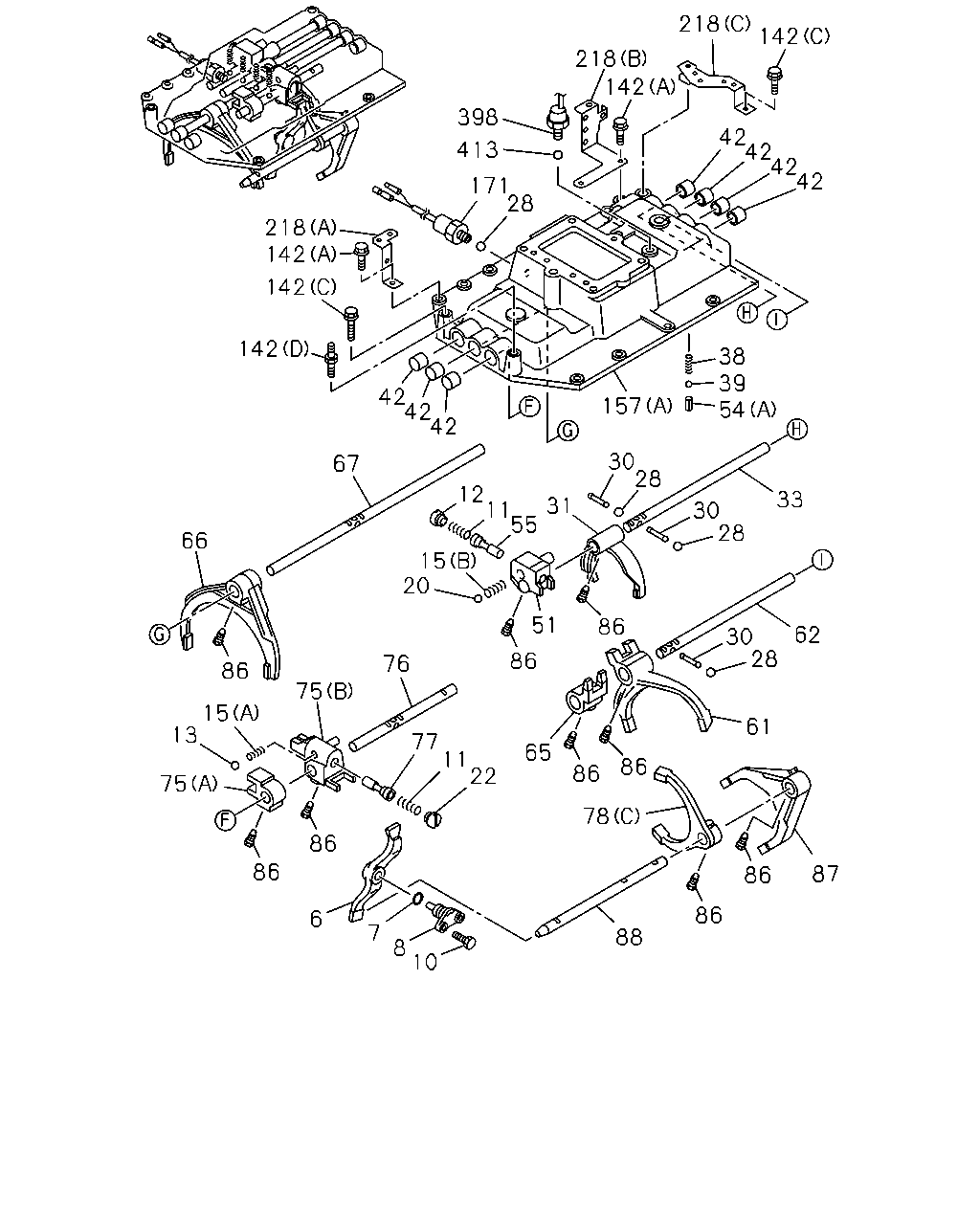

218 142 218 142 398 42 42 42 42 413 171 28 218 142 142 142 38 39 54 42 42 42 157 30 28 67 12 11 31 55 33 30 28 66 15 20 51 86 62 30 28 86 76 86 75 15 13 61 77 11 22 65 86 86 75 78 86 86 87 86 86 6 7 88 8 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	LEVER; RELAY	1-33651-686-2	01	1	0005-0210	●
6	LEVER; RELAY	1-33511-009-1	01	1	0005-		●
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	01	1	0005-		●
8	SPINDLE; REV & 7TH	9-33513-022-1	01	1	0005-		●
10	BOLT; SPINDLE M14X20	1-09044-078-0	02	1	0005-		●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	0005-0210	●	●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	0005-0210		●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	02	1	0211-		●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0005-0210	●	●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0211-		●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	0005-0210	●	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	0211-		●
15	SPRING; LK,SHIFT SLEEVE (A)	1-09580-442-0	01	1	0005-0210	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-440-0	01	1	0005-		●
15	SPRING; LK,SHIFT SLEEVE (A)	1-09580-553-0	01	1	0005-		●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	0005-0210	●	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	0211-		●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0005-0210	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	0005-		●
28	BALL; INTER LK	9-00097-501-0	04	1	0005-0210	●	●
28	BALL; INTER LK	9-00097-501-0	04	1	0211-		●
30	PIN; INTER LK	9-33534-003-0	03	1	0005-0210	●	●
30	PIN; INTER LK	9-33534-003-0	03	1	0211-		●
31	ARM; SHIFT,LOW & 2ND	1-33511-439-1	01	1	0005-0210	●
31	ARM; SHIFT,LOW & 2ND	1-33511-426-0	01	1	0005-		●
33	ROD; SHIFT,LOW & 2ND	1-33531-253-1	01	1	0005-0210	●
33	ROD; SHIFT,LOW & 2ND	1-33531-246-2	01	1	0005-1202		●
33	ROD; SHIFT,LOW & 2ND	8-98207-577-0	01	1	1203-		●
38	SPRING; DETENT	1-09580-379-0	04	1	0005-0210	●	●
38	SPRING; DETENT	1-09580-379-0	04	1	0211-		●
39	BALL; DETENT	1-09843-012-0	04	1	0005-0210	●	●
39	BALL; DETENT	1-09843-012-0	04	1	0211-		●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	0005-0210	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	07	1	0005-		●
51	BLOCK; SHIFT,1ST & 2ND	1-33511-311-2	01	1	0005-		●
54	PIN; SPR,SHIFT BLOCK (B)	1-09748-006-0	01	1	0005-0201	●
54	PIN; SPR,SHIFT BLOCK (A)	1-09748-014-0	03	1	0005-0210	●	●
54	PIN; SPR,SHIFT BLOCK (A)	1-09748-014-0	03	1	0211-		●
55	SLEEVE; 1ST & 2ND	1-33516-025-0	01	1	0005-		●
61	ARM; SHIFT,3RD & 4TH	1-33511-490-1	01	1	0005-0210	●
61	ARM; SHIFT,3RD & 4TH	1-33511-491-2	01	1	0005-		●
62	ROD; SHIFT,3RD & 4TH	1-33531-254-1	01	1	0005-0210	●
62	ROD; SHIFT,3RD & 4TH	1-33531-247-0	01	1	0005-1202		●
62	ROD; SHIFT,3RD & 4TH	8-98207-585-0	01	1	1203-		●
65	BLOCK ASM; SHIFT,5TH & 6TH	1-33511-513-0	01	1	0005-0210	●
65	BLOCK ASM; SHIFT,5TH & 6TH	1-33511-331-3	01	1	0005-		●
66	ARM; SHIFT,5TH & 6TH	1-33511-488-1	01	1	0005-0210	●
66	ARM; SHIFT,5TH & 6TH	1-33511-489-1	01	1	0005-		●
67	ROD; SHIFT,5TH & 6TH L=278	1-33531-255-1	01	1	0005-0210	●
67	ROD; SHIFT,5TH & 6TH L=407	1-33531-248-0	01	1	0005-1202		●
67	ROD; SHIFT,5TH & 6TH L=407	8-98207-588-0	01	1	1203-		●
75	BLOCK ASM; SHIFT,REV & 7TH (A)	1-33511-202-3	01	1	0005-		●
75	BLOCK ASM; SHIFT,REV & 7TH (B)	1-33511-309-1	01	1	0005-		●
76	ROD; SHIFT,REV & 7TH BLOCK	1-33531-249-0	01	1	0005-1202		●
76	ROD; SHIFT,REV & 7TH BLOCK	8-98207-591-0	01	1	1203-		●
77	SLEEVE; REV & 7TH	1-33516-025-0	01	1	0005-		●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	0005-0210	●
78	ARM; SHIFT,REV (A)	1-33511-234-1	01	1	0005-0210	●
78	ARM; SHIFT,REV (C)	1-33511-232-5	01	1	0005-		●
86	SCREW; TAPER,ARM TO ROD M12X20	1-09052-039-0	07	1	0005-0210	●
86	SCREW; TAPER,ARM TO ROD M12X20	1-09052-039-0	09	1	0005-		●
87	ARM; SHIFT,7TH	1-33511-229-4	01	1	0005-		●
88	ROD; SHIFT,REV & 7TH ARM	1-33531-250-0	01	1	0005-1202		●
88	ROD; SHIFT,REV & 7TH ARM	8-98207-592-0	01	1	1203-		●
142	BOLT; QUAD BOX (C) M10X60 FLANGE	0-28181-060-0	04	1	0005-0210	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0005-0210	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0211-0805		●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	12	1	0806-		●
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0005-0210	●	●
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0211-0805		●
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-		●
142	BOLT; QUAD BOX (C) M10X60 FLANGE	0-28181-060-0	03	1	0005-0512		●
142	BOLT; QUAD BOX (C) M10X60 FLANGE	0-28151-060-0	03	1	0601-		●
142	BOLT; QUAD BOX (D) M10X20,M10X60 L=90	1-09049-020-0	01	1	0005-		●
157	BOX; QUAD,TRANS (B)	1-33541-479-0	01	1	0005-0210	●
157	BOX; QUAD,TRANS (A)	1-33541-480-0	01	1	0005-0210	●
157	BOX; QUAD,TRANS (B)	1-33541-451-0	01	1	0005-		●
157	BOX; QUAD,TRANS (A)	1-33541-482-0	01	1	0005-		●
171	SWITCH; NEUTRAL	1-82440-101-0	01	1	0005-0210	●	●
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	0211-0702		●
171	SWITCH; NEUTRAL	8-98072-777-0	01	1	0703-0801		●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0802-1104		●
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1105-1109		●
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-		●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	01	1	0005-0210	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	01	1	0211-		●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-663-1	01	1	0005-0210	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-663-1	01	1	0211-		●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-733-0	01	1	0005-0210	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-733-0	01	1	0211-		●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	0005-0210	●	●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	0211-0602		●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0603-1209		●
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-		●
413	BALL; BACK SW	9-00097-013-0	01	1	0005-0210	●	●
413	BALL; BACK SW	9-00097-013-0	01	1	0211-		●

218 142 142 218 398 413 218 142 223 225 224 221 42 171 28 38 39 54 42 219 78 227 142 157 42 89 33 85 82 30 28 22 21 84 19 13 30 28 31 86 86 62 54 30 28 15 20 86 65 66 80 86 68 86 11 12 61 86 86 78 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	0005-0210	●	●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	0005-0210		●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	02	1	0211-		●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0005-0210	●	●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0211-		●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	0005-0210	●	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	0211-		●
15	SPRING; LK,SHIFT SLEEVE (A)	1-09580-442-0	01	1	0005-0210	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-440-0	01	1	0005-		●
15	SPRING; LK,SHIFT SLEEVE (A)	1-09580-553-0	01	1	0005-		●
19	SPRING; COIL COMP	1-09580-441-0	01	1	0005-0210	●
19	SPRING; COIL COMP	1-09580-531-0	01	1	0005-		●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	0005-0210	●	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	0211-		●
21	SPRING; COIL COMP SLEEVE	9-09941-160-0	01	1	0005-0210	●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0005-0210	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	0005-		●
28	BALL; INTER LK	9-00097-501-0	04	1	0005-0210	●	●
28	BALL; INTER LK	9-00097-501-0	04	1	0211-		●
30	PIN; INTER LK	9-33534-003-0	03	1	0005-0210	●	●
30	PIN; INTER LK	9-33534-003-0	03	1	0211-		●
31	ARM; SHIFT,LOW & 2ND	1-33511-439-1	01	1	0005-0210	●
31	ARM; SHIFT,LOW & 2ND	1-33511-426-0	01	1	0005-		●
33	ROD; SHIFT,LOW & 2ND	1-33531-253-1	01	1	0005-0210	●
33	ROD; SHIFT,LOW & 2ND	1-33531-246-2	01	1	0005-1202		●
33	ROD; SHIFT,LOW & 2ND	8-98207-577-0	01	1	1203-		●
38	SPRING; DETENT	1-09580-379-0	04	1	0005-0210	●	●
38	SPRING; DETENT	1-09580-379-0	04	1	0211-		●
39	BALL; DETENT	1-09843-012-0	04	1	0005-0210	●	●
39	BALL; DETENT	1-09843-012-0	04	1	0211-		●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	0005-0210	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	07	1	0005-		●
54	PIN; SPR,SHIFT BLOCK (B)	1-09748-006-0	01	1	0005-0201	●
54	PIN; SPR,SHIFT BLOCK (A)	1-09748-014-0	03	1	0005-0210	●	●
54	PIN; SPR,SHIFT BLOCK (A)	1-09748-014-0	03	1	0211-		●
61	ARM; SHIFT,3RD & 4TH	1-33511-490-1	01	1	0005-0210	●
61	ARM; SHIFT,3RD & 4TH	1-33511-491-2	01	1	0005-		●
62	ROD; SHIFT,3RD & 4TH	1-33531-254-1	01	1	0005-0210	●
62	ROD; SHIFT,3RD & 4TH	1-33531-247-0	01	1	0005-1202		●
62	ROD; SHIFT,3RD & 4TH	8-98207-585-0	01	1	1203-		●
65	BLOCK ASM; SHIFT,5TH & 6TH	1-33511-513-0	01	1	0005-0210	●
65	BLOCK ASM; SHIFT,5TH & 6TH	1-33511-331-3	01	1	0005-		●
66	ARM; SHIFT,5TH & 6TH	1-33511-488-1	01	1	0005-0210	●
66	ARM; SHIFT,5TH & 6TH	1-33511-489-1	01	1	0005-		●
67	ROD; SHIFT,5TH & 6TH L=278	1-33531-255-1	01	1	0005-0210	●
67	ROD; SHIFT,5TH & 6TH L=407	1-33531-248-0	01	1	0005-1202		●
67	ROD; SHIFT,5TH & 6TH L=407	8-98207-588-0	01	1	1203-		●
68	SLEEVE; 5TH & 6TH	1-33516-025-0	01	1	0005-0210	●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	0005-0210	●
78	ARM; SHIFT,REV (A)	1-33511-234-1	01	1	0005-0210	●
78	ARM; SHIFT,REV (C)	1-33511-232-5	01	1	0005-		●
80	ROD; SHIFT,REV ARM	1-33531-234-1	01	1	0005-0210	●
82	BLOCK; SHIFT,REV	1-33511-310-1	01	1	0005-0210	●
84	SLEEVE; REV	1-33516-025-0	01	1	0005-0210	●
85	BLOCK; SHIFT,REV RR	1-33511-201-3	01	1	0005-0210	●
86	SCREW; TAPER,ARM TO ROD M12X20	1-09052-039-0	07	1	0005-0210	●
86	SCREW; TAPER,ARM TO ROD M12X20	1-09052-039-0	09	1	0005-		●
89	ROD; SHIFT,REV	1-33531-252-1	01	1	0005-0210	●
142	BOLT; QUAD BOX (C) M10X60 FLANGE	0-28181-060-0	04	1	0005-0210	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0005-0210	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0211-0805		●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	12	1	0806-		●
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0005-0210	●	●
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0211-0805		●
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-		●
142	BOLT; QUAD BOX (C) M10X60 FLANGE	0-28181-060-0	03	1	0005-0512		●
142	BOLT; QUAD BOX (C) M10X60 FLANGE	0-28151-060-0	03	1	0601-		●
142	BOLT; QUAD BOX (D) M10X20,M10X60 L=90	1-09049-020-0	01	1	0005-		●
157	BOX; QUAD,TRANS (B)	1-33541-479-0	01	1	0005-0210	●
157	BOX; QUAD,TRANS (A)	1-33541-480-0	01	1	0005-0210	●
157	BOX; QUAD,TRANS (B)	1-33541-451-0	01	1	0005-		●
157	BOX; QUAD,TRANS (A)	1-33541-482-0	01	1	0005-		●
171	SWITCH; NEUTRAL	1-82440-101-0	01	1	0005-0210	●	●
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	0211-0702		●
171	SWITCH; NEUTRAL	8-98072-777-0	01	1	0703-0801		●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0802-1104		●
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1105-1109		●
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-		●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	01	1	0005-0210	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	01	1	0211-		●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-663-1	01	1	0005-0210	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-663-1	01	1	0211-		●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-733-0	01	1	0005-0210	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-733-0	01	1	0211-		●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	0005-0210	●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	0005-0210	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	0005-0210	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	0005-0210	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	0005-0210	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	0005-0210	●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	0005-0210	●	●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	0211-0602		●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0603-1209		●
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-		●
413	BALL; BACK SW	9-00097-013-0	01	1	0005-0210	●	●
413	BALL; BACK SW	9-00097-013-0	01	1	0211-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
