Sayfa 8-52 - Isuzu EPC

8-52 — PIPING; AIR CONDITIONING (#95409) — 162 parça

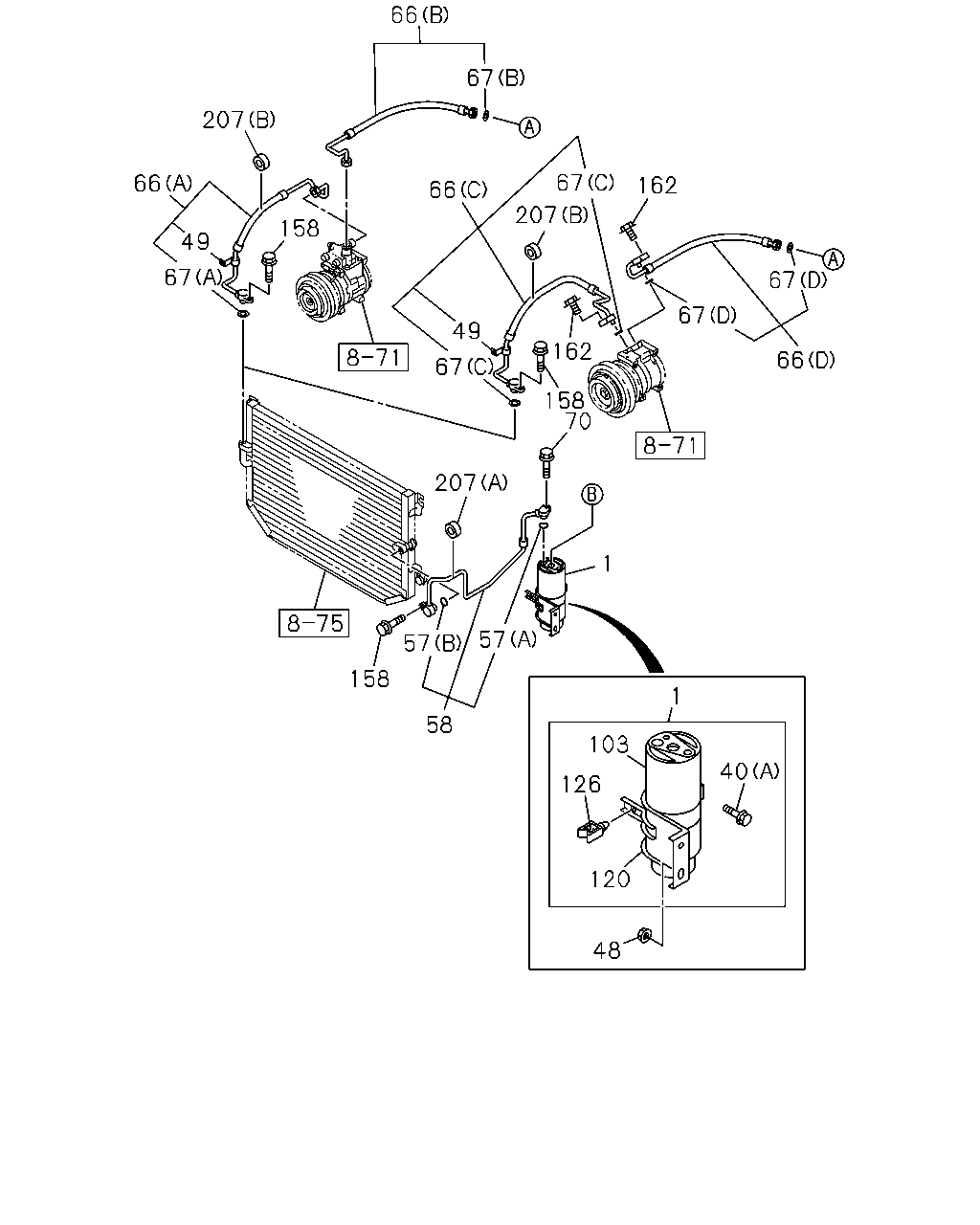

48 120 126 40 103 1 58 158 57 57 1 207 70 158 67 49 162 67 66 67 162 207 67 66 158 67 49 66 207 67 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK; RECEIVER COOLER WO/HEATER(YL1) IDN	8-97956-863-2	01	1	0008-0106	●	●	●
1	TANK; RECEIVER COOLER WO/HEATER(YL1) IDN	8-97956-863-2	01	1	0107-		●	●
40	BOLT; CLIP BRKT COOLER WO/HEATER(YL1) (A) M6X25 IDN	8-97254-310-0	01	1	0008-0106	●	●	●
40	BOLT; CLIP BRKT COOLER WO/HEATER(YL1) (A) M6X25 IDN	8-97254-310-0	01	1	0107-		●	●
40	BOLT; CLIP BRKT AIR CONDITIONER ROOF MOUNTED<C69> (B) M6X20 FLANGE	0-28480-620-0	05	1	0008-0512		●	●
40	BOLT; CLIP BRKT AIR CONDITIONER ROOF MOUNTED<C69> (B) M6X20 FLANGE	0-28450-620-0	05	1	0601-		●	●
48	NUT; BRKT COOLER WO/HEATER(YL1) M6 FLANGE	8-97063-399-0	02	1	0008-0106	●	●	●
48	NUT; BRKT COOLER WO/HEATER(YL1) M6 FLANGE	8-97063-399-0	02	1	0107-		●	●
49	CLAMP; FLEX HOSE COOLER WO/HEATER(YL1) IDN	8-97254-427-0	01	1	0008-0106	●	●	●
49	CLAMP; FLEX HOSE COOLER WO/HEATER(YL1) IDN	8-97254-427-0	01	1	0107-		●	●
57	GASKET; CONDENSER TO RECEIVER TANK COOLER WO/HEATER(YL1) (A) ID=7.5 IDN	1-83539-316-0	01	1	0008-0106	●	●	●
57	GASKET; CONDENSER TO RECEIVER TANK COOLER WO/HEATER(YL1) (A) ID=7.5 IDN	1-83539-316-0	01	1	0107-		●	●
57	GASKET; CONDENSER TO RECEIVER TANK COOLER WO/HEATER(YL1) (B) ID=11.7 IDN	1-83539-317-0	01	1	0008-0106	●	●	●
57	GASKET; CONDENSER TO RECEIVER TANK COOLER WO/HEATER(YL1) (B) ID=11.7 IDN	1-83539-317-0	01	1	0107-		●	●
58	PIPE; CONDENSER TO RECEIVER TANK COOLER WO/HEATER(YL1) IDN	8-97956-864-4	01	1	0008-0106	●	●	●
58	PIPE; CONDENSER TO RECEIVER TANK COOLER WO/HEATER(YL1) IDN	8-97956-864-4	01	1	0107-		●	●
66	HOSE; FLEX,A/C COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (D) IDN	8-97562-622-0	01	1	0509-		●	●
66	HOSE; FLEX,A/C COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (C) IDN	8-97562-632-0	01	1	0509-		●	●
66	HOSE; FLEX,A/C COOLER WO/HEATER(YL1) (A) IDN	8-97956-313-3	01	1	0008-0106	●	●	●
66	HOSE; FLEX,A/C COOLER WO/HEATER(YL1) (A) IDN	8-97956-313-3	01	1	0107-0508		●	●
66	HOSE; FLEX,A/C AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN	8-97956-313-3	01	1	0509-		●	●
66	HOSE; FLEX,A/C COOLER WO/HEATER(YL1) (B) IDN	8-97956-314-1	01	1	0008-0106	●	●	●
66	HOSE; FLEX,A/C COOLER WO/HEATER(YL1) (B) IDN	8-97956-314-1	01	1	0107-0508		●	●
66	HOSE; FLEX,A/C AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN	8-97956-314-1	01	1	0509-		●	●
67	GASKET; FLEX HOSE COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (C) ID=11.7 IDN	8-97095-907-0	02	1	0509-		●	●
67	GASKET; FLEX HOSE COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (D) ID=14.5 IDN	8-97095-908-0	02	1	0509-		●	●
67	GASKET; FLEX HOSE COOLER WO/HEATER(YL1) (A) ID=11.7 IDN	1-83539-317-0	02	1	0008-0106	●	●	●
67	GASKET; FLEX HOSE COOLER WO/HEATER(YL1) (A) ID=11.7 IDN	1-83539-317-0	02	1	0107-0508		●	●
67	GASKET; FLEX HOSE AIR CONDITIONER ROOF MOUNTED<C69> (A) ID=11.7 IDN	1-83539-317-0	02	1	0509-		●	●
67	GASKET; FLEX HOSE COOLER WO/HEATER(YL1) (B) ID=14.5 IDN	1-83539-324-0	02	1	0008-0106	●	●	●
67	GASKET; FLEX HOSE COOLER WO/HEATER(YL1) (B) ID=14.5 IDN	1-83539-324-0	02	1	0107-0508		●	●
67	GASKET; FLEX HOSE AIR CONDITIONER ROOF MOUNTED<C69> (B) ID=14.5 IDN	1-83539-324-0	02	1	0509-		●	●
70	BOLT; PIPE TO BODY COOLER WO/HEATER(YL1) M6X25 FLANGE IDN	0-28680-625-0	02	1	0008-0106	●	●	●
70	BOLT; PIPE TO BODY COOLER WO/HEATER(YL1) M6X25 FLANGE IDN	0-28680-625-0	02	1	0107-0512		●	●
70	BOLT; PIPE TO BODY COOLER WO/HEATER(YL1) M6X25 FLANGE IDN	0-28650-625-0	02	1	0601-		●	●
103	TANK; RECEIVER COOLER WO/HEATER(YL1) IDN	8-97957-760-0	01	1	0008-0106	●	●	●
103	TANK; RECEIVER COOLER WO/HEATER(YL1) IDN	8-97957-760-0	01	1	0107-		●	●
120	BRACKET; RECEIVER TANK COOLER WO/HEATER(YL1) IDN	8-97957-761-0	01	1	0008-0106	●	●	●
120	BRACKET; RECEIVER TANK COOLER WO/HEATER(YL1) IDN	8-97957-761-0	01	1	0107-		●	●
126	CLIP; RECEIVER TANK COOLER WO/HEATER(YL1) IDN	8-97957-762-0	01	1	0008-0106	●	●	●
126	CLIP; RECEIVER TANK COOLER WO/HEATER(YL1) IDN	8-97957-762-0	01	1	0107-		●	●
158	BOLT; PIPE FIX COOLER WO/HEATER(YL1) M6X40 FLANGE	0-28680-640-0	02	1	0008-0106	●	●	●
158	BOLT; PIPE FIX COOLER WO/HEATER(YL1) M6X40 FLANGE	0-28680-640-0	02	1	0107-0512		●	●
158	BOLT; PIPE FIX COOLER WO/HEATER(YL1) M6X40 FLANGE	0-28650-640-0	02	1	0601-		●	●
162	BOLT; FLEX HOSE COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> M6X30 FLANGE	0-28680-630-0	02	1	0509-0512		●	●
162	BOLT; FLEX HOSE COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> M6X30 FLANGE	0-28650-630-0	02	1	0601-		●	●
207	SEAL; FLEX HOSE COOLER WO/HEATER(YL1) (A) IDN	8-97958-999-0	01	1	0009-0106	●	●	●
207	SEAL; FLEX HOSE COOLER WO/HEATER(YL1) (A) IDN	8-97958-999-0	01	1	0107-		●	●
207	SEAL; FLEX HOSE COOLER WO/HEATER(YL1) (B) IDN	8-97959-001-0	01	1	0009-0106	●	●	●
207	SEAL; FLEX HOSE COOLER WO/HEATER(YL1) (B) IDN	8-97959-001-0	01	1	0107-		●	●

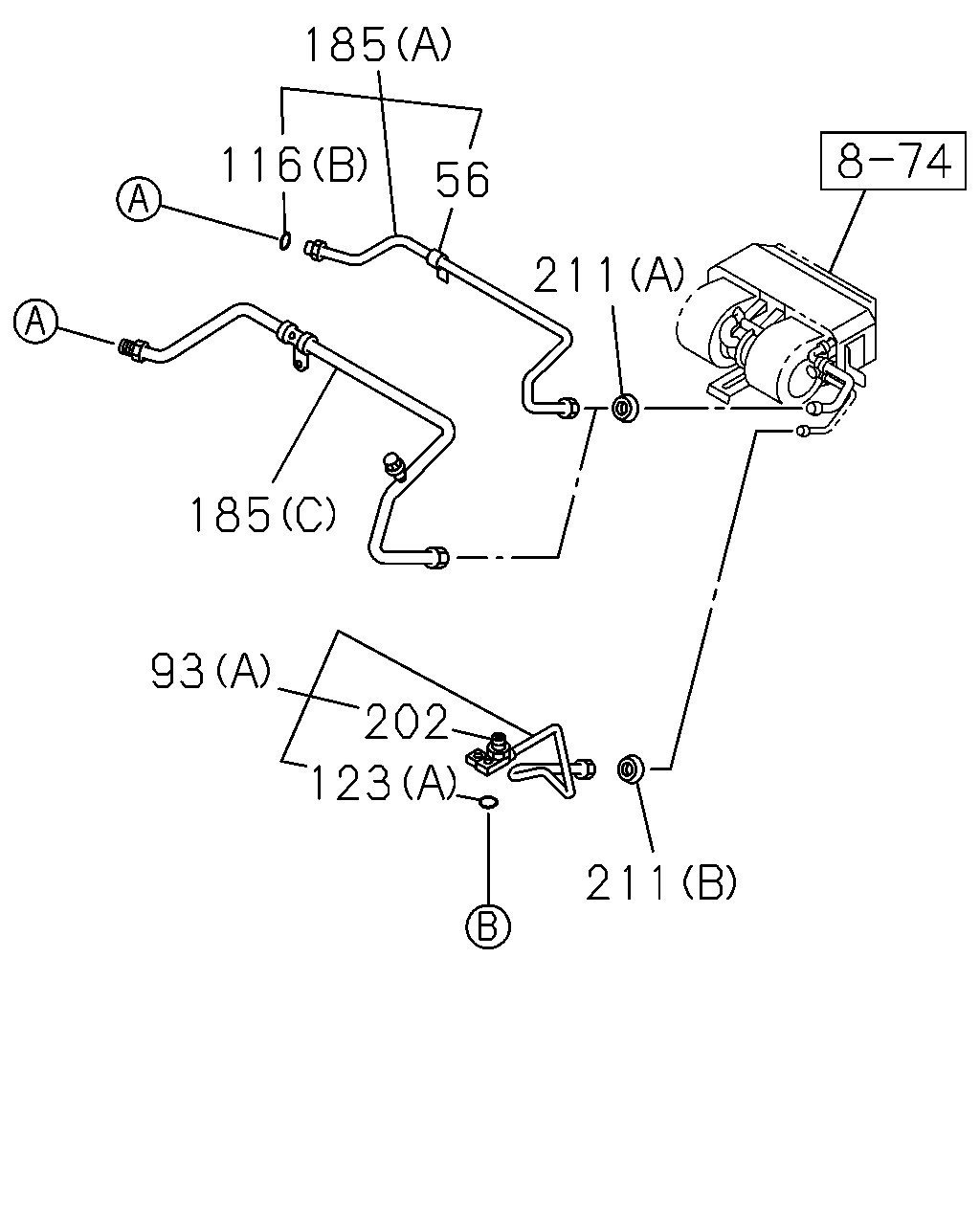

211 123 202 93 185 211 56 185 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
56	CLIP; PIPE,A/C COOLER WO/HEATER(YL1) IDN	8-97254-430-0	01	1	0008-0106	●	●	●
56	CLIP; PIPE,A/C COOLER WO/HEATER(YL1) IDN	8-97254-430-0	01	1	0107-		●	●
93	PIPE; RECEIVER TANK TO PIPE COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN	8-97956-865-1	01	1	0008-0106	●	●	●
93	PIPE; RECEIVER TANK TO PIPE COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN	8-97956-865-1	01	1	0107-0508		●	●
93	PIPE; RECEIVER TANK TO PIPE COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (C) IDN	8-97562-625-0	01	1	0509-		●	●
93	PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN	8-97956-866-1	01	1	0008-		●	●
116	GASKET; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (A) ID=7.5 IDN	1-83539-316-0	01	1	0008-		●	●
116	GASKET; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (B) ID=14.5 IDN	1-83539-324-0	03	1	0008-		●	●
116	GASKET; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (C) ID=7.4 IDN	8-97095-906-0	02	1	0008-		●	●
116	GASKET; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (D) ID=14.5 IDN	8-97095-908-0	02	1	0008-		●	●
116	GASKET; PIPE COOLER WO/HEATER(YL1) (B) ID=14.5 IDN	1-83539-324-0	01	1	0008-		●	●
116	GASKET; PIPE COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (D) ID=14.5 IDN	8-97095-908-0	01	1	0509-		●	●
123	GASKET; RECEIVER PIPE COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (B) ID=7.4 IDN	8-97095-906-0	02	1	0509-		●	●
123	GASKET; RECEIVER PIPE COOLER WO/HEATER(YL1) (A) ID=7.5 IDN	1-83539-316-0	02	1	0008-0106	●	●	●
123	GASKET; RECEIVER PIPE COOLER WO/HEATER(YL1) (A) ID=7.5 IDN	1-83539-316-0	02	1	0107-0508		●	●
123	GASKET; RECEIVER PIPE AIR CONDITIONER ROOF MOUNTED<C69> (A) ID=7.5 IDN	1-83539-316-0	02	1	0509-		●	●
185	PIPE; EVAP TO FLEX HOSE,PRESS LO COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN	8-97956-867-2	01	1	0008-0106	●	●	●
185	PIPE; EVAP TO FLEX HOSE,PRESS LO COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN	8-97956-867-2	01	1	0107-0508		●	●
185	PIPE; EVAP TO FLEX HOSE,PRESS LO COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (C) IDN	8-97562-623-0	01	1	0509-		●	●
185	PIPE; EVAP TO FLEX HOSE,PRESS LO AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN	8-97956-868-2	01	1	0008-		●	●
202	SWITCH; PRESSURE COOLER WO/HEATER(YL1) IDN	8-97180-265-0	01	1	0008-0106	●	●	●
202	SWITCH; PRESSURE COOLER WO/HEATER(YL1) IDN	8-97180-265-0	01	1	0107-		●	●
211	RUBBER; PIPE COOLER WO/HEATER(YL1) (A) IDN	8-97957-607-0	01	1	0008-0008	●	●	●
211	RUBBER; PIPE COOLER WO/HEATER(YL1) (A) IDN	8-97956-869-0	01	1	0009-0106	●	●	●
211	RUBBER; PIPE COOLER WO/HEATER(YL1) (A) IDN	8-97956-869-0	01	1	0107-		●	●
211	RUBBER; PIPE COOLER WO/HEATER(YL1) (B) IDN	8-97957-608-0	01	1	0008-0106	●	●	●
211	RUBBER; PIPE COOLER WO/HEATER(YL1) (B) IDN	8-97957-608-0	01	1	0107-		●	●

123 123 93 156 171 202 211 93 70 211 185 116 156 171 56 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
56	CLIP; PIPE,A/C COOLER WO/HEATER(YL1) IDN	8-97254-430-0	01	1	0008-0106	●	●	●
56	CLIP; PIPE,A/C COOLER WO/HEATER(YL1) IDN	8-97254-430-0	01	1	0107-		●	●
70	BOLT; PIPE TO BODY COOLER WO/HEATER(YL1) M6X25 FLANGE IDN	0-28680-625-0	02	1	0008-0106	●	●	●
70	BOLT; PIPE TO BODY COOLER WO/HEATER(YL1) M6X25 FLANGE IDN	0-28680-625-0	02	1	0107-0512		●	●
70	BOLT; PIPE TO BODY COOLER WO/HEATER(YL1) M6X25 FLANGE IDN	0-28650-625-0	02	1	0601-		●	●
93	PIPE; RECEIVER TANK TO PIPE COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN	8-97956-865-1	01	1	0008-0106	●	●	●
93	PIPE; RECEIVER TANK TO PIPE COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN	8-97956-865-1	01	1	0107-0508		●	●
93	PIPE; RECEIVER TANK TO PIPE COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (C) IDN	8-97562-625-0	01	1	0509-		●	●
93	PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN	8-97956-866-1	01	1	0008-		●	●
116	GASKET; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (A) ID=7.5 IDN	1-83539-316-0	01	1	0008-		●	●
116	GASKET; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (B) ID=14.5 IDN	1-83539-324-0	03	1	0008-		●	●
116	GASKET; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (C) ID=7.4 IDN	8-97095-906-0	02	1	0008-		●	●
116	GASKET; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (D) ID=14.5 IDN	8-97095-908-0	02	1	0008-		●	●
116	GASKET; PIPE COOLER WO/HEATER(YL1) (B) ID=14.5 IDN	1-83539-324-0	01	1	0008-		●	●
116	GASKET; PIPE COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (D) ID=14.5 IDN	8-97095-908-0	01	1	0509-		●	●
123	GASKET; RECEIVER PIPE COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (B) ID=7.4 IDN	8-97095-906-0	02	1	0509-		●	●
123	GASKET; RECEIVER PIPE COOLER WO/HEATER(YL1) (A) ID=7.5 IDN	1-83539-316-0	02	1	0008-0106	●	●	●
123	GASKET; RECEIVER PIPE COOLER WO/HEATER(YL1) (A) ID=7.5 IDN	1-83539-316-0	02	1	0107-0508		●	●
123	GASKET; RECEIVER PIPE AIR CONDITIONER ROOF MOUNTED<C69> (A) ID=7.5 IDN	1-83539-316-0	02	1	0509-		●	●
156	VALVE; PIPE COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN	8-97095-909-0	01	1	0509-		●	●
156	VALVE; PIPE COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN	8-97180-811-0	01	1	0509-		●	●
171	CAP; PIPE COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (B) CAP MARK L IDN	8-97095-910-0	01	1	0509-		●	●
171	CAP; PIPE COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (A) CAP MARK H IDN	8-97095-911-0	01	1	0509-		●	●
185	PIPE; EVAP TO FLEX HOSE,PRESS LO COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN	8-97956-867-2	01	1	0008-0106	●	●	●
185	PIPE; EVAP TO FLEX HOSE,PRESS LO COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN	8-97956-867-2	01	1	0107-0508		●	●
185	PIPE; EVAP TO FLEX HOSE,PRESS LO COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (C) IDN	8-97562-623-0	01	1	0509-		●	●
185	PIPE; EVAP TO FLEX HOSE,PRESS LO AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN	8-97956-868-2	01	1	0008-		●	●
202	SWITCH; PRESSURE COOLER WO/HEATER(YL1) IDN	8-97180-265-0	01	1	0008-0106	●	●	●
202	SWITCH; PRESSURE COOLER WO/HEATER(YL1) IDN	8-97180-265-0	01	1	0107-		●	●
211	RUBBER; PIPE COOLER WO/HEATER(YL1) (A) IDN	8-97957-607-0	01	1	0008-0008	●	●	●
211	RUBBER; PIPE COOLER WO/HEATER(YL1) (A) IDN	8-97956-869-0	01	1	0009-0106	●	●	●
211	RUBBER; PIPE COOLER WO/HEATER(YL1) (A) IDN	8-97956-869-0	01	1	0107-		●	●
211	RUBBER; PIPE COOLER WO/HEATER(YL1) (B) IDN	8-97957-608-0	01	1	0008-0106	●	●	●
211	RUBBER; PIPE COOLER WO/HEATER(YL1) (B) IDN	8-97957-608-0	01	1	0107-		●	●

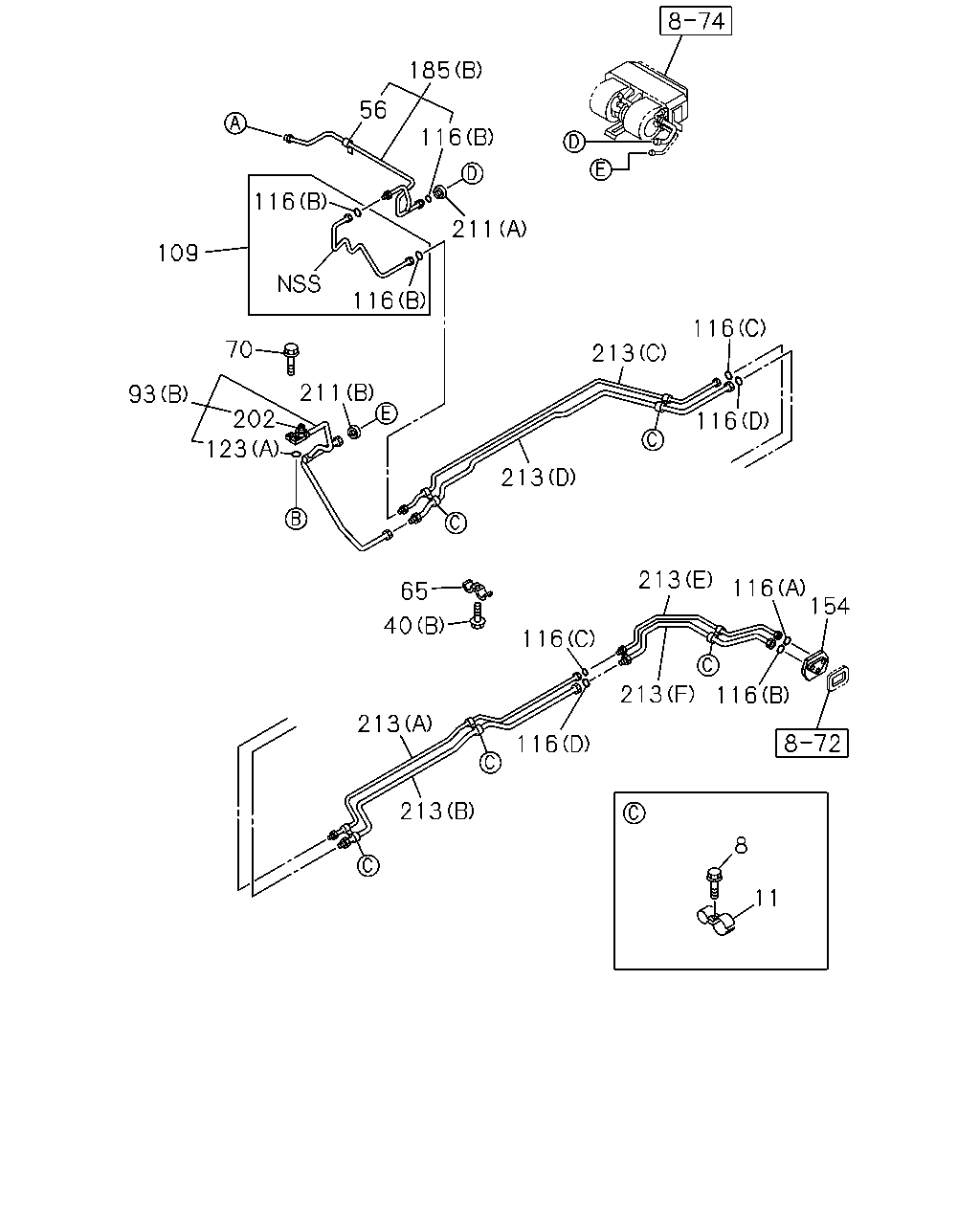

11 8 116 213 116 213 213 40 65 116 213 116 154 116 116 213 213 211 202 123 93 70 116 109 116 211 116 56 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	BOLT; CLIP AIR CONDITIONER ROOF MOUNTED<C69>	8-97228-645-0	02	1	0008-		●	●
8	BOLT; CLIP AIR CONDITIONER ROOF MOUNTED<C69>	8-97228-645-0	03	1	0008-		●	●
11	CLIP; COOLER PIPE AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97957-842-0	02	1	0008-		●	●
11	CLIP; COOLER PIPE AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97957-842-0	03	1	0008-		●	●
40	BOLT; CLIP BRKT COOLER WO/HEATER(YL1) (A) M6X25 IDN	8-97254-310-0	01	1	0008-0106	●	●	●
40	BOLT; CLIP BRKT COOLER WO/HEATER(YL1) (A) M6X25 IDN	8-97254-310-0	01	1	0107-		●	●
40	BOLT; CLIP BRKT AIR CONDITIONER ROOF MOUNTED<C69> (B) M6X20 FLANGE	0-28480-620-0	05	1	0008-0512		●	●
40	BOLT; CLIP BRKT AIR CONDITIONER ROOF MOUNTED<C69> (B) M6X20 FLANGE	0-28450-620-0	05	1	0601-		●	●
56	CLIP; PIPE,A/C COOLER WO/HEATER(YL1) IDN	8-97254-430-0	01	1	0008-0106	●	●	●
56	CLIP; PIPE,A/C COOLER WO/HEATER(YL1) IDN	8-97254-430-0	01	1	0107-		●	●
65	CLIP; A/C PIPE AIR CONDITIONER ROOF MOUNTED<C69>	1-83574-194-0	05	1	0008-1205		●	●
65	CLIP; A/C PIPE AIR CONDITIONER ROOF MOUNTED<C69>	8-98166-022-0	05	1	1206-		●	●
70	BOLT; PIPE TO BODY COOLER WO/HEATER(YL1) M6X25 FLANGE IDN	0-28680-625-0	02	1	0008-0106	●	●	●
70	BOLT; PIPE TO BODY COOLER WO/HEATER(YL1) M6X25 FLANGE IDN	0-28680-625-0	02	1	0107-0512		●	●
70	BOLT; PIPE TO BODY COOLER WO/HEATER(YL1) M6X25 FLANGE IDN	0-28650-625-0	02	1	0601-		●	●
93	PIPE; RECEIVER TANK TO PIPE COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN	8-97956-865-1	01	1	0008-0106	●	●	●
93	PIPE; RECEIVER TANK TO PIPE COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN	8-97956-865-1	01	1	0107-0508		●	●
93	PIPE; RECEIVER TANK TO PIPE COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (C) IDN	8-97562-625-0	01	1	0509-		●	●
93	PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN	8-97956-866-1	01	1	0008-		●	●
109	PIPE; PIPE TO PIPE AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97956-875-1	01	1	0008-		●	●
116	GASKET; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (A) ID=7.5 IDN	1-83539-316-0	01	1	0008-		●	●
116	GASKET; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (B) ID=14.5 IDN	1-83539-324-0	03	1	0008-		●	●
116	GASKET; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (C) ID=7.4 IDN	8-97095-906-0	02	1	0008-		●	●
116	GASKET; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (D) ID=14.5 IDN	8-97095-908-0	02	1	0008-		●	●
116	GASKET; PIPE COOLER WO/HEATER(YL1) (B) ID=14.5 IDN	1-83539-324-0	01	1	0008-		●	●
116	GASKET; PIPE COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (D) ID=14.5 IDN	8-97095-908-0	01	1	0509-		●	●
123	GASKET; RECEIVER PIPE COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (B) ID=7.4 IDN	8-97095-906-0	02	1	0509-		●	●
123	GASKET; RECEIVER PIPE COOLER WO/HEATER(YL1) (A) ID=7.5 IDN	1-83539-316-0	02	1	0008-0106	●	●	●
123	GASKET; RECEIVER PIPE COOLER WO/HEATER(YL1) (A) ID=7.5 IDN	1-83539-316-0	02	1	0107-0508		●	●
123	GASKET; RECEIVER PIPE AIR CONDITIONER ROOF MOUNTED<C69> (A) ID=7.5 IDN	1-83539-316-0	02	1	0509-		●	●
154	SEAL; COOLER PIPE AIR CONDITIONER ROOF MOUNTED<C69> IDN	8-97956-884-1	01	1	0008-		●	●
185	PIPE; EVAP TO FLEX HOSE,PRESS LO COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN	8-97956-867-2	01	1	0008-0106	●	●	●
185	PIPE; EVAP TO FLEX HOSE,PRESS LO COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN	8-97956-867-2	01	1	0107-0508		●	●
185	PIPE; EVAP TO FLEX HOSE,PRESS LO COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (C) IDN	8-97562-623-0	01	1	0509-		●	●
185	PIPE; EVAP TO FLEX HOSE,PRESS LO AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN	8-97956-868-2	01	1	0008-		●	●
202	SWITCH; PRESSURE COOLER WO/HEATER(YL1) IDN	8-97180-265-0	01	1	0008-0106	●	●	●
202	SWITCH; PRESSURE COOLER WO/HEATER(YL1) IDN	8-97180-265-0	01	1	0107-		●	●
211	RUBBER; PIPE COOLER WO/HEATER(YL1) (A) IDN	8-97957-607-0	01	1	0008-0008	●	●	●
211	RUBBER; PIPE COOLER WO/HEATER(YL1) (A) IDN	8-97956-869-0	01	1	0009-0106	●	●	●
211	RUBBER; PIPE COOLER WO/HEATER(YL1) (A) IDN	8-97956-869-0	01	1	0107-		●	●
211	RUBBER; PIPE COOLER WO/HEATER(YL1) (B) IDN	8-97957-608-0	01	1	0008-0106	●	●	●
211	RUBBER; PIPE COOLER WO/HEATER(YL1) (B) IDN	8-97957-608-0	01	1	0107-		●	●
213	PIPE AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN	8-97957-838-0	01	1	0008-		●
213	PIPE AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN	8-97957-839-0	01	1	0008-		●
213	PIPE AIR CONDITIONER ROOF MOUNTED<C69> (C) IDN	8-97957-834-0	01	1	0008-		●	●
213	PIPE AIR CONDITIONER ROOF MOUNTED<C69> (D) IDN	8-97957-835-0	01	1	0008-		●	●
213	PIPE AIR CONDITIONER ROOF MOUNTED<C69> (E) IDN	8-97957-840-0	01	1	0008-		●	●
213	PIPE AIR CONDITIONER ROOF MOUNTED<C69> (F) IDN	8-97957-841-0	01	1	0008-		●	●
213	PIPE AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN	8-97957-831-0	01	1	0008-0108			●
213	PIPE AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN	8-97957-837-0	01	1	0109-			●
213	PIPE AIR CONDITIONER ROOF MOUNTED<C69> (A) IDN	8-97957-836-0	01	1	0008-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
