◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50823 - TBR(INDONESIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-50 - AIR CONDITIONING SYSTEM; FRONT ▶
8-50 — AIR CONDITIONING SYSTEM; FRONT (#95408) — 47 parça

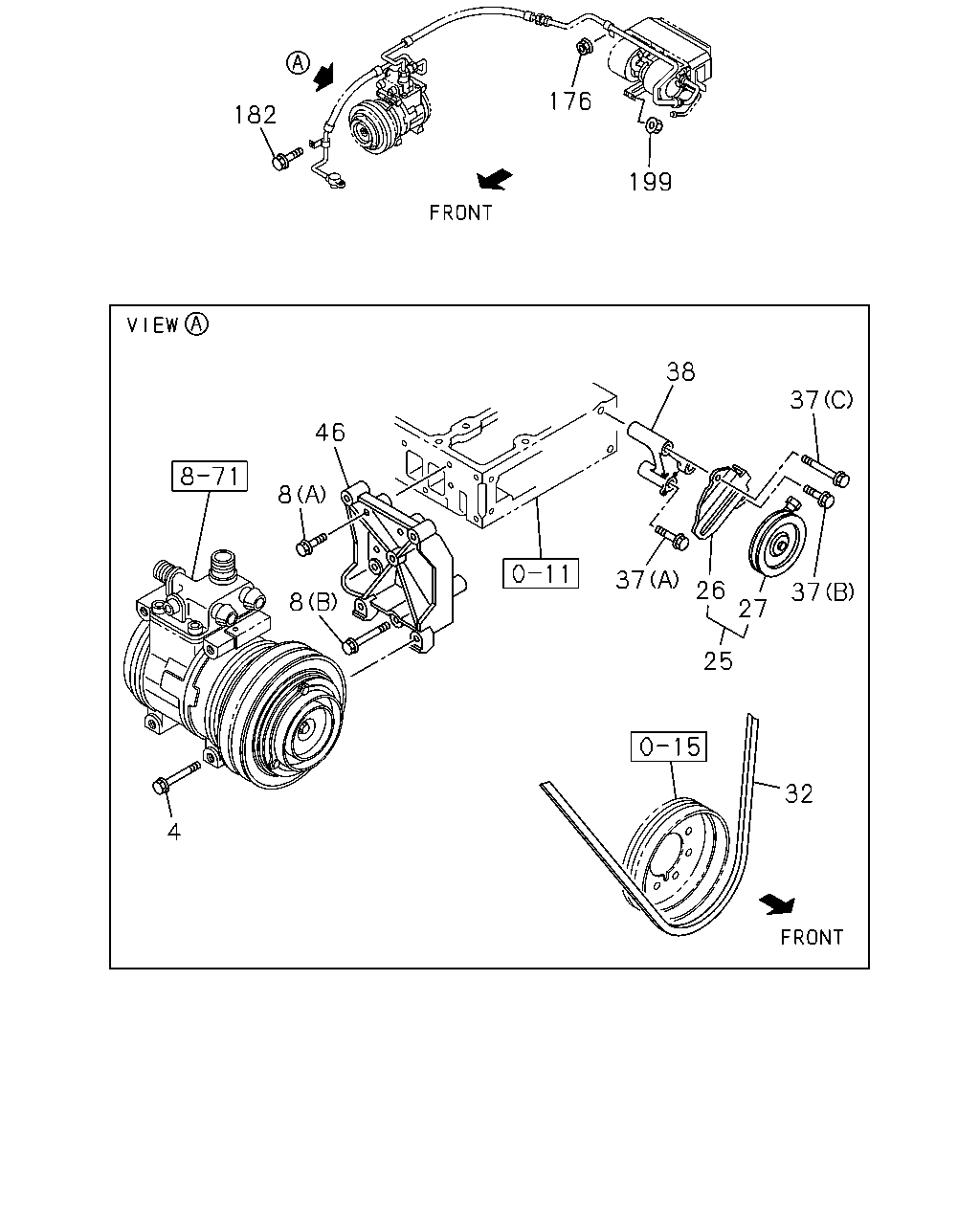

çizim 289399
4 32 25 37 27 26 37 37 38 8 8 46 199 176 182
BalonParca AdiParca NoAdetTipApplied Date A B C
4 BOLT; A/C CMPR BRKT
COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> M8X70 FLANGE 		0-28080-870-0 04 1 0509-0512 ● ●
4 BOLT; A/C CMPR BRKT
COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> M8X70 FLANGE 		0-28050-870-0 04 1 0601- ● ●
4 BOLT; A/C CMPR BRKT
COOLER WO/HEATER(YL1) M8X80 FLANGE 		0-28080-880-0 04 1 0008-0106 ● ● ●
4 BOLT; A/C CMPR BRKT
COOLER WO/HEATER(YL1) M8X80 FLANGE 		0-28080-880-0 04 1 0107-0508 ● ●
4 BOLT; A/C CMPR BRKT
COOLER WO/HEATER(YL1) AIR CONDITIONER ROOF MOUNTED<C69> M8X80 FLANGE 		0-28080-880-0 04 1 0509-0512 ● ●
4 BOLT; A/C CMPR BRKT
COOLER WO/HEATER(YL1) AIR CONDITIONER ROOF MOUNTED<C69> M8X80 FLANGE 		0-28050-880-0 04 1 0601- ● ●
8 BOLT; BRKT
COOLER WO/HEATER(YL1) (A) M8X70 FLANGE 		0-28080-870-0 02 1 0008-0106 ● ● ●
8 BOLT; BRKT
COOLER WO/HEATER(YL1) (A) M8X70 FLANGE 		0-28080-870-0 02 1 0107-0512 ● ●
8 BOLT; BRKT
COOLER WO/HEATER(YL1) (A) M8X70 FLANGE 		0-28050-870-0 02 1 0601- ● ●
8 BOLT; BRKT
COOLER WO/HEATER(YL1) (B) M10X80 FLANGE 		0-28081-080-0 02 1 0008-0106 ● ● ●
8 BOLT; BRKT
COOLER WO/HEATER(YL1) (B) M10X80 FLANGE 		0-28081-080-0 02 1 0107-0512 ● ●
8 BOLT; BRKT
COOLER WO/HEATER(YL1) (B) M10X80 FLANGE 		0-28051-080-0 02 1 0601- ● ●
25 PULLEY ASM; IDLER,CMPR
COOLER WO/HEATER(YL1) 		8-97080-948-0 01 1 0008-0106 ●
26 BRACKET; IDLE PULLEY,A/C
COOLER WO/HEATER(YL1) 		8-94120-998-2 01 1 0008-0106 ●
27 PULLEY; IDLE,A/C
COOLER WO/HEATER(YL1) 		8-97126-290-0 01 1 0008-0106 ●
32 BELT; A/C CMPR
COOLER WO/HEATER(YL1) L=1389 IDN 		8-97956-899-0 01 1 0008-0106 ●
32 BELT; A/C CMPR
COOLER WO/HEATER(YL1) POWER STEERING<N40> L=1580 IDN 		8-97957-605-0 01 1 0008-0106 ● ●
32 BELT; A/C CMPR
COOLER WO/HEATER(YL1) L=1580 IDN 		8-97957-605-0 01 1 0107-0508 ● ●
32 BELT; A/C CMPR
COOLER WO/HEATER(YL1) 		8-97562-629-0 01 1 0509- ● ●
37 BOLT; PULLEY BRKT
COOLER WO/HEATER(YL1) (A) M8X60 W/LK WASHER 		0-50040-860-0 01 1 0008-0106 ●
37 BOLT; PULLEY BRKT
COOLER WO/HEATER(YL1) (B) M10X28 W/LK WASHER 		0-50041-028-0 01 1 0008-0106 ●
37 BOLT; PULLEY BRKT
COOLER WO/HEATER(YL1) (C) M10X80 W/LK WASHER 		0-50041-080-0 01 1 0008-0106 ●
38 BRACKET; PULLEY TO CYL HD
COOLER WO/HEATER(YL1) 		8-97107-868-0 01 1 0008-0106 ●
46 BRACKET; CMPR
COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97562-620-0 01 1 0509- ● ●
46 BRACKET; CMPR
COOLER WO/HEATER(YL1) IDN 		8-97956-901-0 01 1 0008-0106 ● ● ●
46 BRACKET; CMPR
COOLER WO/HEATER(YL1) IDN 		8-97956-901-0 01 1 0107-0508 ● ●
46 BRACKET; CMPR
COOLER WO/HEATER(YL1) AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97956-901-0 01 1 0509- ● ●
176 NUT; PIPE
COOLER WO/HEATER(YL1) M6 FLANGE 		8-97063-399-0 01 1 0008-0106 ● ● ●
176 NUT; PIPE
COOLER WO/HEATER(YL1) M6 FLANGE 		8-97063-399-0 01 1 0107- ● ●
182 BOLT; PIPE TO BRKT
COOLER WO/HEATER(YL1) M6X16 		8-94206-784-0 01 1 0008-0106 ● ● ●
182 BOLT; PIPE TO BRKT
COOLER WO/HEATER(YL1) M6X16 		8-94206-784-0 01 1 0107- ● ●
199 NUT
COOLER WO/HEATER(YL1) M6 FLANGE 		8-97063-399-0 04 1 0008-0106 ● ● ●
199 NUT
COOLER WO/HEATER(YL1) M6 FLANGE 		8-97063-399-0 04 1 0107- ● ●

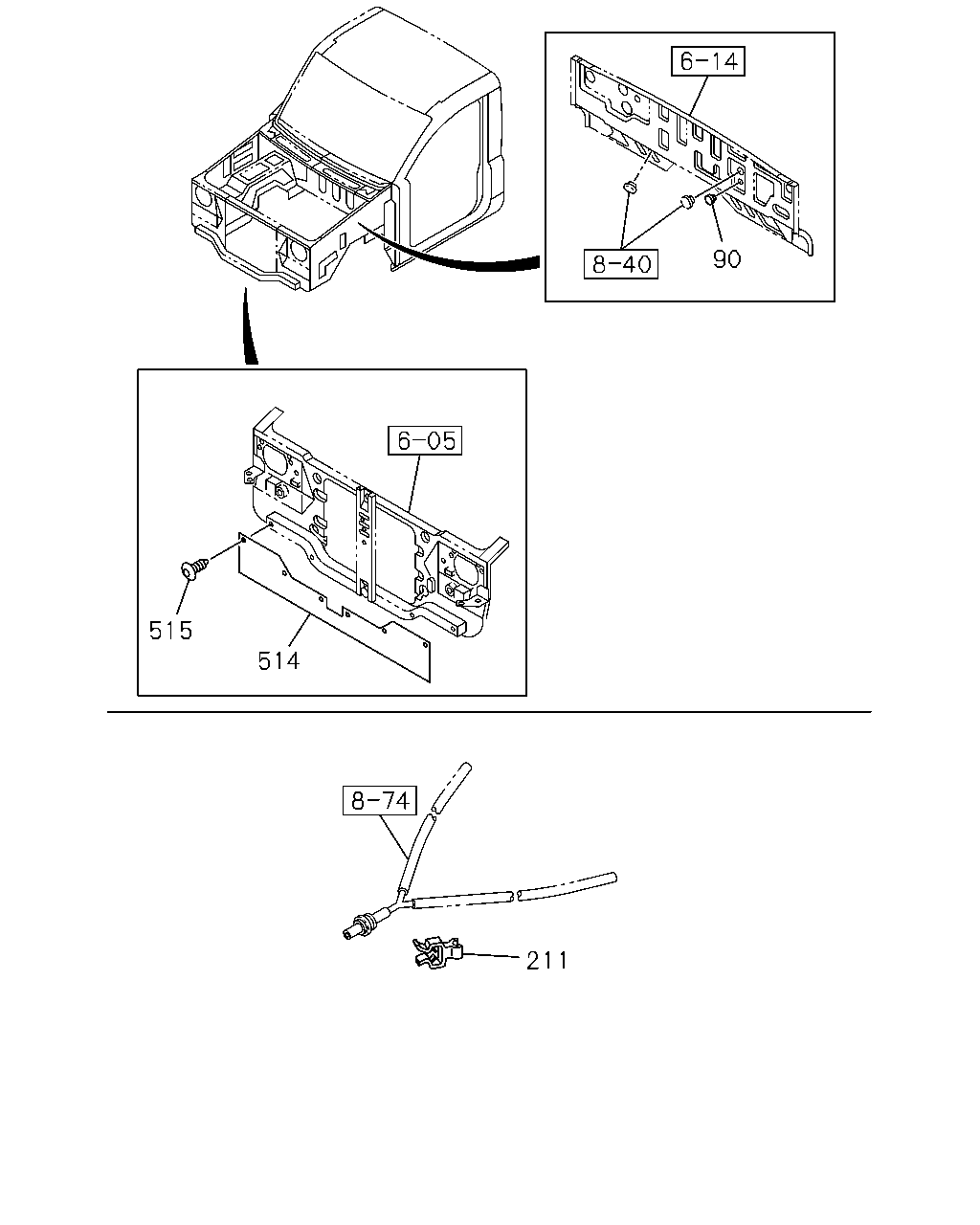

çizim 289400
211 514 515 90
BalonParca AdiParca NoAdetTipApplied Date A B C
90 PLUG; PIPE HOLE
EXC. COOLER WO/HEATER(YL1) IDN 		8-97956-858-0 01 1 0008-0106 ●
90 PLUG; PIPE HOLE
EXC. AIR CONDITIONER ROOF MOUNTED<C69>,COOLER WO/HEATER(YL1) IDN 		8-97956-858-0 01 1 0008-0106 ● ●
90 PLUG; PIPE HOLE
EXC. AIR CONDITIONER ROOF MOUNTED<C69>,COOLER WO/HEATER(YL1) IDN 		8-97956-858-0 01 1 0107- ● ●
211 CLIP; HOSE
A/T AISIN(RMD) AIR CONDITIONER ROOF MOUNTED<C69> 		8-97200-741-0 01 1 0501- ● ●
514 SEAL; AIR GUIDE
M/T MSG 5 SPEED(M75) GRADE TOURING(RBG) COOLER WO/HEATER(YL1) IDN 		8-97959-473-0 01 1 0107-0405 ● ●
514 SEAL; AIR GUIDE
M/T MSG 5 SPEED(M75) AIR CONDITIONER ROOF MOUNTED<C69> CAB UP<W60> IDN 		8-97959-473-0 01 1 0406- ● ●
514 SEAL; AIR GUIDE
M/T MSG 5 SPEED(M75) CAB UP<W60> COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97959-473-0 01 1 0406- ● ●
515 CLIP; AIR GUIDE
M/T MSG 5 SPEED(M75) GRADE TOURING(RBG) COOLER WO/HEATER(YL1) BLACK 		8-94104-935-0 06 1 0107-0405 ● ●
515 CLIP; AIR GUIDE
M/T MSG 5 SPEED(M75) AIR CONDITIONER ROOF MOUNTED<C69> CAB UP<W60> BLACK 		8-94104-935-0 06 1 0406- ● ●
515 CLIP; AIR GUIDE
M/T MSG 5 SPEED(M75) CAB UP<W60> COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> BLACK 		8-94104-935-0 06 1 0406- ● ●

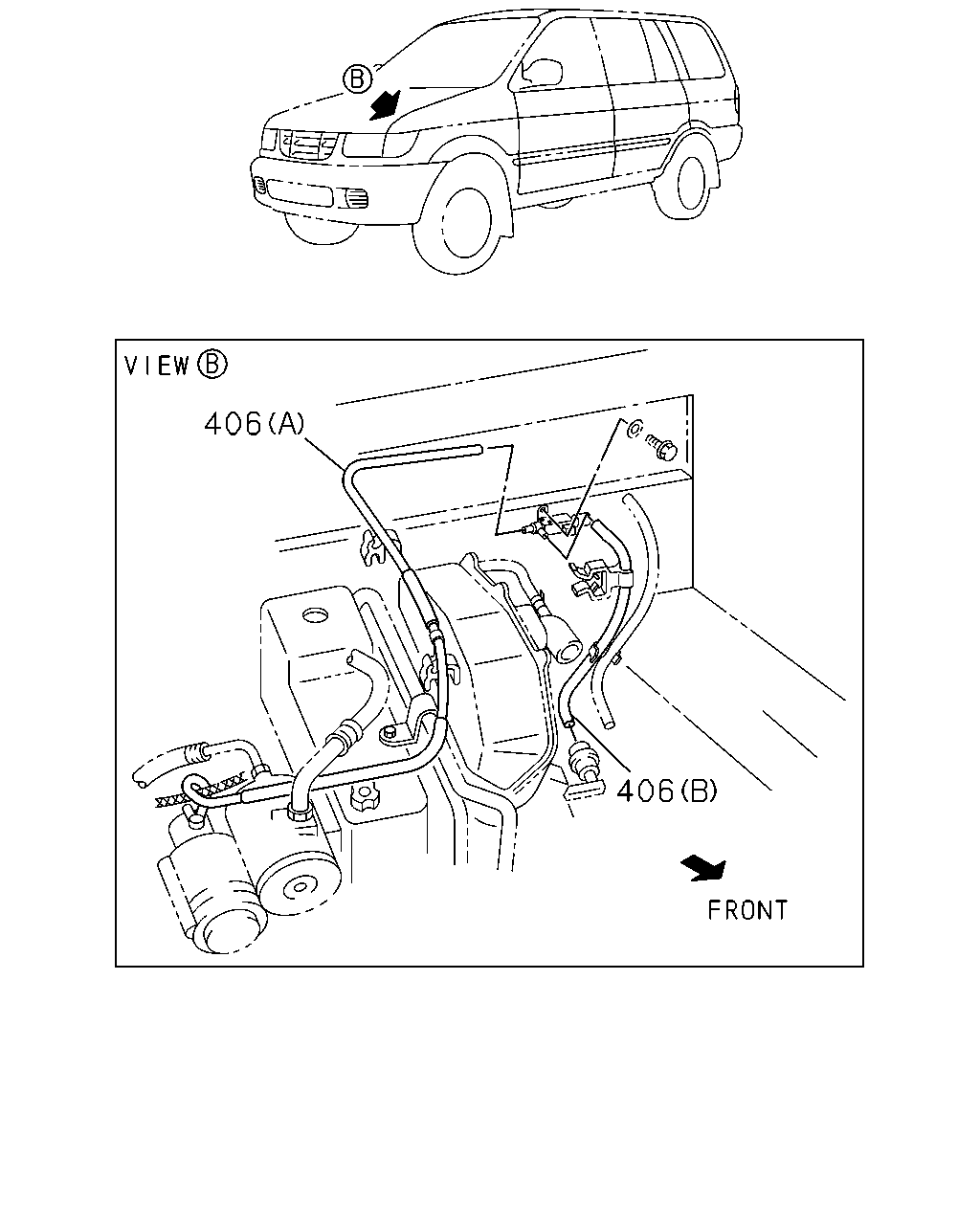

çizim 289880
406 406
BalonParca AdiParca NoAdetTipApplied Date A B C
406 HOSE; FICD
COOLER WO/HEATER(YL1) (A) 		8-97175-719-1 01 1 0008-0106 ● ● ●
406 HOSE; FICD
COOLER WO/HEATER(YL1) (A) 		8-97175-719-1 01 1 0107- ● ●
406 HOSE; FICD
COOLER WO/HEATER(YL1) (B) 		8-97180-421-0 01 1 0008-0106 ● ● ●
406 HOSE; FICD
COOLER WO/HEATER(YL1) (B) 		8-97180-421-0 01 1 0107- ● ●
