8-40 — HEATER SYSTEM (#95407) — 59 parça

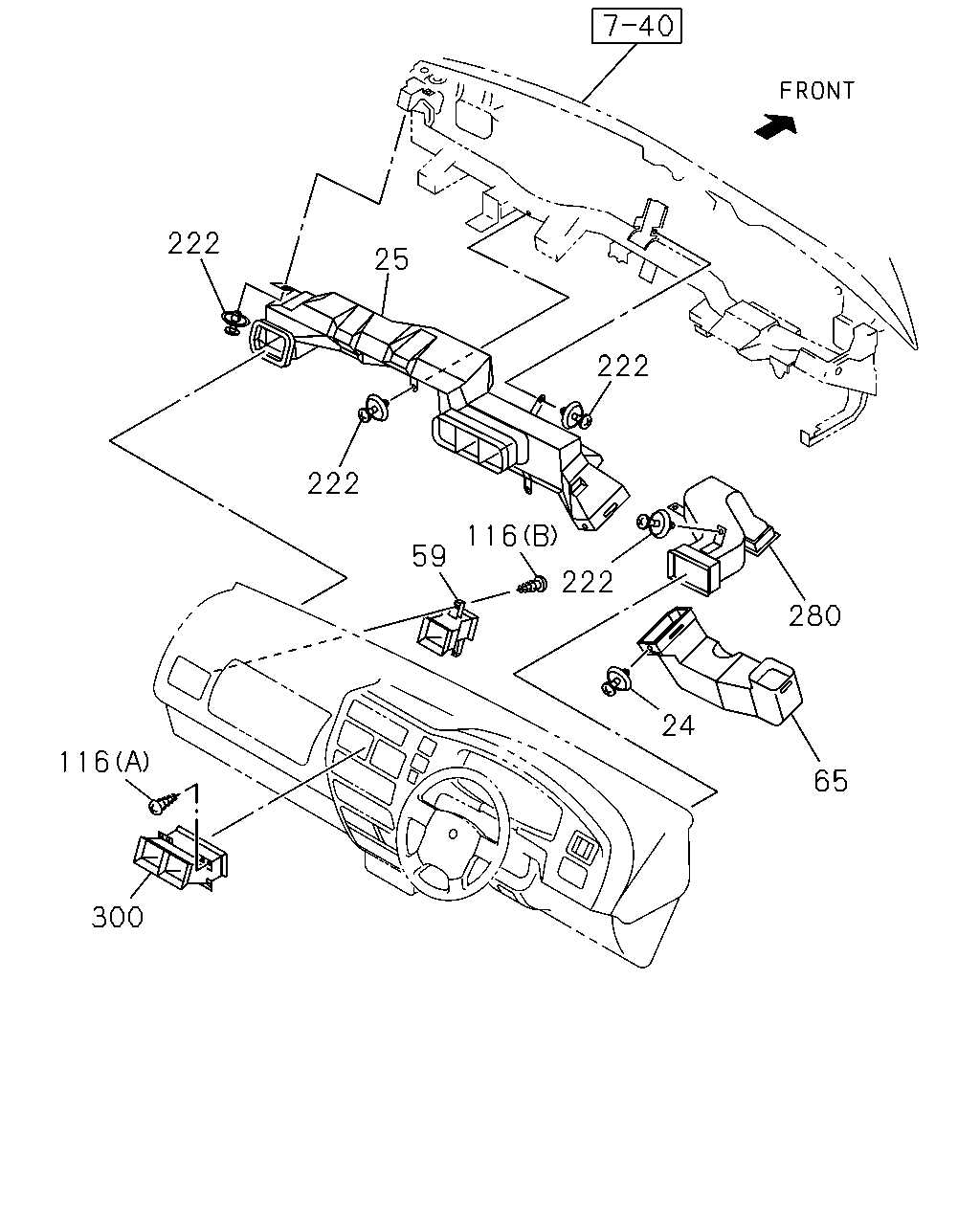

300 116 65 24 280 222 59 116 222 222 25 222

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	SCREW; NOZZLE TO INST PNL COOLER WO/HEATER(YL1)	8-94243-190-0	02	1	0008-0106	●	●	●
24	SCREW; NOZZLE TO INST PNL COOLER WO/HEATER(YL1)	8-94243-190-0	02	1	0107-0112		●	●
24	SCREW; NOZZLE TO INST PNL COOLER WO/HEATER(YL1)	8-97327-315-0	02	1	0201-		●	●
25	DUCT; CENTER COOLER WO/HEATER(YL1) IDN	8-97956-849-2	01	1	0008-0106	●	●	●
25	DUCT; CENTER COOLER WO/HEATER(YL1) IDN	8-97956-849-2	01	1	0107-0209		●	●
25	DUCT; CENTER COOLER WO/HEATER(YL1) IDN	8-97561-382-0	01	1	0210-		●	●
59	DUCT; VENT,ASSIST SIDE COOLER WO/HEATER(YL1)	8-97118-560-1	01	1	0008-0106	●	●	●
59	DUCT; VENT,ASSIST SIDE COOLER WO/HEATER(YL1)	8-97118-560-1	01	1	0107-0209		●	●
65	DUCT; VENT,DRIVER SIDE COOLER WO/HEATER(YL1) IDN	8-97956-851-2	01	1	0008-0106	●	●	●
65	DUCT; VENT,DRIVER SIDE COOLER WO/HEATER(YL1) IDN	8-97956-851-2	01	1	0107-		●	●
116	SCREW; TAP AIR DUCT COOLER WO/HEATER(YL1) (A) M4X16 TAPPING OVAL-HEAD	9-07037-416-0	04	1	0008-0106	●	●	●
116	SCREW; TAP AIR DUCT COOLER WO/HEATER(YL1) (A) M4X16 TAPPING OVAL-HEAD	9-07037-416-0	04	1	0107-		●	●
116	SCREW; TAP AIR DUCT COOLER WO/HEATER(YL1) (B) M5X16 TAPPING	9-09829-323-1	07	1	0008-0106	●	●	●
116	SCREW; TAP AIR DUCT COOLER WO/HEATER(YL1) (B) M5X16 TAPPING	9-09829-323-1	07	1	0107-0209		●	●
116	SCREW; TAP AIR DUCT COOLER WO/HEATER(YL1) (B) M5X16 TAPPING	9-09829-323-1	04	1	0210-		●	●
222	FASTENER; DUCT COOLER WO/HEATER(YL1)	8-94243-190-0	05	1	0008-0106	●	●	●
222	FASTENER; DUCT COOLER WO/HEATER(YL1)	8-94243-190-0	05	1	0107-0112		●	●
222	FASTENER; DUCT COOLER WO/HEATER(YL1)	8-97327-315-0	05	1	0201-		●	●
280	DUCT; VENT,DRIVER SIDE COOLER WO/HEATER(YL1) IDN	8-97956-853-0	01	1	0008-0106	●	●	●
280	DUCT; VENT,DRIVER SIDE COOLER WO/HEATER(YL1) IDN	8-97956-853-0	01	1	0107-0209		●	●
280	DUCT; VENT,DRIVER SIDE COOLER WO/HEATER(YL1) IDN	8-97561-383-0	01	1	0210-		●	●
300	DUCT; VENT,CENTER COOLER WO/HEATER(YL1)	8-97118-559-1	01	1	0008-0106	●	●	●
300	DUCT; VENT,CENTER COOLER WO/HEATER(YL1)	8-97118-559-1	01	1	0107-		●	●

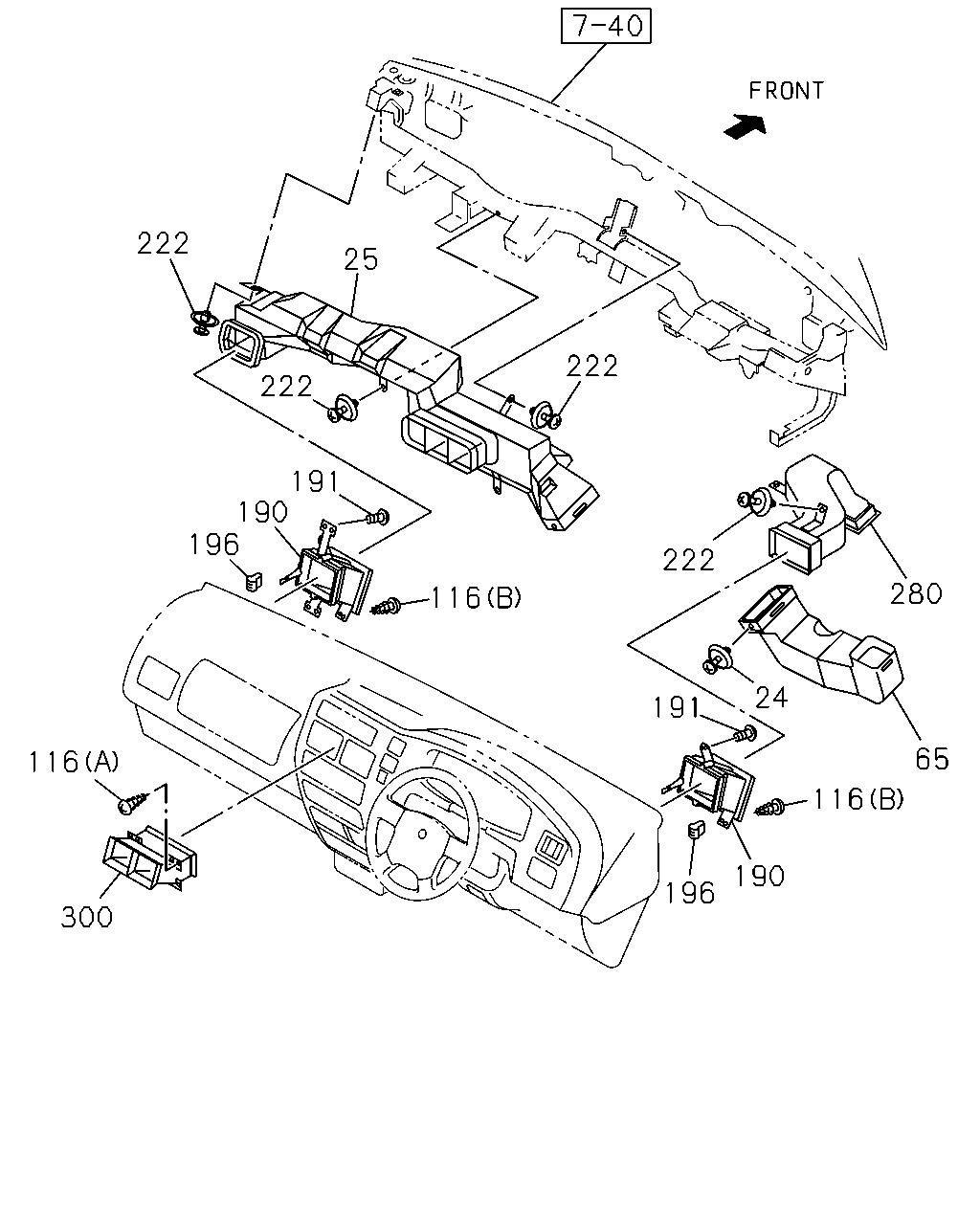

300 116 196 190 116 65 191 24 280 222 116 196 190 191 222 222 25 222

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	SCREW; NOZZLE TO INST PNL COOLER WO/HEATER(YL1)	8-94243-190-0	02	1	0008-0106	●	●	●
24	SCREW; NOZZLE TO INST PNL COOLER WO/HEATER(YL1)	8-94243-190-0	02	1	0107-0112		●	●
24	SCREW; NOZZLE TO INST PNL COOLER WO/HEATER(YL1)	8-97327-315-0	02	1	0201-		●	●
25	DUCT; CENTER COOLER WO/HEATER(YL1) IDN	8-97956-849-2	01	1	0008-0106	●	●	●
25	DUCT; CENTER COOLER WO/HEATER(YL1) IDN	8-97956-849-2	01	1	0107-0209		●	●
25	DUCT; CENTER COOLER WO/HEATER(YL1) IDN	8-97561-382-0	01	1	0210-		●	●
65	DUCT; VENT,DRIVER SIDE COOLER WO/HEATER(YL1) IDN	8-97956-851-2	01	1	0008-0106	●	●	●
65	DUCT; VENT,DRIVER SIDE COOLER WO/HEATER(YL1) IDN	8-97956-851-2	01	1	0107-		●	●
116	SCREW; TAP AIR DUCT COOLER WO/HEATER(YL1) (A) M4X16 TAPPING OVAL-HEAD	9-07037-416-0	04	1	0008-0106	●	●	●
116	SCREW; TAP AIR DUCT COOLER WO/HEATER(YL1) (A) M4X16 TAPPING OVAL-HEAD	9-07037-416-0	04	1	0107-		●	●
116	SCREW; TAP AIR DUCT COOLER WO/HEATER(YL1) (B) M5X16 TAPPING	9-09829-323-1	07	1	0008-0106	●	●	●
116	SCREW; TAP AIR DUCT COOLER WO/HEATER(YL1) (B) M5X16 TAPPING	9-09829-323-1	07	1	0107-0209		●	●
116	SCREW; TAP AIR DUCT COOLER WO/HEATER(YL1) (B) M5X16 TAPPING	9-09829-323-1	04	1	0210-		●	●
190	BOX; VENT,RAM AIR COOLER WO/HEATER(YL1)	8-97145-176-2	01	1	0210-		●	●
190	BOX; VENT,RAM AIR COOLER WO/HEATER(YL1)	8-97145-177-2	01	1	0210-		●	●
191	SCREW; VENT BOX COOLER WO/HEATER(YL1) M5X16 TAPPING	9-09829-323-1	04	1	0210-		●	●
196	KNOB; VENT BOX COOLER WO/HEATER(YL1) BLACK	8-97000-038-0	02	1	0210-		●	●
222	FASTENER; DUCT COOLER WO/HEATER(YL1)	8-94243-190-0	05	1	0008-0106	●	●	●
222	FASTENER; DUCT COOLER WO/HEATER(YL1)	8-94243-190-0	05	1	0107-0112		●	●
222	FASTENER; DUCT COOLER WO/HEATER(YL1)	8-97327-315-0	05	1	0201-		●	●
280	DUCT; VENT,DRIVER SIDE COOLER WO/HEATER(YL1) IDN	8-97956-853-0	01	1	0008-0106	●	●	●
280	DUCT; VENT,DRIVER SIDE COOLER WO/HEATER(YL1) IDN	8-97956-853-0	01	1	0107-0209		●	●
280	DUCT; VENT,DRIVER SIDE COOLER WO/HEATER(YL1) IDN	8-97561-383-0	01	1	0210-		●	●
300	DUCT; VENT,CENTER COOLER WO/HEATER(YL1)	8-97118-559-1	01	1	0008-0106	●	●	●
300	DUCT; VENT,CENTER COOLER WO/HEATER(YL1)	8-97118-559-1	01	1	0107-		●	●

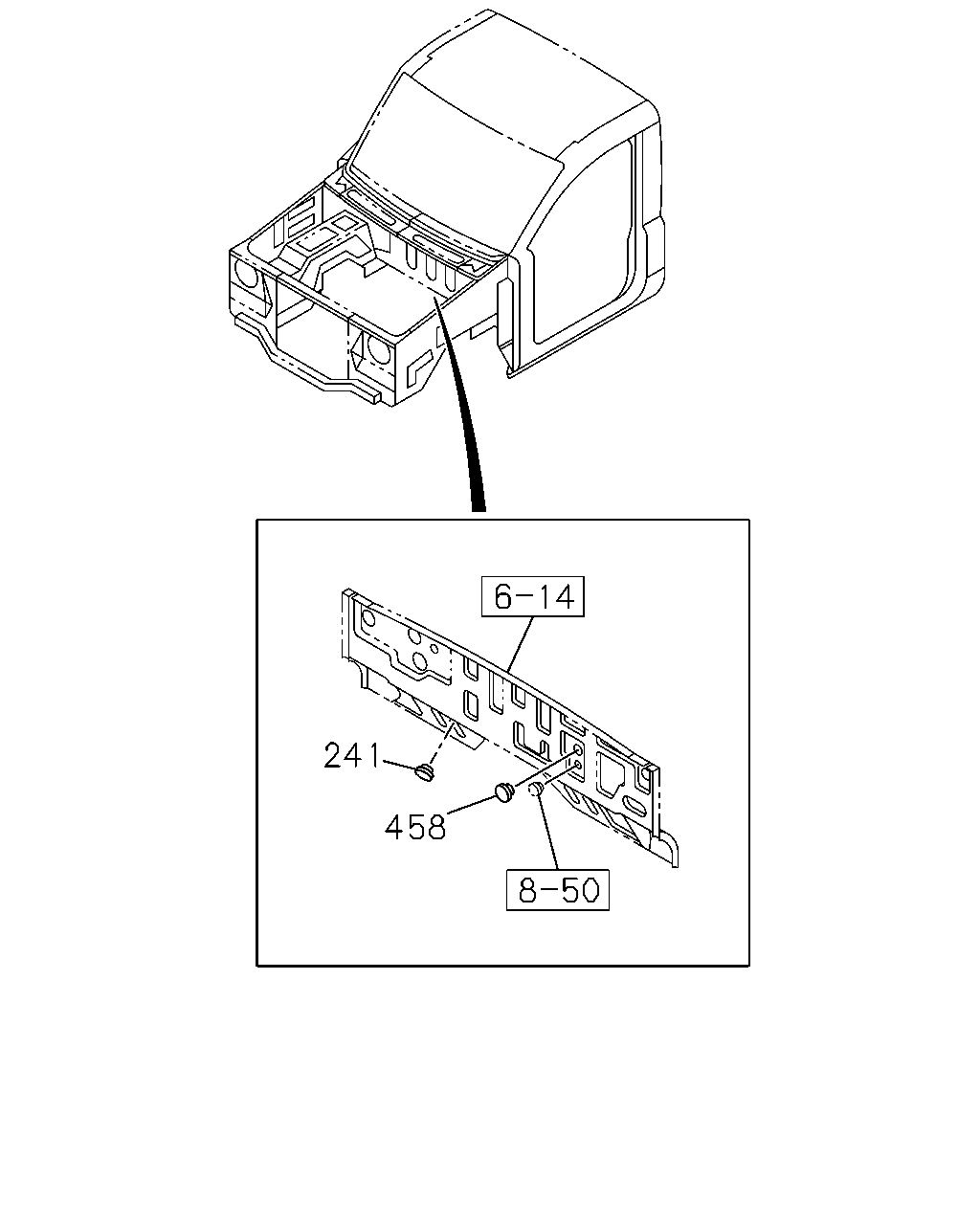

241 458

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
241	PLUG; RUBBER,EVAP DRAIN HOLE EXC. COOLER WO/HEATER(YL1) IDN	8-97956-857-0	01	1	0008-0106	●
241	PLUG; RUBBER,EVAP DRAIN HOLE EXC. AIR CONDITIONER ROOF MOUNTED<C69>,COOLER WO/HEATER(YL1) IDN	8-97956-857-0	01	1	0008-0106		●	●
241	PLUG; RUBBER,EVAP DRAIN HOLE EXC. AIR CONDITIONER ROOF MOUNTED<C69>,COOLER WO/HEATER(YL1) IDN	8-97956-857-0	01	1	0107-		●	●
458	RUBBER; CAP EXC. COOLER WO/HEATER(YL1) IDN	8-97956-856-0	01	1	0008-0106	●
458	RUBBER; CAP EXC. AIR CONDITIONER ROOF MOUNTED<C69>,COOLER WO/HEATER(YL1) IDN	8-97956-856-0	01	1	0008-0106		●	●
458	RUBBER; CAP EXC. AIR CONDITIONER ROOF MOUNTED<C69>,COOLER WO/HEATER(YL1) IDN	8-97956-856-0	01	1	0107-		●	●

368 32 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
32	RELAY; A/C COOLER WO/HEATER(YL1) 12V 20A IDN	8-97173-037-1	01	1	0008-0106	●	●	●
32	RELAY; A/C COOLER WO/HEATER(YL1) 12V 20A IDN	8-97173-037-1	01	1	0107-		●	●
34	RELAY; A/C CUT A/T AISIN(RMD) COOLER WO/HEATER(YL1) 12V 20A IDN	8-97173-037-1	01	1	0008-		●	●
368	RELAY; HEATER AND A/C COOLER WO/HEATER(YL1) 12V 20A	8-97060-926-1	01	1	0008-0106	●	●	●
368	RELAY; HEATER AND A/C COOLER WO/HEATER(YL1) 12V 20A	8-97060-926-1	01	1	0107-		●	●
